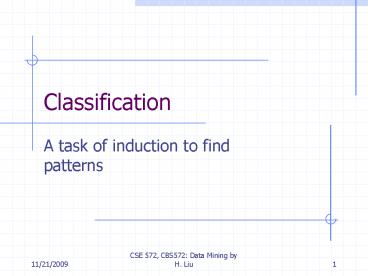

Classification

1
Classification

• A task of induction to find patterns

2
Outline

• Data and its format
• Problem of Classification
• Learning a classifier
• Different approaches
• Key issues

3
Data and its format

• Data
• attribute-value pairs
• with/without class
• Data type
• continuous/discrete
• nominal
• Data format
• Flat
• If not flat, what should we do?

4
Sample data
5
Induction from databases

• Inferring knowledge from data
• The task of deduction
• infer information that is a logical consequence
  of querying a database
• Who conducted this class before?
• Which courses are attended by Mary?
• Deductive databases extending the RDBMS

6
Classification

• It is one type of induction
• data with class labels
• Examples -
• If weather is rainy then no golf
• If
• If

7
Different approaches

• There exist many techniques
• Decision trees
• Neural networks
• K-nearest neighbors
• Naïve Bayesian classifiers
• Support Vector Machines
• Ensemble methods
• Semi-supervised
• and many more ...

8
A decision tree
9
Inducing a decision tree

• There are many possible trees
• lets try it on the golfing data
• How to find the most compact one
• that is consistent with the data?
• Why the most compact?
• Occams razor principle
• Issue of efficiency w.r.t. optimality

10
Information gain
and

• Entropy -
• Information gain - the difference between the
  node before and after splitting

11
Building a compact tree

• The key to building a decision tree - which
  attribute to choose in order to branch.
• The heuristic is to choose the attribute with the
  maximum IG.
• Another explanation is to reduce uncertainty as
  much as possible.

12
Learn a decision tree
Outlook
sunny
overcast
rain
Humidity
Wind
YES
high
normal
strong
weak
NO
YES
NO
YES
13
Issues of Decision Trees

• Number of values of an attribute
• Your solution?
• When to stop
• Data fragmentation problem
• Any solution?
• Mixed data types
• Scalability

14
Rules and Tree stumps

• Generating rules from decision trees
• One path is a rule
• We can do better. Why?
• Tree stumps and 1R
• For each attribute value, determine a default
  class (of values of rules)
• Calculate the of errors for each rule
• Find of errors for that attributes rule set
• Choose one rule set that has the least of errors

15
K-Nearest Neighbor

• One of the most intuitive classification
  algorithm
• An unseen instances class is determined by its
  nearest neighbor
• The problem is it is sensitive to noise
• Instead of using one neighbor, we can use k
  neighbors

16
K-NN

• New problems
• How large should k be
• lazy learning does it learn?
• large storage
• A toy example (noise, majority)
• How good is k-NN?
• How to compare
• Speed
• Accuracy

17
Naïve Bayes Classifier

• This is a direct application of Bayes rule
• P(CX) P(XC)P(C)/P(X)
• X - a vector of x1,x2,,xn
• Thats the best classifier we can build
• But, there are problems
• There are only a limited number of instances
• How to estimate P(xC)
• Your suggestions?

18
NBC (2)

• Assume conditional independence between xis
• We have
• P(Cx) P(x1C) P(xiC) (xnC)P(C)
• Whats missing? Is it really correct?
• An example
• How good is it in reality?

19
No Free Lunch

• If the goal is to obtain good generalization
  performance, there are no context-independent or
  usage-independent reasons to favor one learning
  or classification method over another.
• http//en.wikipedia.org/wiki/No-Free-Lunch_theorem
  s
• What does it indicate?
• Or is it easy to choose a good classifier for
  your application?
• Again, there is no off-the-shelf solution for a
  reasonably challenging application.

20
Ensemble Methods

• Motivation
• Stability
• Model generation
• Bagging (Bootstrap Aggregating)
• Boosting
• Model combination
• Majority voting
• Meta learning
• Stacking (using different types of classifiers)
• Examples (classify-ensemble.ppt)

21
AdaBoost.M1 (from Weka Book)
Model generation

• Assign equal weight to each training instance
• For t iterations
• Apply learning algorithm to weighted dataset,
• store resulting model
• Compute models error e on weighted dataset
• If e 0 or e gt 0.5
• Terminate model generation
• For each instance in dataset
• If classified correctly by model
• Multiply instances weight by e/(1-e)
• Normalize weight of all instances

Classification
Assign weight 0 to all classes For each of the
t models (or fewer) For the class this model
predicts add log e/(1-e) to this classs
weight Return class with highest weight
22
Using many different classifiers

• We have learned some basic and often used
  classifiers
• There are many more out there.
• Regression
• Discriminant analysis
• Neural networks
• Support vector machines
• Pick the most suitable one for an application
• Where to find all these classifiers?
• Dont reinvent the wheel that is not as round
• We will likely come back to classification and
  discuss support vector machines as requested

23
Assignment 3

• Pick one of your favorite software package (feel
  free to use any at your disposal, as we discussed
  in class)
• Use the mushroom dataset found at UC Irvine
  Machine Learning Repository
• Run a decision tree induction algorithm to get
  the following
• Use resubstituion error to measure
• Use 10-fold cross validation to measure
• Show the confusion matrix for the above two error
  measures
• Summarize and report your observations and
  conjectures if any
• Submit a hardcopy report on Wednesday 3/1/06

24
Classification via Neural Networks
Squash
?
A perceptron
25
What can a perceptron do?

• Neuron as a computing device
• To separate a linearly separable points
• Nice things about a perceptron
• distributed representation
• local learning
• weight adjusting

26
Linear threshold unit

• Basic concepts projection, thresholding

W vectors evoke 1
W .11 .6
L .7 .7
.5
27
E.g. 1 solution region for AND problem

• Find a weight vector that satisfies all the
  constraints

AND problem 0 0 0 0 1 0 1 0 0 1
1 1
28
E.g. 2 Solution region for XOR problem?
XOR problem 0 0 0 0 1 1 1 0 1 1
1 0
29
Learning by error reduction

• Perceptron learning algorithm
• If the activation level of the output unit is 1
  when it should be 0, reduce the weight on the
  link to the ith input unit by rLi, where Li is
  the ith input value and r a learning rate
• If the activation level of the output unit is 0
  when it should be 1, increase the weight on the
  link to the ith input unit by rLi
• Otherwise, do nothing

30
Multi-layer perceptrons

• Using the chain rule, we can back-propagate the
  errors for a multi-layer perceptrons.

Output layer
Hidden layer
Input layer
