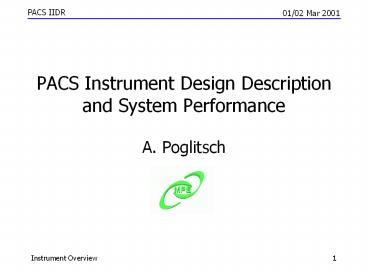

PACS Instrument Design Description and System Performance

1
PACS Instrument Design Description and System
Performance

• A. Poglitsch

2
Science Requirements

• Summarized in PACS Science Requirements Document
• Main scientific drivers
• Investigations of the distant universe galaxy
  formation and evolution - history of star
  formation and nuclear activity
• Studies of star formation and the origin of the
  Initial Mass Function in our own Galaxy
• Physics and chemistry of the interstellar medium,
  Galactic and extragalactic
• Giant planets and the history of the Solar System
• Required observing capabilities
• Imaging photometry in 3 bands in the 60 - 210µm
  range with requirements on sensitivity per
  detector and field of view
• Imaging line spectroscopy in the 60 - 210µm
  (goal 55 - 210µm) range with requirements on
  sensitivity per detector, spectral resolution and
  instantaneous bandwidth, and field of view

3
Instrument Requirements

• Summarized in PACS Instrument Requirements
  Document
• High-level requirements on design, performance,
  and operation of PACS instrument
• Two basic instrument modes/channels
• Imaging photometry
• Imaging line spectroscopy
• Optimization / trade-off for prime science
  objectives
• definition of requirements which enable minimum
  mission
• definition of goals which enhance the performance
  to strengthen the science of the mission
• Minimization of risk and complexity

4
Photometer Requirements

• Photometric bands with relative bandwidth Dl/llt2
• Field of view and pixel scale
• note equal f.o.v. in both bands is nearly a
  requirement
• Image quality
• blur telescope limited distortion 1 pixel
  alignment lt1/3 pixel

5
Photometer Requirements

• Sensitivity (point source detection)
• requirement 5 mJy (5s), 1h of integration
• goal 3 mJy (5s), 1h of integration
• Dynamic range
• detection from 3 mJy to gt1000 Jy (goal 3000 Jy)
• contrast of up to 1500 in one field
• Post-detection bandwidth
• requirement 0.5 - 5 Hz
• goal 0.05 - 5 Hz
• Observing modes
• pointed observations (fixed, raster) with
  chopping/nodding
• line scans without chopping
• line scans with chopping (fixed throw)

6
Photometer Requirements

• Calibration and photometric accuracy

7
Spectrometer Requirements

• Spectral coverage
• 57 - 210µm
• goal continuous, no gaps
• Resolving power
• R 1000 - 2000
• Instantaneous bandwidth
• Dv 1000 - 2000 km/s
• Field of view and pixel scale
• 5 x 5 pixels
• 9x9 10 pixel scale
• Image Quality
• blur telescope limited distortion 1 pixel
  alignment lt1/4 pixel

8
Spectrometer Requirements

• Sensitivity (point source detection)
• requirement 3x10-18 W/Hz1/2 (5s), 1h of
  integration
• goal 2x10-18 W/Hz1/2 (5s), 1h of
  integration
• Dynamic range
• detection from 1x10-18 W to gt10-13 W
• contrast of up to 1100 (t.b.c.) in one field
• Post-detection bandwidth
• requirement 5 Hz
• goal 10 Hz
• Observing modes
• line spectroscopy (line baseline/continuum)
• chopped
• unchopped, with frequency switching
• range spectroscopy (scan of arbitrary wavelength
  range) chopped

9
Spectrometer Requirements

• Calibration and photometric accuracy
• Spectrometer implementation
• integral-field grating spectrometer
• photoconductive detectors
• only concept which can fulfill all requirements

10
Instrument Concept

• Imaging photometry
• two bands simultaneously (60-90 or 90-130 µm and
  130-210 µm) with dichroic beam splitter
• two filled bolometer arrays (32x16 and 64x32
  pixels)
• point source detection limit 3 mJy (5s, 1h)
• Integral field line spectroscopy
• range 57 - 210 µm with 5x5 pixels, image slicer,
  and long-slit grating spectrograph (R 1500)
• two 16x25 GeGa photoconductor arrays
  (stressed/unstressed)
• point source detection limit 28 x 10-18 W/m2
  (5s, 1h)

Focal Plane Footprint
11
Definition of the FOV for the Photometer
Physical pixel size 0.75 x 0.75 mm2
12
Definition of the FOV for the Spectrometer
47
sampling
13
PACS Design Focal Plane Footprint
14
FPU Functional Groups

• Common input optics
• filter, focal plane splitter
• chopper (observation/calibration)
• calibration sources
• Photometer optical train
• dichroic beam splitter
• separate re-imaging optics for
• short-wavelength bands (60-90/90-130µm)
• long-wavelength band (130-210µm)
• Spectrometer optical train
• image slicer unit for integral-field spectroscopy
• anamorphic collimator
• Littrow-mounted grating with actuator/position
  readout

15
FPU Functional Groups (cont.)

• dichroic beam splitter for order separation
• anamorphic re-imaging optics to independently
  match spatial and spectral resolution to pixel
  scale
• Photoconductor arrays (2 long/short wavelength)
• detectors with fore optics
• cryogenic readout electronics
• Bolometer arrays (2 long/short wavelength)
• bolometer assemblies with readout electronics
• common 0.3K cooler
• Band selectors
• filters exchange mechanism (photometer bands)
• filters exchange mechanism (grating orders)

16
FPU Layout
Photometer Optics
Filter Wheel I
Slicer Optics
Blue Bolometer
0.3 K Cooler
Red Bolometer
Grating
Grating Drive
Encoder
sGeGaDetector Red Spectrometer
Spectrometer Optics
Chopper
Calibrator I and II
sGeGa Detector Blue Spectrometer
Calibrator Optics
Entrance Optics
Filter Wheel II
17
Optical Performance

• Optical design fulfills requirements regarding
• field of view
• spatial sampling
• distortion
• geometrical spot sizes (Strehl ratio)
• alignment
• internal calibration capability
• chopping
• spectral coverage and resolution
• transmission / diffraction losses

18
PACS GeGa Photoconductor Arrays
16 pixel stressed detector module

• 16x25 pixel filled arrays
• 25 linear modules
• integrated cryogenic readout electronics

Feed optics light cone array
19
PACS Photoconductor Modules

• GeGa photoconductors
• unstressed 40 - 120µm
• stressed 110 - 210µm
• quantum efficiency gt 30 confirmed through
  independent measurement

20
PACS Cryogenic Readout Electronics
In

• Capacitive feedback transimpedance amplifier
  (CTIA) for each pixel, based on AC-coupled
  inverter stage in silicon CMOS technology
• 16 CTIAs multiplexed on each CRE chip for each
  linear detector module
• CRE chips integrated in detector modules
• Amplifier noise compatible with
  background-limited performance in spectroscopy
• Technical feasibility demonstrated

Cf
Out
-A
CAC
CTIA architecture
Sync
Detectors
CA2
CA18
CA1
Reset
Sample
Analog Bus
Switch Control Logic
Clock
18-Bit Shift Register
21
PACS Short-Wave Bolometer Array Assembly
2 K buffer amplifiers
(bottom view)
16 x 16 sub-array
Support 300 mK filter
Mechanical interface
Ribbon cable 300 mK
Strap 300 mK
(top view)
22
Bolometer Arrays 16x16 Subarray Demonstrator
will be integrated in the interconnection circuit
in next models
I/C 1 Multiplexer
I/C 2 MOS Followers
Pixel
Interconnection circuit with reflectors
23
Bolometer Arrays Pixel
pixel architecture
PACS short-wave bolometer pixel efficiency
(calculated)
24
Bolometer Readout Performance
25
PACS Grating

• Diamond ruled reflection grating
• Optical size 320 x 80 mm
• Used in 1st, 2nd, and 3rd order, angle range 48
  20
• 1st order (red detector) 210 - 105 µm
• 2nd order (blue detector) 105 - 72 µm
• 3rd order (blue detector) 72 - 55 µm
• Groove profile optimized for highest efficiency
  over all 3 orders using PCgrate full EM-code
• Cryogenic torquer motor drive
• Inductosyn angular resolver

Grating efficiency (above) and resolution (below)
26
PACS Chopper

• The technical feasibility of the PACS focal
  plane chopper has been shown
• Critical components (pivots, motor, sensor)
  have been predeveloped
• An experimentally verified simulation model
  was established, providing input data for
  optimization and allowing for precise
  chopper control

27
Filters/Dichroics

• Used for definition of photometric bands
  (photometer) and for selection of grating orders
  (spectrometer)
• Low-pass, high-pass, band-pass filters and
  dichroic beam splitters in multi-layer mesh
  technology
• Provided through contract with QMW as part of
  SPIRE/PACS technology exchange agreement
• Delivered filters fulfill or exceed transmission
  requirements

• Manufacturing process
• Air/vacuum gap filters use annular metal spacers
• Hot pressed polypropylene filters use dielectric
  spacers

28
Instrument Units and Subsystem Responsibilities
29
Observing Modes

• Observing modes are combinations of instrument
  modes and satellite pointing modes
• Instrument modes
• dual-band photometry
• single-band photometry
• line spectroscopy
• range spectroscopy
• Pointing modes
• stare/raster/line scan
• with/without nodding

30
Dual-Band Photometry

• Both arrays operating
• full spatial sampling in each band
• long-wave array imaging 130-210 µm band
• short-wave array imaging 60-90 or 90-130 µm band
• sub-band selected by filter
• Raw data rate 1.6 Mbit/s (4 times oversampled)
• Standard mode for PACS as prime
  instrument,preferred mode for PACS/SPIRE
  parallel mode
• Observing parameters
• chopper mode (off/on waveform, throw)
• pointing parameters (stare/raster/scannod)
• integration time per pointing

31
Single-Band Photometry

• One array operating
• long-wave array imaging 130-210 µm bandor
• short-wave array imaging 60-90 or 90-130 µm band
• Raw data rate 0.3 or 1.3 Mbit/s
• Test mode for PACS as prime instrument
• Fall-back mode for PACS/SPIRE parallel mode
• Observing parameters
• chopper mode (off/on waveform, throw)
• pointing parameters (stare/raster/scannod)
• integration time per pointing

32
Line Spectroscopy

• One or two arrays operating
• observation of individual lines
• long-wave array in 105 -210 µm band
• short-wave array in 57-72 or 72-105 µm band
• wavelength in primary band determines wavelength
  in secondary band
• Max. raw data rate 1 or 2 x 1.8Mbit/s
• Observing parameters
• scan width (default 0)
• chopper mode (off/on waveform, throw)
• pointing parameters (stare/raster/scannod)
• integration time per pointing

33
Range Spectroscopy

• Two arrays operating
• observation of extended wavelength ranges
• continuous scan (full resolution) or steps (SED
  sampling)
• long-wave array in 105-210 µm band
• short-wave array in 57-72 or 72-105 µm band
• Max. raw data rate 2 x 1.8Mbit/s
• Observing parameters
• start- and end wavelength
• resolution mode
• chopper mode (off/on waveform, throw)
• pointing parameters (stare/raster/scannod)
• integration time per pointing

34
Parameters of PACS Instrument Model(Present Best
Estimate)
(a) Values for the photometry modes from 60-90 or
90-130 µm / 130-210 µm, respectively. (b) The
formal transmission of gt1 takes into account the
acceptance solid angle of the
photoconductor light cones / bolometer baffles
which differs from the beam solid angle.
35
Background, NEP, Spectroscopic and Photometric
Sensitivity

• Performance requirements (or even goals) met
