Title: Desktop Computer Hardware and Software


1

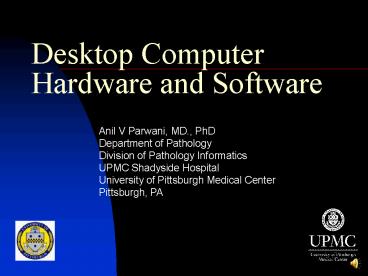

Desktop Computer Hardware and Software
Anil V Parwani, MD., PhD Department of
Pathology Division of Pathology Informatics UPMC
Shadyside Hospital University of Pittsburgh
Medical Center Pittsburgh, PA
2
Objectives
  •  An explanation of the elements of desktop
    computer specifications, including different
    types of memory chips, and peripheral interfaces
    (serial and parallel),
  • A discussion of operating system architecture,
    executable vs non-executable software.
  • Review basic hardware concepts

3
HARDWARE AND SOFTWARE CHOICES!
  • Pathologists rely on computers
  • Instrumentation
  • Laboratory information systems
  • Electronic sign-out
  • Telepathology
  • Communication
  • Pathologists make decisions
  • What to buy
  • How much to spend
  • What is required

4
Basics
Computer
Monitor
(cable clutter)
Keyboard
Mouse
5
Tower Configuration
6
Monitor
  • CRT (Cathode Ray Tube)like a TV
  • Great color large/heavy
  • LCD (Liquid Crystal Display)like a laptop
  • Small light sharp getting very cheap
  • Resolution
  • Diagonal size (17 monitor, etc.)
  • Pixels (1024 x 768 1200 x 800)

7
CRT
8
LCD
9
BASIC Computer Components
  • CPU/motherboard
  • Memory (RAM)
  • Storage (Hard disks)
  • Optical disc drives (DVD/CD-ROM/burners)
  • Other stuff (power supply cooling)

10
(No Transcript)
11
(No Transcript)
12
Overview of Microcomputer Architecture
13
Microprocessors
  • Intel (Pentium, Celeron) AMD (Athlon, Turion),
    (IBM) PowerPC
  • Integrated circuit with millions of transistors
  • Executes program commands and math functions
  • Features
  • Clock speed (MHz)
  • The higher the number, the faster the processor
    is..
  • "Efficiency" (design)
  • Power consumption (heat)
  • 32 bit vs 64 bit

14
Central Processing Unit
  • The brainexecutes instructions
  • Usually major determinant of a computers worth
  • 2 big vendors (Intel and AMD)
  • Attributes
  • Speed (gigahertz)
  • Core (Pentium 4 CoreDuo Celeron)
  • Memory (cache, called L1 or L2)
  • Data bus width (32bit vs. 64bit)
  • Cost

15
DATA BASE WIDTH AND WORD SIZE
  • Data bus is a series of parallel wires, connects
    the internal components of the microprocessor.
  • Bus is a pathway for the electronic impulses
    that form bytes.
  • The more lanes this highway, the faster data can
    travel
  • Data bus width is measured in bits (8, 16, 32,
    64)
  • The maximum number of bits the CPU can process at
    once is its word size.
  • The word size of the CPU is important because it
    determines which operating system the CPU can use
    and which software can be run.

16
(No Transcript)
17
OPERATING SYSTEMS AND WORD SIZE OPERATING
SYSTEM WORD SIZE
Windows 95/98/NT/2000/XP 32 bits Windows XP
64-Bit Edition 2003 64 bits Linux 64 bits Mac
OS X 128 bits Windows Vista 32 bits/64 bits
18
30 years ago, Intels cofounder, Mr. Gordon
Moore, predicted that the computer processing
power could be doubled every 18-24 months. This
is measured by doubling the transistor counts in
a microprocessor, the brain of a computer. This
prediction is now known as Moores Law
19
Motherboard
  • Aka--Main board
  • This is a large circuit board containing the
    computers CPU, support chips, RAM and connecting
    internal components
  • Several varieties available for each CPU type
  • Chipsets
  • Expansion slots
  • USB ports firewire size included
    graphics/sound
  • RAM Speed, CPU Speed

20
Motherboard
  • Main board connecting internal components
  • Socket CPU mount
  • RAM memory
  • AGP high performance video
  • Card slots
  • Battery for persistent RAM
  • BIOS basic input-output system
  • Permanent memory
  • Initial startup and management of communication
    between components

21
(No Transcript)
22
(No Transcript)
23
Connectors
Keyboard Mouse Serial port Monitor Print
er (parallel) port Phone line (modem) USB
(4) Firewire Ethernet Microphone Audio in
and out
24
Graphics Cards
  • Secondary CPU (GPU) with its own RAM
  • Special high-throughput slot
  • AGP or PCI-Express
  • Permits 3D rendering and/or multiple displays
  • Sometimes included on motherboard
  • Business PCs Laptops cheap PCs

25
(No Transcript)
26
Graphics
  • 3 major vendors Intel, ATI, and nVidia
  • Intel does integrated (motherboards)
  • For add-on cards, prices up to 600
  • Easy upgrade (along with RAM and HDD)
  • Can make a big difference for games

VGA Output
DVI Output
27
Memory
  • Memory (RAM) versus Storage (Hard Disk Drive or
    HDD)
  • RAM only while the computer is running
  • RAM is fastest but also volatile
  • HDD persistent
  • HDD can be put into the basement or FedExd
  • Slower but persistent and very high capacity
  • Several types of RAM
  • Cache system RAM flashRAM

28
Cache
  • A temporary storage area for frequently-accessed
    or recently-accessed data.
  • Having certain data stored in a cache speeds up
    the operation of the computer.
  • There are two kinds of cache internal (or memory
    cache) and external (or disk cache).
  • Internal cache is built into the processor, and
    external cache is on the motherboard.
  • When an item is called for, the computer first
    checks the internal cache, then the external
    cache, and finally the slower main storage.

29
Random Access Memory (RAM)
  • Primary storage for programs and data in use,
    measured in megabytes
  • Very fast, connected to CPU by main ("front
    side") bus
  • Volatile (contents lost when power is turned off)
  • Common functional types
  • SRAM static RAM, stable as long as power is on
  • DRAM dynamic RAM, requires refreshing but small
    and cheap
  • SDRAM synchronous DRAM (performance advantages)
  • Others
  • Physical layout
  • SIMM single inline memory module
  • DIMM dual inline memory module (pins are
    different on each side of the chip)

30
RAM
31
Hard Disk Drives
  • Currently a bottleneck for most systems
  • Slowest link in the chain
  • Still getting cheaper with ever-increasing sizes
  • Speed also getting better
  • Refer to this as storage, not as memory

32
(No Transcript)
33
Flash RAM
  • This is special RAM that acts like an HDD
  • It is RAM, but it stays put (ie non-volatile)
  • No moving parts

34
(No Transcript)
35
Units of RAM and Storage
  • Engineer (and Windows)
  • 1 byte 8 bits (1 bit is a single 0 or 1)
  • 1 kilobyte 1024 bytes (or 210 bytes)
  • 1 megabyte 1024 KB (aka 220 bytes)
  • 1 gigabyte 1024 MB (230 bytes)
  • Marketing Person (and general public)
  • 1 kilobyte 1000 bytes
  • 1 megabyte 1,000,000 bytes
  • 1 gigabyte 1,000,000,000 bytes

36
Optical Disc Drives
  • CD and DVD burners
  • Numerous media
  • Know the difference between R and RW
  • CD-RW vs. CD-R DVD-R (or DVDR) vs DVD-RW (or
    DVDRW)
  • Re-writable media is obsolete (avoid it)
  • Useful for backup

37
Peripherals
  • Printers
  • Scanners
  • Digital Cameras (maybe)
  • Other stuff
  • Game controllers Bar code scanners WebCams
    etc.
  • USB and Firewire 99 of them

38
Networking Hardware
  • NIC
  • Hubs/Switches
  • Routers
  • Wireless
  • Firewall

39
Cables
40
Network Hubs
  • Small 10/100 baseT
  • Inexpensive
  • Easy to set up
  • Small wireless
  • Inexpensive, limited range
  • Require wireless cards in computers
  • Security issues to consider
  • Enterprise 10/100 baseT
  • One or more per building floor
  • Remote administration

41
Computer Types (PC)
  • Desktop PC (Personal Computer)
  • IBM PC (1981) gt Wintel
  • Apple II series (1977) gt Macintosh
  • Inexpensive easy to use etc.
  • Now a commodity item
  • Homogenous good traded mainly on price

42
Current Minimums
  • 1 GB RAM
  • 100 GB Hard Drive
  • Built-in network adapter
  • All other variables (CPU, display, etc.) are
    probably acceptable.

43
Industrial Strength Computer (Server)
  • Optimized for specific purpose
  • Centrally stored data (patient data images)
  • Web pages (web server)
  • Managing all printers for a department (print
    server)
  • Support multiple simultaneous users
  • Security
  • High availability
  • Redundant parts (disks power supplies etc.)
  • Hot-swap parts replacement (dont turn it off)
  • Snappy support from vendor (not cheap)

44
Servers
  • CPU demands different from desktop PC
  • Parallelismmultiple CPUs with large cache
  • Lots of I/Oseveral hard drives permit redundancy
    (RAID)
  • 24/7 operation versus repeated on/off
  • Server hardware is much more expensive than
    consumer-grade PC hardware

45
Low End Server
(almost looks like a regular desktop PC)
46
Rack Server
  • (each rack-mounted unit is a complete computer)
  • Rack system dates back to telephone industry
  • Width is fixed but height can vary

47
Blade Servers
  • Each blade is an incomplete computer
  • The enclosure provides power, etc.

48
Laptops/Notebooks
  • Small and light
  • Low power consumption
  • Sturdy
  • Secure

49
SOFTWARE
50
Operating System
  • Does all the dirty work
  • Interacts with Hardware
  • Memory CPU storage
  • Drivers for interaction with peripherals
  • Presents consistent environment to user
  • Windows programs all similar look/feel
  • Versus Macintosh (one mouse button!)
  • or Linux

51
(No Transcript)
52
(No Transcript)
53
Operating System and Files
  • Chunk of related information is a file
  • Data file (image Word document PDF article)
  • Application file (set of instructions)
  • Graphical interface permits interaction with
    files (ie skipping the application layer)
  • windows (to view files) folders (to hold
    collections of related files)
  • View, organize, copy, delete, move, etc.

54
Files
  • Files are stored on a hard disk or DVD/CD
  • OS interacts with hardware
  • OS permits interaction with files
  • Graphical metaphor (windows clicking and
    dragging)
  • Text interface (command-line you type commands)
  • OS can automatically start application if user
    wants to open a data file

55
Applications
  • Collection of instructions a program
  • A file that can do something
  • Office productivity software (word, PPT)
  • CoPath
  • Web browser (Internet Explorer Firefox)
  • Some start automatically (anti-virus program)

56
Pathologist Applications
  • LIS (CP and/or AP)
  • EMR/HIS/PACS (hospital chart radiology)
  • Office productivity (Word Powerpoint)
  • Email
  • Web browser (possibly in combination with above)
  • Imaging
  • Telepathology

57
Laboratory Information System Software
  • Pathologist workflow (signout grossing QA)
  • Patient information
  • Surgeon demographics gross description
    diagnosis
  • Case images
  • Keywords for searching (Snomed Codes)
  • Exchange patient info with other systems
  • Reporting (print/fax)
  • Billing

58
Old Style (pre-1999ish)
  • Mainframe/terminal architecture
  • Powerful mainframe supports access by multiple
    simultaneous users
  • Terminals are keyboard/monitor without a box
    (directly hooked up to the mainframe via the
    network )
  • All intelligence (computing) occurs in a central
    computer (thats why terminals are dumb)
  • Text-based

59
Terminal System
Multiple Dumb Terminals
Terminal Server (mainframe computer)
Every keystroke sent to mainframe (like 1
computer box with multiple keyboard/monitor sets)
PC with terminal emulator
60
Terminal Text Interface
61
Terminal Setup
  • Pros
  • Workstations are cheap and simple and identical
    (easy to support)
  • All software is in the computer room
  • Easily updated or changed
  • Cons
  • Limited to text interface
  • Expensive
  • Not redundant (ie central vulnerability for
    failure)

62
Client-Server Architecture
  • Client is more than a dumb terminal
  • Examplethe Web
  • Client software Internet Explorer
  • Server serves web pages to client upon request

63
Client Server
Requests sent
Data/info returned
Clients
Servers (may be multiple)
64
Client Server
  • Clients are regular desktop PCs (cheap)
  • Servers are cheaper than mainframe type computers
    (usually)
  • Can more cheaply/easily use multiple servers that
    work together
  • Permits GUI (like a web page)

65
Fat Client (Thick Client)
  • Client software is robust/complex
  • CoPath Plus
  • Google Earth
  • Yahoo/MSN/AIM messenger
  • Web browser
  • Full featured clients but may cause issues
  • Updates
  • Complexity vulnerability for failure
  • Dependent on client computer
  • May not work quickly/well

66
Thick Client
Clients are complex and must be maintained
Requests sent
Data/info returned
Server
Lots of information is exchanged if a 5MB image
is requested, the transfer occurs across the
network/internet
Clients
67
Thick Clients
  • Pros
  • Better performance with large files
  • More computer resources on a thick client (more
    RAM better CPU etc.)
  • Less demand on servers than thin clients (the
    alternative)

68
Thin Client
  • Most of the computing occurs on the server
  • Like a modern dumb terminal
  • Examples Citrix Stentor web browsers (sorta)
  • Citrix is an environment upon which one can run
    other programs (like firing up Word from within
    CoPathyoure firing it up on the server, not on
    the local computer)
  • Real Thin clients are very sparse (almost dumb)
  • Just enough to get onto a network and connect
    with a server (in theory)

69
Middleware
  • This is (sometimes home-made) software that helps
    2 different software systems interact
  • Exampleinterface software that links APLIS to
    the ADT (admission/discharge transaction) system
  • ExampleEndnote is middleware that permits one to
    integrate electronic search engine data (medline)
    into word documents

70
Pathology Middleware
  • Currently under development
  • Improving APLIS workflow
  • Images
  • Login management
  • Pathology information integration (research, EMR
    systems)
  • Pathology PACS (Stentor for pathology images
    including virtual slides
  • Helper apps (mitosis counters) that would
    assist pathologists and automatically interact
    with CoPath or EMR

71
Summary
  • Reviewed the components of a microcomputer and
    how they work together
  • Discussed typical peripheral connections
  • Reviewed basic network hardware and cabling
  • Brief overview of types of softwareoperating
    system vs. applications
About PowerShow.com
