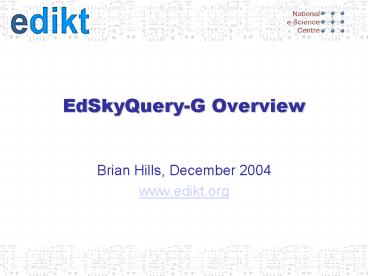

EdSkyQuery-G Overview

1
EdSkyQuery-G Overview

• Brian Hills, December 2004
• www.edikt.org

2
Contents

• Edikt
• Motivation Aims
• Architecture
• Current Status
• Results
• Future Outlook

3
Edikt

• e-Science Data, Information and Knowledge
  Transformation
• Bridge the gap between applications and computer
  science
• Produce robust tools
• for real application science problems
• test them under extreme science conditions
• and keep an eye on the commercial possibilities.
• Projects which may be of interest to astronomers

• BinX, Eldas EdSkyquery-G.
• Visit www.edikt.org

4
Astronomy Requirements

• Sky Surveys collect masses of data to be managed
• For example, Sloan Digital Sky Survey 15TB.
• 2 10GB databases to be used for the project.
• Edikt will have access to a 155TB SAN.
• Further research by leveraging data from
  different surveys
• Must identify same object from different
  catalogues.
• Require a federated view
• Data is distributed, homogeneous, large scale.
• Building one big data warehouse isnt feasible.
• Interoperable services to combine disparate data
  sources.

Is the middleware up to the task?
5
EdSkyQuery-G Motivation Aims

• Support the Open SkyQuery Initiative
• Move from a .NET-specific implementation.
• Enable similar functionality on other platforms.
• Extensible framework for e-science
• Handle heterogeneous archives.
• Plug in algorithms e.g. Nearest Neighbour.
• Interact with Astrogrid components VO.
• Leveraged for the BRIDGES project to perform
  simple joins.
• Apply Eldas to large scale E-Science problems
• Test functionality, scalability performance.
• Cross team collaboration
• Dr. Bob Mann (UoE, ROE), Edikt, EPCC, NeSC.

6
SkyQuery High Level Architecture
1. User submits query.
9. Returns results for display.
2. Client sends query to Portal.
3. Portal invokes SkyNode with an execution plan.
4. Recursive call to next SkyNode in the
execution plan.
8. Performs cross-match and returns final set of
results.
5. Recursive call to last SkyNode in the
execution plan.
7. Performs cross-match and returns results.
6. Runs query and returns results.
7
EdSkyQuery-G Architecture

• Inspired by Greg Riccardis paper for DAIS-WG
• http//www.cs.fsu.edu/riccardi/grid/skyquery.pdf

• Discusses two approaches
• Access recipes for service interactions.
• Retained state for service interactions.
• Potential benefits of 2
• Scalability
• Robustness
• Usability

8
EdSkyQuery-G Architecture
1. User submits query.
9. Client may pull results back from SkyNode.
2. Query Builder sends query to Service Manager
(SM).
8. SM returns a handle to the results.
5. SM invokes SkyNode 1 with an execution plan
results handle.
3. SM invokes SkyNode 1 with an execution plan.
4. Handle to results.
7. Handle to results.
6. Transfer results file.
9
EdSkyQuery-G Service Manager
Client Uses Service
Client Uses Service
Service Manager
Call to Query service
Call to Xmatch service
Call to Info service
10
EdSkyQuery-G SkyNode Architecture
Invoked via the Service Manager
Query
XMatch
Info
EldasSkyNode Grid Services
SkyNode
Query Stored Proc invocations
11
EdSkyQuery-G Stored Procedures
Export
Transport
Import
Export
Export
Transport
Import
Export
Transport
12
Current Status

• Pre-Alpha (internal release), November 04.
• End-to-end invocation of all components
• Client-gtServiceManager-gtSkyNode-gtDatabase
• 2 10GB DB2 test databases
• SSA from SuperCosmos, hosted by NeSC.
• EDR from SDSS, hosted by EPCC.
• Limitations
• SM No query parser/splitting.
• Simple cross database join not yet using XMatch.
• No data transport, other than JDBC between
  databases.
• Final results reside on database server.

13
EdSkyQuery-G Pre-Alpha Stored Procedures
Import
Export
Export
JDBC Query
Results
Import
Export
14
Results

• Tested with 3 queries from ROE cookbook
• http//surveys.roe.ac.uk/ssa/sqlcookbook.html
• Queries 16, 17, 19.
• Results show
• Exporting data is quick.
• Importing data is gt10 slower
• Should we use native DB calls rather than JDBC
  for import only?
• Queries slow
• Need more indexes and database tuning?

Query No. Rows selected Export Time (secs) Import Time (secs) Join Query Time (secs) Total Time (secs)
16 488,718 130 1585 1110 2825
17 383,672 96 1138 1470 2704
19 4,667 82 15 1474 1571
15
Deliverables

• Software (Internal)
• Prototype client GUI client.
• Service Manager.
• Eldas Skynode Interface.
• Database stored procedures (Java).
• Documentation (some on NescForge)
• Use Cases, Requirements, Design.
• Performance Testing, Installation.
• Papers
• AHM 04 Poster Paper
• http//www.allhands.org.uk/proceedings/papers/123.
  pdf
• ADASS 04 Paper.

16
Short Term Focus

• Enable science
• Compare different cross match algorithms.
• Incorporate XMatch, CSIRO, ROE as stored
  procedures.
• Data Transfer SCP
• Between databases.
• Pull results back to client.
• Deliver to a third party.
• Client Service Manager enhancements
• Handle broader range of queries.
• Performance
• Compare with pre-alpha benchmarks.
• Improve test infrastructure.

17
Longer Term Focus AstroGrid
18
Longer Term Focus

• Interaction with Astrogrid components
• Clients, Registry, ADQL Parser, MySpace.
• OpenSkyQuery
• Compliance with interfaces.
• Test with other DBMS and catalogues.
• Query Builder GUI/Data Integration tool
• Lead user through choosing fields from different
  datasets.
• GridFTP
• Currently unsuitable.
• NeSC course in Jan 05 may reveal more.

19
Thank you

• Questions?
