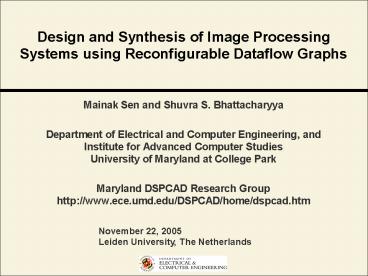

Design and Synthesis of Image Processing Systems
using Reconfigurable Dataflow Graphs

• Mainak Sen and Shuvra S. Bhattacharyya
• Department of Electrical and Computer
  Engineering, andInstitute for Advanced Computer
  StudiesUniversity of Maryland at College Park
• Maryland DSPCAD Research Grouphttp//www.ece.umd.
  edu/DSPCAD/home/dspcad.htm

November 22, 2005Leiden University, The
Netherlands
2
Outline

• Dataflow-based model of computation for modeling
  the behavior of DSP applications
• Decidable dataflow models
• Example use of decidable dataflow as a model of
  computation for modeling the mapping of
  (decidable) dataflow behaviors onto embedded
  multiprocessors
• Structured reconfiguration of dataflow graphs
• Examples of meta-modeling techniques that can be
  classified as structured, reconfigurable dataflow
• Parameterized dataflow and its application to SDF
• Homogeneous-parameterized dataflow and its
  application to SDF and CSDF
• Experiments on a gesture recognition application
• Summary

3
Dataflow-based design for DSP(Example from
Agilent ADS tool)
4
DSP-oriented Dataflow Models of Computation

• Used widely in design tools for DSP
• Application is modeled as a directed graph
• Nodes (actors) represent functions
• Edges represent communication channels between
  functions
• Nodes produce and consume data from edges
• Edges buffer data in FIFO (first-in first-out)
  fashion
• Data-driven execution model
• A node can execute whenever it has sufficient
  data on its input edges
• The order in which nodes execute is not part of
  the specification
• The order is typically determined by the
  compiler, the hardware, or both
• Iterative execution
• Body of loop to be iterated a large or infinite
  number of times

5
Dataflow Features and Advantages

• Exposes coarse-grain parallelism.
• Exposes high-level structure that facilitates
  analysis, verification, and optimization.
• Captures multi-rate behavior.
• Complementary to ongoing advances in DSP compiler
  technology for procedural languages, such as C
  and MATLAB.
• Encourages desirable software engineering
  practices modularity and code reuse
• Amenable also to aspect-oriented design.
• Intuitive to DSP algorithm designers signal flow
  graphs.

6
Evolution of Dataflow Models for DSP

• Synchronous dataflow static multirate behavior
• Agilent ADS, Cadence SPW, etc.
• Well-behaved dataflow schemas for bounded
  dynamics
• Boolean/integer dataflow Turing complete models
• Multidimensional synchronous dataflow image and
  video
• Scalable synchronous dataflow block processing
• Synopsys COSSAP
• Cyclo-static dataflow phased behavior
• Synopsys El Greco, Eonic Systems Virtuoso
  Synchro, System Canvas
• Bounded dynamic dataflow bounded dynamics
• The processing graph method reconfigurable
  dynamic DF
• US Naval Research Laboratory, MCCI Autocoding
  Toolset
• Parameterized dataflow dynamically-reconfigurable
  static DF
• Blocked dataflow image and video in terms of
  reconfigurable dataflow

7
Modeling Design Space
(Third dimension simplicity and intuitive appeal)
8
Decidable Dataflow Models

• Modeling flow for representing static flowgraph
  behavior
• Cyclo-static dataflow (CSDF), multiphase modeling
  ?
• Synchronous dataflow (SDF), multirate modeling ?
• Homogeneous synchronous dataflow (HSDF) ?
• Acyclic homogeneous synchronous dataflow (task
  graphs)
• These are in decreasing order or generality
• Designs represented in the more general models
  can be converted to equivalent representations in
  the less general ones
• e.g., CSDF? SDF ? HSDF ? task graph
• HSDF each actor (graph node) produces/consumes
  exactly one data value to/from each incident
  output/input edge
• Suitable for exposing parallelism
• Not the best model for minimizing memory
  requirements

9
Synthesis Techniques for Decidable Models

• Static scheduling low overhead, predictability
• Performance analysis through synchronization
  graphs
• Loop scheduling
• Implicit repetition in the dataflow graph
  (through changes in sample rate) needs to be
  translated into explicit repetition in the form
  of loops on the execution target.
• Complex design space exists for such translation
• Complementary to procedural language techniques
  for nested loop compilation
• Loop scheduling techniques
• Simulation speedup (minimization of scheduling
  complexity)
• Code/data minimization
• Hierarchical parallel scheduling
• Block processing
• Task scheduling for latency/throughput
  optimization
• Probabilistic design exploiting tolerances to
  deadline misses

10
Example Intermediate representations for
synthesis from decidable dataflow models

• Consider a decidable dataflow behavior that is to
  be implemented on a self-timed, embedded
  multiprocessor
• Natural way to implement DSP multiprocessors from
  decidable dataflow
• Actor assignment and ordering are performed
  statically
• Invocation (dispatch) of actors is performed
  dynamically, through synchronization
• Candidate mappings of the behavior onto the
  architecture can be represented through an
  intermediate representation that also has
  decidable dataflow semantics
• This representation is useful for understanding
  the performance, communication overhead, and
  synchronization structure associated with the
  candidate mapping
• Facilitates the separation of communication and
  synchronization functionality
• This is a useful modeling methodology for design
  space exploration

11
Interprocessor Communication Graph (Gipc)
Self-timed schedule and its IPC graph
12
The synchronization graph Gs

• Derived from the interprocessor communication
  graph
• Synchronization edges are distinguished from
  interprocessor communication (IPC) edges
• Synchronization edges represent precedence
  constraints that are enforced by synchronization
  protocols
• IPC edges represent data transfers
• Interprocessor connections
• Coincident synchronization and IPC edges ?
  communication together with synchronization
  protocol (conventional approach)
• IPC edge only ? communication without synch.
  protocol
• Synchronization edge only ? synchronization
  protocol only

13
Applications of Synchronization Graphs

• Simulation
• Throughput estimation through cycle mean
  analysis
• Removal of redundant synchronizations
• Resynchronization
• Conversion to more efficient synchronization
  protocols (strongly connected synchronization
  graphs)
• Statically determining and minimizing the sizes
  of interprocessor communication buffers

• All are post-processing methods that can be
  applied to improve a wide range of existing task
  graph scheduling techniques on a wide range of
  multiprocessor architectures.
• These techniques benefit from good execution
  time estimates, but do not depend on exact
  execution time values to deliver useful results.

14
Beyond Decidable Models

• Limited expressive power DSP applications
  increasingly employ high-level dynamics in their
  behavior
• User interface functionality
• Mode changes
• Adaptive algorithms
• Reconfiguration of processing resources/parameters

• However, key subsystems still exhibit large
  amounts of quasi-static structure --- structure
  that stays fixed across significant windows of
  time.
• Various dynamic dataflow models have been
  proposed that address the limitation above by
  abandoning most or all restrictions related to
  decidable dataflow
• However, these methods are correspondingly
  limited in their ability to exploit the
  quasi-static structure described above

15
Parameterized Dataflow Structured Control of
Dynamic Parameters

• The Key discipline that is imposed on
  reconfiguration is that each subsystem must have
  a consistent view of each of its actors
  (hierarchical or primitive) throughout any given
  iteration of that subsystem.

16
Parameterized Dataflow
parent graph

• Hierarchical modeling

• Parameterized DF subsystem is composed of 3
  parmeterized DF graphs
• init, subinit, body

subsystem
parameter n, ...
subinit
init

• Subsystem parameters
• configured in init/subinit, used in body

writes n
body

• Dynamically reconfigurable

reads n
17
Meta-modeling with parameterized dataflow

• Parameterized dataflow can be applied to any
  dataflow model of computation (base model) to
  augment that model with dynamic reconfiguration
  capabilities in a structured way
• Provides for efficient quasi-static scheduling
• Enables execution to be viewed in terms of a
  sequence of dataflow graphs in the base model
• Parameterized dataflow XYZ ? Parameterized
  XYZ
• Examples of parameterized dataflow models of
  computation that we are developing and
  experimenting with
• parameterized synchronous dataflow (PSDF)
• parameterized cyclo-static dataflow (PCSDF)

18
Parameterized Synchronous Dataflow (PSDF)

• Locally synchrony conditions can be formulated
  and checked in a quasi-static fashion to ensure
  that bounded token production and consumption
  along with bounded delays lead to bounded memory
  requirements overall.
• This is not true of unstructured dynamic dataflow
  models, such as general dynamic dataflow, boolean
  dataflow, and bounded dynamic dataflow
• Techniques for construction of streamlined looped
  schedules for synchronous dataflow graphs have
  natural and efficient extensions to the
  construction of parameterized looped schedules
  for PSDF graphs.

19
PSDF Example CD to DAT Conversion
initChild
repeat 5 times fire setFac / sets i1, d1,
i2, d2, i3, d3, i4, d4 / int _g1 gcd(i1,
d2) int _g2gcd((i2 x i1)/_g1, d3) int
_g3gcd((i3 x i2 x i1)/(_g2 x _g1), d4)
repeat (d4/_g3) times repeat (d3/_g2)
times
repeat (d2/_g1) times repeat (d1)
times fire CD fire PF1
repeat (i1/_g1) times fire PF2
repeat ((i2 x i1)/(_g2 x _g1)) times
fire PF3 repeat ((i3 x i2 x i1)/(_g3 x
_g2 x _g1)) times fire PF4 repeat
(i4) times fire DAT
params i1, d1, ., i4, d4
setFac (sets i1,d4)
init
preamble
1 1 d1
i4 i1
i3 d2
d4 i2 d3
CD
DAT
PF1
PF4
PF2
PF3
body
body
20
PSDF Example Speech Compression
21
PCSDF Version of Speech Compression
22
Outline

• Dataflow-based model of computation for modeling
  the behavior of DSP applications
• Decidable dataflow models
• Example use of decidable dataflow as a model of
  computation for modeling the mapping of
  (decidable) dataflow behaviors onto embedded
  multiprocessors
• Structured reconfiguration of dataflow graphs
• Examples of meta-modeling techniques that can be
  classified as structured, reconfigurable dataflow
• Parameterized dataflow and its application to SDF
• Homogeneous-parameterized dataflow and its
  application to SDF and CSDF
• Experiments on a gesture recognition application
• Summary

23
Homogeneous Parameterized Dataflow
(HPDF)

• Parameterized dataflow model that can
  encapsulate dynamicity of application.
• Meta-modeling technique. Hierarchical actors can
  have any other underlying dataflow model (SDF,
  CSDF, PSDF etc.)
• Data production consumption rates though
  dynamic are equal across an edge for a large
  number of applications - thus the name
  homogeneous.
• Reconfiguration can be performed without
  introducing hierarchy when more natural to do so
  (advantage over parameterized dataflow).
• Parameterized dataflow is a more powerful
  technique and thus can be used to represent a
  wider set of applications.

24
Applications

• Applications with dynamic run-time data and
  aggregated final-stage processes perform
  especially well for HPDF over SDF semantics.
• Many applications in image and speech processing
  seem well suited for our model.
• We applied the model on two applications
• - A real-time video processing algorithm
  for smart camera developed at Princeton
• - A face detection algorithm developed at
  CFAR labs in UMD.

25
Application characteristics

• This structure seems to be abundant in many
  audio/video applications.
• Our HPDF model is a natural fit for applications
  with the above structure.

26
Gesture recognition algorithm

• Real-time video processing for gesture
  recognition.
• Does low-level (red oval) and high-level
  processing.
• Low-level processing recognizes body parts and
  identifies movements.
• High-level processing recognized actions.
• We concentrate on low-level processing.

Ref W. Wolf, B. Ozer, T. LV. Smart cameras as
embedded systems. IEEE Computer Magazine Vol 35,
Iss 9, Sept 2002, Pages 48-53
27
HPDF model of gesture recognition algorithm
Dynamic data
Dynamic data
Aggregating final-stage
n n
p p
Ptolemy II implementation
28
Modeling with HPDF/CSDF
phases pixels s
(s 1) (s 1)
(s 1) (Xi, Yi)
VIDEO INPUT
REGION EXTRACTION
CONTOUR FOLLOWING
(s 1) (s 1)
(s 1) (s 1)
(s 1) (Xi, Yi)
p phases with 1 token and (n-p) phases with 0
token production
(I 0,I ki) (n 1)
ELLIPSE FITTING
MATCH
p (pi1, qi 0)
29
Integrating HPDF and CSDF

• Number of phases in a fundamental period can vary
  dynamically.
• Number of tokens produced or consumed in a given
  phase can also vary dynamically.
• HPDF constraint the total number of tokens
  produced by a source actor of a given edge in a
  given invocation (a fundamental period) must
  equal the total number of tokens consumed by the
  sink in its corresponding invocation.

30
Finer granularity and Input modeling

• Each frame has 384x240 pixels, so we model the
  input as a CSDF actor with 92160 s phases.
• Model captures pixel level parallelism present in
  Region.
• It also captures the frame level parallelism
  through the number of phases in Input (s).

31
Modeling dynamicity - Contour

• 2 phases for Contour
• First one scans until finds a contour.
• Output 0 tokens
• Second one follows this contour and all the
  overlapping ones.
• Output ki tokens, each token is a list of
  pixels from a contour
• Homogeneous condition remains
• s

32
Scheduling

• VRCEM
• (s V)(s R)(2I C)(n E)M
• (s VR)(2I C)(n E)M

33
Results

• We applied HPDF to successfully model a face
  detection algorithm also.
• We developed a TI DSP implementation of the HPDF
  model of the gesture recognition algorithm.
• The application was run on a TMS320C64xx fixed
  point processor.
• When implemented with our HPDF model, the
  runtime was 21405671 cycles.
• With a 40ns cycle period, execution time for the
  application was 0.86 sec.

34
Results (contd.)

• Scheduling overhead was minimal as imperatively
  highly streamlined quasi-static schedule was
  obtained.
• Worst case buffer size 642 Kb when the input
  images were 384X240 pixels. HPDF modeling
  suggested buffer reuse between the edges.
• Original C code had runtime of 27741882 cycles,
  execution time was 1.11 sec with the same clock
  period of 40 ns.
• HPDF improved runtime by 23.
• Efficient hardware code generation is being
  looked into using hardware synthesis framework
  developed in our research group.

35
Summary

• Dataflow-based model of computation for is
  attractive for modeling the behavior of DSP
  applications
• Decidable dataflow models are useful for exposing
  and exploiting static structure in synthesis
  tools for DSP
• Decidable dataflow models in conjunction with
  structured reconfigurable techniques allow for
  efficient handling of application dynamics
• Examples of structured, reconfigurable dataflow
  techniques that we discussed
• Parameterized dataflow and its application to SDF
• Homogeneous-parameterized dataflow and its
  application to SDF and CSDF
• Experiments on a gesture recognition application
• Other examples include dynamic configuration of
  graph topologies, and blocked dataflow modeling.

36
References

• B. Bhattacharya and S. S. Bhattacharyya.
  Parameterized dataflow modeling for DSP systems.
  IEEE Transactions on Signal Processing,
  49(10)2408-2421, October 2001
• S. S. Bhattacharyya, R. Leupers, and P. Marwedel.
  Software synthesis and code generation for DSP.
  IEEE Transactions on Circuits and Systems --- II
  Analog and Digital Signal Processing,
  47(9)849-875, September 2000.
• G. Bilsen, M. Engels, R. Lauwereins, and J. A.
  Peperstraete. Cyclo-static dataflow. IEEE
  Transactions on Signal Processing, 44(2)397-408,
  February 1996.
• D. Ko and S. S. Bhattacharyya. Dynamic
  configuration of dataflow graph topology for DSP
  system design. In Proceedings of the
  International Conference on Acoustics, Speech,
  and Signal Processing, pages V-69-V-72,
  Philadelphia, Pennsylvania, March 2005.
• E. A. Lee and D. G. Messerschmitt. Static
  scheduling of synchronous dataflow programs for
  digital signal processing. IEEE Transactions on
  Computers, February 1987.
• S. Neuendorffer and E. Lee. Hierarchical
  reconfiguration of dataflow models. In
  Proceedings of the International Conference on
  Formal Methods and Models for Codesign, June
  2004.
• M. Sen, S. S. Bhattacharyya, T. Lv, and W. Wolf.
  Modeling image processing systems with
  homogeneous parameterized dataflow graphs. In
  Proceedings of the International Conference on
  Acoustics, Speech, and Signal Processing, pages
  V-133-V-136, Philadelphia, Pennsylvania, March
  2005
