Learning Methodology

1

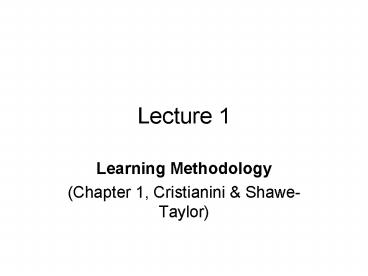

Lecture 1

• Learning Methodology
• (Chapter 1, Cristianini Shawe-Taylor)

2
Basics of Machine Learning

• We want to use a computer algorithm to classify
  data. (Is this sequence likely to contain an
  intron splice site?)
• Classification is based on descriptors, variables
  which measure the observations.
• Descriptors can be continuous (GC content) or
  category (sequence character at position n of
  the sequence).
• We visualize the possible values of the
  descriptors as labeling the axes of a coordinate
  system. Each observation maps to a single point
  in this descriptor space.

3
Machine Learning (cont)

• Thought question - how can we code a nucleotide
  sequence ten characters long into a descriptor
  space?
• Can we visualize that space? Why or why not?

4
Machine Learning (cont)

• Once observations are mapped to points in our
  descriptor space, we want to classify them, or
  report some measure that describes/summarizes the
  data.
• Requires a target function that maps from a data
  point (which lives in our descriptor space) to
  some target space (usually the real line). The
  target function usually provides some numerical
  measure of the likelihood that a data point
  represents a member of a particular category.

5
Machine Learning (cont)

• The target function is usually supplemented with
  an additional function, the decision function,
  that makes a final assignment of an observation
  to a category.
• Typically this is achieved by applying a
  threshold to the target function. In most cases,
  if the target function is sufficiently positive
  when fed a particular data point, that point is
  then placed in the category associated with the
  target/decision function.

6
Machine Learning (cont)

• A hypothesis is a particular choice for the
  target function. Our goal is to find a hypothesis
  (possibly coupled with a decision function) which
  most accurately categorizes data.
• Often, we already have in mind the form of the
  target function. The function will always include
  one or more parameters that define its specific
  shape. A particular choice of parameters then
  constitutes a single hypothesis.
• We often speak of working with a space of
  hypotheses, and of picking the best hypothesis
  from this space.

7
Machine Learning (cont)

• Example - orbit of a satellite
• In our context,the hypothesis isnot Orbits
  areelliptical, butrather My satellite has
  anorbit with semi-major axis of 3.5 million
  milesand eccentricity 0.1
• Graphic from Windows on the Universe,http//www
  .windows.ucar.edu/

8
Machine Learning (cont)

• Learning means developing one or more target
  functions that can be used to describe or
  categorize our data is some useful way.
• One or more target functions, possibly in concert
  with decision functions, can implement
• Binary clasification
• Mult-class classification
• Regression
• For example, we might develop a machine learning
  algorithm that could predict the semi-major axis
  of the orbit of a satellite, and its
  eccentricity, from a series of 5 observations of
  the position of the satellite.

9
Machine Learning (cont)

• Thought question
• In the satellite example,
• What might the descriptors be? Are they
  continuous or category descriptors?
• What are the target functions? What category of
  classification is this?
• Are there any decision functions in this example?
  If not, how might we introduce one?
• As observations are added, how does the space of
  possible hypotheses change?

10
Machine Learning (cont)

• How does a machine learn?
• In this course we will focus on supervised
  learning
• Training data - used to adjust the target
  function implemented by the learning method
• Generalization - After training, how well does
  our algorithm classify observations not included
  in the training set?
• A machine learning algorithm may perfectly
  classify its training data, yet be totally
  useless in practice. It must be able to
  generalize!

11
Machine Learning (cont)

• In our satellite example, the training data might
  consists of a series of sets of five measurements
  of position for a collection of known objects
  circling the Sun (planets, asteroids, comets,
  etc). One set of five measurements corresponds to
  a single object, and comprises a single
  observation in constructing our model.
• To test our model, we would apply it to a series
  of objects not included in our training set, but
  each with a known orbit. This is the validation
  set.
• If the model accurately predicts the orbits of
  the objects in the validation set, we say it
  generalizes well. We can compute some metrics
  that measure just how well the model performs.
• If the model does not generalize, it is of little
  use!

12
Machine Learning (cont)

• Computational Complexity
• Time complexity How does compute time scale with
  the size of the problem?
• Polynomial Time - algorithm scales in accordance
  with a polynomial function of problem size.
• Exponential Time - algorithm scales exponentially
  with the problem size. Intractable.
• Size complexity How does memory usage scale with
  the size of the problem?

13
Machine Learning (cont)

• NP-complete problems
• The Traveling Salesman problem is a good example
  of an NP-complete problem
• How does the time needed to generate the
  candidate solutions scale with problem size?
• How does the time needed to evaluate a solution
  vary with problem size? How about the overall
  compute time?
• Solve one problem in the NP-Complete class in
  polynomial time and youve done it for all of
  them!
• No one has figured out how to do that.

14
Machine Learning (cont)

• Algorithmic Complexity
• Can be measured by the length of the algorithm
  itself, measured in bytes.
• We may imagine compressing the algorithm before
  measuring its length
• Big algorithms generalize poorly. They
  typically handle many special cases derived from
  the training set. In the worst scenario, the
  algorithm simply stores all the training examples
  and spits them back on cue! (Rote learning)

15
Machine Learning (cont)

• Machine learning methods we will explore in this
  course
• Neural networkshttp//www.comp.rgu.ac.uk/staff/n
  c/Files/Internal/SummaryBANN.htm
• Hidden Markov modelshttp//en.wikipedia.org/wiki
  /ImageMarkovModel.png
• Support vector machines

16
Machine Learning (cont)

• Applications
• Neural networks to identifying ribosome binding
  sites in bacterial sequences
• Hidden Markov models to identifying bacterial
  promoters
• Support vector machine to predict protein
  secondary structure

17
Lecture 1

• Introduction to Java
• (Chapters 12, Lewis Loftus)

18
Introduction to Java

• Developed as a cross-platform language
• Depends upon a Java Virtual Machine (JVM), a
  virtual processor that must be implemented
  separately for each target platform
  (Intel/Windows, Intel/Linux, Sun/SPARC, Apple/OS
  X, etc)
• The JVM runs an instruction set called bytecode.
  Java programs are compiled into bytecode, and
  will then run (in theory at least) on any
  supported platform.

19
Introduction to Java (cont)

• Java is an object-oriented language. It supports
  objects called classes. Java classes encapsulate
  both data and methods (functions which operate on
  class data).
• Java is an event-driven language. It is expected
  that Java applications will be run in a graphical
  environment, and there is extensive support for
  capturing mouse events and creating live
  graphical objects such as buttons and sliders.

20
Introduction to Java (cont)

• Java plays well with web browsers. A Java
  application can be written as an applet, and can
  be loaded and run from within a browser.
• Java incorporates special security features which
  provide various levels of protection which depend
  upon how an application is run. Applets have more
  restricted access to system resources than
  standalone applications.

21
Introduction to Java (cont)

• Java is supported by a number of APIs
  (Application Programming Interfaces). These are
  software toolkits which provide extensive support
  for a broad variety of graphical objects and data
  types. APIs are available to construct menus, to
  handle text editing, for image and sound
  processing, and for development of
  special-purpose applications (e.g. neural
  networks!)

22
Introduction to Java (cont)

• Fundamental concepts of software and hardware
• Review sections 1.1-1.3 of the text as needed.
• Syntax. We will start with the example program,
  Listing 1.1.
• All computers should have available the editor
  subEthaEdit. You may use this for editing
  programs. (You may also use Xcode, provided in OS
  X, although this provides a sophisticated
  environment intended more for experienced
  programmers.)
• Once you have created your code, in a file named
  Lincoln.java, you compile it like this OS Xgt
  javac Lincoln.java
• The compiled code is in Lincoln.class
• To run it, type OS Xgt java Lincoln

23
Introduction to Java (cont)

• Key concepts
• Identifiers (names for variables, functions,
  etc). Distinguish
• Those chosen by the programmer
• Those chosen by other programmers
• Reserved words
• Comment styles
• Use of whitespace

24
Introduction to Java (cont)

• Object-oriented programming
• Objects encapsulate data and the methods that
  manipulate the data. They are often
  representations, in software, of real-world
  objects.
• Attributes are the variables that describe the
  state of an object. They may be primitives (like
  floats or ints), or objects.
• An object is defined using a class. A class is a
  blueprint to make objects. An object constructed
  from a class is said to be an instance of the
  class.
• We can define a new class based on an existing
  class by using inheritance. The new class
  inherits all the attributes and methods of the
  parent, but may add more of its own.

25
Introduction to Java (cont)

• Chapter 2 (Data and expressions).
• Java primitives are basically the same as C
  variable types.
• Declarations of int, float, double are just like
  in C. The final keyword can be placed in front of
  a primitive to declare it as a constant.
• Assignment statements, using are just like in
  C.
• Increment (), decrement (--) and combined
  operators (, -, , /) are available just as
  in C.
• Operator precedence is just like in C.
• Type casting is just like in C.
• Review sections 2.2-2.5 to refresh yourself on
  these basic ideas.

26
Introduction to Java (cont)

• String Handling
• The class String is used to create and manipulate
  text strings.
• Type in , compile and execute the programs in
  Listings 2.1, 2.2 and 2.3.
• Key points
• Understand the use of for string
  concatenation. This is an example of operator
  overloading.
• Understand how the library utilities
  System.out.printl and System.out.print differ.
• Understand the tricky example presented in 2.3!

27
Introduction to Java (cont)

• Take this opportunity to learn more about the
  String class.
• Point your browser to http//java.sun.com -gtRe
  ference/API Specifications -gtJ2SE 1.5.0
• Choose java.lang-gtString
• Find methods that will allow you to
• Return the fourth character of a string
• Compare two strings for equality, case
  insensitive
• Convert a string to all upper case
• Convert an integer to a String
• Try out these methods in your test code!

28
Introduction to Java (cont)

• Sec. 2.6. The Scanner class allows you to easily
  parse a line of text with tokens separated by
  whitespace (the default).
• Look at the list of methods, Fig. 2.7.
• Try out the program shown in Listing 2.9.
• Notice how methods in a class are
  accessed scan Scanner.create(System.in) m
  essage scan.nextLine()

class name
class method
instance name
instance method
29
Introduction to Java (cont)

• 2.7 Graphics. Here we learn a little about
  drawing in a Java program. Main points
• Pixels as elements of graphical representations
• Coordinate system assumed in Java
• Use of the Color class the RGB color system
• How class variables are shown Color.blue
• Color.blue is a static class variable that always
  points at a predefined instance of the Color
  class with RGB components R0, B1, G0.

class variable name
class name
30
Introduction to Java (cont)

• 2.8 Graphics class
• The Graphics class supplies many methods for
  drawing shapes and text.
• An instance of the Graphics class contains as an
  attribute a drawing area (technically an instance
  of the Component class) on which to draw. Drawing
  takes place in the coordinate system of this
  associated drawing area.
• Figure 2.12 shows a collection of useful methods
  from this class.

31
Introduction to Java (cont)

• 2.8 Java Applets
• Applets are Java applications meant to be run
  through a web browser. They are typically sent
  from a server to a browser running on a client
  machine (although they can easily be run on a
  local browser). Fig. 2.11 illustrates this
  process.
• Listing 2.10 shows how to create a simple applet
  . Lets implement it!
• To run it, you need to make a short HTML
  document. Lets call it Einstein.htmllthtmlgtltapp
  let code"Einstein.class" width"350"
  height"175"gtlt/appletgtlt/htmlgt

32
Introduction to Java (cont)

• Applets, cont.
• Notice that the applet HTML tag specifies a size
  for the area in which to draw. A Graphics
  instance with a drawing component of this size is
  created by the browser when the applet is run.
  This instance is passed to the paint() method as
  its argument.
• To test your applet, you can
• Open the file Einstein.html from within a
  browser, or
• Use an applet viewerOS Xgtappletviewer
  Einstein.html
• For fun, implement and run Listing 2.11.
