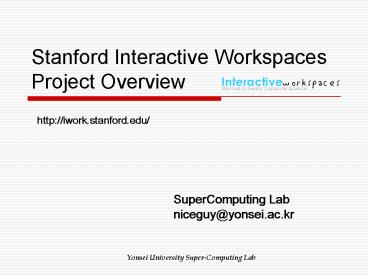

Stanford Interactive Workspaces Project Overview

1
Stanford Interactive Workspaces Project Overview
http//iwork.stanford.edu/
SuperComputing Lab
niceguy_at_yonsei.ac.kr
2
Agenda

• Intro
• iRoom
• iRos
• EventHeap
• DataHeap
• iCrafter
• TRON
• Outro

3
Intro

• Purpose Interactive Workspace
• Exploring new possibilities for people to work
  together in technology-rich spaces with computing
  and interaction devices on many different scales
• Main Issue
• Augmenting a dedicated meeting space with
  technology such as large displays,
  wireless/multimodal I/O devices, and seamless
  integration of mobile and wireless appliances
  including handheld PCs

4
What is an Interactive Workspace?(cont.)

• It is a dynamic environment for integration and
  coordination
• It contains
• Embedded devices
• Permanent computational and I/O resources
  embedded into the environment
• Mobile devices
• Allows portable devices brought into the space to
  be used in conjunction with embedded facilities
  (i.e ongoing)
• Interoperability
• Autonomy (of participating organizations)
• Trust, privacy and security.

5
Interactive Workspace Factors (learning from
iRoom prototype)

• Technology factors (i.e coordination,
  integration, dynamism)
• Changing environment (i.e short and long term
  change)
• Heterogeneity (i.e rapid integration of
  heterogeneous hardware, software and software
  platforms)
• Human factors (i.e problem solving,
  collaboration)
• Bounded Environment (i.e only within IWs
  physical space )
• Human Centred Interaction (i.e can reconfigure
  tools depending on problems arising)
• Human Level Performance needs (i.e can set
  constraints).

6
Interactive Workspace Requirements

• Must facilitate common IW Usages
• Moving data between devices
• Controlling devices and applications from other
  devices
• Coordinating applications.
• Must meet these requirements
• Heterogeneity of devices in the workspace, and
  new devices being added over time
• Easy integration of legacy devices, using
  whatever communication mechanisms they provide.
• Robustness and availability despite
  software/hardware failure
• Portability across installations.

7
iRoom Photos
8
iRoom Software

• Windows 95/98/NT/2000
• Server install (iROS server)
• Client install (iWork Services)
• Get the source code from SourceForge
• MacOS X
• iROS-X is the MacOS version of iROS (for OSX).
• The iROS-X project has received support from
  Apple Computer to port most of iROS to OSX.

9
iRos

• Goals Standard system interface to coordinate
  everything
• Moving data between devices
• Controlling devices and applications from other
  devices
• Coordinating applications, including ones not
  explicitly written to work together

10
iRos
11
Event heap Tuplespace Based Coordination

• Tuplespace model
• Decouples Applications in Space and Time
• Added Semantics
• Self-Describing Tuples
• Flexible Typing
• Typed Tuples
• Tuple Sequencing
• Tuple Expiration
• Benefits
• Anonymous Coordination
• Interposability
• Snooping

12
Linda Tuplespace Modelfor parallel computing

• Goal add concurrent programming capability to
  sequential programming
• Need strong decoupling of processes in space,
  time and reference
• Solution place data as tuples in the space for
  process coordination
• Tuple
• object named by tag and key (similar to content
  addressable memory)
• symbolic name an ordered list of typed values
• equally accessible to all processes but bound to
  none
• Tuplespace
• shared memory" for accessing, modifying and
  deleting tuples
• data fields in space matched with elements in
  requesting template
• must have same number of fields, same types of
  fields in same order, (possibly identical values
  as in the template)
• retrieval made blocking when there is no match
• actuals assigned to formals when match found.

Carriero and Gelernter, 1986
Carriero and Gelernter, 1986
Carriero and Gelernter, 1986
Carriero and Gelernter, 1986
13
Linda Tuplespace Modelfor parallel computing
(cont.)

• 6 funtions
• out(lttuplegt) - inserts a tuple in the space. It
  never blocks a tuple.
• rd(lttemplate(tag, list)gt) - retrieves all tuples
  which match a given template from the TS. It can
  be both blocking and non blocking.
• inlttemplate(tag, list)gt - retrieves and removes
  all tuples which match a given template from the
  space. This function blocks.
• eval(ltfunction-tuplegt) - creates an active tuple
  and evaluate its entries. The results are stored
  as a passive tuple (i.e data) in the space.

Tuplespace
Figure 1 Tuplespace Model for parallel programs
Carriero and Gelernter, 1986
14
Tuplespace Model for Interactive Workspaces

• Routing and Content Addressing provides
  reference decoupling
• Persistence provides temporal decoupling
• Limited Transparency provides extensibility and
  debugging
• Centralization provides time and reference
  decoupling
• Simple and general infrastructure API 6
  functions in any programming language.

15
Data Heap Type and Location Independent Storage

• Attribute based workspace-wide data storage
  system
• Machine independent
• Dont need explicit location of data
• Type independent
• If a set of type converters are available, system
  automatically transforms the data

16
iCrafter Universal Control System

• Control anything from anywhere
• Services advertise how they can be controlled
• System returns appropriate interface per device
• Interfaces can range from fully custom to
  dynamically generated

17
iCrafter A Service Framework
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
The Meeting Machine i-workspace support for
nomadic users
24
Patch Panel
25
iClub.(??)

• The interactive dance club of the future using
  iRoom technology, and maybe the coolest
  application built on iROS, iClub combines a
  computer-controlled DJ with visuals synchronized
  to the music, the ability for guests to influence
  music playback (speed, low pass audio filter,
  interactively-triggered sound effects, and voting
  on which song to play next), and the ability to
  integrate physical UI devices such as sliders and
  wands (no wands in the video) into the
  environment. It is easy to extend iClub with new
  A/V modules, integrate new physical input devices
  such as those being developed by iStuff, and
  tolerate transient failures of hardware or
  software during an iClub session.  iClub was a
  highly successful CS294 project by Josh Samberg,
  Xiaowei Li, Yeon Jin Lee, and Kabir Vadera.

26
PointRight.(??)

•  PointRight is a software system that allows a
  single mouse and keyboard to control multiple
  screens. When the cursor reaches the edge of a
  screen it seamlessly moves to the adjacent
  screen, and keyboard control is simultaneously
  redirected to that machine. Laptops may also
  redirect their keyboard and pointing device, and
  multiple pointers are supported simultaneously.
  The system automatically reconfigures itself as
  displays go on or off, including as laptops enter
  and leave the PointRight display set (by starting
  or stopping the PointRight application).
  PointRight is one of the software components
  available for download.

27
FlowMenu(??)

• FlowMenu is a new kind of marking menu developed
  for use with a pen device on display surfaces
  such as large, high resolution, wall-mounted
  displays. It integrates capabilities of
  previously separate mechanisms such as marking
  menus and Quikwriting, and facilitates the entry
  of multiple commands. While using this menu, the
  pen never has to leave the active surface so that
  consecutive menu selections, data entry (text and
  parameters) and direct manipulation tasks can be
  integrated fluidly.

28
PostBrainstorm(??)

• Fluid Interactions with Wall Sized Displays.
  This video demonstrates a digital brainstorming
  tool that embodies new interaction techniques for
  direct pen-based interaction on the Interactive
  Mural, a large (6x3.5) high-resolution (64 dpi)
  display.  PostBrainstorm has been used by groups
  of professional product designers. We have
  adapted and extended techniques that were
  developed for electronic whiteboards and
  generalized the use of the FlowMenu to execute a
  wide variety of actions in a single pen stroke.
  Our interactive wall metaphor supports both
  free-hand sketching and creation/import of
  high-resolution materials, such as images, 3D
  models and GUI application windows, without
  cluttering the visual work area with control
  devices.

29
TRON
30
From Tron to ITron

• What is Tron?
• 1980s Sakamura launched the TRON Project
• An Open Computing and Communications Architecture
• Designed to make computing a utility, like
  electricity and water
• ITRON A real-time operating system for embedded
  devices
• CTRON,BTRON,eTRON,

31
From Tron to Itron(Cont)

• ITRON
• OSs for embedded chips
• Three to four billion microprocessors are running
  ITRON
• Weak Standardization
• T-Kernel Can be Modified but Distribution must be
  allowed
• Subtle difference Can be Made
• T-License dont need to reveal their own code

32
??(??)

• ITRON ?? ???? ????OS??(ITRON,ITRON2,µITRON2,µITRO
  N3.0,µITRON4.0)JTRON Java?ITRON?
  ?????(hybrid)OS??(JTRON1.0,JTRON2.0,JTRON2.1)BTR
  ON GUI(Graphical User Interface)?OS??? ? ??
  ??(BTRON/286,BTRON1,BTRON2,BTRON3)CTRON ?? ???
  ????? ???? ?OS????? ???? ?? ???????? ????? ??
  ?????? ?? ??? ??

33
TRON ????(?? ??? ???)

• 1. ????? ????
• ??????? ??? ???? ???? ??? ??? ?????? ?????? ????.

• 2. ????? ??
• ??????? ??? ?????? , ??? ?? ???? ???? ????
  ??(???) , ???
• ???? ?? ?? ???? ????? ?? , ?? ??? ??? ????? ??.
  ??? , ?????
• ?? ??? ?????? ???(???)? , ????? ???? ?????.
• 3. ?? ?? ?? ??
• ??????? ??? ???? ???? ??? ????? ????? , ?? ???
  ????? ?? ,
• ???? ??? ?? ???? , ?? ??? ????? ?? ?? ?????
  ????? ????.
• 4. ?????? ???? ????? ???? ??
• ??????? ??? ?????? , ?? ?? ???? ????. ??? , ??
  ??? ??? ???
• ???? ?? ??? ??? ??? ?? ?????? ?? ???? ??. ??? ,
  ??????? ??
• ? ???? ????? ???(???)? , ??? ??? ???? ????? ??
  ??? ????? ?
• ? ?????. ??? , ?????? ???? ?? ???? ??(T-Engine)??
  ????? ??(T-
• Kernel), ?? , ??? ?????? ???? ???? ?? ?? ?? ??
  ???? ??(TRON???
• ? ??) ? ?? , ? ??? ???.
• 5. ?? ?? ?????(HMI Human Machine Interface)
• ??? ???? ????? ??? ? , ??? ??? ??? ??? ??? ??? ??
  ?? ???
• ?? ?????? ??? ??(?) ???? ??? , ??? ? ???? ???
  ?????? ????.

34
Tron ???
35
T-Engine

• Most advanced Ubiquitous Computing Platform
• Using Off-the-shelf components for Ubiquitous
  computing
• A growing Library of middleware is available
• Network protocol stacks, filing systems, Japanese
  language processing, e-Tron Specific security
  software, a GUI, and audio processing
• Sun porting Java to T-Engine, Monta Vista
  Real-time Version of Linux, MS WinCE to
  T-Engine
• E.g. WinCE .NET to T-Engine hardware platform
• Real-time Event handled by T-Kernel
• Others WinCE takes

36
Four Standard T-Engine

• Standard T-Engine(75mmX120mm)
• For portable information devices, smart phones
• Micro T-Engine(60mmX80mm)
• Devices for relatively basic user interface
  features, Home electronic appliances, musical
  instru..
• Nano T-Engine(coin-sized)
• Small home electronic appliances
• Pico T-Engine
• For the smallest units in a U-comp env. Switches,
  lighting equipment, sensors and valves

37
Four Standard T-Engine Boards
T-Engine Boards for different application areas
38
????(?? ??? ???)

• 1. T-Engine?? ????? ??
• ??? ???? ???? ???T-Engine? ?? ?? ??? ??? ????
  ???? ???????
• ???? ?? ??? ????. ITRON??? ?? ??? ???? ?? ????
  ??? ????? ?
• ?? ???? , ????? ?????? ???? ??? ?? ??? ?? ???
  ???. ? ????
• ?? ???T-Engine?? ??????? , ???? , ?? , ???? ???
  ??? ??? ?? ??
• ??? ???? ??.
• 2. ?? ?? ??? ????
• ???? ???? ??(eTRON)?? , ??? ???????? ?????? ???
  ?? ???
• (HFDS Highly Functionally Distributed
  System)??? ? , ???IT???? ???? ??? ?? , ??
• ??? ???? , ? ??? ???? ?? ???? ????.
• 3. ITRON?? ??
• T-Engine???? ??? ???? ? ,T-Engine?? ??? ???? ????
  ?? ?? ?? ,T-Engine
• ??? ??? ? ?? ??? ??? ????
• 4. ???OS? ??
• ?? ??? ?? ?? ??? , ?? ? ?????? ? ,BTRON??OS? ???
  ??? ???? ??
• ? ????.
• 5. ????
• ?? ??? ???? ???? ?? ???? ?? ?? , ?? ??? ????
• 6. ???? ??

39
Outro

• iWork
• Tron
• And Post BK
