Quantitative Methods

1

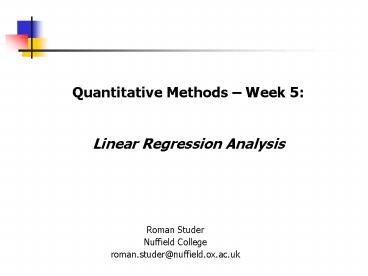

• Quantitative Methods Week 5
• Linear Regression Analysis

Roman Studer Nuffield College roman.studer_at_nuffiel
d.ox.ac.uk
2
Homework (II)

• Many factors (variables) are potentially
  associated with the drop in crime rates in the
  US. Where do you find correlations between a
  variable and the falling crime rate? Which
  variables are positively, which ones negatively
  correlated with the crime rate variable? Where do
  you not find any correlation? Explanations?

Concept/Variable
Measured Variable
Correlation
Strong economy
Unemployment rate, poverty level
Reliance on prisons
Number of prisoners
Education
Educational Attainment
Legalizing abortion
Number of abortions

• How did you solve the lag problem with the
  abortion variable?

3
Simple Linear Regression Introduction

• As with correlation, we are still looking at the
  relationship between two (ratio level) variables,
  but now we do not treat them symmetrically
  anymore, but make a distinction between the two

influences
y x
Dependent variable Independent variable
Explained variable Explanatory variable

• As a consequence, the question that can be
  anwered with correlation analysis and regression
  analysis are different

Correlation Regression
Is there an association between X and Y? How exactly does Y change if X changes?
How strong? Positive or negative? How much of the change in Y is explained?
4
Simple Linear Regression Introduction (II)

• Therefore, we move from issues of mere
  association to issues of causality
• HOWEVER A simple linear regression cannot
  establish causation!
• We assume that causality runs from x to y
• Sometimes this assumption is questionable, then
  more sophisticated models and tests are needed
• Simultaneous equation models
• Two-stage least square regressions
• Causality tests
• So we have to be careful when making such
  assumptions. Lets look at some pairs of
  variables.
• Which is the explanatory variable and which the
  dependent variable?
• In which cases might you expect a mutual
  interaction between the two variables?
• Height and weight
• Birth rate and marriage rate
• Rainfall and crop yield
• Rate of unemployment and level of relief
  expenditure in British parishes
• Government spending on welfare programmes and the
  voting share of left-liberal parties
• CO2 emissions and global warming

5
Simple Linear Regression Introduction (III)

• Straight line (linear) relationship between two
  variables
• The relationship between two variables can take a
  nonlinear form
• Kuznets (1955) hypothesised that the relationship
  between the level of economic development (x) and
  income inequality (y) takes the form of a
  nonlinear (inverted-U shaped) form

Income Inequality
Economic Development

• Multiple or multivariate regression includes two
  or more explanatory variables

6
The Equation of a Straight Line

• The equation of a straight line Y a bX

Example y23x
7
The Equation of a Straight Line (II)

• Equation of a straight line YabX
• Y and X are the dependent and the independent
  variable respectively and y1, y2, , yn and x1,
  x2, , xn their values
• a is the intercept. It determines the level at
  which the straight line crosses the vertical
  axis, i.e. it gives the value of y when x0
• b measures the slope of the line
• Positive relationship bgt0
• No relationship b0
• Negative Relationship blt0
• If x increases by one unit, y will increase by b
  units

8
Fitting the Regression Line

• How do we find the line, which is the best fit,
  i.e. the line that describes the linear
  relationship between X and Y the best
• This is an issue as in the real world,
  relationships between two variables never follow
  a completely linear pattern

9
Fitting the Regression Line (II)

• The regression line predicts the values of Y
  based on the values of X. Thus, the best line
  will minimise the deviation between the predicted
  and the actual values (the error, e)

10
Fitting the Regression Line (III)

• However, to avoid the problem that positive and
  negative deviations cancel out, we look at
  squared deviations (Yi Yi)2
• Also, as we want to minimise the total errors, we
  are interested in minimising the sum of all
  squared errors
• Therefore, the regression line it the line that.
• minimizes the sum of the squares of the vertical
  deviation of all pairs of the values of X and Y
  from the regression line

• This estimation procedure is known as ordinary
  least squares regression (OLS). Its formal
  derivation yields the two formulae needed to
  calculate the regression line, i.e. a formula for
  the intercept (a) and a formula for the slope (b)

11
Fitting the Regression Line (IV)

• With these two formulae, we can actually easily
  calculate the regression line for small datasets
  by hand. However, for large datasets and when we
  have more than one explanatory variable, we use
  the Stata to do it for us

12
The Goodness of Fit

• Once we get the best fit regression line, we
  still want to know how good a fit this line
  really is
• How much of the variation in Y is explained by
  this regression line?
• The measure to describe the explanatory power of
  a regression is the coefficient of determination
  r2, which is equal to the square of the
  correlation coefficient
• It is a measure of the success with which the
  movements in Y are explained by the movements in
  X
• In particular it measures how much of the
  derivation of Y from the mean of Y is explained
  by the regression

13
The Goodness of Fit (II)

• This is the interactive part of the class.
• Please explain the concept depicted in the
  following graph in your own words

Regression line
x
14
The Goodness of Fit (III)
Total variation explained variation
unexplained variation TSS ESS USS R²ESS/TSS
Explained Sum of Squares/Total Sum of Squares
15
The Goodness of Fit (IV)

• R2 gives the proportion of the sample variation
  in y that is explained by x
• R2 0.35 means that the explanatory variable
  explains 35 of the variation in the dependent
  variable
• R2 ranges between 0 and 1
• The higher R2 the better the fit of the
  regression line to the data
• R2 can be used to compare the explanatory power
  of different regression models (with the same
  dependent variable)
• R2 has to be interpreted in the light of what we
  would expect
• A low R2 does not necessarily mean that an OLS
  regression equation is useless

16
Computer Class

• Regression Analysis

17
Exercises

• Weimar elections Unemployment and votes for the
  Nazi
• A) Descriptive Statistics
• Get the dataset about the Weimar election of
  1932 at http//www.nuff.ox.ac.uk/users/studer/tea
  ching.htm
• Look at the variables (votes for the Nazi party,
  level of unemployment) in turn
• Get a first visualisation of the data does it
  look normally distributed?
• Compute the mean, median, standard deviation,
  coefficient of variation, kurtosis and skewness
  for the variable
• Make a scatter plot Do you think the two
  variables are associated? How and how strongly?
• B) Regression Analysis
• Which one is the dependent variable?
• Estimate the regression line
• What is the interpretation?
• What is the explanatory power of the regression?
• Draw a scatter plot and add the regression line

18
Exercises (II)
2. Weimar elections Nazi votes and the share of
Catholics ? Do the same exercises as with the
unemployment rate A) Descriptive
Statistics B) Regression Analysis
19
Appendix STATA Commands

• regress depvar indepvars Linear regression the
  dependent and independent variables are
  indicated by the order. The dependent variable
  depvar comes first, then the independent
  variable(s) indepvar follow
• predict yhat, xb Calculates the linear
  prediction for each observation, i.e. yhati
  abindepvari
• predict res, resid The option resid behind the
  comma let STATA calculate and save the
  residuals, i.e. resiyi- yhati
• generate newvarexp Creates a new variable.
  STATA provides numerous functions, see STATAs
  Help on Functions and expressions/math
  functions

20
Homework

• Readings
• Feinstein Thomas, Ch. 5
• Problem Set 4
• Finish the exercises from todays computer class
  if you havent done so already. Include all the
  results and answers in the file you send me
• On the next slide you see part of the
  macroeconomic dataset we used in week 3. Look at
  the variables GDP per head and education,
  assuming that GDP per head is the dependent
  variable and education the explanatory variable.
  Calculate by hand
• The regression coefficient, b
• The intercept, a
• The total sum of squares
• The explained sum of squares
• The residual sum of squares
• The coefficient of determination
• (hint graph the values first by hand and then
  look at tables 4.1 and 4.2)
• Download the complete data set at
  http//www.nuff.ox.ac.uk/users/studer/teaching.htm
  (macro data) and calculate the regression line
  and the coefficient of determination
• Interpret the results
• Do the results differ from the correlation
  results?

21
Homework (II)
Country GDP per Head Agriculture Education
Norway 54360 1.60 81
Switzerland 49660 1.40 49
United States 39430 1.20 83
Brazil 3340 10.10 21
Iran 2340 13.70 21
