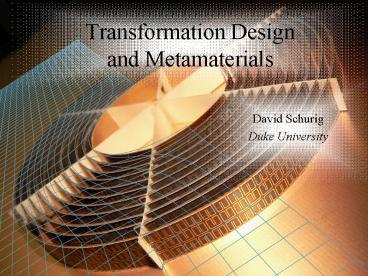

Transformation Design and Metamaterials

1
Transformation Designand Metamaterials

• David Schurig
• Duke University

2
The Transformation Design Group

• John Pendry
• Imperial College
• David Smith
• Steve Cummer
• Jack Mock
• Bryan Justice
• Tony Starr
• SensorMetrix

Duke University
3
Overview

• Metamaterials
• What are they?
• What can you do with them?
• Transformation design
• 2D Microwave cloak

4
What are Metamaterials?

• Materials
• Intrinsic properties
• Described by a few parameters
• a0 ltlt a ltlt l
• Material scale order determines the properties

5
Why bother?

• Custom meta-atoms
• Complete control of meta-atomic order
• Not constrained to thermodynamic assembly
• Unique material properties not previously
  observed
• Negative index
• Large controlled gradients
• Controlled Anisotropy

6
Electromagnetic Parameter Space
m
1
e
1
0
7
Resonance Mechanical Analog
8
Ring and Cut Wire Resonators
9
SRR Resonance
10
Microscale Simulations
Commercial and custom codes can be used to find
the local fields for any unit cell.
A new approach to numerical effective medium
retrieval arises. Two examples are field
averaging and S-parameters retrieval.
11
Microwave Metamaterial Samples
12
Transformation Design
13
Transformation Design

• Why a new design paradigm?
• Metamaterials provide unprecedented control over
  electromagnetic properties.
• Not obvious how to take advantage of this
  flexibility.

14
Controlling Electromagnetic Fields
Traditional
Transformation Optics

• Index and shape
• Simple materials

• Coordinate transform
• Complex materials
• Simultaneous geometric and wave design
• Relfectionless design

15
Transformation Design

• Imagine an interesting space
• Describe it with a coordinate transformation
• Calculate the material specification

16
Space I

• Flat space
• 3D Cartesian
• Objects
• electromagnetic fields
• sources
• medium
• Physical Laws
• Maxwells Equations
• Constitutive Equations

James Maxwell
17
Space II

• Flat space
• Minkowski space
• Objects
• electromagnetic fields
• sources
• medium
• Physical Laws
• Maxwells Equations
• Constitutive Equations

Hermann Minkowski
18
Coordinate Transformations
Passive
Active
19
Coordinate TransformationsCloak of Invisibility
Passive
Active
20
Coordinate TransformationsCloak of Invisibility
Passive
Active
21
Space II

• Flat space
• Minkowski space
• Objects
• electromagnetic fields
• sources
• medium
• Physical Laws
• Maxwells Equations
• Constitutive Equations

Hermann Minkowski
22
Form Invariance
Transformation Properties
Hermann Weyl
Electromagnetic Equations
holonomic
23
Resources
Maxwells Equations
Clifford
24
Spatial Transformations
Time invariance
25
Radial Transforms
spherical
cylindrical
Unity (free space)
Cloak
Concentrator
Non one-to-one (negative index)
Discontinuous (reflective)
26
Radial Transforms Cloak
r
r
27
Radial Transforms Concentrator
r
r
28
Cloaking on a Ground Plane
29
Concentrator
30
Cloaking Arbitrary Shapes
31
2D Microwave Cloak
32
Metamaterial Implementation

• Design the unit cell
• Design the unit cell layout
• Fabrication patterning, cutting, assembly
• Measurement

33
Cloak Design Theory
Transform Media
34
Cloak Design Layout

• Space Filling
• but not crystalline
• Multiple environments
• Six fold symmetry

35
Cloak Design Unit Cells

• Simulate rectangular unit cells
• Copper on FR4 or Duroid
• Magnetic and electric response from SRR
• Tune e with r and m with s

36
Simulated Material Properties
37
Tuning the Magnetic Resonance
Rem
w
0
38
Tuning the Electric Resonance
Ree
w
0
39
Cloak Design Measurement

• Scan range 20cm x 20cm
• Frequency range X-band
• 8.5 GHz (l/unit cell gt 10)

40
Cloak Simulations
Ideal Cloak
Reduced parameter set
41
Cloak Measurements
Bare scatterer measurement
Cloaked scatterer measurement
42
Simulation Measurement Comparison
Simulation
Measurement
43
Cloak Applications

• Concealing structures, vehicles, personnel
• Removing obstructions
• Shielding
• Nefarious

44
The Future

• Better cloaks
• Other transformation designed devices
• Other wave phenomena
• Higher frequency

45
(No Transcript)
46
Thank You
