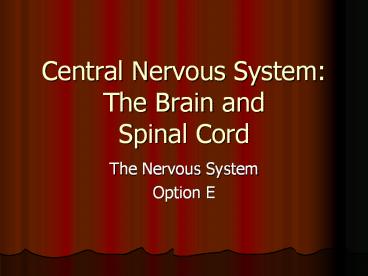

Central Nervous System: The Brain and Spinal Cord

1
Central Nervous SystemThe Brain and Spinal Cord

• The Nervous System
• Option E

2
The Brain

• Most developed/complex organ of the body.
• Cephalization

3
4 Major Regions

1. Cerebral Hemispheres
2. Diencephalon
3. Thalamus
4. Hypothalamus
5. Epithalamus
6. Brain Stem
7. Midbrain
8. Pons
9. Medulla
10. Cerebellum

4
Cerebrum
Diencephalon
Brain stem
Cerebellum
4
5
Gray Matter vs. White Matter

• Unmyelinated fibers
• Concentrated area of neuron cell bodies
• Found
• Outer Cortex
• Surrounding Central
• Canal
• Scattered w/White Matter

• Myelinated fibers
• Found
• Between gray matter layers

6
(No Transcript)
7
Ventricles

• Hollow chambers within the brain
• Flow into Central Canal
• Filled with Cerebrospinal Fluid (CSF)
• Divided into Segments
• Lateral Ventricles ? in cerebral hemispheres
• Third Ventricle ? in diencephalon
• Fourth Ventricle ? in pons / medulla

8
Lateral ventricles
Third ventricle
Fourth ventricle
8
9
1. CEREBRAL HEMISPHERES

• Most superior, largest part (83)
• elevated ridges? gyri (gyrus)
• shallow grooves ?sulci (sulcus)
• deep grooves ?fissures
• longitudinal fissurebtwn. hemispheres
• transverse fissure btwn. cerebrum
• and cerebellum

10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Are the Hemispheres Connected?

• CORPUS
• CALLOSUM

16
(No Transcript)
17
Cerebrum Divided into5 Major LOBES

• Frontal Lobe
• Parietal Lobe
• Temporal Lobe
• Occipital Lobe
• Insula

18
Parietal lobe
Central sulcus
Occipital lobe
Precentral gyrus
Postcentral gyrus
Frontal lobe
Temporal lobe
18
19

• INSULA

20
Cerebral Hemispheres divided into3 REGIONS

1. Cerebral Cortex
2. Cerebral White Matter
3. Cerebral Basal Nuclei

21
The Cerebral Cortex

• Area of consciousness
• Composed of gray matter
• All interneurons !
• No functional area acts alone!

22
3 areas of Cerebral Cortex

• Motor Area
• Sensory Area
• Association Area
• Dont confuse w/ Motor, Sensory Neurons!
• Areas detected by modern imaging techniques

23
(No Transcript)
24
Motor Area of Cerebral Cortex

• Located in precentral gyrus
• Controls all voluntary movements
• Subdivided into
• Premotor cortex
• Primary motor cortex
• Brocas region

25

• Premotor cortex
• Located anterior to precentral gyrus
• Controls LEARNED, repetitive skills!
• Musical instrument playing
• Keyboarding, writing

26

• Brocas Region
• Located anteriorly/inferiorly to premotor cortex
• Left hemisphere only
• Controls MOTOR SPEECH
• Talking!

27

• Primary Motor Cortex
• Controls voluntary movement of skeletal muscles!
• Precise motor control regions dominant here!

28
(No Transcript)
29
Homunculus
30
Sensory Area of Cerebral Cortex

• Located in postcentral gyrus
• Controls all sensation capabilities
• Subdivided into
• Somatosensory cortex
• Association cortex
• Visual cortex
• Auditory cortex
• Olfactory cortex
• Gustatory cortex
• Vestibular cortex

31

• SOMATOSENSORY
• CORTEX

• Controls tactile sensations in skin and skeletal
  muscles
• What part of the body is most sensitive to touch?

32

• ASSOCIATION CORTEX

• Receives information from somatosensory cortex
• Allows for understanding of tactile sensations!

33

• VISUAL
• CORTEX

• Receives information from eyes
• Segments allow for
• identification of images
• location/position of images

34

• AUDITORY
• CORTEX

• Receives information from ears
• Allows for identification of sounds

35

• OLFACTORY
• CORTEX

• Receives information from smell receptors
• Allows for identification of SCENTS

36

• GUSTATORY
• CORTEX

• Receives information from the tongue
• Allows for identification of TASTES

37

• VESTIBULAR
• CORTEX

• Receives information from inner ear
• Allows for maintenance of BALANCE

38

• Prefrontal
• Cortex

• Controls intellect, learning, personality,
  abstract thinking, judgement, reasoning,
  planning, compassion, conscience, moral thought,
  etc.
• Develops slowly
• Linked to Limbic System

39

• WERNICKES
• REGION

• Understanding spoken/written language
• Reminder
• What region allows for ability to speak?

40

• VISCERAL
• AREA

• Perception of internal body sensations
• full bladder
• nausea, etc.
