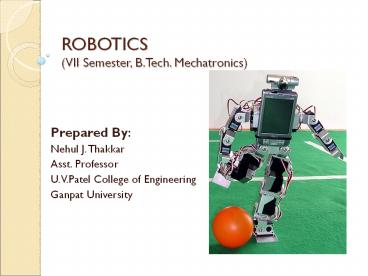

ROBOTICS (VII Semester, B.Tech. Mechatronics)

1
ROBOTICS(VII Semester, B.Tech.
Mechatronics)

• Prepared By
• Nehul J. Thakkar
• Asst. Professor
• U.V.Patel College of Engineering
• Ganpat University

2
Chapter 2 Fundamentals of Robot Technology

• Robot Anatomy
• Robot Motions
• Work Volume
• Degree of Freedom (DOF)
• Robot Drive Systems
• Speed of Motions
• Load-carrying Capacity
• Control Systems
• Dynamic Performance
• Compliance
• End Effectors
• Sensors

15 February 2021
Cont.
2
3
Robot Anatomy

• The physical construction of the body, arm and
  wrist of the machine
• The wrist is oriented in a variety of positions
• Relative movements between various components of
  body, arm and wrist are provided by a series of
  joints
• Joints provide either sliding or rotating motions
• The assembly of body, arm and wrist is called
  Manipulator

15 February 2021
Cont.
3
4
Robot Anatomy..

• Attached to the robots wrist is a hand which is
  called end effector
• The body and arm joints position the end effector
  and wrist joints orient the end effector

15 February 2021
Cont.
4
5
Robot Anatomy..

• Robot Configurations
• Variety of sizes, shapes and physical
  configuration
• Cartesian Coordinates Configuration
• Cylindrical Configuration
• Polar or Spherical Configuration
• Articulated or Jointed-arm Configuration
• Selective Compliance Assembly Robot Arm (SCARA)
  Configuration

15 February 2021
Cont.
5
6
Robot Anatomy..

• Cartesian Coordinate Configuration
• Uses three perpendicular slides to construct x ,
  y and z axes
• X-axis represents right and left motions, Y-axis
  represents forward-backward motions and Z-axis
  represents up-down motions
• Kinematic designation is PPP/LLL
• Other names are xyz robot or Rectilinear robot or
  Gantry robot
• Operate within a rectangular work volume

15 February 2021
Cont.
6
7
Robot Anatomy..

• Cartesian Coordinate Configuration..

15 February 2021
Cont.
7
8
Robot Anatomy..

• Cartesian Coordinate Configuration..
• Advantages
• Linear motion in three dimension
• Simple kinematic model
• Rigid structure
• Higher repeatability and accuracy
• High lift-carrying capacity as it doesnt vary at
  different locations in work volume
• Easily visualize
• Can increase work volume easily
• Inexpensive pneumatic drive can be used for PP
  operation

15 February 2021
Cont.
8
9
Robot Anatomy..

• Cartesian Coordinate Configuration..
• Disadvantages
• requires a large volume to operate in
• work space is smaller than robot volume
• unable to reach areas under objects
• must be covered from dust
• Applications
• Assembly
• Palletizing and loading-unloading machine tools,
• Handling
• Welding

15 February 2021
Cont.
9
10
Robot Anatomy..

• Cylindrical Configuration
• Use vertical column which rotates and a slide
  that can be moved up or down along the column
• Arm is attached to slide which can be moved in
  and out
• Kinematic designation is RPP
• Operate within a cylinder work volume
• Work volume may be restricted at the back side

15 February 2021
Cont.
10
11
Robot Anatomy..

• Cylindrical Configuration..

15 February 2021
Cont.
11
12
Robot Anatomy..

• Cylindrical Configuration..
• Advantages
• Simple kinematic model
• Rigid structure high lift-carrying capacity
• Easily visualize
• Very powerful when hydraulic drives used
• Disadvantages
• Restricted work space
• Lower repeatability and accuracy
• Require more sophisticated control
• Applications
• Palletizing, Loading and unloading
• Material transfer, foundry and forging

15 February 2021
Cont.
12
13
Robot Anatomy..

• Polar or Spherical Configuration
• Earliest machine configuration
• Has one linear motion and two rotary motions
• First motion is a base rotation, Second motion
  correspond to an elbow rotation and Third motion
  is radial or in-out motion
• Kinematic designation is RRP
• Capability to move its arm within a spherical
  space, hence known as Spherical robot
• Elbow rotation and arm reach limit the design of
  full spherical motion

15 February 2021
Cont.
13
14
Robot Anatomy..

• Polar or Spherical Configuration..

15 February 2021
Cont.
14
15
Robot Anatomy..

• Polar or Spherical Configuration..
• Advantages
• Covers a large volume
• Can bend down to pick objects up off the floor
• Higher reach ability
• Disadvantages
• Complex kinematic model
• Difficult to visualize
• Applications
• Palletizing
• Handling of heavy loads e.g. casting, forging

15 February 2021
Cont.
15
16
Robot Anatomy..

• Jointed Arm Configuration
• Similar to human arm
• Consists of two straight components like human
  forearm and upper arm, mounted o a vertical
  pedestal
• Components are connected by two rotary joints
  corresponding to the shoulder and elbow
• Kinematic designation is RRR
• Work volume is spherical

15 February 2021
Cont.
16
17
Robot Anatomy..

• Jointed Arm Configuration..

15 February 2021
Cont.
17
18
Robot Anatomy..

• Jointed Arm Configuration..

15 February 2021
Cont.
18
19
Robot Anatomy..

• Jointed Arm Configuration..
• Advantages
• Maximum flexibility
• Cover large space relative to work volume objects
  up off the floor
• Suits electric motors
• Higher reach ability
• Disadvantages
• Complex kinematic model
• Difficult to visualize
• Structure not rigid at full reach
• Applications
• Spot welding, Arc welding

15 February 2021
Cont.
19
20
Robot Anatomy..

• SCARA Configuration
• Most common in assembly robot
• Arm consists of two horizontal revolute joints at
  the waist and elbow and a final prismatic joint
• Can reach at any point within horizontal planar
  defined by two concentric circles
• Kinematic designation is RRP
• Work volume is cylindrical in nature
• Most assembly operations involve building up
  assembly by placing parts on top of a partially
  complete assembly

15 February 2021
Cont.
20
21
Robot Anatomy..

• SCARA Configuration..

15 February 2021
Cont.
21
22
Robot Anatomy..

• SCARA Configuration..

15 February 2021
Cont.
22
23
Robot Anatomy..

• SCARA Configuration..
• Advantages
• Floor area is small compare to work area
• Compliance
• Disadvantages
• Rectilinear motion requires complex control of
  the revolute joints
• Applications
• Assembly operations
• Inspection and measurements
• Transfer or components

15 February 2021
Cont.
23
24
Robot Motions

• Industrial robots perform productive work
• To move body, arm and wrist through a series of
  motions and positions
• End effector is used to perform a specific task
• Robots movements divided into two categories
• Arm and body motions
• Wrist motions
• Individual joint motions referred as DOF
• Motions are accomplished by powered joints

15 February 2021
Cont.
24
25
Robot Motions..

• Three joints are associated with the action of
  arm and body
• Two or three used to actuate the wrist
• Rigid members are used to connect manipulator
  joints are called links
• Input link is closest to the base
• Output link moves with respect to the input link

15 February 2021
Cont.
25
26
Robot Motions..

• Joints involve relative motions of the adjoining
  links that may be linear or rotational
• Linear joints involve a sliding or translational
  motion which can be achieved by piston,
  telescopic mechanism
• May be called Prismatic joint
• Represented as L or P joint
• Three types of rotating motion
• Rotational (R)
• Twisting (T)
• Revolving (V)

15 February 2021
Cont.
26
27
Robot Motions..
15 February 2021
Cont.
27
28
Robot Motions..

• Physical configuration of the robot can be
  described by a joint notation scheme
• Considering the arm and body first
• Starting with the joint closest to the base till
  the joint connected to the wrist
• Examples are LLL, TLL, TRL, TRR, VVR
• Wrist joints can be included for notation
• From joint closest to the arm to the mounting
  plate for the end effector have either T or R
  type
• Examples are TRL TRT, TRR RT
• The scheme also provide that robot move on a
  track or fixed to a platform
• Example TRL TRT, L-TRL TRT

15 February 2021
Cont.
28
29
Robot Motions..
15 February 2021
Cont.
29
30
Robot Motions..
15 February 2021
Cont.
30
31
Robot Motions..
15 February 2021
Cont.
31
32
Robot Work Volume

• The space within which the robot can manipulate
  its wrist end
• different end effector might be attached to wrist
  but not counted as part of the robots work space
• Long end effector add to the extension of the
  robot compared to smaller end effector
• End effector may not be capable of reaching
  certain points within the robots normal work
  volume
• Larger volume costs more but can increase
  capabilities of robot

15 February 2021
Cont.
32
33
Robot Work Volume..

• It depends upon following physical
  characteristics
• Robots configuration
• Size of the body, arm and wrist components
• Limits of the robots joint movements

15 February 2021
Cont.
33
34
Robot Work Volume..
15 February 2021
Cont.
34
35
Robot Work Volume..
15 February 2021
Cont.
35
36
Degree of Freedom (DOF)

• Rotate Base of Arm
• Pivot Base of Arm
• Bend Elbow
• Wrist Up and Down
• Wrist Left and Right
• Rotate Wrist



15 February 2021
Cont.
36
37
Degree of Freedom..

• It is a joint , a place where it can bend or
  rotate or translate
• Can identify by the number of actuators on the
  arm
• Few DOF allowed for an application because each
  degree requires motor, complicated algorithm and
  cost
• Each configurations discussed before utilizes
  three DOF in the arm and the body
• Three DOF located in the wrist give the end
  effector all the flexibility

15 February 2021
Cont.
37
38
Degree of Freedom..

• A total 6 DOF is needed to locate a robots hand
  at any point in its work space
• The arm and body joints move end effector to a
  desired position within the limits of robots
  size and joint movements
• Polar, cylindrical and jointed arm configuration
  consist 3 DOF with the arm and body motions are
• Rotational traverse Rotation of the arm about
  vertical axis such as left-and-right swivel of
  the robot arm about a base

15 February 2021
Cont.
38
39
Degree of Freedom..

• Radial traverse Involve the extension and
  retraction (in or out movement) of the arm
  relative to the base
• Vertical traverse Provide up-and-down motion of
  the arm
• For a Cartesian coordinate robot, 3 DOF are
  vertical movement (z-axis motion), in-and-out
  movement (y-axis motion), and right-and-left
  movement (x-axis motion) which are achieved by
  slides of the robot arm

15 February 2021
Cont.
39
40
Degree of Freedom..
15 February 2021
Cont.
40
41
Degree of Freedom..

• Wrist movement enable the robot to orient the end
  effector properly to perform a task
• Provided with up to 3 DOF which are
• Wrist Pitch/Bend Provide up-and-down rotation to
  the wrist
• Wrist Yaw Involve right-and-left rotation of the
  wrist
• Wrist Roll/Swivel Is the rotation of the wrist
  about the arm axis

15 February 2021
Cont.
41
42
Degree of Freedom..
15 February 2021
Cont.
42
43
Degree of Freedom..
15 February 2021
Cont.
43
44
Drive Systems

• Capacity to move robots body, arm and wrist
• Determine speed of the arm movements, strength of
  the robot dynamic performance
• Type of applications that the robot can
  accomplish
• Powered by three types of drive systems
• Hydraulic
• Pneumatic
• Electric

15 February 2021
Cont.
44
45
Drive Systems..
15 February 2021
Cont.
45
46
Drive Systems..

• Hydraulic Drive
• Associated with large robot
• Provide greater speed strength
• Add floor space
• Leakage of oil
• Provide either rotational or linear motions
• Applications such as
• Spray coating robot
• Heavy part loading robot
• Material handling robot
• Translatory motions in cartesian robot
• Gripper mechanism

15 February 2021
Cont.
46
47
Drive Systems..

• Hydraulic Drive..

15 February 2021
Cont.
47
48
Drive Systems..

• Hydraulic Drive..

15 February 2021
Cont.
48
49
Drive Systems..

• Pneumatic Drive
• Reserved for smaller robot
• Limited to pick-and-place operations with fast
  cycles
• Drift under load as air is compressible
• Provide either rotational or linear motions
• Simple and low cost components
• Used to open and close gripper

15 February 2021
Cont.
49
50
Drive Systems..
15 February 2021
Cont.
50
51
Drive Systems..

• Electric Drive
• Rotor, stator, brush and commutator assembly
• Rotor has got windings of armature and stator has
  got magnets
• The brush and the commutator assembly switch the
  current in armature windings
• The most commonly used are DC servomotors, AC
  servomotors and stepper motors

15 February 2021
Cont.
51
52
Drive Systems..

• Electric Drive..
• Servomotor

15 February 2021
Cont.
52
53
Drive Systems..

• Electric Drive..

15 February 2021
Cont.
53
54
Drive Systems..

• Electric Drive..

15 February 2021
Cont.
54
55
Speed of Motion

• Speed determines how quickly the robot can
  accomplish a given work cycle
• Desirable in production to minimize cycle time
• Industrial robot speed range up to a maximum of
  1.7 m/s
• Speed would be measured at wrist
• Highest speed can be obtained by large robot with
  fully extended arm

15 February 2021
Cont.
55
56
Speed of Motion..

• Most desirable speed depends on factors
• Accuracy
• Weight of the object
• Distance
• Inverse relation between the accuracy and the
  speed
• Heavier objects must be handled more slowly
• Capable of traveling one long distance in less
  time than a sequence short distances whose sum is
  equal to the long distance

15 February 2021
Cont.
56
57
Speed of Motion..

• Short distance may not permit for programmed
  operating speed

15 February 2021
Cont.
57
58
Load-Carrying Capacity

• It depends upon size, configuration, construction
  and drive system
• Robot arm must be in its weakest position to
  calculate load-carrying capacity
• In polar, cylindrical and jointed-arm, the robot
  arm is at maximum extension
• Ranges from less than a pond to several thousand
  pounds
• Gross weight include the weight of the end
  effector

15 February 2021
Cont.
58
59
Control Systems

• Controlling drive system to properly regulate its
  motions
• Four categories according to control systems
• Limited-sequence robot
• Playback robots with PTP control
• Playback robots with continuous path control
• Intelligent robot

15 February 2021
Cont.
59
60
Speed of Response Stability

• The speed of response refers to the capability of
  the robot to move to the next position in a short
  amount of time
• Stability is defined as a measure of the
  oscillations which occur in the arm during
  movement from one position to the next
• Good stability exhibit little or no oscillation
  and poor stability indicated by a large amount of
  stability
• Damping control stability but reduces the speed
  of response

15 February 2021
Cont.
60
61
Speed of Response Stability..
15 February 2021
Cont.
61
62
Spatial Resolution
15 February 2021
Cont.
62
63
Spatial Resolution..

• Defined as smallest increment of movement into
  which the robot can divide its work volume
• Depends on two factors systems control
  resolution and the robots mechanical
  inaccuracies
• Control resolution is determined by robots
  position control system and its feedback
  measurement system
• Ability to divide total range of movement for the
  particular joint into individual increments that
  can be addressed in the controller

15 February 2021
Cont.
63
64
Spatial Resolution..

• Joint range depends on the bit storage capacity
  in the control memory
• Number of increments for a axis is given by
• Number of Increments 2n
• Have a control resolution for each joint in case
  of several DOF
• Resolution for each joint to be summed
  vectorially
• Total control resolution depend on the wrist
  motions as well as the body and arm motions

15 February 2021
Cont.
64
65
Spatial Resolution..

• Mechanical inaccuracies come from elastic
  deflection in the structure elements, gear
  backlash, stretching of pulley cords, leakage of
  hydraulic fluids and other imperfections in the
  mechanical system
• Also affected by load being handled, the speed of
  arm moving, condition of maintenance of robot

15 February 2021
Cont.
65
66
Accuracy

• Ability to position its wrist end at a desired
  target point within the work volume

15 February 2021
Cont.
66
67
Accuracy..

• Depends on spatial resolution means how closely
  the robot can define the control increments
• Lie in the middle between two adjacent control
  increments
• One half of the control resolution

15 February 2021
Cont.
67
68
Accuracy..

• Depends on spatial resolution means how closely
  the robot can define the control increments
• Lie in the middle between two adjacent control
  increments
• One half of the control resolution
• Same anywhere in work volume
• It may be changed in work volume due to
  mechanical inaccuracies

15 February 2021
Cont.
68
69
Accuracy..

• Affected by many factors
• Mechanical inaccuracies
• Work range
• Weight

15 February 2021
Cont.
69
70
Repeatability

• Ability to position its wrist at a point in space
  that had been taught
• Accuracy relates to its capacity to be programmed
  to achieve a given target point
• Programmed point and target point may be
  different due to limitations of resolution
• Repeatability refers to ability to return to the
  programmed point when commanded to do so

15 February 2021
Cont.
70
71
Repeatability..

15 February 2021
Cont.
71
72
Compliance

• Displacement of the wrist end in response to a
  force or a torque exerted against it
• High compliance means that wrist is displaced a
  large amount by small force known as Springy
• Reduce the robot precision of movement under load
• Directional feature
• Reaction force of the part may cause deflection
  to the manipulator

15 February 2021
Cont.
72
73
Thank You
