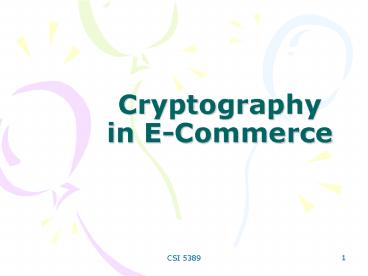

Cryptography in E-Commerce

1
Cryptography in E-Commerce
2
Outline

• Basic Concepts
• Secret-Key (Symmetric) Cryptography
• Public-Key (Asymmetric) Cryptography
• Modes
• Protocols
• Key Management

3
Basic Concepts
4
Brief Introduction

• The word cryptography derives from the Greek
  word for secrete writing.
• Cryptography is the science of communication over
  untrusted communication channels.
• Historically, cryptography has been associated
  with spies, governments, military, and has been
  used in warfare for thousands of years.
• Over the past 50 years, cryptography has acquired
  a sound mathematical foundation, and has moved
  from military application to commercial
  applications.
• This lecture attempts to give an overview of this
  broad and specialized topic.

5
A Motivating Example

• Consider an e-commerce scenario where Alice, a
  purchasing agent, wants to order some products
  from Bob, her supplier.
• Requirements for the transaction
• Alice wants to be sure that she is really dealing
  with Bob and not an impostor (authentication).
• Bob wants to know that Alice is really Alice and
  not an impostor (authentication), because Alice
  gets special prices as negotiated.
• Alice wants to keep the order secret from her
  competitors and Bob does not want other
  customers to see Alices special prices
  (privacy).
• Alice and Bob both want to be sure that crackers
  cannot change the price or quantity (integrity).
• Bob wants to ensure that Alice cannot later claim
  that she did not place the order
  (non-repudiation).

6
General Requirements

• Authentication The sender knows that the message
  is going to the intended recipient and the
  recipient knows that the message was sent by the
  proper sender.
• Privacy The message is secret only the sender
  and the intended recipient know its contents.
• Integrity The message was not modified
  (intentionally or accidentally) while in transit.
• Non-repudiation The author of the message cannot
  later deny having sent the message.
• Cryptographic techniques can be used to satisfy
  the above requirements.

7
How Does It Work?

• An ordinary message (the plaintext) is processed
  by an encryption algorithm to produce a scrambled
  message (the ciphertext).
• The receiver then uses a matching decryption
  algorithm to recover the plaintext from the
  ciphertext.
• There would be no security if these algorithms
  were known to everyone.
• Hence, there is an additional piece of input data
  called a key.
• The key is secret, even though many people may
  know the algorithms.
• The idea is the same as that of combination
  locks Many people may use locks with the same
  design, but each one chooses a different
  combination (i.e., a different key).

8
Two Basic Types

• Secret-key (or symmetric) cryptography
• Both encryption and decryption operations use the
  same key.
• Secret-key systems have been around for many
  hundreds of years.
• Public-key (or asymmetric) cryptography
• Public-key systems use different keys for the
  encryption and decryption operations.
• One key can be made public while the other key is
  kept secret (and is called private key).
• Recent invention (dating from mid 1970s).
• Can grow more easily to worldwide scale and more
  easily permit unaffiliated persons to communicate
  securely.
• Can be used to provide digital signatures (to be
  discussed more later).

9
Symmetric Cryptography
Plaintext input
Plaintext output
Ciphertext
The quick brown fox jumps over the lazy dog
The quick brown fox jumps over the lazy dog
AxCv5bmEseTfid3)fGsmWe4,sdgfMwir3dkJeTsY8R\s_at_
!q3
Encryption
Decryption
Same key (shared secret)
10
Asymmetric Cryptography
Plaintext input
Plaintext output
Ciphertext
The quick brown fox jumps over the lazy dog
The quick brown fox jumps over the lazy dog
Py75cbn)9fDebDFaqxzjFr_at_g5nmdFg5knvMdrkv
egMs
Encryption
Decryption
Different keys
Public key
Private key
11
Practical Use

• In practice, cryptographic systems often use both
  secret-key and public-key cryptography together.
• Since secret-key algorithms are usually faster,
  it is more efficient to use a secret-key
  algorithm to encrypt the actual data.
• The system first generates a (random) key for the
  secret-key algorithm.
• The system then encrypts that key using the
  public-key algorithm.
• The receiver first decrypts the secret key using
  the public-key algorithm, and then decrypts the
  data using that newly decrypted key.

12
Main Components

• There are 4 main components in the use of
  cryptography for any practical systems
  cryptosystems, modes, protocols, and key
  management.
• The term cryptosystems refers to the
  cryptographic algorithms and their
  characteristics.
• Modes refers to how the cryptographic algorithms
  are initialized and used to manage messages that
  are longer than a single block.
• Protocols refers to the ways in which
  cryptographic algorithms are composed and applied
  to real problems (e.g., the securing of a
  communication channel or information in a
  database).
• Very important for e-commerce because they are
  used for protecting content as well as for
  payment systems.
• Key management refers to the essential problems
  of creating, distributing, storing, and updating
  keys.
• Since modern cryptographic algorithms and
  protocols are very strong, key management is a
  tempting target for attackers.

13
Cryptographic Strength

• One way to attack a cryptosystem is to try all
  possible keys to decrypt a message (exhaustive
  search or brute force attack).
• There must be enough possible keys to make this
  attack computationally infeasible.
• The Data Encryption Standard (DES) in 1977 uses
  56-bit keys.
• There are 256 possible keys (or 72.1 x 1015
  different keys), which seems sufficiently large.
• Several years ago, Digital Equipment Corporation
  built a chip capable of 16,000,000 DES operations
  per second.
• If one were to build a machine with 1000 such
  chips, a 56-bit key DES encrypted message could
  be broken in less than 8 weeks!

14
Key Length

• Given a reasonably strong algorithm, how well the
  data is protected depends largely on the length
  of the encryption key.
• An encrypted message must remain secret during
  the useful life of the information.
• Financial credentials must remain secret beyond
  their validity period.
• Contract bids must remain secret beyond the
  contract award.
• Editorial material must remain secret until
  published.
• Confidential personal information must remain
  secret beyond the lifetime of the person.
• The value of the information in the encrypted
  message governs the resources used to attack it.
• An attacker would be foolish to spend 1 million
  to obtain information worth 1 thousand.
• He may spend 1 million to obtain a secret worth
  2 million.

15
Key Length (cont.)

• Today, it is common to use 128-bit keys for
  symmetric algorithms, both for communication
  security and for the security of data to be
  protected for 20 years.
• The current recommendation for asymmetric
  algorithms is to use a minimum length of 1024
  bits (or 2048 bits) for especially sensitive
  applications or long term key.

16
Key Updates

• The longer a key has been in used, the greater
  the chance that it is discovered by subterfuge
  (rather than by brute force attack).
• Hence, keys need to be updated from time to time.
• It is important to note that changing a key does
  not increase the time that an attacker will need
  to break it using brute force attack.
• However, changing a key will limit the amount of
  information revealed if any particular key is
  discovered.
• Example If the encryption key is changed every
  month, then only one months worth of information
  is lost if a key is discovered.

17
Secret-Key (Symmetric) Cryptography
18
Overview

• The message (plaintext) is encrypted into
  ciphertext using a key.
• The resulting ciphertext is sent to the
  recipient, who will decrypt it using the same
  key.
• Hence, the same key must be known to both
  parties.
• The best known secret-key system is the Data
  Encryption Standard (DES).

Receiver
Sender
ciphertext
Plaintext
Plaintext
Decrypt
Encrypt
Key
Key
19
Overview (cont.)

• Privacy is achieved because only those who know
  the key can encrypt or decrypt messages.
• Authentication can be achieved if separate keys
  are used for each pair of communicating parties.
• Integrity can be achieved if a message integrity
  code (MIC) is added to the message.
• An MIC is a cryptographic checksum assigned to a
  file and used to test the file later to verify
  that the data contained in the file has not been
  maliciously changed.
• Non-repudiation is not achieved because either
  the sender or the intended recipient could have
  created the message.
• Example Bob and Alice communicate using
  secret-key cryptography.
• First, they must agree on a key, which only they
  will know and which they will keep secret from
  all others.
• Now, they each can encrypt messages to the other
  using the common key.

20
Block Ciphers and Stream Ciphers

• Block cipher algorithm takes a fixed-length block
  of plaintext (64 or 128 bits) and encrypts it
  with the key to produce a fixed-length block of
  ciphertext .
• Disadvantage One may notice that certain
  ciphertext blocks are repeated, and will
  therefore know that the corresponding plaintext
  blocks are also repeated.
• To combat this problem, an initialization vector
  (IV) is pre-pended to the message and then
  encrypted. Then, the first block of ciphertext is
  exclusive-ORed with the second block of plaintext
  and then encrypted, and so on. The IV is
  different for each message.
• This technique is called cipher block chaining
  (CBC).
• Stream cipher algorithm uses the key to produce a
  pseudorandom key stream, which is exclusive-ORed
  with the plaintext to produce the ciphertext.
• Disadvantage Simple cipher algorithm produces
  the same key stream with each new message.
• To prevent this problem, the IV and the key are
  used to initialize the key stream generator so
  that it produces a different sequence for each
  message.

21
Secret-Key Cryptosystems

• Data Encryption Standard (DES)
• DES is a block cipher algorithm that uses a
  56-bit key to encrypt a 64-bit plaintext block
  into a 64-bit ciphertext block.
• The most common mode of operation of DES is CBC
  Each output block of ciphertext is exclusive-ORed
  with the next plaintext block to form the next
  input to the DES algorithm.
• This process begins with a 64-bit IV.
• Disadvantage Its 56-bit key length is too small
  to resist brute force attacks by modern
  computers.
• Triple DES
• Uses three 56-bit DES keys to encrypt each block.
• The data block is encrypted with the first key,
  then run in decryption mode with the second key,
  and finally encrypted again with the third key.
• If all the three keys are chosen to be the same
  then Triple DES reduces to ordinary DES.
• In its three-key mode, Triple DES requires a
  168-bit key.

22
Secret-Key Cryptosystems (cont.)

• Blowfish
• A block cipher algorithm using variable key
  lengths, designed by Bruce Schneier.
• Freely available and very fast, running nearly 3
  times faster than DES.
• Widely used in file encryption applications for
  personal computers.
• The key length is variable from 32 bits to 448
  bits, making it interesting for variable security
  applications.
• Advanced Encryption Standard (AES)
• AES is an effort of the National Institute of
  Standard and Technology (NIST) to develop and
  standardize a replacement for DES.
• AES uses Rijndael algorithm, which is an iterated
  block cipher algorithm whose block length and key
  length can be independently set to 128 bits, 192
  bits, or 256 bits.
• AES is a good choice for new applications,
  because it is standard, it is receiving careful
  study by cryptographers, and it continues to
  resist attacks.

23
Public-Key (Asymmetric) Cryptography
24
Overview

• In an asymmetric cryptosystem, the encryption key
  is different from the decryption key.
• Each participant creates his own pair of keys
• One is called the public key and is distributed
  freely.
• The other is called the private key and is kept
  secret.
• Either key may be used for encryption or for
  decryption, but the private key should never be
  revealed to anyone.
• The best-known public-key cryptosystem is RSA,
  named after its inventors Rivest, Shamir, and
  Adleman.

Receiver
Sender
Plaintext
ciphertext
Plaintext
Decrypt
Encrypt
Decryption Key
Encryption Key
25
Overview (cont.)

• Bob and Alice communicates using public-key
  cryptography.
• First, Bob and Alice each create a key pair
  (public key and private key).
• Next, they publish their respective public keys
  in the town directory.
• If Bob wants to send Alice a message, he encrypts
  the message using Alices public key.
• The ciphertext can be read only by Alice, because
  only Alice knows her own private key.
• Alice decrypts the message using her private key,
  revealing the original message.

26
Overview (cont.)

• Authentication problem How can Alice tell if the
  message is really from Bob?
• Answer Bob applies his digital signature to the
  message.
• Bob can do so by encrypting the message using his
  own private key, creating a signed message.
• Of course, anyone can decrypt this signed message
  by using Bobs public key.
• The signed message is not secret, but only Bob
  could have sent it, because only Bob knows his
  private key.
• Solution to the authentication problem
• Bob first signs his message using his private
  key.
• He then encrypts this signed message using
  Alices public key.
• Then only Alice can decrypt this message.
• Once she has, she can verify (by using Bobs
  public key) that Bob indeed sent the message.

27
Overview (cont.)

• Another problem (security of the key directory)
• When Bob sends a message to Alice, he looks up
  Alices public key in the directory.
• Suppose someone has substituted his own public
  key with Alices public key in the directory.
• So Bob will unwittingly encrypt his message using
  not Alices public key, but the public key of
  someone else.
• Solution Public-key certificates.
• A public key certificate is a document containing
  a name and the corresponding public key, signed
  by a trusted certificate authority.
• Suppose the town clerk is operating as a
  certificate authority.
• When Alice first creates her public key, she
  appears in person before the clerk with a
  document attesting that the public key is really
  hers.
• The clerk then signs the document with her
  private key. The resulting signed document
  becomes a public-key certificate.
• Anyone can verify the clerks signature using the
  clerks public key.
• Once Alice has a certificate, she can place it in
  the directory.
• Bob then can be assured that the key he uses to
  send messages to Alice is really Alices public
  key.

28
Overview (cont.)

• Certificate authorities (CA) are often organized
  in a hierarchy (similar to DNS).
• Higher-level certificate authorities sign
  certificates for lower-level authorities.
• The certificate authority at the top of the
  hierarchy is called the root, and its public key
  is called the root key.
• A hierarchy of certificate authorities together
  with the widespread use of public-key
  certificates constitute a public-key
  infrastructure (PKI).

29
The RSA Algorithm

• The best known public-key cryptosystem is RSA,
  whose algorithm is as follows
• Bob chooses two distinct large primes p and q and
  computes n pq.
• Bob chooses the encryption key e such that the
  greatest common divisor gcd(e, (p 1)(q 1))
  1.
• Bob then computes the decryption key d with
• de 1 (mod(p -1)(q 1))
• (read de is congruent to 1 mod (p 1)(q 1)).
• Bob makes n and e public, and keeps p, q, and d
  secret.
• Alice writes her message as a number m. If m is
  greater than n, she will break the message into
  blocks, each of which is less than n.
• For simplicity, let us assume for now that m lt n.
  Alice will encrypt message m as c me (mod n)
  and sends the ciphertext c to Bob.
• Bob decrypts c by computing m cd (mod n).

30
The RSA Algorithm (cont.)

• Recall the definition of congruence
• Let a, b, n be integers with n being nonzero. We
  say that
• a b (mod n)
• (read a is congruent to b mod n)
• if (a b) is a multiple (positive or negative)
  of n, that is
• a b kn
• for some integer k (positive, negative or zero).
• Examples
• 32 7 (mod 5), -12 37 (mod 7), 17 17 (mod
  13)
• A text message can be written as a number using
  some numbering scheme to number the letters. If
  we number
• a 01, b 02, c 03, , z 26
• then the message cat can be written as the number

• m 30120.
• Proof of the algorithm (i.e., why m cd (mod
  n)?) can be found in any standard cryptography
  text book (such as Introduction to Cryptography
  by Wade Trappe and Lawrence C. Washington, ISBN
  0-13-186239-1).

31
Modes

• When the message to be encrypted is longer than
  the block length of the cipher, it is necessary
  to execute the algorithm several times and to
  combine the results in some way.
• The method of combination is called the mode of
  operation.
• We shall look at the Electronic Codebook (ECB)
  Mode and the Cipher Block Chaining (CBC) Mode.
• There are also other modes such as Cipher
  Feedback Mode, Output Feedback Mode etc., whose
  details can be found in reference 1.

32
Electronic Codebook (ECB) Mode

• The encryption algorithm is applied independently
  to each block of the message.
• Disadvantages
• The same input block is always encrypted as the
  same ciphertext block.
• An attacker can substitute blocks to alter part
  of a message (e.g., changing payment amount by
  substituting the block where the amount appears).

Plaintext 1
Plaintext 2
Encrypt (key)
Encrypt (key)
Ciphertext 1
Ciphertext 2
Decrypt (key)
Decrypt (key)
Plaintext 1
Plaintext 2
33
Cipher Block Chaining (CBC) Mode
Plaintext 1
Plaintext 2

• Each plaintext block is exclusive-ORed with the
  preceding ciphertext block before the plaintext
  is encrypted.
• The process is bootstrapped using an
  initialization vector (IV).

IV


Encrypt (key)
Encrypt (key)
Ciphertext 1
Ciphertext 2
Decrypt (key)
Decrypt (key)
IV


Plaintext 1
Plaintext 2
34
CBC Mode (cont.)

• In CBC mode, each block of plaintext is scrambled
  by XOR with a block of ciphertext.
• Because these ciphertext blocks are different, if
  the same plaintext block occurs in multiple
  places, it will be encrypted into different
  ciphertext blocks.
• The IV provides this function for the first
  plaintext block.
• The IV must be random and different for each
  message, but it doesnt need to be secret.
• The IV is often transmitted in the clear as the
  first part of the message.
• CBC mode also makes the overall message more
  resistant to tampering.
• If an attacker switches blocks around, duplicates
  blocks, or substitutes old blocks in new
  messages, the chaining that occurs during
  decryption will result in the output plaintext
  being gibberish.

35
Protocols

• A protocol is a series of steps taken to
  accomplish a task.
• This is similar to the definition of an
  algorithm, but
• we use algorithm to refer to the attainment of
  internal, mathematical results such as encrypting
  a block
• we use protocol to refer to the attainment of
  user-visible results such as secret communication
  and digital signatures.

36
Communications Session Keys

• A session key is a cryptographic key adopted for
  use for a particular message or during a
  particular session of communications.
• Session keys are used for two reasons
• To achieve greater performance
• Usually a communications system will use a
  relatively low-performance public-key
  cryptosystem to communicate a session key.
• The session key is then used in a
  high-performance secret-key cryptosystem to
  encrypt the bulk volume of message data.
• To limit the amount of data encrypted with the
  master key.
• Because only the session key is encrypted by the
  master key, the attacker cannot exploit
  statistical properties of the actual message to
  assist in the attack on the master key.

37
Communications Data Compression

• Data compression refers to the problem of
  encoding a message in the minimum amount of
  space.
• In order to do this, data compression algorithms
  (e.g., ZIP and COMPRESS) exploit statistical
  properties of the source file to encode the same
  information with fewer bits.
• In general, it is not possible to compress an
  encrypted message, because a good encryption
  algorithm should destroy the statistical
  properties that a compression algorithm can
  exploit.
• However, it is possible to encrypt a compressed
  message.
• Compressing a file before encrypting it may
  slightly improve security, because compression
  algorithms reduce the redundancy that may be
  exploited during cryptanalysis.

38
Digital Signatures

• A digital signature is an information block
  attached to a message that could have been
  created only by a particular individual.
• One can use public-key cryptography to produce a
  digital signature by creating a message digest of
  the message and encrypting the message digest
  with ones private key.
• Anyone can validate a signature using the
  corresponding public key.

39
Key Management

• Key management is the tempting target for
  attackers (because modern cryptographic
  algorithms, modes and protocols are strong).
• Key management consists of
• Key generation
• Key storage
• Key distribution
• Key destruction

40
Key Generation

• Generally, there are two methods for generating
  keys (by computer software)
• User Input
• Key generators rely on input from users.
• The user is asked to type randomly for a while.
• The letters typed are ignored, but the random
  variations in the inter-arrival time of
  keystrokes are used to generate the key.
• Pseudorandom
• Unpredictable pieces of information such as the
  computers real time clock, the number of
  hardware interrupts received, etc. are combined
  into a randomness pool.
• This pool can be used to generate keys that are
  sufficiently random for most purposes.

41
Key Storage

• During the lifetime of a key, it may be used and
  stored in different places, such as the
  following
• In memory
• When a key is used by a computer, it must be in
  memory.
• Contents of memory may be available to other
  software running on the same system.
• PC operating systems provide no protection.
• Multi-user operating systems prevent users from
  reading or writing the memory allocated to
  others. However, a privileged user has access to
  memory of other users.
• Hence, keys in memory are only as secure as
  access to the machine and the password of the
  system administrator.
• Good practice zeroing out all storage used for
  keys as soon as they are no longer needed.

42
Key Storage (cont.)

• On disk
• Cryptographic keys are usually stored in disk
  files, because they are too long and too random
  to be entered by hand.
• Disk files containing keys are frequently stored
  in encrypted form. Hence, stealing the encrypted
  file may not benefit the attacker.
• However, the security of all the keys in the file
  is only as good as that of the master key (needed
  to decrypt the file), which is usually a
  human-sensible password.
• In protected hardware
• Commercial systems often use protected hardware
  devices such as cryptographic accelerators and
  smart cards to store keys and to perform
  cryptographic operations.
• Since the key never leaves the device (which is
  designed to be tamper-proof), the key is
  physically protected.
• However, it is still possible to rogue software
  to command the use of the key to decrypt or
  encrypt messages.

43
Key Distribution

• Sharing a key between two people
• Meeting in person
• Sending the key by courier
• Using public-key cryptography
• Use a master key to encrypt session keys.
• Sharing keys between more than two people
• Using a Key Distribution Center (KDC), which is a
  central, trusted authority.
• KDC shares a separate master key with each member
  of the network and provides a session key for any
  two parties that want to communicate.
• Using public-key certificates (discussed in Slide
  27)
• A certificate binds a public key to a name by
  having a trusted third party (the certificate
  authority) sign the certificate.
• These certificates can be freely published and
  exchanged over open communication channels.
• Parties wanting to communicate use the public key
  from the certificate to encrypt a session key.

44
Key Destruction

• Keys should be destroyed when they are no longer
  needed.
• Keys stored in memory Zero out all storage used
  for the keys.
• Keys stored on disk Overwrite the disk multiple
  times with 0s and 1s, alternating patterns and
  using random patterns (since it may be possible
  to analyze erased magnetic media).
• Keys stored on backup tapes Destroy the tapes
  when they are no longer needed.
• Keys stored on paper Burn or shred with a
  confetti shredder (not a strip shredder).

45
References

1. G. Winfield Treese and Lawrence C. Stewart.
   Designing Systems for Internet Commerce (2nd
   edition) Chapters 13. Addison Wesley.
2. W. Trappe and Lawrence C. Washington.
   Introduction to Cryptography with Coding Theory
   (2nd edition). Pearson Prentice Hall.
