JSSSH

1

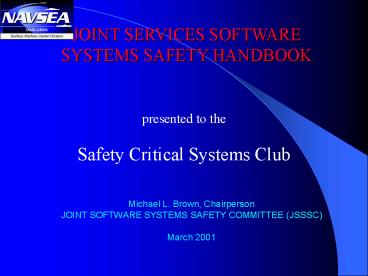

JOINT SERVICES SOFTWARE SYSTEMS SAFETY HANDBOOK
presented to the Safety Critical Systems Club
Michael L. Brown, Chairperson JOINT SOFTWARE
SYSTEMS SAFETY COMMITTEE (JSSSC) March 2001
2
INTRODUCTION

• This presentation provides an overview of the
  Software Safety Handbook and its Status. The
  following topics are addressed
• Purpose
• Background
• Handbook Layout and Contents
• Software Systems Safety Processes
• Applicability
• Project Status
• Additional tasks
• Recommendations

3
PURPOSE

• Provide management and engineering how-to
  guidelines to achieve a reasonable level of
  assurance that software will execute in a system
  context with an acceptable level of safety risk.
• Initial process and methodology based on
  Independent Software Nuclear Safety Analysis
  process tailored to conventional systems and
  experience from many programs.
• Process successfully applied to wide range of
  systems

4
Background

• Inconsistent processes
• Most incomplete
• Many good points but not tied together well
• Lessons learned
• SSSTRP
• Took good points from each process
• Developed comprehensive systems engineering based
  software systems safety process

5
HANDBOOK LAYOUT CONTENTS
6
System and Software Engineers

• Written for all members of safety team
• Purpose and scope of handbook
• Authority for software safety program
  requirements
• Organization of handbook

7
Software Safety Engineer

• How-to guidance on establishing and conducting
  software systems safety program
• Process based on DODI-5000.1 and DOD-5000.2R
  System Acquisition Process and Requirements,
  MIL-STD-498/IEEE STD 1498/12207 Software
  Development Process, MIL-STD-882 Standard
  Practice for System Safety, and NATO
  Standardization Agreement requirements

8
Section 4.0

• Main part of the document
• How-to Guidance
• Complete
• However, needs expansion in certain areas (e.g.,
  CDI in safety critical applications)
• Covers entire software systems safety process
  from concept to system retirement
• Refers reader to examples in appendices and
  reference documents

9
Software Systems Safety Process

• Program management
• Planning through execution
• Requirements derivation
• Generic Requirements from Lessons Learned
• System Specific Safety Requirements from system
  level analyses
• Requirements verification and validation
• Detailed analyses
• Safety Testing
• Safety Assessment

10
SWS Processes
Program Phases Milestones
11
SWS PROCESSES
Software Safety Requirements Derivation
Derive Functional Safety Critical Requirements
Develop Generic Safety Critical Software
Guidelines Requirements
Preliminary Hazard List (PHL)

• Obtain Generic Software Safety Requirements Lists
• Tailor Generic Software Safety Requirements/Guidel
  ines List for the specific system and/or
  subsystem
• Categorize and Prioritize Generic Software
  Requirements/Guidelines

• Develop Safety Critical Functions List
• Develop Potential Functional Hazard List

Preliminary Hazard Analysis (PHA)

• Categorize Prioritize System Functional Hazards
• Determine System Level H/W, S/W and HF Causal
  Factors
• Execute System Level Trade Study
• Begin Determining all of the Software Specific
  Causal Factors
• Begin Software Architectural Detailed Design
  Trade Study

Derive System-Specific Software Safety Critical
Requirements
Requirements Hazard Analysis/Software Criteria
Requirements Analysis

• Tag Safety-Critical Software Requirements
• Establish Methods for Tracing Software Safety
  Requirements to Test
• Provide Evidence for Each Functional Hazard
  Mitigated by Comparing to Requirements
• Verify Software Developed IAW Applicable
  Standards and Criteria

12
SWS PROCESSES
Software Safety Program Planning - Customer
13
SWS PROCESSES
Preliminary Hazard Analysis
14
Handbook Charts
15
Developed Outline

• Used Process Charts as basis
• Covered all items in chart
• Assigned specific sections to primary authors
• Assigned secondary authors to each section

16
Authors

• Selected for particular expertise
• Sources sought from each service, industry, and
  academia
• Coordinating author
• Selected for expertise in field
• Provided common voice through out handbook

17
Authors

• Michael Brown, NAVSEA Dahlgren
• John Bozarth, EGG
• Janet Gill, NAWC AD
• Brenda Hyland, NAWC AD
• Archibald McKinlay
• BAH
• Lenny Russo, CECOM

• Coordinating Author
• Steve Mattern, SEA

18
Task Assignments

• Based on authors area of expertise
• Prior experience
• Interest in topical area
• Secondary author
• Prior experience
• Area of Expertise

19
Applicability

• Process applicable to wide range of military and
  non-military systems
• Weapon Systems
• Fire Control and Guidance Systems
• Operational Flight Control Programs
• Any system containing safety critical software
• Handbook provides tailoring guidance for wide
  range of programs

20
Status

• Submitted draft to community for review and
  comment October 1997
• Received and collated comments
• Comments adjudicated by committee
• Developed revisions based on comments and
  additional input from authors
• Forward revised draft to reviewers
• Finalized handbook in November 1999

21
Collating comments

• Comments are annotated next to applicable
  paragraph
• Source identified
• Comment as provided entered
• Rationale for acceptance, rejection, or
  modification provided.
• Handbook with comments placed on web page

22
(No Transcript)
23
PROJECT STATUS - Mar 2001

• First Publication - 31 December 1999
• Handbook text complete
• All topical areas addressed
• Some areas require additional work
• Appendices approximately 75 complete
• Need to develop additional examples for guidance
• Based on previous programs and lessons learned
• Need to incorporate additional reference documents

24
Funding Sources to date

• Joint Systems Engineering Steering Group
• Funding source Army
• Naval Ordnance Center
• WSESRB
• USAF HQ-AFSC
• Lt. Col. Alberico
• Naval Facilities Engineering Command
• Personal time by authors

25
Additional Tasks

• Commercial Developed Items, Government
  off-the-shelf (legacy) items, and
  Non-Developmental Items (Hardware and Software)
  in safety critical applications

• Selection criteria
• Design requirements and guidelines
• How to guidelines on influencing system and
  software architecture, design, and implementation
• How-to analysis and testing guidelines
• Configuration Control Requirements

26
Additional Tasks

• Software Safety Risk Assessment

• Relating software causal factors and control
  categories to Hazard Risk Indices
• Relating software metrics to hazard risk
  assessment
• Guidelines for assessing adequacy of safety
  program efforts

27
(No Transcript)
28
Additional Tasks

• Guidelines for selection and/or implementation
  of
• Language
• Operating Systems
• Operating Environments
• Middleware

• Pros and Cons for each language, OS, OE, etc.
• Selection and implementation guidelines and
  criteria
• Analysis and testing guidelines
• Caveats and requirements for each language, etc.
• Configuration control

29
Additional Tasks

• Software like hardware FPGAs, PLDs

• Define safety assessment process and develop
  guidelines

30
FUTURE OBJECTIVES

• Hypertext CD-ROM
• Integrate into DoD Acquisition Deskbook
• Software Safety WWW Home Page
• Revisions updates to handbook
• On-Site Software Systems Safety Training
• System Safety Handbook
• Tool Development

31
Conclusions

• The JSSSH provides a comprehensive, Systems
  Engineering based approach to ensuring that
  software executes safely within the system
  context.
• The process is designed for application to a wide
  range of systems without the need for highly
  specialized expertise (e.g., formal methods)
• The JSSSH provides a basis against which to
  evaluate the thoroughness of Software Systems
  Safety Programs
• The JSSSH is a useful guideline for any safety
  critical system
