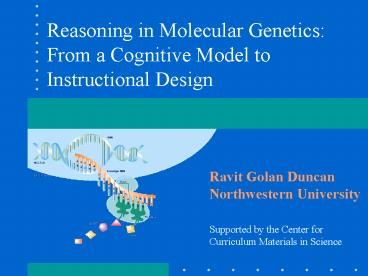

Title: Reasoning in Molecular Genetics: From a Cognitive Model to Instructional Design
1Reasoning in Molecular Genetics From a Cognitive
Model to Instructional Design
- Ravit Golan Duncan
- Northwestern University
Supported by the Center for Curriculum Materials
in Science
2Motivation/Learning Goal
- Because molecular biology will continue into the
twenty-first century as a major frontier of
science, students should understand the chemical
basis of life not only for its own sake, but
because of the need to take informed positions on
some of the practical and ethical implications of
humankind's capacity to manipulate living
organisms. (NRC, 1996, p. )
Observable Phenomenon phenotype
Gene genotype
3Dissertation Work
- Cognitive research
- What are the challenges to reasoning about
genetics? C.3.2 Exploratory study of
high school students - 2. What domain-specific knowledge types are
important for generative reasoning in genetics?
C.3.2
Study of college level introductory biology
course - Design research
- 3. How can we design instruction to promote
generative and systemic reasoning in genetics?
C.3.1
The design and enactment of a high
school genetics unit
4The Levels of Genetic Phenomena
Informational content (genetic code)
These phenomena are composed of two ontologically
distinct types of levels
ATGCCGTACAGCA
Information level
Physical level
Physical entities in the system that represent or
act on information
5Genetic Phenomena
Organs
Tissues constitute organs
Tissues
Cells constitute tissues
Cells
Proteins are the active agents in cells
Proteins
Genes code for proteins
Genes
Genetic information
DNA molecule
6Study 1 Research Questions
- What does reasoning about genetic phenomena
entail? - What is challenging for students?
- What conceptual resources do students posses that
we can build on?
7Findings
- The majority of the students conceived of genes
as coding for structures and functions at
multiple organization levels. - Students were not aware of the centrality of
proteins in genetic phenomena. - Students were able to reason about the
hierarchical structure of the system they were
able to explain how changes to one level would
affect a subsequent level.
8Implications
- Because molecular biology will continue into the
twenty-first century as a major frontier of
science, students should understand the chemical
basis of life not only for its own sake, but
because of the need to take informed positions on
some of the practical and ethical implications of
humankind's capacity to manipulate living
organisms. (NRC, 1996, p. )
DNA/Gene
Current instruction
9Study 2 Research Questions
- What types of domain-specific knowledge are
important for generative reasoning in genetics? - What is the nature of the different knowledge
types? - What is their role and contribution to reasoning?
- What are typical interactions between these
different knowledge types?
10Undergraduate Context
- Bio 210-2Molecular Genetics Introductory
biology for majors - Five weeks of instruction, lecture based with
power point slides - Topics
- Recombinant DNA technology
- Genomes and DNA structure
- Gene expression and its regulation
- RNA processing and translation
- Applications of molecular genetics
11Domain-Specific Knowledge Types
- Domain-Specific Heuristics
- Genes-code-for-proteins
- Proteins-as-central
- Effects-through-interaction
- Domain-Specific Explanatory Schemas
- Inhibit Catalyze
- Translation Build
- Structure-function Activate
- Allosteric-regulation Transport
- Regulation-of-gene-expression Detect
Define key components and dynamics in the system
Define common mechanisms in the system
12Domain-Specific Heuristics
Define key components and dynamics in the system
Genes-code-for-proteins heuristic
Generative, mid-level of specificity,
principle-like
13Cognitive Model
14Designing the High School Genetics Unit
- Study 3 Research Question
- How can we scaffold generative and systemic
understandings that will promote scientific
literacy in genetics?
15Theory-Based Design
Cognitive Obstacles (Study 1)
Cognitive Model (Study 2)
Genes code for everything
Genes-code-for-proteins
Instructional Design (Study 3)
Learning Objectives
Genes code exclusively for proteins
Design Solution
16Design Solution Learning Objectives
- Enduring understandings (Wiggins McTighe,
1998) - The genetic information solely specifies the
structure of proteins - Proteins are central entities in the system they
carry out a multitude of functions - Refine students understandings of
structure-function correlations at the molecular
level. The amino acid sequence of a protein
defines its properties
Domain-specific heuristics and schemas
17Design SolutionLearning Objective 1
Lesson1 What is the additional risk factor?
Organs
Lesson2 Clogged arteries excess LDL in blood
Bootstrap the mapping of information by providing
the molecular mechanism first
Tissues
Lesson 3 Excess LDL in blood no up-take of LDL
by cells receptor for LDL
Cells
malfunctioning abnormal structure abnormal
sequence
Proteins
Lesson 4 Abnormal amino acid sequence mutation
in the gene
Gene for FH
Lesson 5 Complete explanation
Lesson 6 Other examples
18Design Solution Learning Objectives 2 3
- Proteins as central mediators of genetic effects
- Motivated exploration of the molecular
mechanisms involved in genetic phenomena - An in depth investigation of one disease
- Contrasting of several cases that differ along
important dimensions of protein function - The structure of proteins (amino acids) affects
their function - Represent protein as a string that folds onto
itself - Comparison of structure-function correlations in
different patients - Design a protein activity propose a sequence of
amino acids that will afford specified functions
19Design Solution Learning Objectives 2 3
Focused investigation of protein structure and
function-comparison across patient cases
20Generative Reasoning about Novel Phenomena
21Thank You
The End
