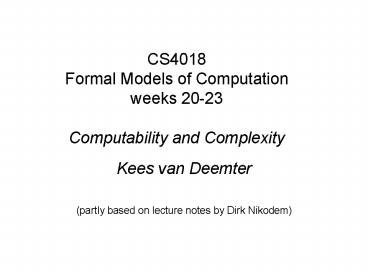

CS4018 Formal Models of Computation weeks 2023 Computability and Complexity

1
CS4018Formal Models of Computation weeks 20-23
Computability and Complexity

• Kees van Deemter
• (partly based on lecture notes by Dirk Nikodem)

2
Fourth set of slidesGenerating Referring
Expressions

• The GRE game GRE as part of NLG
• Grices maxims
• (Complexity of) Full Brevity
• (Complexity of) the Incremental Algorithm
• Complexity can be measured in different ways
• N.B. This topic is not covered in the Lecture
  Notes

3
Lets play a game

• Desks b,c, Chairs a,e, Sofas f
• Leather b, Wood a,f
• Blue c,d, Red a,e
• Please write down how a speaker of
• English might describe each of a, b, ,f
• (seven Noun Phrases).

4
For example

• Desks b,c, Chairs a,e, Sofas f
• Leather b, Wood a,f
• Blue c,d, Red a,e
• athe wooden chair, the red chair, the red wooden
  thing
• bthe leather desk, the leather (?), the leather
  object
• cthe blue desk
• d? the blue thing thats not a desk
• ethe red chair
• fthe sofa

5
Game is called Generation of Referring Expressions

• Referring Expression a string of words that
  identifies an object uniquely
• Also called a distinguishing description of the
  target referent r
• Other elements of domain are distractors
• Formally, this is a set of properties P1,,Pn
  such that P1 ? ? Pn r
• Assumption speaker and hearer share the same
  facts shared knowledge base

6
Generation of Referring Expressions

• Part of a larger area of research and
  applications, Natural Language Generation (NLG)
• Natural Language ordinary language (e.g.,
  English, Dutch, ..)
• We want NLG to produce natural English, that
  is, the kind of English that a native speaker
  would use

7
Whats the most natural referring expression?

• Weve seen that this is not always easy
• An important linguist Paul Grice. Principles
  underlying conversation,called the Gricean
  maxims. E.g.,
• Dont use more words than necessary
• For this and what follows, read early sections of
  Dale Reiter 1995.
• Grices work was informal, and can be
  understood/applied in different ways

8
Most literal interpretation of Grice

• Full Brevity algorithmUse the shortest
  description of r thats still a distinguishing
  description of r
• NB This is a slight simplification, since well
  be counting properties not words

9
Most literal interpretation of Grice

• Full Brevity algorithmUse the shortest
  description
• Search space all sets of properties
• If the language has properties P1,,Pm then
  seach space Powerset(P1,,Pm)
• This search space grows exponentially in m, since
  Powerset(X) 2x .In this case,
  Powerset(P1,,Pm) 2m

10
Full Brevity

• Any algorithm meeting Full Brevity has to find
  the solution in this exponentially growing search
  space
• It does not automatically follow that such an
  algorithm must have exponential time complexity
  (in the worst case)Maybe there exist smart
  algorithms that can skip some parts of the search
  space

11
Full Brevity

• First published algorithm (By R.Dale)

12

• List all properties P1,P2,PmGo though list
  until a distinguishing description is found
  shortest has
  been found!or until the end of the list is
  reached
• List all sets of two properties Pi,PjGo though
  list until a distinguishing description is found

  shortest has been found!or until the end of
  the list is reached
• and so on
• List all sets containing all only P1,P2,PmGo
  though list until a distinguishing description is
  found
  shortest has
  been found!or until the end of the list is
  reached no distinguishing
  description exists

13
What do you think of this algorithm?
14
What do you think of this algorithm?

• It seems smart, only trying larger descriptions
  if shorter descriptions dont lead to a
  distinguishing description.
• Yet, the algorithm is exponential Smartness does
  not affect the worst case.
• In fact, this is very easy to seeThe worst case
  arises if P1,P2,Pmis the only description
  that distinguishes rIn this case, all properties
  are visited, hence we have our Powerset(P1,,Pm
  ) 2m again

15
Lets look at the complexity assessment in Dale
Reiter

• Choosing x out of m is a familiar problem in
  combinatorics m!
• ------------
• x! (m-x)!
• Divided by (m-x)! because youre interested in
  only the first x factors
• Divided by x! because otherwise youre counting
  all permutations of the set of properties as
  distinct

16
Time-complexity of entire algorithm

• Dale Reiter do not directly calculate the
  worst-case complexity, but the complexity when
  the shortest distinguishing description contains
  x properties

• If mgtgtx then this equals mx,
• so this is still exponential

17
For example,

• If x3 and m10 then check 175 combinations
• If x4 and m20 then check 6000 combinations
• If x5 and m50 then check 2.000.000 combinations
• (By assuming that xltltm, DR assume
• that the worst case does never arise)

18

• This was Dale Reiters first finding. What
  would you conclude?

19
Some options

• Find a faster algorithm.
• This is probably impossible proof by
  reduction shows that the problem is
  NP-Complete. Please take this on faith
• Give up and make do with this algorithm. After
  all, if no really faster algorithm exists, why
  exert yourselftrying to look for one.
• (Any ideas?)

20
Dale and Reiters response

• Experimental literature had shown that human
  speakers do not adhere to Full Brevity
• One example The leather
• Some properties are so striking that they are
  always tried first
• Once a property has been recognized as useful
  (because it removes some distractors)
• Putting it simply people talk before they are
  finished thinking.

21
Their algorithm makes use of these insights

• They dont say Grice was wrong, but Lets
  understand Grice differently
• The idea is to approximate brevity, without
  always achieving it
• Approximation is always possible, but in this
  case the facts about natural language seem to say
  that an approximation is the real thing!

22
Sketch of the Incremental Algorithm

• Let Prop be a list of properties, going from most
  striking to least striking
• You go through the list, asking of each property
  Does it remove any distractors
• If a property P removes distractors then include
  it in the description set
• When adding a property to description set, keep
  count of how large a set of referents youre
  describing. (This set gets smaller)
• If, at any stage, set of described referents
  rthen success. If the end of Prop is reached
  then fail.

23

• r target referent L description set
• C set of described referents
• Prop ordered list of properties
• D Domain
• CD
• For each P ? Prop do
• If r?P and not(C?P) P is useful!
• Then L L ? P Add P to list C
  C ? P Reduce set of described referents
• If C r then return L
• return failure

24
Properties of the algorithm

• Hillclimbing algorithms are well know in AI.
• No more properties included than needed, but no
  backtracking, so descriptions are not always
  minimal
• Can you analyse the algorithm in terms of
  time-complexity?
• The key operation is the usefulness check

25

• Worst-case time-complexity is good!
• Worst case, every property in Prop has to be
  checked (thats m times)
• For every property, you have to check its
  behaviour with respect to every element of C
  (i.e., r and all remaining distractors)
• Remaining distractors get fewer and fewer.
  Worst-case, you remove one distractor at a time,
  so

26
Complexity of Incremental Algorithm

• md m(d-1) m(d-2) m1
• Number of checks is a constant times ½md, which
  is clearly polynomial (O (½md))
• Dale Reiter arrive at a slightly different
  figure. Reason they want to steer away from
  worst-case complexity.
• Instead, they calculate expected complexity.
  The basic conclusion is the same algorithm is
  polynomial

27
Alternative analyses

• This analysis assumes that the time needed for
  checking whether x ? Pis constant.
• If one can check in constant time whether (not)
  C?P then an even simpler analysis is possible
  O(m).
• Which analysis is best is often a difficult
  question (but note that one is a refinement of
  the other, in this case)

28
End of NLG example

• The Incremental Algorithm has proven to be quite
  seminal harder problems have been attacked along
  similar lines
• Assessments of the time-complexity of algorithms
  are not only provided, but they have played a key
  role for researchers in preferring one algorithm
  over the other
• Do have a read!

29
Issues

• An algorithm is made for a purpose. Whether an
  approximation is acceptable depends on this
  purpose.
• There is not necessarily always one correct way
  of measuring complexity.
• Worst-case, best-case, average, expected
  complexity
• Which factors deserve to be modelled as
  variables? For example,

30
Issues

• Suppose human speakers never utter descriptions
  containing more than 4 properties. ? Parameter x
  in mx is replaced by the constant 4. Problem
  becomes polynomial !
• Same for x100
• So, is the algorithm polynomial or
  exponential?It depends on what exactly you try
  to model.If you want to cover descriptions of
  any length then length is a variable
• Never take complexity assessments at face value!

31
Complexity

• Back to the cartoons in Garey Johnson (1979)
• I cant find an efficient solution. I guess Im
  too dumb.
• I cant find an efficient solution. No efficient
  solution exists.
• I cant find an efficient solution, but neither
  can all these famous people.
• Closing observations
• (2) is beyond the present state of the art in
  computer science. (3) is only a substitute
• Cartoons are easily adapted to illustrate
  computability too. For computability, (2) is
  often possible!
