Modeling and Predictive Control of a Rotating Disk Bioreactor

1

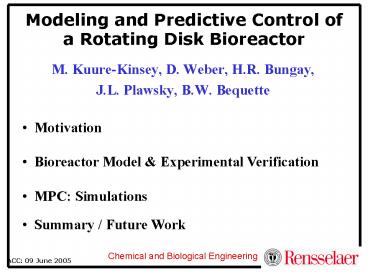

Modeling and Predictive Control of a Rotating
Disk Bioreactor

• M. Kuure-Kinsey, D. Weber, H.R. Bungay,
• J.L. Plawsky, B.W. Bequette

• Motivation
• Bioreactor Model Experimental Verification
• MPC Simulations
• Summary / Future Work

ACC 09 June 2005
Chemical and Biological Engineering
2
Bacterial Cellulose

• High-strength properties
• Speaker cones
• Specialty paper
• Food
• Wound dressings (Xylos)

3
Previous Work
Demonstrated feasibility of producing cellulose
with embedded particles
Semi-batch mode
Mormino and Bungay, App. Microbiol Biotechnol
(2003)
4
Potential Uses
Medical coverings such as wound dressings or
artificial skin with time-release particles
Encoding of paper with a particle signature to
prevent counterfeiting
Particles to which enzymes are immobilized to
carry out sequential bioreactions
5
Model
Volume Particle Conc. in Solution Cellulose
Mass in Gel Glucose Conc. In Solution Particle
Mass in Gel
Inputs FH, FD, FO Measured
Outputs V, xp
6
Model Verification
Model matches experimental data on particle
concentration
7
Model Verification
Model matches experimental data on cellulose
thickness
8
Model Verification
Particle uptake rate accurately predicted
9
Simulations

• Two operating modes continuous and semi-batch
• MPC DMC and Augmented State Space with Kalman
  Filter
• The following simulations are for a more
  detailed model than the Proceedings paper
• For brevity, not all states are shown

10
EKF-based MPC
Augmented State Space Formulation
Predictor / Corrector
Prediction Horizon 15 Control Horizon
1 Sample Time 5
Disturbance Magnitude 10
11
Simulations Operating Mode
Extra DOF with continuous reactor allows better
control
12
Simulations Setpoint Tracking
Setpoint tracking allows bands of particles to
be formed
13
Simulations Input Disturbance Rejection
Augmented formulation is able to reject
disturbances
14
Simulations Residence Times
Residence times play an important role in
response time
15
Summary

• Cellulose with embedded particles
• Model accounts for solution and gel phases and
  accurately matches experimental data
• Augmented state space KF-based MPC

16
Future Work

• Distributed concentration of particles in gel
• Complete continuous bioreactor fabrication
• Experiments

• Scale-up and reactor design

17
Acknowledgements
BES-04 Pete Gostomski Albany Pump
Station
