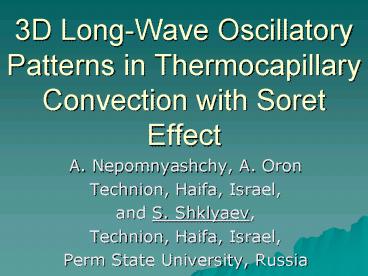

3D LongWave Oscillatory Patterns in Thermocapillary Convection with Soret Effect

1
3D Long-Wave Oscillatory Patterns in
Thermocapillary Convection with Soret Effect

• A. Nepomnyashchy, A. Oron
• Technion, Haifa, Israel,
• and S. Shklyaev,
• Technion, Haifa, Israel,
• Perm State University, Russia

2
This work is supported by the Israel Science
Foundation I am grateful to Isaac Newton
Institute for the invitation and for the
financial support
3
Problem Geometry
4
Previous resultsLinear stability analysis

• Pure liquid
• J.R.A. Pearson, JFM (1958)
• S.H. Davis, Annu. Rev. Fluid Mech. (1987).
• Double-diffusive Marangoni convection
• J.L. Castillo and M.G. Velarde, JFM (1982)
• C.L. McTaggart, JFM (1983).
• Linear stability problem with Soret effect
• C.F. Chen, C.C. Chen, Phys. Fluids (1994)
• J.R.L. Skarda, D.Jackmin, and F.E. McCaughan,
  JFM (1998).

5
Nonlinear analysis of long-wave perturbations

• Marangoni convection in pure liquids
• E. Knobloch, Physica D (1990)
• A.A. Golovin, A.A. Nepomnyashchy,nd L.M. Pismen,
  Physica D (1995)
• Marangoni convection in solutions
• L. Braverman, A. Oron, J. Eng. Math. (1997)
• A. Oron and A.A. Nepomnyashchy, Phys. Rev. E
  (2004).
• Oscillatory mode in Rayleigh-Benard convection
• L.M. Pismen, Phys. Rev. A (1988).

6
Basic assumptions

• Gravity is negligible
• Free surface is nondeformable
• Surface tension linearly depends on both the
  temperature and the concentration

• Soret effect plays an important role

• The heat flux is fixed at the rigid plate
• The Newton law of cooling governs the heat
  transfer at the free surface

7
Governing equations
8
Boundary conditions
At the rigid wall
At the interface
9
Dimensionless parameters

• The Prandtl number
• The Schmidt number
• The Soret number
• The Marangoni number
• The Biot number
• The Lewis number

10
Basic state
There exist the equilibrium state corresponding
to the linear temperature and concentration
distribution
11
Equation for perturbations
P, Q, S are the perturbations of the pressure,
the temperature and the concentration,
respectively here and below
12
Previous results
Linear and nonlinear stability analysis of above
conductive state with respect to long-wave
perturbations was carried out by A.Oron and
A.Nepomnyashchy (PRE, 2004)

• Linear stability problem was studied
• Monotonous mode was found and weakly nonlinear
  analysis was performed
• Oscillatory mode was revealed
• The set of amplitude equations to study 2D
  oscillatory convective motion was obtained.

13
Multi-scale expansion for the analysis of long
wave perturbations
Rescaled coordinates
Rescaled components of the velocity
Slow times
14
Multi-scale expansion for the analysis of long
wave perturbations
Small Biot number
Expansion with respect to e
15
The zeroth order solution
16
The second order
The solvability conditions
The plane wave solution
17
The second order
Critical Marangoni number
The dispersion relation
The solution of the second order
18
The fourth order
The solvability conditions
19
(No Transcript)
20
(No Transcript)
21
Linear stability analysis
Oron, Nepomnyashchy, PRE, 2004
Neutral curve for
22
2D regimes. Bifurcation analysis
Oron, Nepomnyashchy, PRE, 2004
Interaction of two plane waves
Solvability conditions
Here
i.e. in 2D case traveling waves are selected,
standing waves are unstable
23
2D regimes. Numerical results
only if the resonant conditions are held
only if the resonant conditions are held
24
Numerical simulations show, that system evolve to
traveling wave
index l depends on the initial conditions
Plane wave with fixed k exists above white line
and it is stable with respect to 2D perturbations
above green line
25
3D-patterns. Bifurcation analysis
Interaction of two plane waves
For the simplicity we set
26
Solvability conditions
Here
The first wave is unstable with respect to any
perturbation which satisfies the condition i.e.
wave vector lies inside the blue region
27
Three-mode solution
The solvability conditions gives the set of 4
ODEs for
28
Stationary solutions (a b)
Dashed lines correspond to the unstable
solutions, solid lines to stable (within the
framework of triplet solution)
29
Numerical results
The solvability condition gives the dynamic
system for
30
Steady solution
Any initial condition evolves to the symmetric
steady solution with
31
Evolution of h in T
32
Conclusions

• 2D oscillatory long-wave convection is studied
  numerically. It is shown, that plane wave is
  realized after some evolution
• The set of equations describing the 3D long-wave
  oscillatory convection is obtained
• The instability of a plane wave solution with
  respect to 3D perturbations is demonstrated
• The simplest 3D structure (triplet) is studied
• The numerical solution of the problem shows that
  3D standing wave is realized
• The harmonics with critical wave number are the
  dominant ones.

33
Thank you for the attention!
