Reliable Web Services by Fault Tolerant Techniques: Methodology, Experiment, Modeling and Evaluation

1

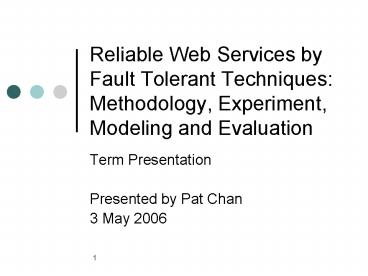

Reliable Web Services by Fault Tolerant
Techniques Methodology, Experiment, Modeling and
Evaluation

• Term Presentation
• Presented by Pat Chan
• 3 May 2006

2
Outline

• Introduction
• Problem Statement
• Methodologies for Web Service Reliability
• New Reliable Web Service Paradigm
• Road Map for Experiment
• Experimental Results and Discussion
• Conclusion

3
Introduction

• Service-oriented computing is becoming a reality.

• Web Service is a promoting technique in the
  internet.
• The benefit of interoperability, reusability, and
  adaptability.
• Reliability is an important issue.
• Existing web service model needs to be extended
  to assure survivability and reliability.
• We propose experimental settings and offer a
  roadmap to dependable Web services.

4
Reliability

• "a measure of the success with which the system
  conforms to some authoritative specification"
• Guaranteed delivery
• Duplicate elimination
• Ordering
• Crash tolerance
• State synchronization

5
What are Web Services ?

• Self-contained, modular applications built on
  deployed network infrastructure including XML and
  HTTP
• Use open standards for description (WSDL),
  discovery (UDDI) and invocation (SOAP)

6
Web Services
UDDI
Internet
WSDL
WSDL
HTTP/SOAP
7
Web Services Architecture
8
Web Services

• Benefits of WS
• Service-oriented
• Highly accessible
• Open specification
• Easy integration

Build common infrastructure reducing the barriers
of business integration with lower costs and
faster speed.
9
Problems of Web Services

• Transaction
• Atomicity is not provided
• Security
• Insecure Internet transportation
• Reliability
• The internet is inherently unreliable
• No single underlying transport protocols
  address all the reliability issues.

10
Problem Statement

• Fault-tolerant techniques
• Replication
• Diversity
• Replication is one of the efficient ways for
  providing reliable systems by time or space
  redundancy.
• Increasing the availability of distributed
  systems
• Key components are re-executed or replicated
• Protect against hardware malfunctions or
  transient system faults.
• Another efficient technique is design diversity.
• By independently designing software systems or
  services with different programming teams,
• Resort in defending against permanent software
  design faults.
• We focus on the analysis of the replication
  techniques when applied to Web services.
• A generic Web service system with spatial as well
  as temporal replication is proposed and
  investigated.

11
Methodologies for Reliable Web services --
Redundancy

• Spatial redundancy
• Static redundancy, all replicas are active at the
  same time and voting takes place to obtain a
  correct result.
• Dynamic redundancy engages one active replica at
  one time while others are kept in an active or in
  standby state.
• Temporal redundancy
• Redundancy in time

12
Methodologies for Reliable Web services --
Diversity

• Protect redundant systems against common-mode
  failures
• With different designs and implementations,
  common failure modes will probably cause
  different error effects.
• N-version programming, recovery blocks

13
Failure Response Stages of Web Services

• Fault confinement
• Fault detection
• Diagnosis
• Fail-over
• Reconfiguration
• Recovery
• Restart
• Repair
• Reintegration

14
(No Transcript)
15
Propose Paradigm
16
Work Flow of the Replication Manager
17
Road Map for Experiment Research

• Redundancy in time
• Redundancy in space
• Sequentially
• Parallel
• Majority voting using N modular redundancy
• Diversified version of different services

18
Experiments

• A series of experiments are designed and
  performed for evaluating the reliability of the
  Web service,
• single service without replication,
• single service with retry or reboot and,
• service with spatial replication.
• We will also perform retry or failover when the
  Web service is down.

19
Summary of the Experiments
20
Parameters of the Experiments
21
Experimental Results
Experiments over 360 hour period (43200 reqs) Normal Resource Problem Entry Point Failure Network Level Fault Injection
Exp 0 4928 6130 6492 5324
Exp 1 2210 2327 2658 2289
Exp 2 2561 3160 3323 5211
Exp 3 1324 1711 1658 5258
Exp 4 1089 1148 1325 2210
Retry 11.97 to 4.93
Reboot 11.97 to 6.44
Failover 11.97 to 3.56
Retry and Failover 11.97 to 2.59
22
Number of Failure When the Server is Normal
Situation
23
Number of Failure When the Server is Busy
24
Number of Failure When the Server Reboots
Periodically
25
Network Level Fault Injection
26
Reliability of the System Over Time
27
Reliability Model
28
Reliability Model
29
SHARPE
Reliability with different failure rate
Failure rate 0.005 0.05 0.01 0.02 0.03 0.04
30
Conclusion

• Surveyed replication and design diversity
  techniques for reliable services.
• Proposed a hybrid approach to improving the
  availability of Web services.
• Carried out a series of experiments to evaluate
  the availability and reliability of the proposed
  Web service system.
• Developed the Reliability Model for the proposed
  system.
