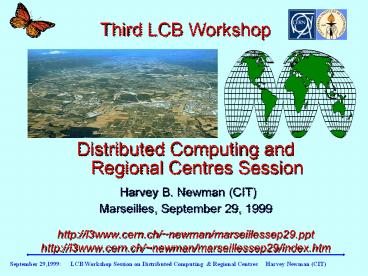

• Third LCB Workshop
• Distributed Computing and Regional Centres
  Session
• Harvey B. Newman (CIT)
• Marseilles, September 29, 1999
• http//l3www.cern.ch/newman/marseillessep29.ppt
• http//l3www.cern.ch/newman/marseillessep29/index
  .htm

2
LHC Computing Different from Previous Experiment
Generations

• Geographical dispersion of people and resources

• Complexity the detector and the LHC environment
• Scale Petabytes per year of data

1800 Physicists 150 Institutes 32
Countries
Major challenges associated with ?
Coordinated Use of Distributed computing
resources ? Remote software development and
physics analysis ? Communication and
collaboration at a distance RD New Forms
of Distributed Systems
3
Challenges Complexity

• Events
• Signal event is obscured by 20 overlapping
  uninteresting collisions in same crossing
• Track reconstruction time at 1034
  Luminosityseveral times 1033
• Time does not scale from previous generations

4
HEP Bandwidth Needs Price Evolution

• HEP GROWTH
• 1989 - 1999 A Factor of one to Several Hundred
  on Principal Transoceanic
  Links
• A Factor of Up to 1000 in
  Domestic Academic and
  Research Nets
• HEP NEEDS
• 1999 - 2006 Continued Study by ICFA-SCIC
  1998 Results of ICFA-NTF Show A
  Factor of One to Several Hundred (2X
  Per Year)
• COSTS ( to Vendors)
• Optical Fibers and WDM a factor gt 2/year
  reduction now ?Limits of Transmission Speed,
  Electronics, Protocol Speed
  PRICE to HEP ?
• Complex Market, but Increased Budget likely to be
  neededReference BW/Price Evolution 1.5
  times/year

5
Cost Evolution CMS 1996 Versus1999 Technology
Tracking Team
CMS 1996 Estimates
1996 Estimates
1996 Estimates

• Compare to 1999 Technology Tracking Team
  Projections for 2005
• CPU Unit cost will be close to early
  prediction
• Disk Will be more expensive (by 2) than early
  prediction
• Tape Currently Zero to 10 Annual Cost
  Decrease (Potential Problem)

6
LHC (and HENP) Computing and
Software Challenges

• Software Modern Languages, Methods and
  Tools The Key to Manage Complexity
• FORTRAN The End of an EraOBJECTS A
  Coming of Age
• TRANSPARENT Access To Data
• Location and Storage Medium Independence
• Data Grids A New Generation of Data-Intensive
  Network-Distributed Systems for Analysis
• A Deep Heterogeneous Client/Server
  Hierarchy, of Up to 5 Levels
• An Ensemble of Tape and Disk Mass Stores
• LHC Object Database Federations
• Interaction of the Software and Data Handling
  Architectures The Emergence of New Classes of
  Operating Systems

7
Four Experiments
The Petabyte to Exabyte Challenge

• ATLAS, CMS, ALICE, LHCB
• Higgs and New particles Quark-Gluon Plasma CP
  Violation

Data written to tape 5 Petabytes/Year
and UP (1 PB 1015 Bytes)
0.1 to 1 Exabyte (1 EB
1018 Bytes) (2010) (2020 ?) Total for
the LHC Experiments
8
To Solve the HENP Data
Problem

• While the proposed future computing and data
  handling facilities are large by present-day
  standards,They will not support FREE access,
  transport or reconstruction for more than a
  Minute portion of the data.
• Need effective global strategies to handle and
  prioritise requests, based on both policies and
  marginal utility
• Strategies must be studied and prototyped, to
  ensure Viability acceptable turnaround times
  efficient resource utilization
• Problems to be Explored How To
• Meet the demands of hundreds of users who need
  transparent access to local and remote data, in
  disk caches and tape stores
• Prioritise hundreds to thousands of requests
  from local and remote communities
• Ensure that the system is dimensioned
  optimally, for the aggregate demand

9
MONARC

• Models Of Networked Analysis
  At Regional Centers
• Caltech, CERN, Columbia, FNAL, Heidelberg,
• Helsinki, INFN, IN2P3, KEK, Marseilles, MPI,
  Munich, Orsay, Oxford, Tufts
• GOALS
• Specify the main parameters characterizing
  the Models performance throughputs, latencies
• Develop Baseline Models in the feasible
  category
• Verify resource requirement baselines
  (computing, data handling, networks)
• COROLLARIES
• Define the Analysis Process
• Define RC Architectures and Services
• Provide Guidelines for the final Models
• Provide a Simulation Toolset for Further Model
  studies

622 Mbits/s
FNAL/BNL 4.106 MIPS 200 Tbyte Robot
Desk tops
622 Mbits/s
Desk tops
University n.106MIPS 100 Tbyte Robot
Optional Air Freight
622 Mbits/s
CERN 6.107 MIPS 2000 Tbyte Robot
Desk tops
622Mbits/s
Model Circa 2006
622 Mbits/s
622 Mbits/s
10
MONARC General Conclusions on LHC
Computing

• Following discussions of computing and network
  requirements, technology evolution and projected
  costs, support requirements etc.
• The scale of LHC Computing is such that it
  requires a worldwide effort to accumulate the
  necessary technical and financial resources
• The uncertainty in the affordable network BW
  implies that several scenarios of computing
  resource-distribution must be developed
• A distributed hierarchy of computing centres will
  lead to better useof the financial and manpower
  resources of CERN, the Collaborations,and the
  nations involved, than a highly centralised model
  focused at CERN
• Hence The distributed model also provides better
  use of physics opportunities at the LHC by
  physicists and students
• At the top of the hierarchy is the CERN Center,
  with the ability to perform allanalysis-related
  functions, but not the ability to do them
  completely
• At the next step in the hierarchy is a collection
  of large, multi-service Tier1
  Regional Centres, each with
• 10-20 of the CERN capacity devoted to one
  experiment
• There will be Tier2 or smaller special purpose
  centers in many regions

11
Grid-Hierarchy Concept

• Matched to the Worldwide-Distributed
  Collaboration Structure of LHC Experiments
• Best Suited for the Multifaceted
• Balance Between
• Proximity of the data to centralized processing
  resources
• Proximity to end-users for frequently accessed
  data
• Efficient use of limited network bandwidth
  (especially transoceanic and many world
  regions)through organized caching/mirroring/repli
  cation
• Appropriate use of (world-) regional and local
  computing and data handling resources
• Effective involvement of scientists and students
  in eachworld region, in the data analysis and
  the physics

12
MONARC Phase 1 and 2Deliverables

• September 1999 Benchmark test validating the
  simulation
• Milestone completed
• Fall 1999 A Baseline Model representing a
  possible (somewhat simplified)
  solution for LHC Computing.
• Baseline numbers for a set of system and
  analysis process parameters
• CPU times, data volumes, frequency and site of
  jobs and data...
• Reasonable ranges of parameters
• Derivatives How the effectiveness depends
  on some of the more sensitive parameters
• Agreement of the experiments on the
  reasonableness of the Baseline Model
• Chapter on Computing Models in the CMS and ATLAS
  Computing Technical Progress Reports

13
MONARC and Regional Centres

• MONARC RC Representative Meetings in April and
  August
• Regional Centre Planning well-advanced, with
  optimistic outlook, in US (FNAL for CMS BNL for
  ATLAS), France (CCIN2P3), Italy
• Proposals to be submitted late this year or
  early next
• Active RD and prototyping underway, especially
  in US, Italy, Japanand UK (LHCb), Russia (MSU,
  ITEP), Finland (HIP/Tuovi)
• Discussions in the national communities also
  underway in Japan, Finland, Russia, UK, Germany
• Varying situations according to the funding
  structure and outlook
• Need for more active planning outside of US,
  Europe, Japan, Russia
• Important for RD and overall planning
• There is a near-term need to understand the level
  and sharing ofsupport for LHC computing between
  CERN and the outside institutes, to enable the
  planning in several countries to advance.
• MONARC CMS/SCB assumption traditional 1/3
  2/3 sharing

14
MONARC Working Groups Chairs

• Analysis Process Design
• P. Capiluppi (Bologna, CMS)
• Architectures
• Joel Butler (FNAL, CMS)
• Simulation
• Krzysztof Sliwa (Tufts, ATLAS)
• Testbeds
• Lamberto Luminari (Rome, ATLAS)

• Steering
• Laura Perini (Milan, ATLAS)

• Harvey Newman (Caltech, CMS)
• Regional Centres Committee

15
MONARC Architectures WG

• Discussion and study of Site Requirements
• Analysis task division between CERN and RC
• Facilities required with different analysis
  scenarios, and network bandwidth
• Support required to (a) sustain the Centre, and
  (b) contribute effectively to the distributed
  system
• Reports
• Rough Sizing Estimates for a Large LHC
  Experiment Facility
• Computing Architectures of Existing
  Experiments
• LEP, FNAL Run2, CERN Fixed Target (NA45, NA48),
  FNAL Fixed Target (KTeV, FOCUS)
• Regional Centres for LHC Computing
  (functionality services)
• Computing Architectures of Future Experiments
  (in progress)
• Babar, RHIC, COMPASS
• Conceptual Designs, Drawings and
  Specifications for Candidate Site Architecture

16
Comparisons with LHC sized experiment CMS or
ATLAS

• Total CPU CMS or ATLAS 1.5-2,000,000
  MSi95 (Current Concepts maybe for 1033
  Luminosity)

17
Architectural Sketch One Major LHC Experiment,
At CERN (L. Robertson)

• Mass Market Commodity PC Farms
• LAN-SAN and LAN-WAN Stars (Switch/Routers)
• Tapes (Many Drives for ALICE) an archival
  medium only ?

18
MONARC Architectures WG Lessons and Challenges
for LHC

• SCALE 100 Times more CPU and 10 Times more
  Data than CDF at Run2 (2000-2003)
• DISTRIBUTION Mostly Achieved in HEP Only for
  Simulation. For Analysis (and some
  re-Processing), it will not happen without
  advance planning and commitments
• REGIONAL CENTRES Require Coherent support,
  continuity, the ability to maintain the code
  base, calibrations and job parameters
  up-to-date
• HETEROGENEITY Of facility architecture and
  mode of use, and of operating systems, must be
  accommodated.
• FINANCIAL PLANNING Analysis of the early
  planning for the LEP era showed a definite
  tendency to underestimate the more requirements
  (by more than an order of magnitude)
• Partly due to budgetary considerations

19
Regional Centre ArchitectureExample by I. Gaines
Tape Mass Storage Disk Servers Database Servers
Tier 2
Local institutes
Data Import
Data Export
Production Reconstruction Raw/Sim ?
ESD Scheduled, predictable experiment/ physics
groups
Production Analysis ESD ? AOD AOD ?
DPD Scheduled Physics groups
Individual Analysis AOD ? DPD and
plots Chaotic Physicists
CERN
Tapes
Desktops
Physics Software Development
RD Systems and Testbeds
Info servers Code servers
Web Servers Telepresence Servers
Training Consulting Help Desk
20
MONARC Architectures WGRegional Centre
Facilities Services

• Regional Centres Should Provide
• All technical and data services required to do
  physics analysis
• All Physics Objects, Tags and Calibration data
• Significant fraction of raw data
• Caching or mirroring calibration constants
• Excellent network connectivity to CERN and the
  regions users
• Manpower to share in the development of common
  maintenance, validation and production software
• A fair share of post- and re-reconstruction
  processing
• Manpower to share in the work on Common RD
  Projects
• Service to members of other regions on a (?)
  best effort basis
• Excellent support services for training,
  documentation, troubleshooting at the Centre
  or remote sites served by it
• Long Term Commitment for staffing, hardware
  evolution and supportfor RD, as part of the
  distributed data analysis architecture

21
MONARC Analysis Process WG

• How much data is processed by how many people,
  how often, in how many places, with which
  priorities
• Analysis Process Design Initial Steps
• Consider number and type of processing and
  analysis jobs, frequency, number of events, data
  volumes, CPU etc.
• Consider physics goals, triggers, signals and
  background rates
• Studies covered Reconstruction, Selection/Sample
  Reduction (one or more passes), Analysis,
  Simulation
• Lessons from existing experiments are limited
  each case is tuned to the detector, run
  conditions, physics goals and technology of the
  time
• Limited studies so far, from the user rather
  than the system point of view more as
  feedback from simulations are obtained
• Limitations on CPU dictate a largely Physics
  Analysis Group oriented approach to
  reprocessing of data
• And Regional (local) support for individual
  activities
• Implies dependence on the RC Hierarchy

22
MONARC Analysis ProcessInitial Sharing
Assumptions

• Assume similar computing capacity available
  outside CERN for re-processing and data
  analysis
• There is no allowance for event simulation and
  reconstruction of simulated data, which it is
  assumed will be performed entirely outside CERN

• Investment, services and infrastructure should be
  optimised to reduce overall costs TCO
• Tape sharing makes sense if Alice needs so much
  more at a different time of the year
• First two assumptions would likely result in
  at least a 1/32/3 CERNOutside ratio of
  resources(I.e., likely to be larger outside).

23
MONARC Analysis Process Example

24
MONARC Analysis Process BaselineGroup-Oriented
Analysis

25
MONARC Baseline Analysis ProcessATLAS/CMS
Reconstruction Step

26
Monarc Analysis Model Baseline Event Sizes and
CPU Times

• Sizes
• Raw data 1 MB/event
• ESD 100 KB/event
• AOD 10 KB/event
• TAG or DPD 1 KB/event
• CPU Time in SI95 seconds
• (without ODBMS overhead 20)
• Creating ESD (from Raw) 350
• Selecting ESD 0.25
• Creating AOD (from ESD) 2.5
• Creating TAG (from AOD) 0.5
• Analyzing TAG or DPD 3.0
• Analyzing AOD 3.0
• Analyzing ESD 3.0
• Analyzing RAW 350

27
Monarc Analysis Model Baseline ATLAS or CMS at
CERN Center

• CPU Power 520 KSI95
• Disk space 540 TB
• Tape capacity 3 PB, 400 MB/sec
• Link speed to RC 40 MB/sec (1/2 of 622 Mbps)
• Raw data 100 1-1.5 PB/year
• ESD data 100 100-150 TB/year
• Selected ESD 100 20 TB/year
• Revised ESD 100 40 TB/year
• AOD data 100 2 TB/year
• Revised AOD 100 4 TB/year
• TAG/DPD 100 200 GB/year
• Simulated data 100 100 TB/year (repository)
• Covering all Analysis Groups each selecting
  1 of Total ESD or AOD data for a Typical
  Analysis

28
Monarc Analysis Model Baseline ATLAS or CMS at
CERN Center
LHCb (Prelim.)

• CPU Power 520 KSI95
• Disk space 540 TB
• Tape capacity 3 PB, 400 MB/sec
• Link speed to RC 40 MB/sec (1/2 of 622 Mbps)
• Raw data 100 1-1.5 PB/year
• ESD data 100 100-150 TB/year
• Selected ESD 100 20 TB/year
• Revised ESD 100 40 TB/year
• AOD data 100 2 TB/year
• Revised AOD 100 4 TB/year
• TAG/DPD 100 200 GB/year
• Simulated data 100 100 TB/year (repository)
• Some of these Basic Numbers require
  further Study

300 KSI95 ? 200 TB/yr 140 TB/yr
1-10 TB/yr 70 TB/yr
29
Monarc Analysis Model Baseline ATLAS or CMS
Typical Tier1 RC

• CPU Power 100 KSI95
• Disk space 100 TB
• Tape capacity 300 TB, 100 MB/sec
• Link speed to Tier2 10 MB/sec (1/2 of 155 Mbps)
• Raw data 1 10-15 TB/year
• ESD data 100 100-150 TB/year
• Selected ESD 25 5 TB/year
• Revised ESD 25 10 TB/year
• AOD data 100 2 TB/year
• Revised AOD 100 4 TB/year
• TAG/DPD 100 200 GB/year Simulated data 25 25
  TB/year (repository)
• Covering Five Analysis Groups each
  selecting 1 of Total ESD or AOD data for a
  Typical Analysis
• Covering All Analysis Groups

30
MONARC Analysis Process WGA Short List of
Upcoming Issues

• Priorities, schedules and policies
• Production vs. Analysis Group vs. Individual
  activities
• Allowed percentage of access to higher data
  tiers (TAG /Physics Objects/Reconstructed/RAW)
• Improved understanding of the Data Model, and
  ODBMS
• Including MC production simulated data storage
  and access
• Mapping the Analysis Process onto heterogeneous
  distributed resources
• Determining the role of Institutes workgroup
  servers and desktops, in the Regional Centre
  Hierarchy
• Understanding how to manage persistent data
  e.g. storage / migration / transport /
  re-compute strategies
• Deriving a methodology for Model testing and
  optimisation
• Metrics for evaluating the global efficiency of
  a Model Cost vs throughput turnaround
  reliability of data access

31
MONARC Testbeds WG

• Measurements of Key Parameters governing the
  behavior and scalability of the Models
• Simple testbed configuration defined and
  implemented
• Sun Solaris 2.6, C compiler version 4.2
• Objectivity 5.1 with /C, /stl, /FTO, /Java
  options
• Set up at CNAF, FNAL, Genova, Milano, Padova,
  Roma, KEK, Tufts, CERN
• Four Use Case Applications Using Objectivity
• ATLASFAST, GIOD/JavaCMS, ATLAS 1 TB Milestone,
  CMS Test Beams
• System Performance Tests Simulation Validation
  Milestone Carried Out See I. Legrand talk

32
MONARC Testbed Systems
33
MONARC Testbeds WG Isolation of Key Parameters

• Some Parameters Measured,Installed in the MONARC
  Simulation Models,and Used in First Round
  Validation of Models.
• Objectivity AMS Response Time-Function, and its
  dependence on
• Object clustering, page-size, data
  class-hierarchy and access pattern
• Mirroring and caching (e.g. with the Objectivity
  DRO option)
• Scalability of the System Under Stress
• Performance as a function of the number of jobs,
  relative to the single-job performance
• Performance and Bottlenecks for a variety of
  data access patterns
• Frequency of following TAG ? AOD AOD ? ESD
  ESD ? RAW
• Data volume accessed remotely
• Fraction on Tape, and on Disk
• As Function of Net Bandwidth Use of QoS

34
MONARC Simulation

• A CPU- and code-efficient approach for the
  simulation of distributed systemshas been
  developed for MONARC
• provides an easy way to map the distributed data
  processing, transport, and analysis tasks onto
  the simulation
• can handle dynamically any Model
  configuration,including very elaborate ones with
  hundreds of interacting complex Objects
• can run on real distributed computer systems,
  and may interact with real components

• The Java (JDK 1.2) environment is well-suited
  for developinga flexible and distributed process
  oriented simulation.
• This Simulation program is still under
  development, and dedicated measurements to
  evaluate realistic parameters and validate the
  simulation program are in progress.

35
Example Physics Analysis at Regional Centres

• Similar data processing jobs are performed
  in several RCs
• Each Centre has TAG and AOD databases
  replicated.
• Main Centre provides ESD and RAW data
• Each job processes AOD data, and also a a
  fraction of ESD and RAW.

36
Example Physics Analysis

37
Simple Validation Measurements The AMS Data
Access Case
Simulation
Measurements
4 CPUs Client
LAN
Raw Data
DB
38
MONARC Strategy and Tools for Phase 2

• Strategy Vary System Capacity and Network
  Performance Parameters Over a Wide Range
• Avoid complex, multi-step decision processes
  that could require protracted study.
• Keep for a possible Phase 3
• Majority of the workload satisfied in an
  acceptable time
• Up to minutes for interactive queries, up to
  hours for short jobs, up to a few days for
  the whole workload
• Determine requirements baselines and/or flaws
  in certain Analysis Processes in this way
• Perform a comparison of a CERN-tralised Model,
  and suitable variations of Regional Centre
  Models
• Tools and Operations to be Designed in Phase 2
• Query estimators
• Affinity evaluators, to determine proximity of
  multiple requests in space or time
• Strategic algorithms for caching, reclustering,
  mirroring, or pre-emptively moving
  data (or jobs or parts of jobs)

39
MONARC Phase 2Detailed Milestones
July 1999 Complete Phase 1 Begin Second Cycle
of Simulationswith More Refined Models
40
MONARC Possible Phase 3

• TIMELINESS and USEFUL IMPACT
• Facilitate the efficient planning and design of
  mutually compatible site and network
  architectures, and services
• Among the experiments, the CERN Centre
  and Regional Centres
• Provide modelling consultancy and service to the
  experiments and Centres
• Provide a core of advanced RD activities, aimed
  at LHC computing system optimisation and
  production prototyping
• Take advantage of work on distributed
  data-intensive computingfor HENP this year in
  other next generation projects
• For example in US Particle Physics Data Grid
  (PPDG) of DoE/NGI A Physics Optimized Grid
  Environment for Experiments (APOGEE) to
  DoE/HENP joint GriPhyN proposal to NSF by
  ATLAS/CMS/LIGO
• See H. Newman, http//www.cern.ch/MONARC/progr
  ess_report/longc7.html

41
MONARC Phase 3

• Possible Technical Goal System
  OptimisationMaximise Throughput and/or Reduce
  Long Turnaround
• Include long and potentially complex
  decision-processesin the studies and simulations
• Potential for substantial gains in the work
  performed or resources saved
• Phase 3 System Design Elements
• RESILIENCE, resulting from flexible management of
  each data transaction, especially over WANs
• FAULT TOLERANCE, resulting from robust fall-back
  strategies to recover from abnormal conditions
• SYSTEM STATE PERFORMANCE TRACKING, to match and
  co-schedule requests and resources, detect
  or predict faults
• Synergy with PPDG and other Advanced RD
  Projects.
• Potential Importance for Scientific Research and
  IndustrySimulation of Distributed Systems for
  Data-Intensive Computing.

42
MONARC Status Conclusions

• MONARC is well on its way to specifying baseline
  Models representing cost-effective solutions
  to LHC Computing.
• Initial discussions have shown that LHC computing
  has a new scale and level of complexity.
• A Regional Centre hierarchy of networked centres
  appears to be the most promising solution.
• A powerful simulation system has been developed,
  and we areconfident of delivering a very useful
  toolset for further model studies by the end of
  the project.
• Synergy with other advanced RD projects has been
  identified.This may be of considerable mutual
  benefit.
• We will deliver important information, and
  example Models
• That is very timely for the Hoffmann Review and
  discussions of LHC Computing over the next
  months
• In time for the Computing Progress Reports of
  ATLAS and CMS

43
LHC Data Models RD45

• HEP data models are complex!
• Rich hierarchy of hundreds of complex data
  types (classes)
• Many relations between them
• Different access patterns (Multiple Viewpoints)
• LHC experiments rely on OO technology
• OO applications deal with networks of objects
  (and containers)
• Pointers (or references) are used to describe
  relations
• Existing solutions do not scale
• Solution suggested by RD45 ODBMS coupled to a
  Mass Storage System

Event
Tracker
Calorimeter
TrackList
HitList
Track
Hit
Hit
Track
Track
Hit
Hit
Track
Hit
Track
44
System View of Data Analysis by 2005

• Multi-Petabyte Object Database Federation
• Backed by a Networked Set of Archival Stores
• High Availability and Immunity from Corruption
• Seamless response to database queries
• Location Independence storage brokers caching
• Clustering and Reclustering of Objects
• Transfer only useful data
• Tape/disk across networks disk/client
• Access and Processing Flexibility
• Resource and application profiling, state
  tracking, co-scheduling
• Continuous retrieval/recalculation/storage
  decisions
• Trade off data storage, CPU and network
  capabilities to optimize performance and costs

45
CMS Analysis and Persistent Object Store

• Data Organized In a(n Object) Hierarchy
• Raw, Reconstructed (ESD), Analysis Objects (AOD),
  Tags
• Data Distribution
• All raw, reconstructed and master parameter DBs
  at CERN
• All event TAG and AODs at all regional centers
• Selected reconstructed data sets at each regional
  center
• HOT data (frequently accessed) moved to RCs

CMS
L1
Slow Control Detector Monitoring
L4
L2/L3
Filtering
Persistent Object Store Object Database
Management System
Simulation
Calibrations, Group Analyses
User Analysis
Common Filters and Pre-Emptive Object Creation
On Demand Object Creation
46
GIOD Summary (Caltech/CERN/FNAL/HP/SDSC)

• GIOD has
• Constructed a Terabyte-scale set of fully
  simulated events and used these to create a large
  OO database
• Learned how to create large database federations
• Completed 100 (to 170) Mbyte/sec CMS Milestone
• Developed prototype reconstruction and analysis
  codes, and Java 3D OO visualization prototypes,
  that work seamlessly with persistent
  objects over networks
• Deployed facilities and database federations as
  useful testbeds for Computing Model
  studies

Hit
Track
Detector
47
Babar OOFS Putting The Pieces Together
48
Dynamic Load Balancing Hierarchical Secure AMS

• Defer Request Protocol
• Transparently delays client while data is made
  available
• Accommodates high latency storage systems (e.g.,
  tape)
• Request Redirect Protocol
• Redirects client to an alternate AMS
• Provides for dynamic replication and real-time
  load balancing

49
Regional Centers ConceptA Data Grid Hierarchy

• LHC Grid Hierarchy Example
• Tier0 CERN
• Tier1 National Regional Center
• Tier2 Regional Center
• Tier3 Institute Workgroup Server
• Tier4 Individual Desktop
• Total 5 Levels

50
Background Why Grids?
For transparent, rapid access and delivery of
Petabyte-scale data(and Multi-TIPS computing
resources)

• I. Foster, ANL/Chicago
• Because the resources needed to solve complex
  problems are rarely colocated
• Advanced scientific instruments
• Large amounts of storage
• Large amounts of computing
• Groups of smart people
• For a variety of reasons
• Resource allocations not optimized for one
  application
• Required resource configurations change
• Different views of priorities and truth

51
Grid Services Architecture
Adapted from Ian Foster there are computing
grids, data grids, access (collaborative)
grids,...
52
Roles of HENP Projectsfor Distributed Analysis (
? Grids)

• RD45, GIOD Networked Object Databases
• Clipper/GC High speed access to Objects
  or File data FNAL/SAM for
  processing and analysis
• SLAC/OOFS Distributed File System
  Objectivity Interface
• NILE, Condor Fault Tolerant Distributed
  Computing with Heterogeneous CPU Resources
• MONARC LHC Computing Models Architecture,
  Simulation, Testbeds Strategy, Politics
• PPDG First Distributed Data Services and
  Grid System Prototype
• ALDAP OO Database Structures and
  Access Methods for Astrophysics and HENP
  Data
• APOGEE Full-Scale Grid Design
  Instrumentation, System Modeling and
  Simulation, Evaluation/Optimization
• GriPhyN Production Prototype Grid in
  Hardware and Software then Production

53
ALDAP (NSF/KDI) Project

• ALDAP Accessing Large Data Archives in
  Astronomy and Particle Physics
• NSF Knowledge Discovery Initiative (KDI)
• CALTECH, Johns Hopkins, FNAL(SDSS)
• Explore advanced adaptive database structures,
  physical data storage hierarchies for archival
  storage of next generation astronomy and
  particle physics data
• Develop spatial indexes, novel data
  organizations, distribution and delivery
  strategies, for Efficient and transparent
  access to data across networks
• Create prototype network-distributed data query
  execution systems using Autonomous Agent workers
• Explore commonalities and find effective common
  solutions for particle physics and astrophysics
  data

54
The China Clipper ProjectA Data Intensive Grid
ANL-SLAC-Berkeley

• China Clipper Goal
• Develop and demonstrate middleware allowing
  applications transparent, high-speed access to
  large data sets distributed over wide-area
  networks.
• ? Builds on expertise and assets at ANL, LBNL
  SLAC
• ? NERSC, ESnet
• ? Builds on Globus Middleware and
  high-performance distributed storage
  system (DPSS from LBNL)
• ? Initial focus on large DOE HENP applications
• ? RHIC/STAR, BaBar
• ? Demonstrated data rates to 57 Mbytes/sec.

55
HENP Grand Challenge/Clipper Testbed and Tasks

• High-Speed Testbed
• Computing and networking (NTON, ESnet)
  infrastructure
• Differentiated Network Services
• Traffic shaping on ESnet
• End-to-end Monitoring Architecture (QE, QM, CM)
• Traffic analysis, event monitor agents to
  support traffic shaping and CPU scheduling
• Transparent Data Management Architecture
• OOFS/HPSS, DPSS/ADSM
• Application Demonstration
• Standard Analysis Framework (STAF)
• Access data at SLAC, LBNL, or ANL (net and data
  quality)

56
The Particle Physics Data Grid (PPDG)

• DoE/NGI Next Generation Internet Project
• ANL, BNL, Caltech, FNAL, JLAB, LBNL, SDSC, SLAC,
  U.Wisc/CS
• Goal To be able to query and partially retrieve
  data from PB data stores across Wide Area
  Networks within seconds
• Drive progress in the development of the
  necessary middleware, networks and fundamental
  computer science of distributed systems.
• Deliver some of the infrastructure for widely
  distributed data analysis at multi-PetaByte
  scales by 100s to 1000s of physicists

57
PPDG First Year DeliverableSite-to-Site
Replication Service
PRIMARY SITE Data Acquisition, CPU, Disk, Tape
Robot
SECONDARY SITE CPU, Disk, Tape Robot

• Network Protocols Tuned for High Throughput
• Use of DiffServ for (1) Predictable high
  priority delivery of high - bandwidth data
  streams (2) Reliable background transfers
• Use of integrated instrumentation to
  detect/diagnose/correct problems in long-lived
  high speed transfers NetLogger DoE/NGI
  developments
• Coordinated reservaton/allocation techniques
  for storage-to-storage performance
• First Year Goal Optimized cached read access
  to 1-10 Gbytes, drawn from a total data set of
  order One Petabyte

58
PPDG Multi-site Cached File Access System
PRIMARY SITE Data Acquisition, Tape, CPU, Disk,
Robot
Satellite Site Tape, CPU, Disk, Robot
University CPU, Disk, Users
Satellite Site Tape, CPU, Disk, Robot
Satellite Site Tape, CPU, Disk, Robot
University CPU, Disk, Users
University CPU, Disk, Users
59
First Year PPDG System Components

• Middleware Components (Initial Choice) See PPDG
  Proposal Page 15
• Object and File-Based Objectivity/DB (SLAC
  enhanced) Application Services GC Query Object,
  Event Iterator, Query Monitor
• FNAL SAM System
• Resource Management Start with Human
  Intervention (but begin to deploy resource
  discovery mgmnt tools)
• File Access Service Components of OOFS
  (SLAC)
• Cache Manager GC Cache Manager (LBNL)
• Mass Storage Manager HPSS, Enstore, OSM
  (Site-dependent)
• Matchmaking Service Condor (U.
  Wisconsin)
• File Replication Index MCAT
  (SDSC)
• Transfer Cost Estimation Service Globus (ANL)
• File Fetching Service Components of OOFS
• File Movers(s)
  SRB (SDSC) Site specific
• End-to-end Network Services Globus tools for
  QoS reservation
• Security and authentication Globus (ANL)

60
PPDG Middleware Architecture for Reliable High
Speed Data Delivery
Resource Management
Object-based and File-based Application Services
File Replication Index
Matchmaking Service
File Access Service
Cost Estimation
Cache Manager
File Fetching Service
Mass Storage Manager
File Mover
File Mover
End-to-End Network Services
Site Boundary
Security Domain
61
PPDG Developments In 2000-2001

• Co-Scheduling algorithms
• Matchmaking and Prioritization
• Dual-Metric Prioritization
• Policy and Marginal Utility
• DiffServ on Networks to segregate tasks
• Performance Classes
• Transaction Management
• Cost Estimators
• Application/TM Interaction
• Checkpoint/Rollback
• Autonomous Agent Hierarchy

62
Beyond Traditional ArchitecturesMobile Agents
(Java Aglets)
Agents are objects with rules and legs -- D.
Taylor
Agent
Service
Agent
Application

• Mobile Agents Reactive, Autonomous, Goal Driven,
  Adaptive
• Execute Asynchronously
• Reduce Network Load Local Conversations
• Overcome Network Latency Some Outages
• Adaptive ? Robust, Fault Tolerant
• Naturally Heterogeneous
• Extensible Concept Agent Hierarchies

63
Distributed Data Delivery and LHC Software
Architecture

• LHC Software and/or Analysis Process must
  account for data and resource-related realities
• Delay for data location, queueing, scheduling
  sometimes for transport and reassembly
• Allow for long transaction times,
  performance shifts, errors, out-of-order arrival
  of data
• Software Architectural Choices
• Traditional, single-threaded applications
• Allow for data arrival and reassembly OR
• Performance-Oriented (Complex)
• I/O requests up-front multi-threaded data
  driven respond to ensemble of (changing) cost
  estimates
• Possible code movement as well as data movement
• Loosely coupled, dynamic e.g. Agent-based
  implementation

64
GriPhyN First Production Scale Grid Physics
Network

• Develop a New Form of Integrated Distributed
  System, while Meeting Primary Goals of the US
  LIGO and LHC Programs
• Single Unified GRID System Concept Hierarchical
  Structure
• (Sub-)Implementations, for LIGO, SDSS, US CMS,
  US ATLAS
• 20 Centers Few Each in US for LIGO, CMS,
  ATLAS, SDSS
• Aspects Complementary to Centralized DoE Funding
• University-Based Regional Tier2 Centers,
  Partnering with the Tier1 Centers
• Emphasis on Training, Mentoring and Remote
  Collaboration
• Making the Process of Search and Discovery
  Accessible to Students
• GriPhyN Web Site http//www.phys.ufl.edu/avery/m
  re/
• White Paper http//www.phys.ufl.edu/avery/mre/wh
  ite_paper.html

65
APOGEE/GriPhyN Data Grid Implementation

• An Integrated Distributed System of Tier1 and
  Tier2 Centers
• Flexible relatively low-cost (PC-based) Tier2
  architectures
• Medium-scale (for the LHC era) data storage and
  I/O capability
• Well-adapted to local operation modest system
  engineer support
• Meet changing local and regional needs in the
  active, early phases of
  data analysis
• Interlinked with Gbps Network Links Internet2
  and Regional Nets Circa 2001-2005
• State of the Art QoS techniques to prioritise
  and shape traffic, to manage
  bandwidth. Preview transoceanic BW, within the US
• A working Production-Prototype (2001-2003) for
  Petabyte-Scale Distributed Computing Models
• Focus on LIGO ( BaBar and Run2) handling of
  real data, and LHC Mock Data
  Challenges with simulated data
• Meet the needs, and learn from system
  performance under stress

66
VRVS From Videoconferencing to Collaborative
Environments

• gt 1400 registered hosts, 22 reflectors, 34
  Countries
• Running in U.S. Europe and Asia
• Switzerland CERN (2)
• Italy CNAF Bologna
• UK Rutherford Lab
• France IN2P3 Lyon, Marseilles
• Germany Heidelberg Univ.
• Finland FUNET
• Spain IFCA-Univ. Cantabria
• Russia Moscow State Univ., Tver. U.
• U.S
• Caltech, LBNL, SLAC, FNAL,
• ANL, BNL, Jefferson Lab.
• DoE HQ Germantown
• Asia Academia Sinica, Taiwan
• South America CeCalcula, Venezuala

67
(No Transcript)
68
Role of Simulationfor Distributed Systems

• Simulations are widely recognized and used as
  essential tools for the design, performance
  evaluation and optimisation of complex
  distributed systems
• From battlefields to agriculture from the
  factory floor to telecommunications systems
• Discrete event simulations with an appropriate
  and high level of abstraction are powerful tools
• Time intervals, interrupts and performance/load
  characteristics are the essentials
• Not yet an integral part of the HENP culture, but

• Some experience in trigger, DAQ and tightly
  coupledcomputing systems CERN CS2 models
• Simulation is a vital part of the study of site
  architectures, network behavior, data
  access/processing/delivery strategies,
  for HENP Grid Design and Optimization

69
Monitoring ArchitectureUse of NetLogger as in
CLIPPER

• End-to-end monitoring of grid assets is
  needed to
• Resolve network throughput problems
• Dynamically schedule resources
• Add precision-timed event monitor agents to
• ATM switches
• DPSS servers
• Testbed computational resources
• Produce trend analysis modules for monitor
  agents
• Make results available to applications
• See talk by B. Tierney

70
Summary

• The HENP/LHC Data Analysis Problem
• Worldwide-distributed Petabyte scale compacted
  binary data, and computing resources
• Development of a robust networked data access
  and analysis system is mission-critical
• An aggressive RD program is required
• to develop systems for reliable data access,
  processing and analysis across an ensemble
  of networks
• An effective inter-field partnership is now
  developing through many RD projects
• HENP analysis is now one of the driving forces
  for the development of Data Grids
• Solutions to this problem could be widely
  applicable in other scientific fields and
  industry, by LHC startup

71
LHC Computing Upcoming Issues

• Cost of Computing at CERN for the LHC Program
• May Exceed 100 MCHF at CERN Correspondingly
  More in Total
• Some ATLAS/CMS Basic Numbers (CPU, 100 kB Reco.
  Event) from 1996 Require Further Study
• We cannot scale up from previous generations
  (new methods)
• CERN/Outside Sharing MONARC and CMS/SCB Use
  1/32/3 Rule
• Computing Architecture and Cost Evaluation
• Integration and Total Cost of Ownership
• Possible Role of Central I/O Servers
• Manpower Estimates
• CERN versus scaled Regional Centre estimates
• Scope of services and support provided
• Limits of CERN support and service and the need
  for Regional Centres
• Understanding that LHC Computing is Different
• A different scale and worldwide distributed
  computing for the first time
• Continuing, System RD is required
