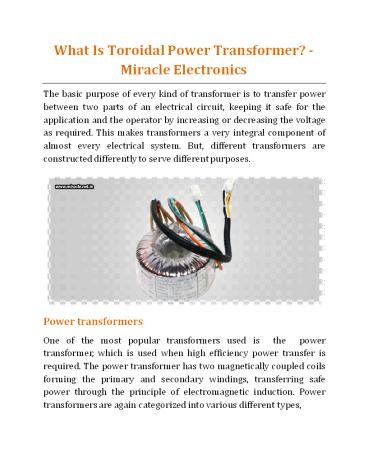

What Is Toroidal Power Transformer? - Miracle
Electronics
The basic purpose of every kind of transformer is
to transfer power between two parts of an
electrical circuit, keeping it safe for the
application and the operator by increasing or
decreasing the voltage as required. This makes
transformers a very integral component of almost
every electrical system. But, different
transformers are constructed differently to
serve different purposes.
Power transformers One of the most popular
transformers used is the power transformer,
which is used when high efficiency power transfer
is required. The power transformer has two
magnetically coupled coils forming the primary
and secondary windings, transferring safe power
through the principle of electromagnetic
induction. Power transformers are again
categorized into various different types,
2

• from which one kind (toroidal power transformers)
  we will focus on in this blog.
• Toroidal power transformers
• Toroidal power transformers have a toroidal
  (round doughnut- shaped) core on which the
  primary and secondary coils are wound the
  primary coil inducing an electromotive force and
  current in the secondary winding when current
  flows through it, to transfer power. The unique
  shape of the toroidal transformer requires
  shorter coils, thus reducing the resistive or
  winding losses, and improving overall
  efficiency.
• Advantages of toroidal power transformers
• Toroidal transformers are much more compact than
  other standard power transformers of the same
  ratings
• Toroidal transformers allow for winding of coils
  over 100 of their core, which reduces the
  length of the cores, reducing the weight and
  losses too.
• Toroidal transformers have improved efficiency
  than other power transformers, thus translating
  to lower temperatures.
• Toroidal transformers have no end to their
  windings, which means there is no physical gap
  between the start and finish of the winding to
  allow outwardly radiated stray fields.
• Toroidal transformers have high resistance to any
  external magnetic fields imposed upon them.

3

• Applications of toroidal power transformers
• Toroidal transformers are ideally suited for
  applications that possess lesser space because
  of their compact size, such as computers,
  inverters, and the like.
• Toroidal transformers produce lesser hum than
  other power transformer types, thus making them
  suitable in audio-video applications like
  televisions, audio systems, and amplifiers.
• Toroidal transformers are well-suited for
  critical equipment in the medical industry as
  medical devices require superior
• efficiency, low leakage currents, reliability,
  and noiseless operations all of which toroidal
  transformers can provide.
• Where to get toroidal transformers?
• When you want best quality toroidal transformers
  (https//www.miracle.net.in/blog/buying-transforme
  r- things-consider/)
• for your application, you can always get in touch
  with Miracle Electronics, the most reliable and
  expert transformer manufacturer in India, where
  you can get extremely durable, superior wiring,
  varnishing, connection terminators, 3D terminals,
  low profile, low EMR, and noiseless toroidal
  transformers that are highly efficient and can
  provide excellent regulation with minimal
  temperature rise. Every transformer manufactured
  here is RoHS and REACH compliant, a bundle of
  massive efficiency, available with CE and UL
  marks on request. You can get a multitude of
  toroidal

transformers here, frequencies, phases,
varying in cooling mechanisms, voltages,
heights, and profiles. And, along with
4
transformers, you can also get wires, cables,
sleeves, connectors, thermal fuses, thermal
switches, and much more included in your
order. For more Information https//www.miracle
