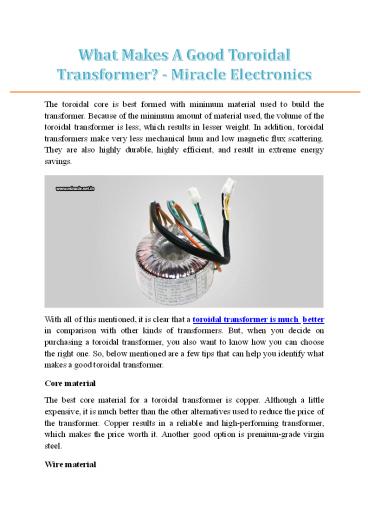

What Makes A Good Toroidal Transformer? - Miracle Electronics

1
The toroidal core is best formed with minimum
material used to build the transformer. Because
of the minimum amount of material used, the
volume of the toroidal transformer is less,
which results in lesser weight. In addition,
toroidal transformers make very less mechanical
hum and low magnetic flux scattering. They are
also highly durable, highly efficient, and result
in extreme energy savings.
With all of this mentioned, it is clear that a
toroidal transformer is much better in
comparison with other kinds of transformers. But,
when you decide on purchasing a toroidal
transformer, you also want to know how you can
choose the right one. So, below mentioned are a
few tips that can help you identify what makes a
good toroidal transformer. Core material The best
core material for a toroidal transformer is
copper. Although a little expensive, it is much
better than the other alternatives used to reduce
the price of the transformer. Copper results in
a reliable and high-performing transformer,
which makes the price worth it. Another good
option is premium-grade virgin steel. Wire
material
2
The most common materials used for making the
wires that are to be installed within a
transformer are copper and aluminium. Again,
copper is more expensive, but it is also a
better option because of its current carrying
capacity, electrical characteristics, and
thermal properties, which are all much better
than that of aluminium. Winding
technique Different toroidal transformer
manufacturers in India use different winding
techniques to build a transformer core. You would
be surprised to know that the kind of winding
procedure used is also important when deciding
for the quality of the transformer. Thats
because the winding construction can greatly
influence leakage inductance. The winding, when
evenly arranged and levelled, with the winding
strength of the machine properly adjusted, can
eliminate perforation of the wires, thus
reducing the risks of short circuiting. Insulation
material and technique The insulation material
used determines the lifespan and reliability of
the product. Proper insulation reduces the
possibility of short circuits and leakage, thus
resulting in a longer life of the transformer.
Toroidal transformers require insulation in
different stages of construction. The insulation
thickness, the number of insulation layers, and
the creepage required should be carefully
calculated. In general, a good toroidal
transformer will have insulation between the
core and first winding, between successive
windings, and on the outside of the last
winding. The best method for insulation involves
winding a narrow strip of plastic material in
overlapping fashion, through the center hole in
the toroid. Magnetic shield A toroidal
transformer is general has a very low magnetic
leakage field. However, if an additional
reduction is required, an additional magnetic
shield can be added. This shield uses a thin
sheet of grain-oriented silicon steel, with
multiple layers tightly wound around the
transformer circumference, and fixed with an
outer wrap. Potting/Encapsulation Potting or
encapsulation of the transformer with
thermoplastic material can provide excellent
protection against shock and vibration.
3
Electrostatic screen Electrostatic screens can be
added to filter out electrostatic interference
from the mains power supply and derive to
ground, in case of failure of the main isolation.
These screens are constructed using a copper
layer winding coil, insulated with polyester,
between the primary and secondary windings. As
you can see, there are a variety of choices that
need to be made in order to have that one good
toroidal transformer. You can list down all your
choices and preferences, and then approach
Miracle Electronics to have your special, unique,
high-on-quality toroidal transformer made for
your application. We are one of the most
reliable toroidal transformer manufacturers in
India, with a team of skilled and experienced
engineers, who have the caliber to design any and
every kind of transformer to suit every clients
unique requirement. And, no matter what we
manufacture, we always ensure quality, which can
be easily proven by our RoHS and REACH compliant
products, that can be CE and UL marked on
request.
