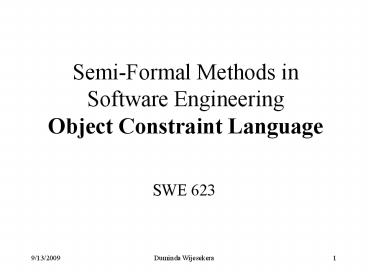

Semi-Formal Methods in Software
EngineeringObject Constraint Language
  • SWE 623

2
Why OCL ?
  • UML is a pictorial language for software design,
    now becoming widely popular.
  • Although popular UML by itself is not enough to
    capture many aspects of OCL.
  • This set of transparencies review UML and
    introduce OCL.
  • Information on OCL available at
    http//www.klasse.nl/ocl/index.htm
  • Reference book The Object Constraint Language
    Precise Modeling with UML by Jos Warmer and
    Anneke Kleppe. (Addison Wesley Series on Object
    Technology)

3
Review UML
  • Use Case Diagrams
  • Class Diagrams
  • Statecharts
  • Sequence Diagrams
  • Object Collaboration Diagrams

4
UML Notation for Use Case Diagram
Use Case
Actor
Use Case A
ltltextendgtgt
ltltextendgtgt
Use Case C
Use Case B
Use Case X
ltltincludegtgt
ltltincludegtgt
Use Case Z
Use Case Y
5
Use Cases
  • Define system functional requirements in terms of
    Actors and Use cases
  • Each use case defined in terms of sequence of
    interactions between Actor and System
  • Narrative description
  • Simple use cases may involve only one interaction
  • More complicated use cases may involve several
    interactions

6
Example Use Case in UML Notation
Withdraw Funds
Actor
7
Objects and Classes
  • Objects represent things in real world
  • Provide understanding of real world
  • Form basis for a software solution
  • An Object is a single thing
  • E.g., Johns car
  • Marys account
  • A Class (object class) is a collection of objects
    with the same (similar) characteristics
  • E.g., account, employee, car, customer
  • An object is underlined in class diagrams
  • E.g., objectclass or class
  • Each object has an identity and is
    distinguishable from others in the class

8
UML Notation for Class Diagram
ClassA
1

ClassB
Association
Class Whole
Super class
ClassPart2
ClassPart1
SubclassA2
SubclassA1
Aggregation Hierarchy
Generalization/Specialization
9
An Example Class Diagram
Customer
Order
Multiplicitymandatory
Class
dataReceived isPrepaid number String price
Money dispatch() close()
Name address creditRating() String
1

Attribute
Association
Method
if Order.customer.creditrating is poor the
Order.isPrePaid must be true
Corporate
Personal
contractName creditRating creditLimit remind() bil
lForMonth()
creditCard
Constraint
Line Items

OrderLine
Role name
0..1
Employee
Quantityinteger priceMoney dissatisfiedBoolean
Multiplicityoptional

1
Product
10
Statechart
  • Statechart
  • Graphical representation of finite state machine
  • States are rounded boxes
  • Transitions are arcs
  • Statechart relates events and states
  • Event
  • Causes change of state
  • Referred to as state transition
  • State represents interval between successive
    events
  • Initial state
  • Arc with black ball at end

11
UML Notation for Statechart Diagram
Initial State
Event
Superstate A
Substate A1
Event condition/ Action
Entry/ Action Do/ Activity Exit/ Action
Substate A2
Event / Action
Final State
12
Example of Account Statechart
Account Opened
Regular Withdrawal
AuthorizedWithdrawal
Account in Good Standing
AccountOverdrawn
Overdraft Paid Off
Deposit
Account closed
13
Hierarchical Statecharts
  • OR decomposition
  • When object is in superstate
  • It is in one and only one of substates
  • Transition into superstate
  • Must be to one and only one of substates
  • Aggregation of state transitions
  • If same event causes transition out of every
    substate
  • Then aggregate into transition out of superstate

14
Hierarchical Statecharts
  • Concurrent statecharts
  • State of an object described by more than one
    statechart
  • Show different aspects of object, may not be
    concurrent
  • AND decomposition
  • Object is in one substate on each statechart
  • Objects state is union of all substates
  • Same event
  • May cause transitions on more than one statechart
  • Output event on one statechart
  • May be input event on other statechart
  • Substate on one statechart
  • May be condition on other statechart

15
Sequence Diagram
  • Shows sequence of object interactions in use case
  • Emphasis on messages passed between objects
  • Objects represented by vertical lines
  • Actor is on extreme left of page
  • Messages represented by labeled horizontal arrows
  • Only source and destination of arrow are relevant
  • Message is sent from sending object to receiving
    object
  • Time increases from top of page to bottom
  • Spacing between messages is not relevant
  • Message sequence numbering is optional

16
UML Notation for Sequence Diagram
Actor
objectB1 ClassB
objectA
anObject
ClassC
1 Input Message
2 Internal Message
3 Iteration Message
4Condition Conditional Message
17
Example Sequence Diagram for Shaft Use Case
ltltexternal input devicegtgt Shaft
ltltdevice interfacegtgt ShaftInterface
ltltentitygtgt Shaft RotationCount
Sh1 Shaft Input
Sh1.1 Update Shaft Rotation Count
18
Object Collaboration Diagrams
  • Graphically depicts objects participating in a
    use case
  • Show objects as boxes
  • Show their message interactions as arrows
  • Number sequence of messages
  • Message
  • Message Event Attributes
  • E.g, ATM card inserted (Card id, expiration date)
  • Object Collaboration Diagram for each use case
  • Some objects only appear on one Object
    Collaboration Diagram
  • Some objects appear in several Object
    Collaboration Diagrams

19
UML Notation for Collaboration Diagram
1 Input Message
objectA
2 Internal Message
Actor
objectB1 ClassB
3 Iteration Message
anObject
4Condition Conditional Message
ClassC
20
Example Collaboration Diagram for Use Case
ltltexternal input devicegtgt Shaft
Sh1 Shaft Input
ltltinput device interfacegtgt ShaftInterface
Sh1.1 Update
ltltentitygtgt ShaftRotation Count
21
Object Constraint Language
  • Developers claim OCL is easier than Z, VDM.
  • Need some mathematical background in Set Theory
    and Logic, but is based on UML.
  • Constraints in OCL is an extension of Assertions
    of Bertrand Meyer, implemented in Eiffel.
  • Assertions pre-conditions post-conditions
    invariants
  • Assertions (Graham) above conditions holding
    when methods are running.

22
Other Notions of Constraints
  • Rambaugh Functional relationships between
    entities of the object model.
  • Restricts values that entities can take.
  • Booch Expression of semantics conditions that
    must be preserved.
  • Only properties of steady states must be stated.
  • Design by Contract Obligations of a client to a
    server

23
Declarative vs. Operational Constraints
  • Declarative What must hold, not what should be
    done to enforce a constraint. Advantages
  • Do not worry about enforcement or penalty for
    violation.
  • Implementation independent behavior.
  • Atomic checking of enforcement.
  • Operational Doing what by a runtime system will
    enforce a constraint.
  • Breaking of a Constraint Raise an exception
  • Exception to be raised can be determined by using
    some rules such as given in Soma (Ian Graham)

24
Constraints of OCL
  • Definition of a Constraint A restriction on one
    or more value of (part of) an object oriented
    model.
  • Properties of OCL
  • Expresses properties useful to modelers.
  • Precise syntax and semantics (modulo UML)
  • Declarative language
  • Typed languages

25
Loyalty Program
Customer
0..
0..
1.
Enroll(cCustomer)
NameString TitleString isMaleBoolean dateOfBirt
hDate
program
partners
Age()Integer
Membership
1..
0..
owner
Program Partners
0..
Actual Program
1..
ordered
cards
numberOfCustomersInteger
Service Level
Customer Card
card
NameString
Valid Boolean validFromDate goodThruDate Color
enumsilver,gold printedNameString
0..1
Delivered Services
Loyalty Account
0..
Points Integer Earn(iInteger) Burn(iInteger) is
Empty()Boolean
0..
Services
0..
Available Services
transactions
ConditionBoolean pointsEarnedInteger pointsBurne
dInteger descriptionString
Transaction
0..
PointsInteger DateDate
transactions
0..
Program()LoyaltyProgram
transactions
Earning
Burning
Date
nowDate
Date is Utility class
isBefore(tDate)Boolean isAfter(tDate)Boolean
(tDate)Boolean
26
Constraints on Attribute Values
Customer name String title String isMale
Boolean dob Date Age() integer
  • Constraints on Attribute Values
  • customer
  • age gt 18
  • dob.isBefore(now)

Date now Date isBefore(tDate)
Boolean isAfter(tdate) Boolean (t date)
Boolean
27
Constraints on Associations
Customer name String title String isMale
Boolean dob Date Age() integer
  • Can place constrains on attributes that are
    connected over associations
  • CustomerCard
  • PrintedName customer.title.
  • concat(customer.name)
  • CustomerCard
  • PrintedName owner.title.
  • concat(owner.name)

owner
0..
cards
CustomerCard Valid Boolean validFrom
Date goodThru Date color enumS,G,P printedName
String
28
Collections of Objects
  • Not all associations are one-to-one. Hence, have
    to deal with sets of objects in some
    associations.
  • OCL has collection operations for this purpose.
  • notEmpty( set of objects ), notEmpty(set of
    objects )
  • includes(object) for membership test
  • union( set of objects )
  • Intersection( set of objects )
  • sum( set of objects)
  • Iterate, exists, forAll, includesAll

29
Iterations Over Collections
  • Select, reject, iterate, forAll, exists.
  • CustomerCard
  • self.transactions-gtselect(points gt 100)
  • LoyaltyAccount
  • transaction-gtcollect( points)
  • Transaction-gtcollect( points) -gt exists( p
    Integer p 500 )
  • Self.customer-gtforAll( c Customer c.age() lt
    90)
  • Notice the duality between select and reject
  • self.transactions-gtselect(points gt 100)
  • self.transaction-gtreject(points lt 100)

30
Iterate Construct
  • Most General Construct.
  • ProgramPartner
  • self.service.transaction-gtiterate(
  • t transaction
  • result integer 0
  • if oclType Burning then
  • result points
  • else
  • result
  • endif )

31
Pre Conditions, Post Condition and Invariants
  • Two Options
  • Can use operations in constraints
  • Can write constraints about operations
  • Pre and Post Conditions
  • _at_pre indicates value before method call
  • Pre Post used to indicate conditions
  • Example
  • LoyaltyProgram
  • pre not customer-gtincludes(c)
  • post customer customer_at_pre-gtincluding(c)

32
Modeling Constraints
  • Invariant
  • An expression holding true for all instances.
  • Precondition
  • Must be true at the start of execution of a
    method.
  • Postcondition
  • Must be true at the end of execution of a method.
  • UML has no way to denote pre and post conditions
    other than state them in note boxes.
  • OCL has a syntactic way to denote them.

33
Statecharts and OCL
  • Sate charts have states, actions, activities etc.
  • They are all constraints on the class diagrams of
    the corresponding object.
  • Hence all information of stat charts have to be
    translated to class diagrams.

34
Example of Using Statecharts
Account Opened
Regular Withdrawal
AuthorizedWithdrawal
Account in Good Standing
AccountOverdrawn
Overdraft Paid Off
Deposit
Account closed
35
Account Class Diagram
  • Need to define
  • good standing
  • Overdrawn
  • For account
  • Need to ensure
  • Id is unique within class
  • Close(Id) is allowed only for accounts with 0
    balance.
  • Withdraw and deposit act according to state chart

Account Id Integer Balance Real Open(Id) Close(I
d) RegWithdraw(Id, amount) Deposit(Id, amount)
36
Example Continued
  • Uniqueness of ID
  • Account
  • self-gtforAll( c1, c2 c1 ltgt c2 implies c1.id ltgt
    c2.id)
  • Definability of State (Option 1)
  • Add an extra attribute, say minBalance.
  • GoodStanding (balance gt minBalance)
  • AccountOverdrawn (balance lt minBalance)
  • Definability of State (Option 2)
  • Add an extra BOOLEAN attribute, say Sanding
  • State invariant Standing (balance gt
    minBalance)

37
Stating Pre and Post Conditions
  • Regular Withdraw
  • AccountregWithdraw(id, amount)
  • Pre (account.balance gt account.minBalance) and
  • (amount gt 0) and (id self.id)
  • Post (account.balance account._at_pre-gtbalance
    -amount) and
  • (account.balance gt account.minBalance)

38
Stating Pre and Post Conditions
  • Overdraft
  • Accountoverdraft(id, amount)
  • Pre (account.balance gt account.minBalance) and
  • (amount gt 0) and (id self.id)
  • Post (account.balance account._at_pre-gtbalance
    -amount) and
  • (account.balance lt account.minBalance)

39
Events, Activities
  • Events should be mapped to methods, with the
    appropriate parameters, conditions, state changes
    etc.
  • Activities, entry actions, and exit actions must
    also be mapped to method calls.
  • Calling activities and actions must be post
    conditions of events that have them.

40
Inheritance and Constraints
  • Liskov Substitution Principle
  • Whenever an instance of a class is expected, an
    instance of it s subclass can be substituted.
  • Implications
  • An invariant of a super-class is inherited by its
    subclass. Hence a subclass may strengthen it, but
    not weaken it.
  • A pre-condition may be weakened, not strengthened
    in a re-definition of the method.
  • A post-condition may be strengthened, not
    weakened in a redefinition of an operation.

41
Action Semantics
  • Extending OCL to Include Actions by Kleppe and
    Warmer (UML 2000) conference.
  • Syntax
  • Action If ltconditiongt
  • to lttargetSetgt
  • send lteventSetgt

42
Examples of Actions- 1
  • Example 1
  • Context cutomerCardinvalidate()
  • Pre none
  • Post valid false
  • Action if customer.special to customer
  • send polliteInvalidLetter()
  • Action if not customer.special to customer
  • send invalidLetter()

43
Examples of Actions- 2
  • Example 2
  • Context cutomerCard
  • inv validFrom.isBefore(goodThru)
  • Action if goodThru.isAfter(Date.now)
  • to self
  • send invalidate

44
Issues with Action Semantics
  • When is ltconditiongt evaluated?
  • At postcondition time of operation
  • Reason
  • To be called in a context where Pre-condition is
    true is callers responsibility.
  • Method has no control over pre-condition.
  • Hence, after method execution, ltconditiongt will
    be evaluated and action executed.

45
Underlying Assumptions
  • Every object (component) has two queues
  • Output queue, to include outgoing events.
  • Input queue to include incoming events.
  • Only events generated by current operation should
    be specified.
  • Events send by operations called by the current
    operation should not be included.- They need to
    be defined in called operations.
Write a Comment
User Comments (0)
About PowerShow.com
