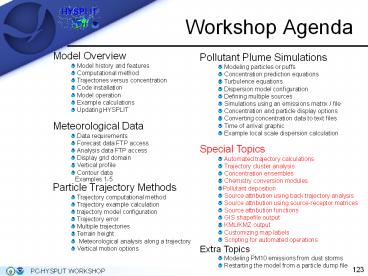

Workshop Agenda

1
Workshop Agenda
Model Overview Model history and features Computational method Trajectories versus concentration Code installation Model operation Example calculations Updating HYSPLIT Meteorological Data Data requirements Forecast data FTP access Analysis data FTP access Display grid domain Vertical profile Contour data Examples 1-5 Particle Trajectory Methods Trajectory computational method Trajectory example calculation trajectory model configuration Trajectory error Multiple trajectories Terrain height Meteorological analysis along a trajectory Vertical motion options Pollutant Plume Simulations Modeling particles or puffs Concentration prediction equations Turbulence equations Dispersion model configuration Defining multiple sources Simulations using an emissions matrix / file Concentration and particle display options Converting concentration data to text files Time of arrival graphic Example local scale dispersion calculation Special Topics Automated trajectory calculations Trajectory cluster analysis Concentration ensembles Chemistry conversion modules Pollutant deposition Source attribution using back trajectory analysis Source attribution using source-receptor matrices Source attribution functions GIS shapefile output KML/KMZ output Customizing map labels Scripting for automated operations Extra Topics Modeling PM10 emissions from dust storms Restarting the model from a particle dump file
2
Automated Trajectory Calculations

• Daily HYSPLIT trajectories can be calculated
  between two dates within a given month with
  Trajectory / Special Runs / Daily.
• The Daily program can be repeated to obtain
  trajectories for a season or longer. Trajectories
  can then be further analyzed through the use of
  trajectory cluster analysis (described in the
  next section).
• Example Compute 48-hour backward trajectories
  daily beginning at 12 UTC on 01 January 1996 from
  40N, 80W _at_ 500 m agl using the NGM archive data.
• If trajectory cluster analysis will be done
  later, it is recommended that you make an output
  directory, and specify the Output path/file to
  hold all the files such as C/hysplit4/working/end
  pts/jan96/tdump
• For a complete set of trajectories for the month
  of January, NGM archive files ngm.dec95.002,
  ngm.jan96.001, and ngm.jan96.002 must be
  specified.
• The first day's trajectory must be run manually
  (upper right), explicitly setting the start
  date/time, since this sets the model input
  values.   It is good practice to confirm the
  trajectory looks correct (lower right) before
  running many trajectories.

3
Automated Trajectory Calculations

• Below is how the Trajectory / Special Runs /
  Daily form should be filled-out for this example.

• To compute the automated trajectories, the year,
  month, and date must be set in the menu (below).
• Setting the Delta-Hour to 12 will repeat this
  trajectory every day beginning at 1200 UTC. Any
  combination of hours can be specified (i.e., 00
  06 12 18).
• Click the Execute Script button. When the
  calculation is finished, click Continue.
• Each trajectory is treated as a separate
  simulation and has its own associated trajectory
  endpoints file (tdumpYYMMDDHH) in the output
  directory.

4
Trajectory Cluster Analysis

• Trajectory Cluster Analysis is a process of
  grouping similar trajectories together whereby
  differences among individual trajectories in a
  cluster are minimized and differences among
  clusters are maximized.
• Ideally, each cluster represents different
  classes of synoptic regimes over the duration of
  the trajectories.
• Cluster analysis can be useful for matching air
  quality measurements with pollutant source
  regions.
• The set of January 1996 trajectories created by
  running Daily in the last section will be used to
  illustrate this technique.
• The cluster analysis routine requires that the
  trajectory endpoints files to be used in the
  calculation be located in the \hysplit4\cluster\en
  dpts directory.
• First, manually move or copy the 31 daily
  trajectory endpoints files from \hysplit4\working
  to \hysplit4\cluster\endpts. The files from Daily
  were named tdump96010112 (tdumpYYMMDDHH) for the
  01 January trajectory to tdump96013112 for 31
  January trajectory.

5
Trajectory Cluster Analysis

• Select Trajectory / Special Runs / Clustering /
  Standard.
• Start by setting the parameters as in Step 1
  Inputs (below).
• The Run_ID (Jan96) is a label that will be used
  on all plots.
• With long trajectories and a large set of
  trajectories, you may want to skip endpoints and
  trajectories, respectively, to save computational
  time. Clustering more than several years of daily
  trajectories will take a while and may even
  exceed the memory limits of your PC.
• Note that ALL files with tdump in their name in
  the endpoints folder (\hysplit4\cluster\endpts)
  will be clustered, so make sure you remove old
  ones before starting a new cluster simulation.

6
Trajectory Cluster Analysis

• In Step 2, click on Make INFILE and Run cluster
  sequentially.
• Make INFILE creates a text file (INFILE) in the
  \cluster\working directory which lists the
  trajectory endpoints files to be used in the
  analysis.
• Run cluster starts with N trajectories (clusters)
  and keeps pairing similar clusters until all the
  trajectories are in one cluster.
• To determine the final number of clusters, you
  need to decide when different clusters are
  paired, and save the list of trajectories in each
  cluster just before that happens.
• A text listing (CLUSEND), produced by the Run
  button, suggests the possibilities and Display
  plot depicts them.

7
Trajectory Cluster Analysis

• In Step 3, enter the final Number of Clusters
  (5), and click Text. This creates a file
  CLUSLIST_N (N is the number of clusters), which
  is the text file that lists the dates of the
  trajectories that are in each cluster.  One
  possible application for using this file is that
  if daily air quality measurements are available,
  they can be assigned to the appropriate cluster.
• Plots (next slide) showing the cluster-means (top
  left) and trajectories in each cluster (1, 2, 3,
  4, and 5) may be created using the optional
  buttons. In the Trajectory Cluster Display
  window, check "view" for the postscript window to
  automatically open, and for the Vertical
  Coordinate select "none" since the trajectory
  vertical coordinate is not used.
• Other final Number of Clusters may be specified
  to observe the changes.
• The Archive button moves all files to the
  \hysplit4\cluster\archive folder.

8
Trajectory Cluster Analysis
9
Concentration Ensembles

• Instead of creating a single deterministic air
  concentration simulation, several programs are
  included with HYSPLIT that can be used to combine
  multiple HYSPLIT simulations into a single
  graphic that represents some variation of a
  concentration probability.  The simplest approach
  is to run the model multiple times varying one
  parameter.
• In the next example, we will run the model with
  several, albeit few, meteorological data sets,
  thereby varying the meteorology. We will then
  run the ensemble program and look at various
  probabilities of exceeding concentration
  thresholds in the results.

10
Concentration Ensembles

• Model configuration
• First, in the Advanced / Configuration Setup /
  Concentration, click on Reset and then Save to
  clear any old setups.
• Concentration Source 28.5N, 80.7W _at_ 10 m
• Total run time 6 hrs
• Emission 1 unit/hr for 6 hrs beginning 1200 UTC
  17 February 2009
• Output 6 hr average concentration between the
  ground and 100 m
• Concentration grid size 0.01 x 0.01 degrees
• Concentration grid span 20.0 x 20.0 degrees
• Run with each of the following meteorological
  datasets and name the cdump files in the
  Definition of Concentration Grid 1 menu as shown
  below. The ensemble program requires the files
  be named sequentially.
• Be sure to Run using SETUP file

Meteorology cdump name
NAM 12 km SE tile cdump.001
NAM 12 km cdump.002
NAM 40 km cdump.003
RUC cdump.004
GFS cdump.005
11
Concentration Ensembles
NAM 12km
NAM 40 km
NAM 12km SE tile
RUC
GFS
12
Concentration Ensembles

• Now, before running the ensemble display program
  the base name of the concentration files that
  were just created (cdump.001 to cdump.005) MUST
  be reset to the default in the Definition of
  Concentration Grid 1 menu. Change the last one
  selected, in this case cdump.005 to cdump (this
  is automatically taken care of by the GUI if
  running a one meteorological dataset internal
  ensemble as will be shown later).
• Save the setup, but do not rerun the model. This
  creates a new CONTROL file with the proper base
  name cdump to be created by the ensemble program.

• Now, select View Map from the Concentration /
  Display / Ensemble menu (below).

13
Concentration Ensembles

• The Aggregation is set to 1 by default, meaning
  that only the ensemble members from one time
  period are aggregated together to produce the
  probability display. If there is more than 1
  time period, multiple probability plots will be
  created. This number can be changed to the number
  of output times to produce one output plot for
  runs that have multiple concentration output
  times.
• The Ensemble Probability Display menu will call
  conprob, which reads the concentration files with
  the ensemble member 3-digit suffix (001 to 027)
  and generate various probability files in the
  \working directory.

14
Concentration Ensembles

• Output Selection Options
• 1 - Number of ensemble members at each grid point
  with concentrations gt 0.
• 2 - The Mean of all ensemble members.
• 3 Variance (mean square difference between
  members and the mean).
• 4 The Probability of Concentration produces
  contours that give the probability of exceeding a
  fixed concentration value at one of 3 levels 1
  of maximum, 10 of maximum, maximum, or user
  entered. The concentration level is displayed in
  the pollutant identification label like C14,
  where 14 is the concentration to the power of 10
  (ie., 10-14)
• 5 The Concentration at Percentile shows
  contours of areas where concentrations will be
  exceeded only at the given probability level (in
  the GUI these are 50, 90 and 95).
• Click the Help button for more details on each of
  these settings.

15
Concentration Ensembles

• For this example, we will display the
  concentrations at the 95th percentile level.
• As can be seen in the display map, the plume
  looks most similar to the NAM members, which is
  expected since they contributed 3 members and
  each was very similar.
• This output can be useful to ascertain the
  uncertainty due to differences in the
  meteorological data used by the model.

16
Concentration Ensembles

• Another ensemble output option is to plot the
  resulting concentrations at a specific location
  as a box plot or series of box plots for multiple
  time periods using the Concentration / Display /
  Ensemble / Box Plot menu.
• Shown at right is the box plot for the location
  28.4N, 80.8W for this case.

17
Concentration Ensembles

• Another approach to concentration ensembles is to
  generate an internal ensemble from a single
  meteorological data set. This computation is part
  of HYSPLIT and can be selected from the
  Concentration / Special Runs / Ensemble /
  Meteorology menu tab.
• In these simulations the meteorological data are
  perturbed to test the sensitivity of the
  simulation to the flow field.
• The meteorological grid is offset in either X, Y,
  or Z for each member of the ensemble. The
  calculation offset for each member of the
  ensemble is determined by the grid factor and can
  be adjusted in the Advanced / Configuration Setup
  / Concentration menu. The default offset is one
  meteorological grid point in the horizontal and
  0.01 sigma units in the vertical. The result is
  twenty-seven ensemble members for all offsets.
• Because the ensemble calculation offsets the
  starting point, it is suggested that for
  ground-level sources, the starting point height
  should be at least 0.01 sigma (about 250 m) above
  the ground.

18
Concentration Ensembles

• The 27-member ensemble using just the NAM 40 km
  meteorology is shown at lower right (this may
  take several minutes to display).
• The output graphics are created in the same way
  as the last example (i.e., Concentration /
  Display / Ensemble / View Map ). Caution this
  can take some time to generate depending on the
  computing platform.
• Beginning with version 4.9, two new ensembles are
  available one based on the turbulence and one on
  the physics methods. More details can be found
  in the help section under the Special Runs menu.

19
Chemistry Conversion Modules

• Normally pollutants are treated independently
  one pollutant per particle. However, multiple
  pollutants per particle can be defined by
  enabling the In-line chemical conversion modules
  through the Advanced / Configuration Setup /
  Concentration menu.
• To demonstrate this capability first run the base
  simulation (right) for one pollutant, configured
  similarly to the previous example (see
  underlined for changes)
• - First, in the Advanced / Configuration Setup /
  Concentration, click on Reset and then Save to
  clear any old setups.
• - Source 28.5N, 80.7W _at_ 100 m
• - Total run time 6 hrs
• - Meteorology NAMF40
• - Emission 1 unit/hr for 6 hrs beginning 1200
  UTC 17 February 2009
• - Output 6 hr average concentration between the
  ground and 100 m
• - Conc. grid size 0.01 x 0.01 degrees
• - Conc. grid span 20.0 x 20.0 degrees

20
Chemistry Conversion Modules

• Next configure the model for two pollutants,
  through the Pollutant, Deposition and Grids setup
  menu (Num2, right).
• Give each pollutant a unique name and configure
  the 2nd pollutant for no emissions (below,
  right).
• Running the model with this configuration will
  give the about the same result as before since no
  new emissions are being released.

21
Chemistry Conversion Modules

• Enable the 10/hour chemical conversion module
  through the Advanced / Configuration Setup /
  Concentration / In-line chemical CONVERSION
  MODULES (10) menu (right).
• Rerunning the model will now produce
  concentrations for the second pollutant as the
  first pollutant is converted to the second at 10
  per hour.
• Multiple pollutants can be selected individually
  from the Concentration Display menu (lower
  right). The All option sums pollutants onto one
  map.

22
Chemistry Conversion Modules

• Using the default 10/hr conversion produces the
  graphic (right) for the 2nd pollutant.  The
  conversion rate can be modified by creating a
  chemrate.txt file to define the species index
  and, for this example, a 50 conversion rate.
• If the file is placed in the model startup
  directory, the conversion module will use these
  values and produce the results below for the two
  pollutants. (The contour intervals were fixed to
  be the same in each plot.)

23
Pollutant Deposition

• The deposition (D) from a particle is expressed
  as a fraction of the mass (m) computed from the
  sum of different time constants (ß),
• Dwetdry m (1 - exp?t (ßdry ßgas ßinc
  ßbel ) )
• When the dry deposition is entered directly as a
  velocity (Vd), then ßdry Vd ?Zp-1.

• The radio-buttons along the top of the Pollutant
  Deposition menu can be used to set default
  deposition parameters, which can then be edited
  as required in the text entry section.
• The second line of radio-buttons define the
  deposition values for some preconfigured species
  Cesium (C137), Iodine (I131), and Tritium (HTO).
• The reset button sets all deposition parameters
  back to zero.
• Note that turning on deposition will result in
  the removal of mass and a corresponding reduction
  in air concentration. The deposition will not be
  available in any output unless height "0" is
  defined as one of the concentration grid output
  levels.

24
Pollutant Deposition

• Dry Deposition
• Dry deposition calculations are performed in the
  lowest model layer (75m) based upon the relation
  that the deposition flux equals the velocity
  times the ground-level air concentration. This
  calculation is available for gases and particles.
  When dry deposition is entered directly as a
  velocity (Vd), then ßdry Vd ?Zp-1.

• Example
• - First, click Reset and Save in the Advanced /
  Configuration Setup / Concentration menu to clear
  any old setups.
• - Source 28.5N, 80.7W _at_ 10 m
• - Total run time 12 hrs
• - Meteorology NAM 40 km
• - Emission 1 unit/hr for 1 hr beginning 1200
  UTC 17 February 2009
• - Output 12 hr deposition (level 0) 100 m
  conc.
• - 5000 3D particles
• - Conc. grid size 0.05 x 0.05 degrees
• - Conc. grid span 20.0 x 20.0 degrees
• - Turn on dry deposition in the Deposition menu
  from the Pollutant, Deposition Grids Setup menu
  (right). This automatically sets Vd to 0.006 m/s
  for a gas.

25
Pollutant Deposition

• The results (upper right) show the dry deposition
  pattern left by the particles as they moved
  across central Florida.
• The dry deposition of particles due to
  gravitational settling (Vg) can also be computed
  from the particle diameter and density Vg
  dp2 g(?g - ?) (18 µ)-1
• Enter a density of 5 g/cc and a diameter of 6 µm,
  which should result in a settling velocity close
  to the previous Vd of 0.006 m/s and rerun the
  model.
• The result (lower right) from this configuration
  confirms that the plots are almost identical .

26
Pollutant Deposition

• The normal deposition mode is for particles to
  loose mass to deposition when those particles are
  within the deposition layer. An additional option
  was added to deposit the entire particle's mass
  at the surface, that is the particle itself, when
  subjected to deposition. To insure the same mass
  removal rates between the two methods, a
  probability of deposition is computed, so that
  only a fraction of the particles within the
  deposition layer are deposited in any one time
  step. The probability of deposition is a function
  of the deposition velocity, time step, and depth
  of the layer. One limitation of this method is
  that only one mass species may be assigned to a
  particle. To enable this feature, check the
  Deposit particles rather than reducing the mass
  of each particle option in the Advanced /
  Configuration Setup / Concentration / In-line
  chemical CONVERSION MODULES menu. The model must
  be configured for 3D particles to use this
  option.  If a sufficient number of particles are
  released the results will be similar to the other
  deposition options. In this case, more than
  15,000 particles are needed to produce a similar
  deposition pattern (bottom right).

27
Pollutant Deposition

• Finally, the dry deposition velocity can also be
  calculated by the model using the resistance
  method, which requires setting the four
  parameters molecular weight, surface reactivity
  ratio, diffusivity ratio, and the effective
  Henry's constant. (See the table in the Help for
  suggested numbers for some common pollutants.)
• Radioactive decay can be specified by entering a
  value in days for the decay rate. A non-zero
  value in this field initiates the decay process
  of both airborne and deposited pollutants.
• A non-zero value for the re-suspension factor
  causes deposited pollutants to be re-emitted
  based upon soil conditions, wind velocity, and
  particle type. Pollutant re-suspension requires
  the definition of a deposition grid, as the
  pollutant is re-emitted from previously deposited
  material. Under most circumstances, the
  deposition should be accumulated on the grid for
  the entire duration of the simulation. Note that
  the air concentration and deposition grids may be
  defined at different temporal and spatial scales.

28
Pollutant Deposition

• Wet Deposition
• Henry's constant defines the wet removal process
  for soluble gases. It is defined only as a
  first-order process by a non-zero value in the
  field.
• Wet removal of particles is defined by non-zero
  values for the In-cloud and Below-cloud
  scavenging parameters.
• In-cloud removal is defined as a ratio of the
  pollutant in air (g/liter of air in the cloud
  layer) to that in rain (g/liter) measured at the
  ground.
• Below-cloud removal is defined through a removal
  time constant (s-1).
• See the table in the Help for suggested numbers
  for some common pollutants.

29
Source Attribution using Back Trajectory Analysis

• Frequently it is necessary to attribute a
  pollutant measurement to a specific source
  location.  One approach is to compute a backward
  trajectory to determine the airs origin.
• Although it is not uncommon to see sources
  identified by a single trajectory, the
  uncertainties inherent in a single-trajectory can
  preempt its utility.  One way to reduce those
  uncertainties would be to compute multiple
  trajectories, in height, time, and space.

Case Study High ozone event in Atlanta, Georgia
on August 15, 2007. Daily Maximum 1-hour ozone
values of 139 ppb.
30
Source Attribution using Back Trajectory Analysis

• First, Reset HYSPLIT from the main menu. Then run
  72-hr backward trajectories from Atlanta, GA
  (33.65N, 84.42W) at 10, 500, 1000, 1500, and 2000
  m-agl beginning (arriving) at 1200 UTC the
  morning of August 15, 2007 to see where the air
  was coming from prior to the high ozone event.
• Use the edas.aug07.001 extract file.

31
Source Attribution using Back Trajectory Analysis

• The resulting map (right) using a zoom of 95 and
  a vertical coordinate of Meters AGL, shows that
  all the trajectories eventually moved through the
  Ohio River valley, a large source of precursor
  emissions from coal-fired power plants.
• The lower 2 trajectories (10 and 500 meters)
  travelled further east than the upper-level
  trajectories.

32
Source Attribution using Back Trajectory Analysis

• Quickly changing meteorological conditions can
  also contribute to uncertainty, especially if a
  pollutant sample represents an average rather
  than a snapshot concentration.
• Next, set the starting height to only 500 m-agl
  and from the Advanced / Configuration Setup /
  Trajectory / Multiple trajectories in time (3)
  menu set the restart interval to 6 hours.
• Run Model using SETUP file
• Now you can see that during the 3 days prior to
  this event, the air originated over the same
  source regions, contributing to a build-up of
  pollutants.

33
Source Attribution using Back Trajectory Analysis

• The third variation in trajectory source
  attribution is to examine the spatial
  sensitivity.
• In this simulation, we could run a trajectory
  ensemble, however instead, set four additional
  starting points (right) offset by 1 degree from
  Atlanta (Delete file then Run without the SETUP).
• The results (lower right) show that there is very
  little spatial sensitivity around the Atlanta
  area, with all five trajectories passing through
  the Ohio River Valley.

34
Source Attribution using Source-Receptor Matrices

• The term matrix has two connotations with
  respect to HYSPLIT. In the earlier application, a
  matrix of sources was created, the results of
  which were summed to a single concentration
  grid.  In this application, defining a
  concentration grid for each source creates a
  matrix of sources and receptors.
• For this simulation, we are interested in knowing
  what fraction of the 6-hourly average air
  concentration at Atlanta was contributed by a
  grid of source locations within the Ohio Valley
  region, assuming that there are no other
  contributions from other sources.
• First we will lay out a grid of source locations
  over the Ohio Valley between 35N, 90W and 45N,
  75W at 1 degree intervals.
• Then we will release 500 3D particles from each
  source location over the 72 hour simulation at 50
  m-agl and determine the contribution to Atlanta
  from these sources.

35
Source Attribution using Source-Receptor Matrices

• Model Setup
• Choose three concentration run starting locations
  to define the source region and grid interval of
  1 degree (35N,90W 45N,75W and 36N, 89W) all at
  50 m-agl in the Concentration Setup menu.
• Total run time 72 hrs beginning at 1200 UTC on
  12 August using the edas.aug07.001 extract.

36
Source Attribution using Source-Receptor Matrices

• Model Setup continued
• Set the emission rate to 1 unit/hr for 72 hours.
• Set the Grid Center lat/lon to 38N,85W.
• Reduce the resolution of the concentration grid
  to 0.75 in lat and lon to reduce the memory
  requirements and run time.
• Set the Grid Span to (30.0 40.0) degrees lat /lon
• Set the output level to 100 m.
• Set the averaging period to 6 hours.

37
Source Attribution using Source-Receptor Matrices

• Model Setup continued
• In the Advanced / Configuration Setup /
  Concentration menu, first click Reset and then
  set the model to run with 500 3D-particles .
• Set the maximum number of particles to at least
  100,000 since there will be many particles
  released.
• Prior to executing the model, it is necessary to
  check the Restructure the concentration grid to
  the source-receptor format button in the In-line
  chemical CONVERSION MODULES (10) menu.  This
  causes the concentration grid to be reconfigured
  so that every source location within the matrix
  (176 in this example) will have its own
  concentration grid.
• Run the model through the Concentration / Special
  Runs / Matrix menu using the SETUP file. This run
  will take a few minutes to complete.

38
Source Attribution using Source-Receptor Matrices

• Results
• Running Matrix will result in a special
  concentration output file that may be called a
  source-receptor matrix, such that each column may
  be considered a receptor location and each row a
  pollutant source location. The display program
  under this menu tab permits the contouring of any
  row or column.
• To display the source-receptor matrix results,
  choose Concentration / Display / Source-Receptor
  / View.

39
Source Attribution using Source-Receptor Matrices

• Results
• When a location is selected in the menu (right),
  a special program is called to extract that
  location from the concentration output file and
  then write a standard concentration file for that
  location so that the concentration display
  program can plot the results.
• The source-receptor matrix extraction file name
  will consist of SRM_original file name.
• Selection of the source extraction method means
  that the location entered is considered to be the
  source location and the resulting output contour
  map is just a conventional air concentration
  simulation showing concentrations from that
  source.
• The receptor extraction method means that the
  location entered is considered to be the receptor
  location and the output is a map of how much air
  concentration each source contributes to the
  selected receptor.
• Note that turning on the normalization flag
  divides all concentrations by the sum of all
  concentrations at each grid point, resulting in a
  map that represents a fractional contribution.

40
Source Attribution using Source-Receptor Matrices

• Results
• Choosing a Receptor at Atlanta (33.65N, 84.42W)
  and plotting the normalized concentrations for
  the last two 6-hr time periods (1200 and 1800 UTC
  15 August 2007 below left and right,
  respectively) indicates that, from the sources
  we defined, those with the highest contribution
  (gt10) were from southern Ohio, eastern Kentucky,
  southwestern West Virginia and western Virginia.

41
Source Attribution Functions

• Running the air concentration prediction model
  backwards is comparable to a back trajectory
  calculation but it includes the dispersion
  component of the calculation.
• The result, although it looks like an air
  concentration field, is more comparable to a
  source attribution function.
• If the atmospheric turbulence were stationary and
  homogeneous then this attribution function would
  yield the same result from receptor-to-source as
  a forward calculation from source-to-receptor.

42
Source Attribution Functions

• Model Setup
• Enter the receptor location (33.65N, 84.42W) at
  10 m-agl in the Concentration Setup menu.
• Set the total run time to 72 hrs Back beginning
  at 1800 UTC on 15 August using the edas.aug07.001
  extract.
• Set the emission to 1 unit/hr over 1 hour and
  produce 6-hr average concentrations between the
  ground and 100 m-agl.
• Set the concentration grid resolution to 0.5 deg.
  and a span of 30 deg.

43
Source Attribution Functions

• Model Setup Results
• In the Advanced / Configuration Setup /
  Concentration, Reset and Save before running the
  standard Model using SETUP file. This will cause
  the model to run with the default 3D particle
  method.
• Display the results with the normal concentration
  display program (80 zoom).
• The last 6-hr average output map (right) can be
  interpreted to mean that the emissions in the
  yellow and blue regions between 1800 UTC on
  12 August and 0000 UTC on 13 August were most
  likely to have contributed to the measurements on
  the 15th at 10 m AGL at Atlanta, Georgia.

44
GIS Shapefile Output

• Graphical output from most GUI programs can be
  converted into an ESRI GIS shapefile format for
  use in GIS programs such as ArcExplorer, ArcGIS
  Explorer, and Google Earth.
• To convert the graphic generated in the last
  example, check the Frames and ESRI Generate boxes
  in the Concentration Display menu (below).
• This will result in a unique Postscript file and
  2 text files for each time period (ignore the
  concplot.ps not found message and click
  Continue).
• The Generate format text output file in the
  \working directory (GIS_00100_ps_HH.txt, where HH
  is the sequence number) contains the latitude and
  longitude pairs that make up each contour.

45
GIS Shapefile Output

• From Concentration / Utilities, use the GIS to
  Shapefile menu (below) to select text files,
  which are named by level and time sequence.
• Select the last file (GIS_00100_ps_12.txt) and
  rename the output file to reflect the same number
  (Con_sh12).
• Make sure the Conversion method is set to
  polygons, since we are outputting concentration
  contours.
• If you would like Enhanced attributes from the
  .att files to be added to the dbf file, select
  the appropriate button.
• When finished there will be a series of Con_sh12
  files with the suffix shp,  shx, and dbf in
  the working directory.

46
GIS Shapefile Output

• Open ArcExplorer and click on the "" button to
  add the Con_sh12.shp theme.
• Also add the country map background theme
  (CNTRY94.SHP) from the C\ProgramFiles\ESRI\ArcExp
  lorer2.0\AETutor\ directory and then select both
  themes. (The example includes the States
  shapefile also.)
• To change the color of the fill and other
  attributes, double click on the theme name. In
  this case we made the map background transparent.
  To have each contour level a different color,
  choose Unique Symbols from the Classification
  Options menu and then choose "id" from the Field
  pull down menu then change the colors as
  appropriate.

47
kml/kmz Output

• Graphical output from the trajectory and
  concentrtion GUI programs can be exported into a
  compressed .kml file (.kmz) for use in Google
  Earth or ESRIs ArcGIS Explorer.
• You must have the Info-Zip file compression
  software installed to compress the kml file and
  its associated graphics. Info-Zip (zip.exe) is
  included as part of the HYSPLIT distribution and
  can be found in the \exec directory.
• Trajectory Example
• Before starting, click Reset from the main
  HYSPLIT menu to remove old setups.
• Source 3 trajectories 10, 1000, and 3000 m AGL
  from 28.5N, 80.7W.
• Total run time 24 hrs Forward
• Meteorology NAM 12 km SE Tile
• Starting time beginning of dataset (00 00 00 00)

48
kml/kmz Output

• To create the kmz file, check the Google Earth
  box in the Trajectory Display menu and make sure
  the Vertical Coordinate is set to Meters-agl
  (otherwise the labeling will be incorrect in
  Google Earth). This will result in the normal
  Postscript file and a file called
  HYSPLITtraj.kmz.
• Locate the kmz file in the working directory and,
  assuming Google Earth (or ArcGIS) has been
  downloaded and installed, double click on the
  Google Earth file.
• Google Earth will open automatically (ArcGIS may
  require you to open the file from the program)
  and zoom in to the source location. Users can
  turn on/off the trajectories, endpoints, terrain,
  and other features within Google Earth.
• Clicking once on any of the trajectory endpoints,
  when displayed, will cause an information box to
  appear giving the height and lat/lon location of
  the endpoint.
• Double clicking on an endpoint or any other
  feature will cause the program to zoom to that
  location.
• Expanding the menu along the left side of the
  display (right) will reveal the different layers
  associated with the trajectory display.

49
kml/kmz Output

• The jpg image below was created by doing a File /
  Save Image within Google Earth.

50
kmz/kml Output

• Concentration Example
• Source 28.5N, 80.7W at 10 meters
• Emission 1 unit/hr over 6 hours beginning at
  data initial time (00 00 00 00)
• Total run time 6 hrs
• Meteorology NAM 12 km SE Tile
• Concentration Grid 0.01 deg.
• Concentration Span 20.0 deg.
• Output 3-hour average concentration between the
  ground and 500 m-agl
• In the Advanced / Configuration Setup /
  Concentration menu, first click Reset and then
  set the model to run with 8000 3D particles.
• Run the Model using SETUP file.
• This will create two 3-hr average surface to 500
  m-agl output maps from the same Florida location
  (turn off Frames if still checked from the last
  example).

51
kmz/kml Output

• Concentration Example
• To create the Google Earth formatted file check
  the Google Earth box in the Concentration Display
  menu.
• This will result in the normal Postscript file
  and a file called HYSPLITconc.kmz.
• Opening the Google Earth file results in 2 plumes
  to display (0-3h and 3-6h averages). Animate the
  image by using the VCR buttons at the top of the
  display
• The image below shows the 3-6h average between
  the ground and 500m AGL.
• Using the controls in Google Earth allows the
  user to rotate, pan, and zoom the plume.

52
kmz/kml Output

• Finally, as an example to show the 3-dimensional
  terrain (NOTE the Google Earth terrain is
  different from the meteorological model terrain
  so that the model contours and trajectories may
  be below or above the shown terrain), a
  trajectory and a concentration run was produced
  from a location in the Grand Canyon.
• The concentration CONTROL and SETUP.CFG files can
  be used to reproduce the concentration Google
  Earth file, and the trajectory CONTROL and
  SETUP.CFG files can be used to reproduce the
  trajectory Google Earth file.

53
Customizing Map Labels

• The Concentration Display menu only contains one
  option that can be used to customize map labels
  a concentration Label entry.  This changes the
  text on the second line of the graphic for the
  mass units of concentration. This usually used in
  conjunction with the Concentration Multiplier if,
  for instance, emission units were grams but
  display units of micro-grams were desired.
• However, additional label information can be
  changed if the Concentration Display program
  finds a file called LABELS.CFG in the working
  directory, as shown in the graphic below taken
  from a previous example.

54
Customizing Map Labels

• Supplemental text information can be added at the
  bottom of each plot by entering information on
  the Extra Labeling menu (lower left) called from
  the Advanced / Configuration Setup menu tab. This
  creates a file called MAPTEXT.CFG which is read
  by both the trajectory and concentration plotting
  programs and plotted at the bottom of the graphic
  (lower right).

55
Scripting for Automated Operations

• The \guicode and \examples\scripts directories
  contains example scripts that can be used to
  automate computations (Auto_traj.tcl,
  Auto_ftp.tcl, etc).
• Familiarity with the command line options is
  essential in modifying and writing new scripts in
  a text editor.  Script syntax is very similar to
  the C language.
• All scripts work in the same manner by writing a
  new CONTROL file for each simulation, running the
  model, and then renaming the output.
• In this EXAMPLE SCRIPT, trajectories are computed
  at four locations and each is run separately for
  24 hours using the NAM 40 km meteorological data.

• Place this script in the /working directory and
  double click on it to run it. Close the window
  when it appears and the trajectory Postscript
  files should be in the /working directory.
