Passive Synthesis of Compact FrequencyDependent Interconnect Model via Quadrature Spectral Rules

1

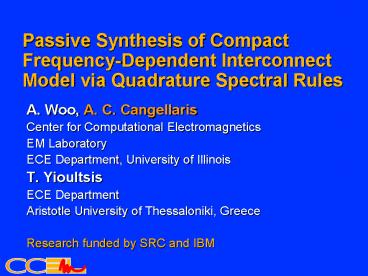

Passive Synthesis of Compact Frequency-Dependent
Interconnect Model via Quadrature Spectral Rules

• A. Woo, A. C. Cangellaris
• Center for Computational Electromagnetics
• EM Laboratory
• ECE Department, University of Illinois
• T. Yioultsis
• ECE Department
• Aristotle University of Thessaloniki, Greece
• Research funded by SRC and IBM

2
Outline

• Objective
• Overview of Interconnect Reduced-Order Modeling
  Techniques
• A New Methodology
• Implementation in SPICE
• Samples of Numerical Studies
• Summary

3
Objectives

• Develop SPICE-compatible, reduced-order
  macromodels for interconnects such that
• They exhibit the simplicity and versatility of
  the popular concatenated ? or T lumped
  circuit-based models
• Allow for dispersive interconnect modeling (R(f),
  L(f), C(f), G(f))
• They are passive by construction
• They are optimal
• Their order is the minimum possible for the given
  accuracy and a given bandwidth of validity

4
Shortcomings of concatenated lumped-circuit models

• Number of segments 10 ? (length/?min)
• Interconnect SPICE models become very large
• Model order reduction techniques used to contain
  complexity
• PRIMA-based reduction is typically used to reduce
  their order
• Maintaining passivity of the reduced-order model
  is a challenge
• Especially when dealing with dispersive
  (frequency-dependent) models
• Correlation of order of reduced model and desired
  accuracy is difficult

5
Alternative Approach Passive rational function
approximations of the transmission-line transfer
functions

• Several techniques have been proposed
• They tend to depart from the lumped-circuit model
  type of representation
• Special schemes for their incorporation in SPICE

6
Proposed Methodology

• A hybrid of the two aforementioned classes of
  techniques
• It combines
• Padé approximations of the transmission line
  transfer functions
• With equivalent circuit representation in terms
  of concatenated lumped circuits constructed from
  the per-unit-length R(f), L(f), C(f) and G(f)
  matrices
• It is passive by construction
• Its netlist is similar to that used for the
  popular concatenated ? lumped circuit
  representations
• Direct SPICE compatibility
• It is optimal for the given accuracy and
  frequency bandwidth of validity

7
A Useful Result for Uniform MTL 2N-Ports
8
Approximation of the frequency-dependent input
impedance of an MTL

• Consider the input impedance of a short-circuited
  transmission line of length L
• Input impedance available in analytic form
• Seek an optimal approximation of Z(?) over a
  desired bandwidth in terms of the input impedance
  of a discrete model of the short-circuited line

9
The discrete input impedance may also be cast
in closed (pole-residue) form
Functions of the grid lengths
10
All analytic poles in the bandwidth of interest
are kept in the fit
Analytic poles in the bandwidth of interest are
kept in the fit
11
Error minimization through moment matching
12
The synthesized grid is non-uniform
13
The Synthesis Process

• Multi-conductor system of length d
• Calculated minimum modal velocity vmin
• From fmax and vmin obtain ?max
• Synthesize optimal grids over the bandwidth 0,
  ?max for
• A short-circuited line of length d/2
• An open-circuited line of length d/2

14
Optimality of the Grids

• Equivalent circuit is realized using the minimum
  number of degrees of freedom
• For accurate modeling of electromagnetic
  retardation the sampling of the minimum useful
  wavelength needs to satisfy the Nyquist criterion

• ? number of elements per ?min ? 2
• Uniform mesh ? 10 number of segments per
  wavelength
• Proposed non-uniform mesh 2.2 segments per
  wavelength

15
Exponential reduction of fitting error with
increasing of segments
16
Synthesized Model is Passive by Construction

• All that is needed is the synthesis of passive
  representations of the lumped
• per-unit-length line-impedance (R(?)j?L(?)) and
• Per-unit-length line-admittance (G(?)j?C(?))
• multiports
• SPICE-Compatible Realization in terms of
  SPICE-native elements

17
Summary of the Synthesis Process

• Given N-conductor MTL of length d and described
  in terms of p.u.l. R(f ), L(f ), C(f ), G(f )
  matrices
• Using L(f??), C(f??) and neglecting loss generate
  optimal grids for two MTLs
• The synthesized equivalents are directly
  compatible with SPICE-like simulators

Optimal SPICE Equivalents
18
SPICE Implementation

19
Numerical Study 1
20
Numerical Study 1
21
Numerical Study 2

• Physical Dimensions
• w 125 µm, t 25 µm, s 200 µm, h 68.8 µm
• Substrate dielectric Lossless with ?r 4.0
• Bandwidth of interest 5 GHz
• 5 V step pulse with rise time of 0.5 ns

22
Numerical Study 2
23
Numerical Study 2
24
Summary

• Methodology for the synthesis of optimal,
  passive, SPICE-compatible MTL models for coupled
  interconnects
• Number of segments is the minimum possible
• 10-fold reduction over traditional uniform
  segmentation
• Synthesis based on Chebyshev-Padé fitting of
  input port impedances of short-circuited and
  open-circuited half-length sections of the MTL
• Passivity is ensured by construction
• Synthesized netlist is in terms of SPICE-native
  elements
