Adaptive Learning Methods for CDMA Systems

1

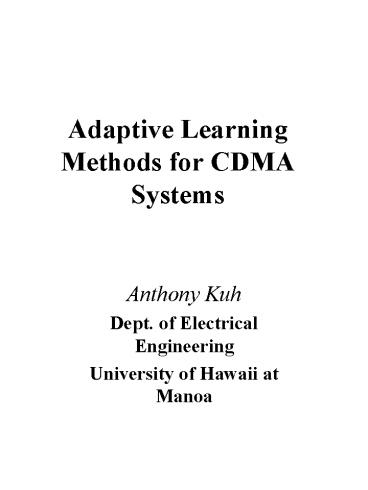

Adaptive Learning Methods for CDMA Systems

• Anthony Kuh
• Dept. of Electrical Engineering
• University of Hawaii at Manoa

2
Outline

• CDMA model and adaptive receivers
• Introduction to SVM
• Problem formulation
• Extensions nonseparable case, kernel functions
• Programming SVM Sequential Minimization
  Algorithm (SMO)
• SVM applied to MUD
• Algorithm Implementation
• Simulation Results
• Further Directions

3
Multiaccess Communications
FDMA
TDMA
CDMA
Frequency
Frequency
Frequency
Time
Time
Time
Several users share same channel cellular
phones, satellite communications, optical
communications.
CDMA schemes are becoming more prevalent better
performance and use of powerful signal processing
algorithms.
4
MMSE Detectors for DS / CDMA

• Assume short spreading codes more signal
  processing options where better performance and
  capacity can be realized.
• Linear MMSE solution
• minimize MSE and maximizes signal to interference
  ratio (MAI and noise).
• good performance (graceful degradation of
  performance as users are added).
• adaptive solutions (weights adjusted as data is
  received) are simple to implement.

5
Adaptive MMSE Methods

• Training data
• Linear MMSE LMS, RLS algorithms
• Blind algorithms
• Minimum Output Energy Methods
• Reduced order approximations PCA, multistage
  Wiener Filter
• Blind Source Separation Methods Higher order
  statistics
• Nonlinear MMSE
• Decision feedback equalizers, PIC, SIC.

6
Alternate Detection Method

• Consider detection methods based on optimum
  margin classifiers or Support Vector Machines
  (SVM)
• SVM are based on concepts from statistical
  learning theory.
• SVM criteria closely match criteria used in MUD
  such as Asymptotic Multiuser Efficiency.
• SVM are easily extended to nonlinear decision
  regions via kernel functions.
• SVM solutions involve solving quadratic
  programming problems.

7
Optimal Marginal Classifiers
X
Given a set of points that are linearly separable
X
X
X
Which hyperplane should you choose to separate
points?
O
O
O
Choose hyperplane that maximizes distance between
two sets of points.
8
Finding Optimal Hyperplane
margins

• Draw convex hull around each set of points.
• Find shortest line segment connecting two convex
  hulls.
• Find midpoint of line segment.
• Optimal hyperplane intersects line segment at
  midpoint. perpendicular to line segment.

X
X
X
w
X
O
O
O
Optimal hyperplane
9
Alternative Characterization of Optimal Margin
Classifiers
Maximizing margins equivalent to minimizing
magnitude of weight vector.
X
2m
X
X
T
W (u-v) 2
w
T
X
W (u-v)/ W 2/ W 2m
u
T
O
W u b 1
O
v
O
T
W v b -1
10
Solution in 1 Dimension
O O O O O X O X X O X X X
Points on wrong side of hyperplane
If C is large SV include
If C is small SV include all points (scaled MMSE
solution)
Note that weight vector depends most heavily on
outer support vectors.
11
Comments on 1 Dimensional Solution

• Simple algorithm can be implemented to solve 1D
  problem.
• Solution in multiple dimensions is finding
  weight and then projecting down to 1D.
• Min. probability of error threshold depends on
  likelihood ratio.
• MMSE solution depends on all points where as SVM
  depends on SV (points that are under margin
  (closer to min. probability of error).
• Min. probability of error, MMSE solution, and
  SVM in general give different detectors.

12
CDMA / DS Linear Detectors

• Linear min. probability of error detector, MMSE
  detector, and SVM detector all different
  (optimization criteria all different).
• When projected down to 1D, both conditional
  densities are mixtures of Gaussians and are
  shifts of one another.
• When projected down to 1D, each of the three
  detectors should give same threshold value
  assuming enough training examples used.

13
Kernel Methods
In many classification and detection problems a
linear classifier is not sufficient. However,
working in higher dimensions can lead to curse
of dimensionality.
Solution Use kernel methods where computations
done in dual observation space.
?
X
X
O
X
O
O
X
O
Input space
Feature space
? X Z
14
Solving QP problem

• SVM require solving large QP problems. However,
  many ?s are zero (not support vectors). Breakup
  QP into subproblem.
• Chunking (Vapnik 1979) numerical solution.
• Ossuna algorithm (1997) numerical solution.
• Platt algorithm (1998) Sequential Minimization
  Optimization (SMO) analytical solution.

15
SMO Algorithm

• Sequential Minimization Optimization breaks up QP
  program into small subproblems that are solved
  analytically.
• SMO solves dual QP SVM problem by examining
  points that violate KKT conditions.
• Algorithm converges and consists of
• Search for 2 points that violate KKT conditions.
• Solve QP program for 2 points.
• Calculate threshold value b.
• Continue until all points satisfy KKT conditions.
• On numerous benchmarks time to convergence of
  SMO varied from O (l) to O (l ) . Convergence
  time depends on difficulty of classification
  problem and kernel functions used.

2.2
16
SVM receiver implementation

• Tested SVM on simple CDMA problems (no fading or
  multipath).
• SVM receivers implemented via SMO algorithm.
• Outputs r(t) sampled at discrete times.
• For synchronous case used a window of length T.
• Algorithm received set of training data (usually
  between 300 and 500 training points).
• Focused on downlink case.
• Algorithm implemented offline.

17
Summary
18
Further Directions
