Spike Statistics in a HighConductance Cortical Network Model

1

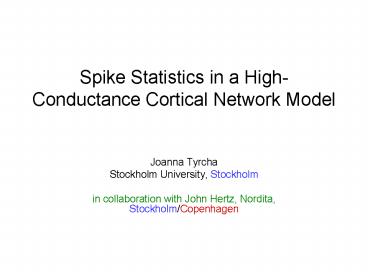

Spike Statistics in a High-Conductance Cortical
Network Model

• Joanna Tyrcha
• Stockholm University, Stockholm
• in collaboration with John Hertz, Nordita,
  Stockholm/Copenhagen

2
Outline
Cross-correlations between neurons measured in
network simulations (and experiments)
correlation coefficients 0.17 0.07
3
Outline
Cross-correlations between neurons measured in
network simulations (and experiments)
correlation coefficients 0.17 0.07
Finding distribution of spike patterns with the
observed cross-correlations
4
Outline
Cross-correlations between neurons measured in
network simulations (and experiments)
correlation coefficients 0.17 0.07

• Finding distribution of spike patterns with the
  observed
• cross-correlations
• fit with SK spin glass model with ltJijgt gt 0,

5
Outline
Cross-correlations between neurons measured in
network simulations (and experiments)
correlation coefficients 0.17 0.07

• Finding distribution of spike patterns with the
  observed
• cross-correlations
• fit with SK spin glass model with ltJijgt gt 0,
• ltJijgt ? 1/N, std(Jij) ?1/N1/6

6
Outline
Cross-correlations between neurons measured in
network simulations (and experiments)
correlation coefficients 0.17 0.07

• Finding distribution of spike patterns with the
  observed
• cross-correlations
• fit with SK spin glass model with ltJijgt gt 0,
• ltJijgt ? 1/N, std(Jij) ?1/N1/6
• in SG phase only for N gt 5000 (?)

7
Simulations Model
2 populations in network Excitatory,
Inhibitory
8
Simulations Model
2 populations in network Excitatory,
Inhibitory Excitatory external drive
9
Simulations Model
2 populations in network Excitatory,
Inhibitory Excitatory external drive HH-like
neurons, conductance-based synapses
10
Simulations Model
2 populations in network Excitatory,
Inhibitory Excitatory external drive HH-like
neurons, conductance-based synapses Random
connectivityProbability of connection between
any two neurons is c K/N, where N is the size
of the population and K is the average number of
presynaptic neurons.
11
Simulations Model
2 populations in network Excitatory,
Inhibitory Excitatory external drive HH-like
neurons, conductance-based synapses Random
connectivityProbability of connection between
any two neurons is c K/N, where N is the size
of the population and K is the average number of
presynaptic neurons.
Results here for c 0.1, N 1000
12
rapidly-varying input
Rext
Stimulus modulation
t (sec)
Flips on and off with exponentially-distributed
on- and off-periods, Mean on/off time 50 ms
13
Rasters
inhibitory (100) excitatory (400)
15.5 Hz 8.6 Hz
14
Correlation coefficients
Data in 10-ms bins
15
Correlation coefficients
Data in 10-ms bins
16
Correlation coefficients
Data in 10-ms bins
cc 0.17 0.07
17
Modeling the distribution of spike patterns
Have sets of spike patterns Sik Si 1
for spike/no spike (we use 10-ms bins) (temporal
order irrelevant)
18
Modeling the distribution of spike patterns
Have sets of spike patterns Sik Si 1
for spike/no spike (we use 10-ms bins) (temporal
order irrelevant) Construct a distribution PS
that generates the observed patterns (i.e., has
the same correlations)
19
Modeling the distribution of spike patterns
Have sets of spike patterns Sik Si 1
for spike/no spike (we use 10-ms bins) (temporal
order irrelevant) Construct a distribution PS
that generates the observed patterns (i.e., has
the same correlations) Simplest nontrivial
model (Schneidman et al, Nature 440 1007 (2006),
Tkacik et al, arXivq-bio.NC/0611072)
20
Modeling the distribution of spike patterns
Have sets of spike patterns Sik Si 1
for spike/no spike (we use 10-ms bins) (temporal
order irrelevant) Construct a distribution PS
that generates the observed patterns (i.e., has
the same correlations) Simplest nontrivial
model (Schneidman et al, Nature 440 1007 (2006),
Tkacik et al, arXivq-bio.NC/0611072)
parametrized by Jij, hi
21
Fitting parameters of the distribution (I)
Boltzmann learning
Iterative adjustment of Jij, hi
22
Fitting parameters of the distribution (I)
Boltzmann learning
Iterative adjustment of Jij, hi
23
Fitting parameters of the distribution (I)
Boltzmann learning
Iterative adjustment of Jij, hi
requires knowing only first- and second-order
spike statistics
24
Fitting parameters of the distribution (I)
Boltzmann learning
Iterative adjustment of Jij, hi
requires knowing only first- and second-order
spike statistics A model like would need
3rd-order statistics to find
25
Fitting parameters of the distribution (II)
inversion of Thouless-Anderson-Palmer equations
(Tanaka, PRE 58 2302 (1998))
26
Fitting parameters of the distribution (II)
inversion of Thouless-Anderson-Palmer equations
(Tanaka, PRE 58 2302 (1998)) TAP free
energy
27
Fitting parameters of the distribution (II)
inversion of Thouless-Anderson-Palmer equations
(Tanaka, PRE 58 2302 (1998)) TAP free
energy ?F/?mi 0 gt TAP equations
28
Fitting parameters of the distribution (II)
inversion of Thouless-Anderson-Palmer equations
(Tanaka, PRE 58 2302 (1998)) TAP free
energy ?F/?mi 0 gt TAP equations
29
TAP inversion (continued) Tanaka procedure

• Measure mi ltSigt and Cij ltSiSjgt - mimj from
  data

30
TAP inversion (continued) Tanaka procedure

• Measure mi ltSigt and Cij ltSiSjgt - mimj from
  data
• Invert C and solve for Jij in

31
TAP inversion (continued) Tanaka procedure

• Measure mi ltSigt and Cij ltSiSjgt - mimj from
  data
• Invert C and solve for Jij in
• Solve TAP equations for hi

32
J distributions
33
J distributions
cf Tkacik et al
34
Mean J ?1/N
35
Standard deviationsfall off slower than 1/N1/2
36
Sherrington-Kirkpatrick spin glass model
with

37
Sherrington-Kirkpatrick spin glass model
with
Infinite-range (mean field) model

38
Sherrington-Kirkpatrick spin glass model
with
Infinite-range (mean field) model
Here,
39
J of equivalent SK model increases with N
40
Heading for a spin glass state?

• reach SG at N 5000

Almeida and Thouless, J Phys A 1978
41
Heading for a spin glass state?
here at N80

• reach SG at N 5000

Almeida and Thouless, J Phys A 1978
42
Heading for a spin glass state?
here at N80
here at N160

• reach SG at N 5000

Almeida and Thouless, J Phys A 1978
43
Heading for a spin glass state?
here at N80
here at N160

• reach SG at N 5000

reach SG at N5000
Almeida and Thouless, J Phys A 1978
44
J distributions are not normal
45
Perspective

• Fitting Ising models for PS results look like
  SK models

46
Perspective

• Fitting Ising models for PS results look like
  SK models
• -- 2 methods Boltzmann learning and inversion
  of TAP equations

47
Perspective

• Fitting Ising models for PS results look like
  SK models
• -- 2 methods Boltzmann learning and inversion
  of TAP equations
• -- J0 independent of N, J ? N1/3

48
Perspective

• Fitting Ising models for PS results look like
  SK models
• -- 2 methods Boltzmann learning and inversion
  of TAP equations
• -- J0 independent of N, J ? N1/3
• -- higher-order couplings not necessary

49
Perspective

• Fitting Ising models for PS results look like
  SK models
• -- 2 methods Boltzmann learning and inversion
  of TAP equations
• -- J0 independent of N, J ? N1/3
• -- higher-order couplings not necessary

50
Perspective

• Fitting Ising models for PS results look like
  SK models
• -- 2 methods Boltzmann learning and inversion
  of TAP equations
• -- J0 independent of N, J ? N1/3
• -- higher-order couplings not necessary
• -- no spin glass phase for Nlt5000.
