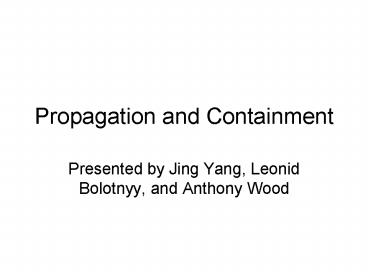

Propagation and Containment

• Presented by Jing Yang, Leonid Bolotnyy, and
  Anthony Wood

2
Analogy between Biological and Computational
Mechanisms

• The spread of self-replicating program within
  computer systems is just like the transition of
  smallpox several centuries ago 1
• Mathematical models which are popular in the
  research of biological epidemiology can also be
  used in the research of computer viruses 1
• Kephart Whites work first time to explicitly
  develop and analyze quantitative models which
  capture the spreading characteristics of computer
  viruses

3
Kephart Whites Work

• Based on the assumption that viruses are spread
  by program sharing
• Benefits of using mathematically models mentioned
  in their paper
• Evaluation and development of general polices and
  heuristics for inhibiting the spread of viruses
• Apply to a particular epidemic, such as
  predicting the course of a particular epidemic

4
Modeling Viral Epidemics on Directed Graphs

• Directed Graph 1
• Representing an individual system as a node in a
  graph
• Directed edges from a given node j to other nodes
  represent the set of individuals that can be
  infected by j
• A rate of infection is associated with each edge
• A rate at which infection can be detected and
  cured is associated with each node

5
SIS Model on A Random Graph

• Random Graph a directed graph constructed by
  making random, independent decisions about
  whether to include each of the N(N-1) possible
  directional edges 1
• Techniques used by Kephart White
• Deterministic approximation
• Approximate probabilistic analysis
• Simulation

6
Deterministic Approximation

• ß infection rate along each edge
• d cure rate for each node
• ß ß p (N - 1) average total rate at which a
  node attempts to infect its neighbors
• ? d / ß if ? gt 1, the fraction of infected
  individuals decays exponentially from the initial
  value to 0, i.e. there is no epidemic if ? lt 1,
  the fraction of infected individuals grows from
  the initial value at a rate which is initially
  exponential and eventually saturates at the value
  1 - ?

7
Probabilistic Analysis

• Including new information such as
• Size of fluctuations in the number of infected
  individuals
• Possibility that fluctuations will result in
  extinction of the infection
• Conclusion
• A lot of variance in the number of infected
  individuals from one simulation to another
• In equilibrium the size of the infected
  population is completely insensitive to the
  moment at which the exponential rise occurred
• Extinction probability and metastable
  distribution can be calculated

8
Simulations

• Results
• Higher extinction probability
• Lower average number of infected individuals
• Suspected reason
• No details of which nodes are infected
• No variation in the number of nodes that a given
  node could infect

9
Simulations (cont.)

• Scenario
• A random graph in which most nodes are isolated
  and a few are joined in small clusters
• Anything contributes to containment?
• Build isolated cells worms can spread unimpeded
  in a cell, but containment system will limit
  further infection between cells

10
Improvements of SIS Model on A Random Graph

• Kephart Whites work
• Weak links give a node a small but finite
  chance of infecting any node which is not
  explicitly connected to it
• Hierarchical model extend a two-type model of
  strong and weak link to a hierarchy
• Wangs work
• Effects of infection delay
• Effects of user vigilance

11
Does SIS SIR Models Take Containment into
Consideration?

• No to SIS and maybe Yes to SIR
• In SIS, it may be more appropriate to be called
  treatment
• In SIR, deployment of containment is limited to
  the individual node, which means that every cell
  only contains one node more appropriate to be
  called treatment
• Not to be automatic
• No cooperation has been applied

12
Model without Containment

• Remember the assumption by Kephart Whites
  work?
• Viruses spread by program sharing
• Modern worms spread so quickly that manual
  containment is impossible
• A model without containment should be built first
  (SI model) and then different containment methods
  are added to test the results

13
IPv6 vs. Worms

• It will be very challenging to build Internet
  containment systems that prevent widespread
  infection from worm epidemics in the IPv4
  environment 2
• It seems that the only effective defense is to
  increase worm scanning space
• Upgrading IPv4 to IPv6

14
How Large is IPv6 Address

• IPv6 has 2128 IP addresses 3
• Smallest subnet has 264 addresses 3
• 4.4 billion IPv4 internets
• Consider a sub-network 3
• 1,000,000 vulnerable hosts
• 100,000 scans per second (Slammer - 4,000)
• 1,000 initially infected hosts
• It would take 40 years to infect 50 of
  vulnerable population with random scanning

15
Worm Classification

• Spreading Media 3
• Scan-based self-propagation
• Email
• Windows File Sharing
• Hybrid
• Target Acquisition 3
• Random Scanning
• Subnet Scanning
• Routing Worm
• Pre-generated Hit List
• Topological
• Stealth / Passive

16
Can IPv6 Really Defeats Worms?

• Traditional scan-based worms seems to be
  ineffective, but there may be some way to improve
  the scan methods 4
• More sophisticated hybrid worms may appear, which
  use a variety of ways to collect addresses for a
  quick propagation
• Polymorphic worms may significantly increase the
  time to extract the signature of a worm

17
Improvement in Scan Methods

• Subnet Scanning
• The first goal may be a /64 enterprise network
  instead of the whole internet
• Routing Worm
• Some IP addresses are not allocated
• Pre-generated Hit List Scanning
• Speedup the propagation and the whole address
  pace can be equally divided for each zombie

18
Improvement in Scan Methods (cont.)

• Permutation Scanning
• Avoid waste of scanning one host many times
• Topological Scanning
• Use the information stored on compromised hosts
  to find new targets
• Stealth / Passive Worm
• Waiting for the vulnerable host to contact you
  may be more efficient to scan such a large
  address space

19
What Can IPv6 Itself Contribute?

• Public services need to be reachable by DNS
• At least we have some known addresses in advance
  4
• DNS name for every host because of the long IPv6
  address
• DNS Server under attack can yield large caches of
  hosts 4
• Standard method of deriving the EUI field
• The lower 64 bits of IPv6 is derived from the
  48-bit MAC address 5
• IPv6 neighbor-discovery cache data
• One compromised host can reveal the address of
  other hosts 4
• Easy-to-remember host address in the transition
  from IPv4 to IPv6
• To scan the IPv6 address space is no difference
  to scan the IPv4 address space 4

20
More Sophisticated Hybrid Worms

• Humans are involved
• Different methods are used to compromise a host,
  so the vulnerability density increases relatively
• Nimdas success

21
Polymorphic Worms

• Very effective containment system extracts a
  worms feature to do content filtering
• Even though some methods exist to detect
  polymorphic worms, the successful rate may not be
  100

22
What Should We Do Then?

• To find out whether the following methods which
  just speedup the worms propagation in IPv4 can
  just make worms quick propagation in IPv6
  possible
• Improvement in scan methods IPv6 inherent
  features
• More sophisticated hybrid worms
• Polymorphic worms

23
Futures Work

• Use traditional models to see whether each method
  or a combination of them can make a quick
  propagation of worm in IPv6 possible
• Add new features of worm spread in IPv6 to build
  new models, which can represent the reality more
  precisely
• If quick propagation can be true in IPv6,
  relative containment methods should be figured
  out it should be much more possible than in
  IPv4

24
References

• 1 Jeffrey O. Kephart, Steve R. White.
  Directed-Graph Epidemiological Models of Computer
  Viruses
• 2 David Moore et al. Internet Quarantine
  Requirements for Containing Self-Propagating Code
• 3 Mark Shaneck. Worms Taxonomy and Detection.
• 4 Sean Convery et al. IPv6 and IPv4 Threat
  Comparison and Best Practice Evaluation.
• 5 Michael H. Warfield et al. Security
  Implications of IPv6.

25
Propagation and Containment of Worms

• General modeling of worm propagation and
  containment strategies

26
Ways to mitigate the threat of worms

• Prevention
• Prevent the worm from spreading by reducing the
  size of vulnerable hosts
• Treatment
• Neutralize the worm by removing the vulnerability
  it is trying to exploit
• Containment
• Prevent the worm from spreading from infected
  systems to the unaffected, but vulnerable hosts

27
Containment Approaches

• La Brea
• Intercepts probes to unallocated addresses
• Connection-history based anomaly detection
• Analyzes connection traffic trying to detect an
  anomaly
• Per host throttling
• Restricts connection rate to new hosts
• Blocking access to affected ports
• Prevents affected hosts from accessing vulnerable
  ports on other machines
• NBAR
• Filters packets based on the content using worm
  signatures
• It was very effective in preventing the spread of
  Code-Red

28
General model for worm infection rate
29
Modeling Containment Systems

• Reaction Time
• Time required to detect the infection, spread the
  information to all the hosts participating in the
  system, and to activate containment mechanisms
• Containment Strategy
• Strategy that isolates the worm from uninfected
  susceptible systems (e.g. address blacklisting
  and content filtering)
• Deployment Scenario
• Who, Where and How of the containment
  strategy implementation

30
Simulation parameters

• Population 232 (assuming IPv4)
• Number of vulnerable hosts 360,000 (same as for
  Code-Red v2)
• Any probe to the susceptible host results in an
  infection
• A probe to the infected or non-vulnerable host
  has no effect
• The first host is infected at time 0
• If a host is infected in time t, then all
  susceptible hosts are notified at time t R
  where R is the reaction time of the system
• Simulation is run 100 times

31
Simulation Goals

• Determine the reaction time needed to limit the
  worm propagation for address-blacklisting and
  content filtering
• Compare the two containment strategies
• Realize the relationship between reaction time
  and worm probe rate

32
Idealized Deployment Simulationfor Code-Red
33
Idealized Deployment Simulationfor Code-Red
Conclusions

• The strategy is effective if under 1 of
  susceptible hosts are infected within the 24 hour
  period with 95 certainty
• Address-blacklisting is effective if reaction
  time is less than 20 minutes
• Note if reaction time gt 20 minutes, all
  susceptible hosts will eventually become infected
• Content filtering is effective if reaction time
  is less than two hours
• How many susceptible hosts will become infected
  after time R (reaction time)?

34
Idealized Deployment Simulationfor General Worm
(1)

• The authors generalize the definition of the
  effectiveness as the reaction time required to
  contain the worm to a given degree of global
  infection
• Worm aggressiveness rate at which infected host
  probes others to propagate
• Note The rate of host probes does not take into
  account the possibility of preferential status
  that some addresses may have

35
Idealized Deployment Simulationfor General Worm
(2)
36
Idealized Deployment Simulationfor General Worm
conclusions

• Worms that are more aggressive than Code-Red
  having higher probe rate of 100 probes/second
  require a reaction time of under three minutes
  using Address-blacklisting and under 18 minutes
  for Content Filtering to contain the worm to 10
  of total susceptible population.

37
Practical Deployment

• Analyzing practical deployment, authors
  concentrate on content filtering because of
  seemingly much lower requirements on the reaction
  time compared to address-blacklisting. This may
  be premature because the technique is still
  useful. It would be very beneficial to see a
  hybrid containment strategy that uses both
  content filtering and address-blacklisting.

38
Practical Deployment simulation parameters

• The topology of the Internet is taken at the time
  of the spread of Code-Red v2.
• The number of vulnerable hosts is 338,652 (some
  hosts map to multiple autonomous systems they
  have been removed only infected hosts in the
  first 24 hours are inc.)
• The number of autonomous systems is 6,378
• The packet is assumed to travel along the
  shortest path through autonomous systems

39
Practical Deployment for Code-Red

• Reaction time is two hours (less than 1 infected
  in idealized simulation)

40
Practical Deployment for Code-Red conclusions

• ISP deployment is more effective by itself than
  the Customer deployment
• 40 top ISPs can limit the infection to under 5
  whereas top 75 of Customer Autonomous systems
  can only limit infection to 25
• The results could have been anticipated based on
  the role of ISPs (their topology)

41
Practical Deployment for Generalized Worm

• We investigate reaction time requirements

42
Practical Deployment for Generalized Worm
conclusions

• For probe rate of 100 probes/second or larger,
  neither deployment can effectively contain the
  worm
• In the best case, effective containment is
  possible for 30 or fewer probes by the TOP 100
  ISPs and only 2 or fewer probes by the 50
  Customers
• Note TOP 100 ISPs cannot prevent a worm from
  infecting less than 18 of the hosts if the probe
  rate is 100 probes/second (not on the graph)

43
Conclusions of the modeling scheme (1)

• Automated means are needed to detect the worm and
  contain it.
• Content filtering is more effective than
  address-blacklisting, but a combination of
  several strategies may need to be employed.
• The reaction time has to be very small, on the
  order of minutes to be able to combat aggressive
  worms.
• It is important to deploy the containment
  filtering strategy at most top ISPs.

44
Conclusions of the modeling scheme (2)

• The parameters of the model have changed
• Other containment strategies need to be
  considered
• What will happen to the population parameter?
• What may happen to beta soon?
• Combination of prevention, treatment and
  containment strategies are needed to combat
  aggressive worms

45
LaBrea (1)

• LaBrea is a Linux-based application which works
  at the network application layer creating virtual
  machines for nonexistent IP addresses when a
  packet to such an address reaches the network.
• Once the connection is established, LaBrea will
  try to hold the connection as long as possible
  (by moving connections from established state to
  persistent state, it can hold connections almost
  indefinitely).

46
LaBrea (2)

• Any connection to LaBrea is suspect because the
  IP address to which the packet is sent does not
  exist, not even in DNS.
• It can also analyze the range of IP addresses
  that are requested giving it a broader view of a
  potential attack (all ports on virtual machines
  appear open).
• It requires 8bps to hold 3 threads of Code-Red.
  If there were 300,00 infected machines each with
  100 threads, 1,000 sites would require 5.2 of
  the full T1 line bandwidth each to hold them.

47
Connection-history based anomaly detection

• The idea is to use GriDS based intrusion
  detection approach and make some modifications to
  it to allow for worm containment
• Goals
• Automatic worm propagation determination
• Worm detection with a low false positive rate
• Effective countermeasures
• Automatic responses in real-time
• Prevent infected hosts from infecting other hosts
• Prevent non-infected hosts from being infected

48
Connection-history based anomaly detection model

• Monitoring station collects all recent connection
  attempts data and tries to find anomaly in it.
• Patterns of a worm
• Similarity of connection patterns
• The worm tries to exploit the same vulnerability
• Causality of connection patterns
• When one event follows after another
• Obsolete connections
• Compromised hosts try to access services at
  random IPs

49
Very Fast Containment of Scanning Worms

• Weaver, Staniford, Paxson

50
Outline

• Scanning
• Suppression Algorithm
• Cooperation
• Attacks
• Conclusion

51
What is Scanning?

• Probes from adjacent remote addresses?
• Dist. probes that cover local addresses?
• Horizontal vs. Vertical
• Factor in connection rates?
• Temporal and spatial interdependence
• How to infer intent?

52
Scanning Worms

• Blaster, Code Red, CR II, Nimda, Slammer
• Does not apply to
• Hit lists (flash worms)
• Meta-servers (online list)
• Topology detectors
• Contagion worms

53
Scanning Detection

• Key properties of scans
• Most scanning fails
• Infected machines attempt many connections
• Containment is based on worm behavior, not
  signatures (content)
• Containment by address blocking (blacklisting)
• Blocking can lead to DoS if false positive rate
  is high

54
Scan Suppression

• Goal 1 protect the enterprise forget the
  Internet
• Goal 2 keep worm below epidemic threshold, or
  slow it down so humans notice
• Divide enterprise network into cells
• Each is guarded by a filter employing the scan
  detection algorithm

55
Inside, Outside, Upside Down

• Preventing scans from Internet is too hard
• If inside node is infected, filter sees all
  traffic
• Cell (LAN) is outside, Enterprise network is
  inside
• Can also treat entire enterprise as cell,
  Internet as outside

Inside
Scan detectors
56
Scan Suppression

• Assumption benign traffic has a higher
  probability of success than attack traffic
• Strategy
• Count connection establishment messages in each
  direction
• Block when misses hits gt threshold
• Allow messages for existing connections, to
  reduce impact of false positives

57
Constraints

• For line-speed hardware operation, must be
  efficient
• Memory access speed
• On duplex gigabit ethernet, can only access DRAM
  4 times
• Memory size
• Attempt to keep footprint under 16MB
• Algorithm complexity
• Want to implement entirely in hardware

58
Mechanisms

• Approximate caches
• Fixed memory available
• Allow collisions to cause aliasing
• Err on the side of false negative
• Cryptographic hashes
• Prevent attackers from controlling collisions
• Encrypt hash input to give tag
• For associative cache, split and save only part
  as tag in table

59
Connection Cache

• Remember if weve seen a packet in each direction
• Aliasing turns failed attempt into success
  (biases to false negative)
• Age is reset on each forwarded packet
• Every minute, bg process purges entries older
  than Dconn

60
Address Cache

• Track outside addresses
• Counter keeps difference between successes and
  failures
• Counts are decremented every Dmiss seconds

61
Algorithm Pseudo-code
62
In
Out
Connection cache Address cache
A,X OutIn -
A, OutIn -
A,Z OutIn -
A,Y OutIn -
B
A
A,B OutIn -
A,B OutIn InOut
A 1
A 2
A 3
A 1
A T
A Cmax

• UDP Probe
• A ? X fwd
• A ? Y fwd
• Normal Traffic
• A ? B fwd
• B ? A fwd, bidir

• Scanning again
• A ? fwd until T
• A ? Z blocked
• A ? B ?
• block SYN/UDP, fwd TCP

63
Performance

• For 6000-host enterprise trace
• 1MB connection cache, 4MB 4-way address cache
  5MB total
• At most 4 memory accesses per packet
• Operated at gigabit line-speed
• Detects scanning at rates over 1 per minute
• Low false positive rate
• About 20 false negative rate
• Detects scanning after 10-30 attempts

64
Scan Suppression Tuning

• Parameters
• T miss-hit difference that causes block
• Cmin minimum allowed count
• Cmax maximum allowed count
• Dmiss decay rate for misses
• Dconn decay rate for idle connections
• Cache size and associativity

65
Cooperation

• Divide enterprise into small cells
• Connect all cells via low-latency channel
• A cells detector notifies others when it blocks
  an address (kill message)
• Blocking threshold dynamically adapts to number
  of blocks in enterprise
• T T ?X, for very small ?
• Changing ? does not change epidemic threshold,
  but reduces infection density

66
Cooperation Effect of ?
67
Cooperation Issues

• Poor choice of ? could cause collapse
• Lower thresholds increase false positives
• Should a complete shutdown be possible?
• How to connect cells (practically)?

68
Attacking Containment

• False positives
• Unidirectional control flows
• Spoofing outside addresses (though this does not
  prevent inside systems from initiating
  connections)
• False negatives
• Use a non-scanning technique
• Scan under detection threshold
• Use a whitelisted port to test for liveness
  before scanning

69
Attacking Containment

• Detecting containment
• Try to contact already infected hosts
• Go stealthy if containment is detected
• Circumventing containment
• Embed scan in storm of spoofed packets
• Two-sided evasion
• Inside and outside host initiate normal
  connections to counter penalty of scanning
• Can modify algorithm to prevent, but lose
  vertical scan detection

70
Attacking Cooperation

• Attempt to outrace containment if threshold is
  permissive
• Flood cooperation channels
• Cooperative collapse
• False positives cause lowered thresholds
• Lowered thresholds cause more false positives
• Feedback causes collapse of network

71
Conclusion
72
Additional References

• Weaver, Paxson, Staniford, Cunningham, A Taxonomy
  of Computer Worms, ACM Workshop on Rapid Malcode,
  2003.
• Williamson, Throttling Viruses Restricting
  Propagation to Defeat Mobile Malicious Code,
  ACSAC, 2002.
• Jung, Paxson, Berger, Balakrishnan, Fast Portscan
  Detection Using Sequential Hypothesis Testing,
  IEEE Symposium on Security and Privacy, 2004.
