Nonlinear Optics in Silicon Applications in Optical Communication Systems

1

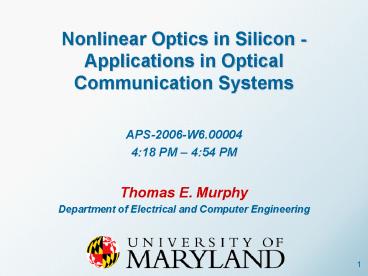

Nonlinear Optics in Silicon - Applications in
Optical Communication Systems

• APS-2006-W6.00004
• 418 PM 454 PM
• Thomas E. Murphy
• Department of Electrical and Computer Engineering

2
Collaborators and Colleagues

• Research Assistants
• Reza Salem (UMD)
• Paveen Apiratikul (UMD)
• Undergraduate Students
• Amir Ali Ahmadi (UMD/MIT)
• Postdoctoral Researchers
• Gaston E. Tudury (UMBC)
• Anthony S. Lenihan (UMBC)
• Faculty
• Gary M. Carter (UMBC)
• Government
• Timothy U. Horton (LPS)

3
Outline

• Introduction Optical Signal Processing
• Nonlinear Effects in Silicon
• Two-Photon Absorption
• Polarization Dependence
• Applications in Communication Systems
• Future Directions

4
Comparison of WDM and OTDM
5
Optical Signal Processing

• (Controlling light with light)

6
Why Optical Signal Processing?

• Speed
• Optical nonlinear processes can respond on a
  timescale faster than the fastest electronics
• Short optical pulses are easier to create than
  short electrical pulses
• Cost / Simplicity
• Avoid costly O-E-O conversion(Optical
  Electrical Optical)
• Only convert O-E or E-O at the edges of the
  network

7
Some Practical Constraints
WHAT WILL IT TAKE TO REPLACE ELECTRONICS WITH
OPTICS?

• Wavelength independence
• Must work over entire C-band (1530-1580 nm)
• Polarization independence
• Cannot depend upon the input polarization state
• Attainable optical power levels
• Conventional EDFAs Pavg lt 200 mW
• Speed
• Faster than electronics (gt 40 Gb/s)

8
Nonlinear Optical Effects in Silicon

• c(2) 0 (symmetry)
• Real c(3)
• Self/cross- phase modulation
• Intensity-dependent refraction (n2)
• Four-wave mixing
• Self-focusing
• Imag c(3)
• Two-photon absorption
• Raman Effect (also c(3))
• Free-carrier plasma dispersion

NON RESONANT ELECTRONIC
(W6.00002)
(W6.00003)
9
Linear vs. Nonlinear Absorption
Two-Photon Absorption
Linear Absorption
Quadratic nonlinearity Similar to
second-harmonic generation
10
Two-Photon Absorption in Silicon Photodiode
TPA is observed when 1100 nm lt ? lt 2200 nm
11
How Fast is Two-Photon Absorption?
Autocorrelation of 20 fs optical pulse using
two-photon absorption in silicon detector

• Non-resonant effect
• Phase matching is not required
• Very broad bandwidth (1100-2200 nm)

D. J. Ripin et al., Opt. Lett. 27(1) 6163, 2002.
12
How Sensitive is Two-Photon Absorption?
Fringe-resolved autocorrelation of 1.7 ps pulse
measured in silicon APD detector
Pavg 7.2 µW Ppeak 220 µW
C. Xu et al., Electron. Lett. 38(2) 8688, 2002.
13
Is TPA Polarization Independent?
LINEAR POLARIZATIONS
ELLIPTICAL POLARIZATIONS

• No dependence for linear polarization

• Decreases by 2/3 for circular pol.

R. Salem and T. E. Murphy, Opt. Lett. 29(13),
1524-1526 (2004).
14
Polarization Dependence
15
Average Power Linear vs. Circular

• These two signals have same intensity

16
Two-Photon Absorption Linear vs. Circular

• Nonlinear current from two-photon absorption is
  proportional to ltE (t)4gt, not ltE (t)2gt

17
Polarization-Dependence in Cross-Correlation

• In most cases, we have two different inputs
• Cross-correlation depends on both polarization
  states
• Observation In almost all cases, one
  polarization state is fixed (locally generated)

18
Polarization Sensitivity Experiment
R. Salem et al., Opt. Lett. 29(13) 15241526,
2004.
19
Polarization Sensitivity

• If one polarization state is fixed CIRCULAR, the
  cross-correlation is independent of the other
  state

20
Applications of Two-Photon Absorption

• Autocorrelation
• Pattern / Address Recognition
• Synchronization and Clock Recovery
• Temporal Demultiplexing
• Optical Sampling
• Quality Monitoring

21
Electrical Clock Recovery

• Advantages polarization and wavelength
  independent
• Disadvantages limited speed (lt40 Gb/s), not
  scalable

22
Optical Clock Recovery

• Does not require high-speed electrical detector
  or mixer
• Nonlinear medium acts as phase detector
• Nonlinear Medium Two-photon absorption

23
Clock Recovery using Two Photon Absorption
Salem et al., IEEE Photon.Technol.Lett. 17(9),
1968-1970 (2005) S. Takasaka et al, ECOC, Th
1.3.6 (2005)
24
80 Gb/s Transmitter and Receiver
25
80 Gb/s Clock Recovery System

• PCLK 6 mW, PDATA 3 mW
• Closed-Loop Bandwidth 6 kHz

26
Frequency Response of Phase-Locked Loop
27
Timing Jitter Spectral Domain
28
Timing Jitter of Recovered Clock

• Enables measurement of low-frequency jitter
  (drift) below 100 Hz
• Limited by electronic jitter of instrument

29
Jitter Measurement
30
Effect of Polarization Fluctuations
tmin lt t0 lt ?max
Zero-crossing time
31
Agreement with Experimental Results

• Statistical distribution of the zero-crossing
  time, measured on sampling oscilloscope

Polarization Scrambling OFF
50 ps
Polarization Scrambling ON

• srms sqrt(343)2 (290)2 190 fs

32
Wavelength-Independent Operation
Eye Diagrams of Recovered Data
l 1530 nm
l 1550 nm
l 1570 nm

• Wavelength limited only by EDFA

33
80 Gb/s Transmission over 1000 km

• No control of polarization is needed

34
80 Gb/s Transmission over 1000 km
35
Challenges

• Off-the-shelf devices are not optimized for
  two-photon absorption (AR coatings, depletion
  region thickness, etc.)
• Interaction length is constrained by diffraction
• Compact devices are desired
• Efficiency need devices that require less
  optical power

36
The Future Waveguide Detection
WAVEGUIDE PHOTODIODE
BULK PHOTODIODE

• Overcome focusing limit
• Increase interaction length

37
Resonant Cavity Detection

• Most applications do not require fs resolution
• Resonant Cavity trades speed for sensitivity

38
Summary

• Nonlinear detection in Silicon (TPA) is
• Ultrafast
• Sensitive
• Inexpensive
• Broadband
• Polarization Insensitive (if youre careful!)
• Potential Applications in High-Speed Networks
• Clock recovery (described here)
• Pattern / Address Recognition
• Demultiplexing / Sampling

39
Related Work

• R. Salem and T. E. Murphy, "Polarization-Insensiti
  ve Cross-Correlation Using Two-Photon Absorption
  in a Silicon Photodiode", Opt. Lett. 29(13),
  1524-1526 (2004).
• R. Salem, G. E. Tudury, T. U. Horton, G. M.
  Carter and T. E. Murphy, "Polarization-Insensitive
  Optical Clock Recovery at 80 Gb/s using a
  Silicon Photodiode", IEEE Photon. Technol. Lett.
  17(9), 1968-1970, (2005).
• G. E. Tudury, R. Salem, G. M. Carter and T. E.
  Murphy, "Transmission of 80 Gbit/s over 840 km in
  standard fibre without polarisation control",
  Electron. Lett. 41(25) 1394-1395 (2005).
• R. Salem, A. A. Ahmadi, G. E. Tudury and T. E.
  Murphy, "Two-Photon Absorption for Optical Clock
  Recovery in OTDM Networks", submitted to J.
  Lightwave Techonol. 2005.

For more information, please visit us
online http//www.photonics.umd.edu/
40
Dithering Phase Detection
CROSSCORRELATION
41
Electrical Dithering vs. Optical Dithering
