Design and manufacturing of a composite wind turbine blade

1

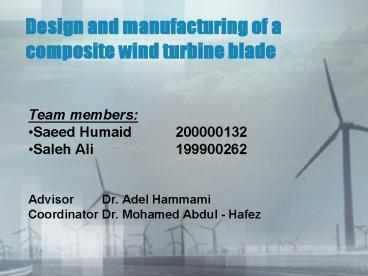

Design and manufacturing of a composite wind
turbine blade

• Team members
• Saeed Humaid 200000132
• Saleh Ali 199900262
• Advisor Dr. Adel Hammami
• Coordinator Dr. Mohamed Abdul - Hafez

2
Plan of the presentation

• Introduction
• Project description
• Wind turbines
• Wind condition
• Aerodynamic properties
• Blade design
• Pattern
• Conclusion

3
Introduction

• The wind energy is one of the oldest sources of
  energy
• The wind energy was substituted by fossil fuel
• With the first oil price shock, the interest in
  the wind power re-emerged
• During the last 20 years, the use of wind
  turbines rapidly increased

4
Introduction
5
Introduction
6
Project Description

• The main objective of this project is to design
  and manufacture a mold for a composite wind
  turbine blade.

7
Project tasks

• literature survey
• Wind conditions in the UAE
• Aerodynamic properties
• Pattern
• Mold

8
Main Components of a Wind Turbine
9
Types of wind turbines

• Aerodynamic drag
• Aerodynamic Lift

10
Types of wind turbines

• aerodynamic lift can divided according to the
  orientation of the spin axis into
• horizontal-axis
• vertical-axis

11
Difference between small and large wind turbines
12
Blade Design
13
Al Fujairah wind distribution
14
Al Fujairah wind distribution

• It was observed that
• The south west direction was selected
• The wind velocity will be 20 knots for 788 hours
  a year.

15
Energy extraction
.P Power produced (Watt) .? Air density
(Kg/m3) .A Cross sectional area (m2) .Va
Apparent wind speed (m/s) .CP Power factor
coefficient
16
Design approach
17
The fixed properties
18
The relation between the shaft power and the wind
speed for different rotor diameter
19
The relation between the shaft power and the wind
speed for different rotor diameter
20
The Calculation

• Assumptions
• ? Air density 1.2 (Kg/m3)
• Rotor diameter 4 (m)
• a Angle of attack 8 (degree)
• ? Tip speed ratio 6

21
Calculation the required properties in designing
the blade

• FL Lift force (N)
• FD Drag force (N)
• CL Lift Coefficient
• CD Drag Coefficient
• ? Air density (Kg/m3)
• A Blade area (m2)
• Va Apparent wind speed (m/s)

22
Calculation the required properties in designing
the blade

• F Apparent wind angle (degree)
• ß The blade angle (degree)
• a Angle of attack (degree)

23
Calculation the required properties in designing
the blade
? Tip speed ratio
24
A small wind turbine design notes

• Assuming that
• Neglecting drag force
• CL 1
• COS (F) 1

This equation works best for the outer part of
the blade only
25
Calculation the required properties in designing
the blade

• Cp Power coefficient

26
Optimize the chord width
27
Optimize the chord width
28
Optimize the chord width
29
Selecting the airfoil

• Drawing the airfoil
• Airfoil selection is NACA 4412
• NACA 4412 best performance is for Reynolds Number
  gt250,000

30
Selecting the airfoil
31
Calculation of Reynolds number
For Apparent wind speed Va 10(m/s),
Characteristic length d 0.377(m) and air
viscosity ? 1.46e-5(m2/s). Then Re 258219 gt
250000
32
Design
33
Design
34
Pattern

• The pattern is an object which is exactly the
  shape of the blade. Which is used to build the
  mould for the blade. There are various ways to
  make a pattern such as
• CNC (Computer Numerically Controlled)
• Foam forming
• Wood patterns
• Metal patterns

35
Design
36
Pattern
37
Pattern
38
Conclusion

• Difficulties
• Environmental impact
• Fujairah project

39
Environmental impact

• Visibility
• Noise Factors
• Effects on Wildlife

40
Fujairah Project

• Three station in different locations
• Total power22.95 Mw
• Total number of turbines27
• Each turbine gives850 Kw
• Rotor diameter58 m
• The height55 m
• Each turbine cost1-1.3 million dollar

41
Conclusion

• Questions
