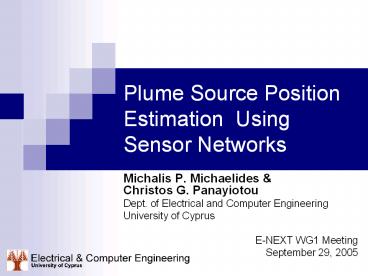

Title: Plume Source Position Estimation Using Sensor Networks


1
Plume Source Position Estimation Using Sensor
Networks
  • Michalis P. Michaelides Christos G.
    Panayiotou
  • Dept. of Electrical and Computer Engineering
  • University of Cyprus
  • E-NEXT WG1 Meeting
  • September 29, 2005

2
Motivation
3
Motivation
  • Diversity and quantity of chemicals released into
    the environment has risen dramatically in recent
    years.
  • Legacy of land and groundwater contaminated by
    human activities affects the ecosystem, human
    health and quality of life.
  • Need for reliable, cost-effective monitoring of
    contaminating compounds in water, soil and
    sediments

4
Motivation cont.
  • One of the most dangerous terrorist attacks is
    the release of toxic plumes.
  • Internationally this is a hot research topic
    following the September 11, 2001 in New York
    terrorist attacks.
  • A contaminant source can also occur as a result
    of an accident at a ship or factory.
  • In both cases people and the proper authorities
    need the necessary information within minutes
    after the event to deal with the crisis

5
Presentation Overview
  • Introduction
  • Related work
  • Simulation model
  • Simulation results
  • Conclusion
  • Future Work

6
Plume propagation
  • Once released at its source odor is carried by
    the wind to form a plume.
  • As the plume travels further away it becomes on
    average more dilute due to molecular diffusion.
  • Dominant cause of diffusion is turbulence.
  • Characteristics of odor plume depend on physical
    environment.

7
Output of odor plume
  • Graphical interpretation of the output of an odor
    plume with moderate turbulence.
  • Sensor was stationary at 10 cm downstream of the
    odor source and at the geometric center of the
    plume.

8
Time averaged vs. Instantaneous Plume
  • Smooth
  • Time-invariant
  • Gaussian plume model with peak near the source.
  • Odor concentration gradient along wind direction
    is negligibly small.
  • Time averaged gradient points towards the source
    only close to the source.
  • Discontinuous
  • Time-varying
  • Detected a lot more often than Gaussian model
    predicts.
  • Instantaneous concentrations available at
    significant distances from source.
  • Direction of instantaneous gradient does not
    always point to odor source.

9
Related work in plume tracking using unmanned
vehicles
  • Bio-mimetic robotic plume-tracing algorithms
    based on olfactory sensing (Homing, Foraging,
    Mate seeking)
  • Basic steps in robotic plume-tracing
  • Sensing the chemical and sensing or estimating
    fluid velocity.
  • Generating sequence of searcher speed and heading
    commands such that the motion of the vehicle is
    likely to locate the odor source.
  • J. Farrell et al. uses an autonomous vehicle
    operating in the fluid flow capable of detecting
    above threshold chemical concentration and
    sensing fluid flow velocity.

10
Chemical Plume Tracing by J. Farrell
11
Vehicles vs. Sensor Networks
  • Plume finding If the plume is within sensing
    radius of any of the sensors it is immediately
    discovered. (among people, around buildings,
    obstacles)
  • Plume maintaining Contact with the plume is
    maintained throughout the sensor field- no
    reacquisition necessary. (time-averaging is
    possible)
  • Assuming static sensors the position of the
    source needs to be remotely estimated using
    fusion techniques.
  • Energy constraints
  • Need efficient routing techniques to relay the
    information hop by hop to the sink.
  • Plume finding Has to spend a good amount of time
    searching for the plume in reachable areas.
  • Plume maintaining Has the problem of maintaining
    contact with the plume once found and reacquiring
    contact in case it is lost.
  • Can move closer to source for better estimation
    until it finds source location.
  • All necessary computation can be done on-board.
  • Once source location is identified it returns to
    base to report.

12
Related work in sensor networks
  • By summer 2005 Syracuse University researchers
    will have installed a dozen robotic sensors to
    form the largest underwater monitoring system in
    USA.
  • In Europe SENSPOL Thematic Network focused
    European expertise on the problems associated
    with monitoring environmental pollutants in
    water, soil and sediments.
  • Oak Ridge National Laboratory in USA are working
    to develop a SensorNet that will serve as a
    national system for comprehensive incident
    management that will rapidly respond to a
    chemical, biological or radiological event.
  • Los Alamos National Laboratory are working in
    developing a DSN (Distributed Sensor Network)
    that will detect a motor vehicle carrying a RDD
    (Radiological Dispersion Device)
  • CSIP (Collaborative Signal Information
    Processing) deals with the energy constrained
    dynamic sensor collaboration.

13
Sensor Network Plume Tracking
Contaminant Source
Sensor nodes
14
Simulation model
  • N sensor nodes stationary, randomly placed in a
    rectangular field R with locations known ( xi ,
    yi ).
  • Contaminant source ( xs , ys ) is somewhere
    inside R (1km x 1km).
  • Propagation of contaminant transport is uniform
    in all directions.
  • We assume additive Gaussian white noise.
  • a2, c106 or simulation results.

Measurement of sensor i at time t
Concentration at source
Gaussian white noise
Radial distance of sensor i from the source
15
Least squares estimation
  • Sensor nodes calculate the mean of M measurements
    and then send the computed mean to the sink.
  • After the sink receives the information from all
    sensor nodes it employs the nonlinear least
    squares method to compute an estimate of the
    source location by minimizing function J.

16
Least squares start position
  • LS max start start the minimization in the
    neighbourhood of the sensor node with the highest
    measurement.
  • LS random start randomly pick 10 start
    positions in the sensor field.
  • LS combo choose the method that minimizes the
    squared 2-norm of the residual.
  • CPA Closest point approach
  • The source position is the location of the sensor
    that measured the highest concentration.

17
Simulation results
  • MATLAB simulation package
  • 100 randomly placed sources for each experiment
    (K100)
  • Effect of varying number of sensors, noise
    variance and number of measurement samples.

18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
Conclusions
  • Our proposed sensor network estimates the plume
    source location in a constrained sensor field
    assuming a uniform propagation of the plume.
  • The proposed Nonlinear Least Squares optimization
    achieves better estimation results than the CPA(
    Closest Point Approach ).
  • Our results indicate that in situations of high
    noise variance it is necessary to increase the
    number of sensors or the number of measurements
    to achieve satisfactory results.

26
Sensor Network Plume Tracking with wind
Wind Direction
Contaminant Source
Sensor nodes
27
New model
  • Only a few of the sensors are able to detect the
    plume based on wind direction and spread of the
    plume.
  • When a sensor node is triggered by the presence
    of the plume it wakes-up, it takes a number of
    discrete measurements and calculates the mean.
  • If the mean exceeds a predefined threshold T it
    communicates this value to the sink and continues
    measuring otherwise it goes back to sleep.
  • At the sink as before the nonlinear least squares
    optimization is used to find the source position
    using all available measurements.

28
(No Transcript)
29
New estimator
  • LSp Least squares estimator with initial
    concentration known.
  • LSc Least squares estimator with initial
    concentration unknown.
  • Use separable least squares techniques
  • Further improvements
  • LSu Unconstrained optimization
  • LSw Constrained search based on wind direction

30
(No Transcript)
31
(No Transcript)
32
Threshold considerations
  • Determines the number of sensors involved in the
    estimation.
  • Needs to be large enough to minimize probability
    of false alarms.
  • Needs to be small enough to ensure maximum
    detection probability.
  • Needs to be appropriately chosen to minimize
    energy consumption while not compromising
    estimation accuracy.

33
(No Transcript)
34
Future Work
  • Propagation model
  • Gaussian model, wind, turbulence
  • Noise
  • Other models, e.g., lognormal or Chi-Square
  • Estimation techniques
  • Maximum Likelihood, Bayesian estimators
  • Data fusion, aggregation
  • Multiple sources
  • Real-time implementation
  • Berkeley modes test-bed
