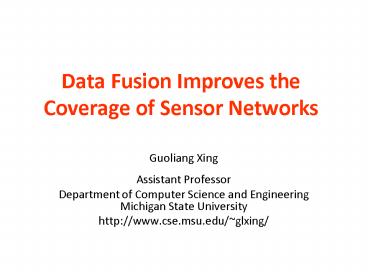

Data Fusion Improves the Coverage of Sensor Networks

1
Data Fusion Improves the Coverage of Sensor
Networks

• Guoliang Xing
• Assistant Professor
• Department of Computer Science and
  EngineeringMichigan State University
• http//www.cse.msu.edu/glxing/

2
Outline

• Background
• Problem definition
• Coverage of large-scale sensor networks
• Scaling laws of coverage
• Other projects
• Model-driven concurrent medium access control
• Integrated coverage and connectivity configuration

2
3
Mission-critical Sensing Applications

• Large-scale network deployments
• OSU ExScal project 1450 nodes deployed in a
  1260X288 m2 region
• Resource-constrained sensor nodes
• Limited sensing performance
• Stringent performance requirements
• High sensing probability, e.g., 90, low false
  alarm rate, e.g., 5, bounded delay, e.g., 20s

3
4
Sensing Coverage

• Fundamental requirement of critical apps
• How well is a region monitored by sensors?
• Coverage of static targets
• How likely is a target detected?

4
5
Network Density for Achieving Coverage

• How many sensors are needed to achieve full or
  instant coverage of a geographic region?
• Any static target can be detected at a high prob.
• Significance of reducing network density
• Reduce deployment cost
• Prolong lifetime by putting redundant sensors to
  sleep

5
6
State of the Art

• K-coverage
• Any physical point in a large region must be
  detected by at least K sensors
• Coverage of mobile targets
• Any target must be detected within certain delay
• Barrier coverage
• All crossing paths through a belt region must be
  k-covered
• Most previous results are based on simplistic
  models
• All 5 papers on the coverage problem published at
  MobiCom since 2004 assumed the disc model

6
7
Single-Coverage under Disc Model

• Deterministic deployment
• Optimal pattern is hexagon
• Random deployment
• Sensors deployed by a Poisson point process of
  density ?
• The coverage (fraction of points covered by at
  least one sensor)
•



Liu 2004
7
deterministic deployment
random deployment
8
Sensing Model

• The (in)famous disc model
• Sensor can detect any target within range r
• Real-world sensor detection
• There is no cookie-cutter sensing range!

r
Acoustic Vehicle Tracking Data in DARPA SensIT
Experiments Duarte 04
9
Contributions

• Introduce probabilistic and collaborative sensing
  models in the analysis of coverage
• Data fusion sensors combine data for better
  inferences
• Derive scaling laws of network density vs.
  coverage
• Coverage of both static and moving targets
• Compare the performance of disc and fusion models
• Data fusion can significantly improve coverage!

10
Outline

• Background
• Problem definition
• Coverage of large-scale sensor networks
• Scaling laws of coverage
• Other projects
• Model-driven concurrent medium access control
• Integrated coverage and connectivity
  configuration
• Personal perspectives on research

10
11
Sensor Measurement Model

• Sensor reading yi si ni
• Decayed target energy si S w(xi)
• Noise energy follows normal distribution ni
  N(µ,s2)

, 2 k 5
Acoustic Vehicle Tracking Data in DARPA SensIT
Experiments Duarte 04
12
Single-sensor Detection Model

• Sensor reading yi
• H0 target is absent
• H1 target is present

sensor reading distribution
noise energy distribution
false alarm rate
probability
detection probability
energy
t
Q() complementary CDF of the std normal
distribution
detection threshold
false alarm rate
detection probability
12
13
Data Fusion Model

• Sensors within distance R from target fuse their
  readings
• R is the fusion range
• The sum of readings is compared again a threshold
  ?
• False alarm rate
• PF 1-?n(n ?)
• Detection probability
• PD 1 ?n(n? - Sw(xi))

R
?n CDF of Chi-square distribution w(xi)
Energy reading of sensor xi from target
13
14
Outline

• Background
• Problem definition
• Coverage of large-scale sensor networks
• Scaling laws of coverage
• Coverage of static targets
• Other projects
• Model-driven concurrent medium access control
• Integrated coverage and connectivity
  configuration
• Personal perspectives on research

14
15
(a,ß)-coverage

• A physical point p is (a,ß)-covered if
• The system false alarm rate PF a
• For target at p, the detection prob. PD ß
• (a,ß)-coverage is the fraction of points in a
  region that is (a,ß)-covered
• Full (0.01, 0.95)-coverage system false alarm
  rate is no greater than 1, and the prob. of
  detecting any target in the region is no lower
  than 95

15
16
Extending the Disc Model

• Classical disc model is deterministic
• Extends disc model to stochastic detection
• Choose sensing range r such that if any point is
  covered by at least one sensor, the region is
  (a,ß)-covered
• Previous results based on disc model can be
  extended to (a,ß)-coverage

d-- signal to noise ratio S/s
16
17
Disc and Fusion Coverage

• Coverage under the disc model
• Sensors independently detect targets within
  sensing range r
• Coverage under the fusion model
• Sensors collaborate to detect targets within
  fusion range R

17
18
(a,ß)-coverage under Fusion Model

• The (a,ß)-coverage of a random network is given by

F(p) set of sensors within fusion range of
point p N(p) of sensors in F(P)
optimal fusion range
18
19
Network Density for Full Coverage

• ?f and ?d are densities of random networks under
  fusion and disc models
• Sensing range is a constant
• Opt fusion range grows with network density
• ? ?f lt?d when high coverage is required

19
20
Network Density w Opt Fusion Range

• When fusion range is optimized with respect to
  network density
• When k2 (acoustic signals)
• Data fusion significantly reduces network density

, 2 k 5
21
Network Density vs. SNR

• For any fixed fusion range
• The advantage of fusion decreases with SNR

21
22
Trace-driven Simulations

• Data traces collected from 75 acoustic nodes in
  vehicle detection experiments from DARPA SensIT
  project
• a0.5, ß0.95, deployment region 1000m x 1000m

23
Simulation on Synthetic Data

• k2, target position is localized as the
  geometric center of fusing nodes

23
24
Conclusions

• Bridge the gap between data fusion theories and
  performance analysis of sensor networks
• Derive scaling laws of coverage vs. network
  density
• Data fusion can significantly improve coverage!
• Help to understand the limitation of current
  analytical results based on ideal sensing models
• Provide guidelines for the design of data fusion
  algorithms for large-scale sensor networks

24
25
Outline

• Background
• Problem definition
• Coverage of large-scale sensor networks
• Scaling laws of coverage
• Coverage of static targets
• Other projects
• Model-driven concurrent medium access control
• Integrated coverage and connectivity
  configuration
• Personal perspectives on research

25
26
Improve Throughput by Concurrency
s1
s2
r1
r2

• Enable concurrency by controlling senders' power

27
Received Signal Strength
Received Signal Strength (dBm)
Received Signal Strength (dBm)
Transmission Power Level
Transmission Power Level

• 18 Tmotes with Chipcon 2420 radio
• Near-linear RSSdBm vs. transmission power level
• Non-linear RSSdBm vs. log(dist), different from
  the classical model!

27
28
Packet Reception Ratio vs. SINR
03 dB is "gray region"
Packet Reception Ratio ()
office, no interferer
parking lot, no interferer
office, 1 interferer

• Classical model doesn't capture the gray region

28
29
C-MAC Components
Power Control Model
Currency Check

Concurrent Transmission Engine
Handshaking
Online Model Estimation
Interference Model
Throughput Prediction
Throughput Prediction

• Implemented in TinyOS 1.x, evaluated on a 18-mote
  test-bed
• Performance gain over TinyOS default MAC is gt2X

Presented at IEEE Infocom 2009
29
30
Performance Evaluation

• Implemented in TinyOS 1.x
• 16 Tmotes deployed in a 25x24 ft office
• 8 senders and 8 receivers

31
Experimental Results
Improve throughput linearly w num of senders
system throughput (Kbps)
system throughput (Kbps)
Number of Senders
Time (second)
32
Deterministic Coverage Connectivity

• Select a set of nodes to achieve
• K-coverage every point is monitored by at least
  K sensors
• N-connectivity network is still connected if N-1
  nodes fail

Active nodes
Sensing range
Sleeping node
Communicating nodes
A network with 1-coverage and 1-connectivity
32
33
Connectivity vs. Coverage Analytical Results

• Network connectivity does not guarantee coverage
• Connectivity only concerns with node locations
• Coverage concerns with all locations in a region
• If Rc/Rs ? 2
• K-coverage ? K-connectivity
• Implication given requirements of K-coverage and
  N-connectivity, only needs to satisfy max(K,
  N)-coverage
• Solution Coverage Configuration Protocol (CCP)
• If Rc/Rs lt 2
• CCP connectivity mountainous protocols

ACM Conference on Embedded Networked Sensor
Systems (SenSys), 2003 ACM Transactions on
Sensor Networks, Vol. 1 (1), 2005 (600
citations on Google Scholar)
33
34
Research Summary

• Data fusion in sensor networks
• Coverage MobiCom 09 deploymentRTSS 08
  mobility ICDCS 08
• MAC protocol design and architecture
• C-MAC concurrent model-driven MAC Infocom08
• UPMA unified power management architecture IPSN
  07
• Sensornet/real-time middleware
• MobiQuery spatiotemporal query service for
  mobile users ICDCS 05, IPSN 05
• nORB light-weight real-time middleware for
  networked embedded systems RTAS 04
• Controlled mobility
• Mobility-assisted spatiotemporal detection ICDCS
  08,IWQoS 08
• Rendezvous-based data transport MobiHoc 08, RTSS
  07
• Power management
• Minimum power configuration MSWiM 07, MobiHoc
  05, TOSN 3(2)
• Integrated coverage and connectivity
  configuration TOSN 1(1), SenSys 03
• Impact of sensing coverage on geographic routing
  TPDS 17(4), MobiHoc 04
• Real-time power-aware routing in sensor networks
  IWQoS 06
• Data fusion for target detection IPSN 04

35
Acknowledgement

• Students
• Rui Tan, Mo Sha
• Collaborators
• Benyuan Liu, Jianping Wang..

36
Michigan State University

• First land-grant institution
• Founded in 1855, prototype for 69 land-grant
  institutions established under the Morrill Act of
  1862
• One of America's Public Ivy universities
• Big ten conferences
• University of Illinois, Indiana University,
  University of Iowa, University of Michigan,
  University of Minnesota, Northwestern University,
  Ohio State University, Pennsylvania State
  University, Purdue University, University of
  Wisconsin
• Single largest campus, 8th largest university in
  the US with 46,648 students and
  2,954 faculty members
• Rankings of 2008
• 80th worldwide, Shanghai Jiao Tong Universitys
  Institute of Higher Education
• 71th  in US, U.S. News World Report

37
Computer Science Engineering _at_MSU

• People
• 27 tenure-stream faculty
• Each year awards approximately 100 BS, 40 MS, and
  10 PhD degrees in Computer Science
• Research
• 9 research laboratories, with annual research
  expenditures exceeding 3.5 million
• Rankings
• 15th graduate program in US, a recent article of
  Comm. of ACM
• Top 100, Shanghai Jiao Tong Universitys
  Institute of Higher Education

38
My Group

• Research
• Sensor networks
• Data fusion, power management, voice streaming,
  controlled mobility
• Low-power wireless networks
• MAC, Interference management
• Cyber-physical systems
• Students
• Supervise 6 PhDs (CityU and MSU), 2 MS
• Co-supervise 4 PhDs (CAS, CWM, UTK, MSU)

39
Ranking of Journals

• Tier 1
• IEEE/ACM Trans. on Networking (TON)
• Tier 1.5
• ACM Trans. on Sensor Networks (TOSN)
• IEEE Trans. on Mobile Computing (TMC)
• IEEE Trans. on Computers (TC)
• IEEE Trans. on Parallel and Distributed Systems
  (TPDS)
• The ranking is only applicable to Sensor
  Network research

40
Ranking of Conferences

• Tier 0 SIGCOMM, MobiCom (10)1
• Tier 1 MobiHoc (1015)3, SenSys1, MobiSys
  (1518),
• Tier 1.5 Infocom1, ICDCS (18) 3, RTSS4
  (2025), ICNP, PerCom (10-15)
• Tier 2IPSN3, IWQoS, 1 MSWiM (2025) 1,
  MASS2, DCOSS (25)
• Tier 4 Globecom, WCNC, ICC..(gt30)
• Partially borrowed from Prof. Dong Xuans talk
• The ranking is only applicable to Sensor Network
  research, and may significantly change for other
  fields
