Indexing Data Relationships

1

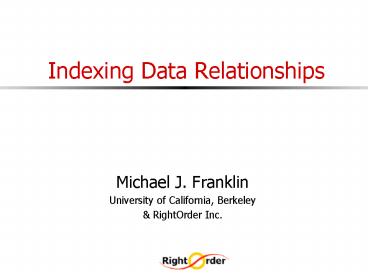

Indexing Data Relationships

• Michael J. Franklin
• University of California, Berkeley
• RightOrder Inc.

2
Overview

• Data relationships can be complex.
• Hierarchical views XML, LDAP,
• Semistructure dynamic schema
• ApproachEncode paths as tagged strings
• raw paths encode structure
• refined paths accelerate lookups
• Index strings in a highly-compact structure.
• Live on top of, next to or inside DBMS.
• Benefits
• Performance, Scalability Adaptivity
• Leverages mature DBMS technology

3
Raw paths w/Designators
4
Refined paths

• Optimize specific access paths

Find invoices where X sold to Y
Find invoices where X bought Y and Z
Find invoices where a buyer bought X, Y and Z
5
Index Fabric

• An index structure for long strings.
• Provides fast lookups
• Handles long strings
• Ideal substrate for designated keys
• Based on Patricia tries
• Highly compressed string representation
• Cost in index independent of string length
• But, need to balance.

6
Patricia tries
Indexes first point of difference between keys
greenbeans
greentea
D. R. Morrison. PATRICIA Practical algorithm
to retrieve information coded in alphanumeric.
J. ACM, 15 (1968) pp. 514-534
7
Multiple Hierarchical Views

• Can store multiple permulations of relationships
• Find animals and the plants they eat
• Find plants and the animals that eat them
• Represent as a new set of keys
• Store data once using permutation records

8
Example
a
b
a
w
o
c
b
a
c
c
9
Example
a
b
a
w
o
c
b
a
c
c
a
b
10
Balancing Patricia tries
11
Balancing Patricia tries
Step 1 divide trie into blocks
12
Balancing Patricia tries
Step 2 build another layer
g
e
Layer 1 Layer 0
13
Balancing Patricia tries
Search for cash
greenbeans
g
e
Layer 1 Layer 0
14
Balancing Patricia tries
Search for cash
0
g
c
g
2
2
e
a
w
r
e
2
t
grass
corn
cow
b
greenbeans
greenbeans
greentea
Layer 1 Layer 0
15
Balancing Patricia tries
Search for cash
0
g
c
g
2
2
e
a
w
r
greenbeans
e
2
t
grass
corn
cow
b
greenbeans
greentea
Layer 1 Layer 0
16
Balancing Patricia tries
17
Performance

• Number of layers is small
• Fixed (small) space per key
• High branching factor per block
• Bushy, shallow tree
• Example
• 8 KB blocks
• 32 bit pointers 2 bytes for keys/structure
• 1000 pointers per block
• 3 layers for 1 billion pointers to data (10003)
• Upper layers are tiny (10 megabytes), in RAM
• Only layer 0 on disk
• Usually one index I/O per key lookup

Data
18
Find publications by co-authors
10,000 queries
RDBMS Edge mapping
19
Find publications by co-authors
10,000 queries
20
Conclusion

• Index arbitrary relationships
• Encode as designated strings
• Relationships and structures can be complex
• Index many data access paths
• No need for DTD or pre-defined schema
• Index Fabric
• Special data structure for long keys
• High performance key lookups
• Supports designator encoding

21
For more information

• technology_at_rightorder.com
• www.rightorder.com
