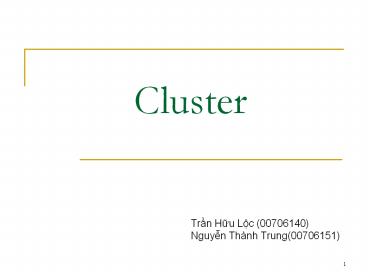

Cluster

1
Cluster

• Tr?n H?u L?c (00706140)
• Nguy?n Thành Trung(00706151)

2
Outline

• Introduction
• Cluster architectures
• System Design
• Parallel Programming Environments and Tools
• Cluster Applications

3
Introduction

• Solving grand challenge applications using
  computer modeling, simulation and analysis
  (Weather Forecasting, Military Applications,
  Simulation, astrophysics )
• Mini computers were large and expensive
• The development of powerful microprocessors
• High speed LAN

4
How to Run Applications Faster ?

• Using faster hardware
• Optimized algorithms and techniques used to solve
  computational tasks
• Multiple computers to solve a particular task

5
History

• In the 1960s, or even late 1950s
• Research clusters in hand with that of both
  networks and the Unix operating system from the
  early 1970s
• The first commercial clustering product was
  ARCnet, developed by Datapoint in 1977
• VAXcluster in 1984
• Tandem Himalaya and the IBM S/390 Parallel
  Sysplex in 1994

6
What is Cluster ?

• A cluster is a type of parallel or distributed
  processing system, which consists of a collection
  of interconnected stand-alone computers
  cooperatively working together as a single,
  integrated computing resource.
• A nodea single or multiprocessor system with
  memory, I/O facilities, OS
• A cluster
• generally 2 or more computers (nodes) connected
  together in a single cabinet, or physically
  separated connected via a LAN
• Provide a cost-effective way to gain features and
  benefits

7
Cluster Architecture
Parallel Applications
Parallel Applications
Parallel Applications
Sequential Applications
Sequential Applications
Sequential Applications
Parallel Programming Environment
Cluster Middleware (Single System Image and
Availability Infrastructure)
Cluster Interconnection Network/Switch
8
System Design

• Performance Requirements
• Hardware Platforms
• Operating Systems
• Single System Image (SSI)
• Middleware

9
Performance Requirements

• Common Cluster Modes
• High Performance (dedicated).
• High Throughput (idle cycle harvesting).
• High Availability (fail-over).
• A Unified System HP and HA within the same
  cluster

10
Performance Requirements

• The Need for Performance Evaluation
• Hardware Idle processors due to conflicts over
  memory access communications paths.
• Operating System Inefficient internal
  scheduler, file systems and memory
  allocation/de-allocation.
• Middleware Inefficient distribution and
  coordination of tasks, high inter-processor
  communications latency due to inefficient
  middleware.
• Applications Inefficient algorithms that do not
  exploit the natural concurrency of a problem.

11
Performance Requirements

• Some indices for global measurements
• Execution rate The execution rate measures the
  machine output per unit of time, measured in MIPS
  (million instructions per second)
• Speedup (Sp)
• Efficiency (Ep)

12
Hardware Platforms

• Multiple High Performance Computers
• PCs
• Workstations
• SMPs (CLUMPS)

13
Hardware Platforms

• Processors
• Intel x86 Processors
• Pentium Pro and Pentium Xeon
• AMD x86, Cyrix x86, etc.
• Digital Alpha
• Alpha 21364 processor integrates processing,
  memory controller, network interface into a
  single chip
• IBM PowerPC
• Sun SPARC
• SGI MIPS
• HP PA

14
Network Technology

• Communication Protocols
• Connection-oriented or connectionless
• Offering various levels of reliability, including
  fully guaranteed to arrive in order (reliable),
  or not guaranteed (unreliable)
• Not buffered (synchronous), or buffered
  (asynchronous)
• Internet Protocols TCP/IP, UDP
• Low-latency ProtocolsActive Messages, Fast
  Messages, the VMMC (Virtual Memory-Mapped
• Communication) system, U-net, and Basic Interface
  for Parallelism (BIP),

15
Network Technology

• Hardware Products
• Ethernet (10Mbps),
• Fast Ethernet (100Mbps),
• Gigabit Ethernet (1Gbps)
• SCI (Scalable Coherent Interface- MPI- 12µsec
  latency)
• ATM (Asynchronous Transfer Mode)
• Myrinet (1.28Gbps)
• QsNet (Quadrics Supercomputing World, 5µsec
  latency for MPI messages)
• Digital Memory Channel
• FDDI (fiber distributed data interface)
• InfiniBand

16
Operating Systems

• The operating system for a cluster lies at every
  node
• 2 fundamental services for users
• make the computer hardware easier to use
• create a virtual machine that differs markedly
  from the real machine
• share hardware resources among users
• Processor - multitasking
• The new concept in OS services
• support multiple threads of control in a process
  itself
• parallelism within a process
• multithreading

17
Operating Systems
18
Operating Systems

• Node Operating System
• Linux Clusters (e.g., Beowulf)
• Solaris Clusters (e.g., Berkeley NOW)
• NT Clusters (e.g., HPVM)
• AIX Clusters (e.g., IBM SP2)
• SCO/Compaq Clusters (Unixware)
• Digital VMS Clusters
• HP-UX clusters
• Microsoft Wolfpack clusters

19
Single System Image (SSI)

• Hides the heterogeneous and distributed nature of
  the available resources, presents them to users
  and applications as a single unified computing
  resource
• High availability
• Transparency of resource management
• Scalable performance

20
Single System Image (SSI)

• Services and Benefits
• Single entry point
• Single user interface
• Single process space
• Single I/O space (SIOS)
• Single file hierarchy
• Single virtual networking
• Single job-management system
• Single control point and management
• Checkpointing and Process Migration

21
Middleware
Parallel Applications
Parallel Applications
Parallel Applications
Sequential Applications
Sequential Applications
Sequential Applications
Parallel Programming Environment
Cluster Middleware (Single System Image and
Availability Infrastructure)
Cluster Interconnection Network/Switch
22
Middleware

• Introduction
• A layer of software sandwiched between the
  operating system and applications.
• A means of integrating software applications
  running in a heterogeneous environment.
• Heterogeneity
• Hardware platform become heterogeneous
• Must support very different applications
• Overview
• Help application developer overcome these
  heterogeneities.
• Provides services for the management and
  administration of a heterogeneous system

23
Middleware Technological scope

• Message-based Middleware
• RPC-based Middleware
• CORBA
• OLE/COM
• Internet Middleware
• Java Technologies
• Cluster Management Software

24
Middleware Technological scope

• Message-based Middleware
• Uses common communications protocol to
  exchange data between applications which hides
  low level message passing primitives from
  application developer
• Parallel Virtual Machine (PVM) and MPI
• RPC-based Middleware
• Remote Procedure Call (RPC) allows request
  process directly executing a procedure on another
  and receive a response
• use Marshalling to transfer data structures in
  RPC from one to another
• Network Information Services 9 (NIS) and
  Network File Services 10 (NFS)

25
Middleware Technological scope

• COBRA
• An architectural framework that specifies the
  mechanisms for processing distributed objects
• Object Management Architecture (OMA) Object
  Request Broker (ORB), Object services,
  Application services, Application objects.
• COM/OLE
• Object Linking and Embedding (OLE) highly
  generic object model and a set of interfaces
  (Object Oriented) allowing apps to
  intercommunicate
• Component Object Model (COM) model defines
  mechanisms for the creation of objects and
  communication between clients and objects that
  are distributed across distributed environment.

26
Middleware Technological scope

• Internet Middleware
• HyperText Transport Protocol (HTTP) and Common
  Gateway Interface (CGI), v.v.
• Java Technologies
• Java Remote Method Invocation (RMI)
• Jini a set of APIs and network protocols
  used to create and deploy distributed systems
  organized as federations of services
• Cluster Management Software
• Administer and manage jobs submitted to
  workstation clusters
• Optimize the use of the available resources,
  set priority, steal CPU cycle, task-migration,
  ensure task complete

27
System Administration

• Introduction
• Manageability of a system how usable in terms of
  actually producing computations value and what
  comfort level for users
• Computer science research performance testing,
  benchmarking, and software tuning.
• Production-computing environment provide
  reliable computing cycles with dependable
  networking, application software, and OS
• Good systems manageability will directly equate
  to better results

28
System Administration

• System Planning
• Hardware Considerations low cost/compute cycle
  ratio workstations
• Performance Specifications performance testing,
  benchmarking, and software tuning.
• Memory speed and interleave
• Processor core speed vs. bus speed
• PCI bus speed and width
• Multiprocessor issues single- or multiprocessor
  building blocks
• Cluster Interconnect Considerations require
  efficient data transfers, effective drain on
  processor cycles associated with transfers,
  highly optimized network interconnects

29
System Administration

• Software Considerations
• Remote Access Windows (Telnet, Terminal service,
  IIS), Unix (SSH, Telnet, XWindows, FTP).
• System Installation Windows (Remote Installation
  Service, third-party tool Norton Ghost,
  Imagecast), Unix (Linux Utility for cluster
  Install (LUI) of IBM, VA SystemImager of VA
  Linux)
• System Monitoring Remote Control of Nodes
• Probing by direct access to kernel memory
• Probing by File System Interface
• Collecting the Performance Information
• Scalability
• Optimizing the Network Traffic
• Reducing The Intrusiveness

30
System Administration
31
System Administration

• Remote Management Tools and Technology
• Remote monitoring and control of nodes,
  copy/move/remove files, remote shutdown, restart,
  security maintenance, parallel execution
• Scheduling Systems

32
Parallel Programming Environments and Tools

• Threads (PCs, SMPs, NOW..)
• POSIX Threads
• Java Threads
• MPI (Message Passing Interface)
• Linux, NT, on many Supercomputers
• PVM (Parallel Virtual Machine)
• Parametric Programming

33
Parallel Programming Environments and Tools

• Software DSMs (Shmem)
• Compilers
• C/C/Java
• Parallel programming with C (MIT Press book)
• RAD (rapid application development tools)
• GUI based tools for PP modeling
• Debuggers
• Performance Analysis Tools
• Visualization Tools

34
Applications

• Sequential
• Parallel / Distributed (Cluster-aware app.)
• Grand Challenging applications
• Weather Forecasting
• Quantum Chemistry
• Molecular Biology Modeling
• Engineering Analysis (CAD/CAM)
• .
• PDBs, web servers, data-mining

35
Operational Benefits

• High Performance aggregate computing power
  across nodes to solve a problem faster.
• Expandability and Scalability easily to expand
  and increase size of nodes.
• High Throughput harness the ever-growing power
  of desktop computing resources while protecting
  the rights and needs of their interactive users.
• High Availability provide high availability of
  service

36
References

• Cluster Computing White Paper - Mark Baker,
  University of Portsmouth, UK
• Cluster Computing - Architectures, Operating
  Systems, Parallel Processing Programming
  Languages - Richard S. Morrison
• High Performance Cluster Computing Architectures
  and Systems slide (Hai Jin and Raj Buyya)
