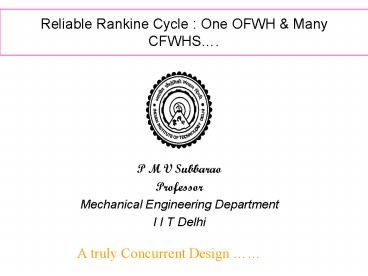

Reliable Rankine Cycle : One OFWH

1
Reliable Rankine Cycle One OFWH Many CFWHS.

• P M V Subbarao
• Professor
• Mechanical Engineering Department
• I I T Delhi

A truly Concurrent Design
2
6
5
4
3
2
1
DC
GSC
3
2
5
4
1
6
GSC
DC
3
Gas Release Mechanism in Deaerator
4
The Mechanical Deaerator

• Corrosion of iron or steel in boilers or boilers
  feed water piping is caused by three fundamental
  factors
• 1. Feedwater temperature
• 2. Feed water ph value
• 3. Feedwater oxygen content Temperature and ph
  value influence the aggressiveness of corrosion.
• The higher the temperature, and the lower the pH
  value the increased aggressiveness of the
  feedwater.
• The dissolved oxygen content of the feedwater is
  a large factor in determining the amount of
  corrosion that will take place.
• The presence of oxygen, and other non-condensable
  gases, in the feedwater is a major cause of
  corrosion in the feedwater piping, boiler, and
  condensate handling equipment.

5

• Deaeration is based on two scientific principles.

• The first principle can be described by Henry's
  Law.
• Henry's Law asserts that gas solubility in a
  solution decreases as the gas partial pressure
  above the solution decreases.
• The second scientific principle that governs
  deaeration is the relationship between gas
  solubility and temperature.
• Easily explained, gas solubility in a solution
  decreases as the temperature of the solution
  rises and approaches saturation temperature.
• A deaerator utilizes both of these natural
  processes to remove dissolved oxygen, carbon
  dioxide, and other non-condensable gases from
  boiler feedwater.

6

• Correct deaerator operation requires a vessel
  pressure of about 20 30 kPa above atmospheric,
  and
• a water temperature measured at the storage
  section of 50C above the boiling point of water
  at the altitude of the installation.
• There should be an 45 60 cm steam plume from
  the deaerator vent, this contains the unwanted
  oxygen and carbon dioxide.
• The following parameters should be continuously
  monitored to ensure the correct  operation of the
  deaerator.
• Deaerator operating pressure.
• Water temperature in the storage section.

7
Deaerator Principles

• Deaeration is the mechanical removal of
  dissolved gases from the boiler feedwater.
• There are three principles that must be met in
  the design of any deaerator.
• 1. The incoming feedwater must be heated to the
  full saturation temperature, corresponding to the
  steam pressure maintained inside the deaerator .
• This will lower the solubility of the dissolved
  gases to zero.
• 2. The heated feedwater must be mechanically
  agitated.
• This is accomplished in a tray deaerator by
  first spraying the water in a thin film into a
  steam atmosphere.
• Creating a thin film reduces the distance the
  gas bubble has to travel to be released from the
  water.

8

• Next, the water is cascaded over a bank of
  slotted trays, further reducing the surface
  tension of the water.
• This allows for the removal of any gases not
  liberated by the initial spraying.
• 3. Adequate steam supply must be passed through
  the water, in both the spray section and the
  tray section to sweep out the gases from the
  water.

9
Principle of Operation of A Dearator
10
Anatomy of A Dearator
11
(No Transcript)
12
De-Aerators (Parallel Flow)
13
De-Aerator (Counter Flow)
14
Sequence of FWHs

• HP CFWHs one OFWH LP CFWHs

15
Energy Balance for ith HP - CFWH
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Deaerator as Ith OFWH
BFP
22
Loss of steam in Deaerator, yloss
23
Energy Balance for (I1)th LP - CFWH
24
(No Transcript)
25
(No Transcript)
26
Steam

•


FW
C
DC
DS
Condensate
Bled steam
-TTD
T
-TTDTerminal temperature difference
CCondenser
DS
C
DC
DCDrain cooler
DSDesuperheater
L
Feedwater heater with Drain cooler and
Desuperheater
27
Steam

•


FW
FW
C
DC
Condensate
Bled steam
TTD
Feedwater
T
C
DC
L
Feedwater heater with Drain cooler
28
Pmax8 MPa,480oC , Pc0.04 MPa
Reheat-Regeneration cycle
Regeneration cycle
Improvement in efficiency due to reheating in a
reheat-regeneration cycle
29
