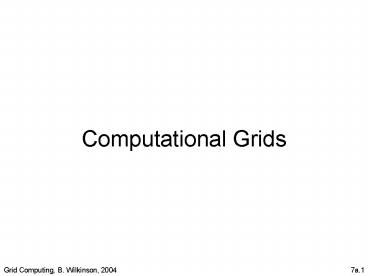

Computational Grids
2
Computational Problems

• Problems that have lots of computations and
  usually lots of data.

3
Demand for Computational Speed

• Continual demand for greater computational speed
  from a computer system than is currently possible
• Areas requiring great computational speed include
  numerical modeling and simulation of scientific
  and engineering problems.
• Computations must be completed within a
  reasonable time period.

4
Grand Challenge Problems

• One that cannot be solved in a reasonable amount
  of time with todays computers. Obviously, an
  execution time of 10 years is always
  unreasonable.
• Examples
• Modeling large DNA structures
• Global weather forecasting
• Modeling motion of astronomical bodies.

5
Weather Forecasting

• Atmosphere modeled by dividing it into
  3-dimensional cells.
• Calculations of each cell repeated many times to
  model passage of time.

6
Global Weather Forecasting Example

• Suppose global atmosphere divided into cells of
  size 1 mile ? 1 mile ? 1 mile to a height of 10
  miles - about 5 ? 108 cells.
• Suppose each calculation requires 200 floating
  point operations. In one time step, 1011 floating
  point operations necessary.
• To forecast weather over 7 day period using
  1-minute intervals, a computer operating at
  1Gflops (109 floating point operations/s) takes
  106 seconds or over 10 days.

7
Modeling Motion of Astronomical Bodies

• Each body attracted to each other body by
  gravitational forces. Movement of each body
  predicted by calculating total force on each
  body.
• With N bodies, N - 1 forces to calculate for each
  body, or N2 calculations.
• (N log2 N for an efficient approximate
  algorithm.)
• After determining new positions of bodies,
  calculations repeated.

8

• A galaxy might have, say, 1011 stars.
• Even if each calculation done in 1 ms (extremely
  optimistic figure), it takes almost a year for
  one iteration using the N log2 N algorithm.
• 100 years for 100 iterations. Typically require
  millions of iterations.

9

• Astrophysical N-body simulation by Scott Linssen
  (undergraduate UNC-Charlotte student).

10
High Performance Computing (HPC)

• Traditionally, achieved by using the multiple
  computers together - parallel computing.
• Simple idea! -- Using multiple computers (or
  processors) simultaneously should be able can
  solve the problem faster than a single computer.

11
Using multiple computers or processors

• Key concept - dividing problem into parts that
  can be computed simultaneously.
• Parallel programming - programming a computing
  platform consisting of more than one processor or
  computer.
• Concept very old (50 years).

12
High Performance Computing

• Long History
• Multiprocessor system of various types (1950s
  onwards)
• Supercomputers (1960s-80s)
• Cluster computing (1990s)
• Grid computing (2000s) ??

Maybe, but lets first look at how to achieve HPC.
13
Speedup Factor

• ts is execution time on a single processor
• tp is execution time on a multiprocessor.
• S(p) gives increase in speed by using
  multiprocessor.
• Best sequential algorithm for single processor.
  Parallel algorithm usually different.

14
Maximum Speedup

• Maximum speedup is usually p with p processors
  (linear speedup).
• Possible to get superlinear speedup (greater than
  p) but usually a specific reason such as
• Extra memory in multiprocessor system
• Non-deterministic algorithm

15
Maximum Speedup Amdahls law
16

• Speedup factor is given by
• This equation is known as Amdahls law

17
Speedup against number of processors

• Even with infinite number of processors, max.
  speedup limited to 1/f .
• Example With only 5 of computation being
  serial, max. speedup 20, irrespective of number
  of processors.

18
Superlinear Speedup Example Searching

• (a) Searching each sub-space sequentially

19

• (b) Searching each sub-space in parallel

20

• Question
• What is the speed-up now?

21

• Worst case for sequential search when solution
  found in last sub-space search. Then parallel
  version offers greatest benefit, i.e.

22

• Least advantage for parallel version when
  solution found in first sub-space search of the
  sequential search, i.e.
• Actual speed-up depends upon which subspace holds
  solution but could be extremely large.

23
Types of Parallel Computers

• Two principal types
• 1. Single computer containing multiple processors
  - main memory is shared, hence called Shared
  memory multiprocessor
• 2. Multiple computer system

24
Conventional Computer

• Consists of a processor executing a program
  stored in a (main) memory
• Each main memory location located by its address
  within a single memory space.

25
Shared Memory Multiprocessor

• Extend single processor model - multiple
  processors connected to multiple memory modules
• Each processor can access any memory module

26

• Examples
• Dual Pentiums
• Quad Pentiums

27
Programming Shared Memory Multiprocessors

• Threads - programmer decomposes program into
  parallel sequences (threads), each being able to
  access variables declared outside threads.
  Example Pthreads
• Use sequential programming language with
  preprocessor compiler directives, constructs, or
  syntax to declare shared variables and specify
  parallelism. Examples OpenMP (an industry
  standard), UPC (Unified Parallel C) -- needs
  compilers.

28

• Parallel programming language with syntax to
  express parallelism. Compiler creates executable
  code -- not now common.
• Use parallelizing compiler to convert regular
  sequential language programs into parallel
  executable code - also not now common.

29
Multiple ComputersMessage-passing multicomputer

• Complete computers connected through and
  interconnection network

30
Networked Computers as a Computing Platform

• Became a very attractive alternative to expensive
  supercomputers and parallel computer systems for
  high-performance computing in 1990s.
• Several early projects. Notable
• Berkeley NOW (network of workstations)
  project.
• NASA Beowulf project.

31
Key Hardware Advantages

• Very high performance workstations and PCs
  readily available at low cost.
• Latest processors can easily be incorporated into
  the system as they become available.

32
Programming Clusters

• Usually based upon explicit message-passing.
• Common approach -- a set of user-level libraries
  for message passing. Example
• Parallel Virtual Machine (PVM) - late 1980s.
  Became very popular in mid 1990s.
• Message-Passing Interface (MPI) - standard
  defined in 1990s and now dominant.

33
Beowulf Clusters

• Name given to a group of interconnected
  commodity computers designed to achieve high
  performance with low cost.
• Typically using commodity interconnects
  (high-speed Ethernet).
• Typically Linux OS.
• Beowulf comes from name given by NASA Goddard
  Space Flight Center cluster project.

34
Cluster Interconnects

• Originally fast Ethernet on low cost clusters
• Gigabit Ethernet - easy upgrade path
• More Specialized/Higher Performance
• Myrinet - 2.4 Gbits/sec - disadvantage single
  vendor
• Infiniband - may be important as Infiniband
  interfaces may be integrated on next generation
  PCs

35
Dedicated cluster with a master node
36
WCU Department of Mathematics and CS leo I
cluster(now dismandled)
Being replaced with Pentium IVs and Gigabit
Ethernet.
37
Message-Passing Programming using User-level
Message Passing Libraries

• Two primary mechanisms needed
• 1. A method of creating separate processes for
  execution on different computers
• 2. A method of sending and receiving messages

38
Multiple program, multiple data model(MPMD)
39
Single Program Multiple Data Model(SPMD)

• Different processes merged into one program.
• Control statements select different parts for
  each processor to execute.
• All executables started together - static process
  creation

40
Single Program Multiple Data Model(SPMD)
41
Multiple Program Multiple Data Model(MPMD)

• Separate programs for each processor.
• One processor executes master process.
• Other processes started from within master
  process - dynamic process creation.

42
Multiple Program Multiple Data Model(MPMD)
43
Point-to-point send and receive routines
Passing a message between processes using send()
and recv() library calls
44
Synchronous Message Passing

• Routines that return when message transfer
  completed.
• Synchronous send routine
• Waits until complete message can be accepted by
  the receiving process before sending the message.
• Synchronous receive routine
• Waits until the message it is expecting arrives.

45
Synchronous send() and recv() using 3-way protocol
46

• Synchronous routines intrinsically perform two
  actions
• They transfer data and
• They synchronize processes.

47
Asynchronous Message Passing

• Do not wait for actions to complete before
  returning.
• More than one version depending upon semantics
  for returning.
• Usually require local storage for messages.
• They do not synchronize processes and allow
  processes to move forward sooner. Must be used
  with care.

48
MPI Definitions of Blocking and Non-Blocking

• Blocking - return after their local actions
  complete, though message transfer may not have
  been completed.
• Non-blocking - return immediately.
• Assumes data storage not modified by subsequent
  statements prior to being used for transfer, and
  it is left to the programmer to ensure this.

49
How message-passing routines return before
transfer completed
Message buffer needed between source and
destination to hold message
50
Asynchronous (blocking) routines changing to
synchronous routines

• Buffers only of finite length and a point could
  be reached when send routine held up because all
  available buffer space exhausted.
• Then, send routine will wait until storage
  becomes re-available - i.e then routine behaves
  as a synchronous routine.

51
Message Tag

• Used to differentiate between different types of
  messages being sent.
• Message tag is carried within message.

52
Message Tag Example
To send a data, x, with message tag 5 from
process, 1, to destination process, 2, and
assign to y
53
Wild Card

• If message tag matching not required, wild card
  message tag used.
• Then, recv() will match with any send().

54
Collective Message Passing Routines

• Have routines that send message(s) to a group of
  processes or receive message(s) from a group of
  processes
• Higher efficiency than separate point-to-point
  routines although not absolutely necessary.

55
Broadcast
Sending same message to all processes concerned
with problem.
56
Scatter
Sending each element of an array in root process
to a separate process. Contents of ith location
of array sent to ith process.
57
Gather
Having one process collect individual values from
set of processes.
58
Reduce
Gather operation combined with arithmetic/logical
operation. Example Values gathered and added
together
59
Grid Computing

• A grid is a form of multiple computer system.
• For solving computational problems, it could be
  viewed as the next step after cluster computing,
  and the same programming techniques used.

Why is this not necessarily true?
60

• VERY expensive, sending data across network costs
  millions of cycles

• Links unreliable

• Bandwidth shared with other users

61
Computational Strategies

• As a computing platform, a grid favors situations
  with absolute minimum communication between
  computers.
• Next class will look at these strategies and
  details of MPI programming.
