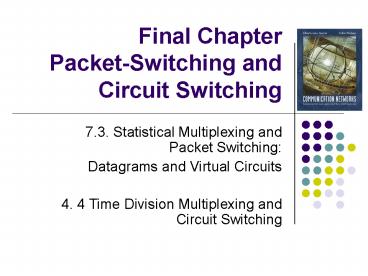

Final Chapter Packet-Switching and Circuit Switching

1
Final Chapter Packet-Switching and Circuit
Switching

• 7.3. Statistical Multiplexing and Packet
  Switching
• Datagrams and Virtual Circuits
• 4. 4 Time Division Multiplexing and Circuit
  Switching

2
5.7.1 Statistical Multiplexing

• Multiplexing concentrates bursty traffic onto a
  shared line
• information flow should include source address
  and destination address
• Greater efficiency and lower cost

3
Statistical Multiplexing -Asynchronous Time
Division Multiplexing

• Statistical Multiplexing involves the sharing of
  transmission channels (resource) by several
  connections A, B, , Z or information flows
  which will be transmitted (served) on demand
  (statistically). Thus Significant economies of
  scale can be achieved
• Ports A, B, , Z in the multiplexer should
  provide sufficient number of buffers information
  packets will be stored and forward, thus cause
  delay
• The shared channel would be E-carrier (T-carrier)
  or SDH (SONET)

Shared Channel
Statistical Multiplexing
4
Multiplexer/Demultiplexer inherent in Packet
Switches
Multiplexer
DeMultiplexer

• Packets/frames forwarded to buffer prior to
  transmission from switch
• Multiplexing occurs in these buffers

5
Multiplexer Modeling

• Arrivals What is the packet interarrival
  pattern?
• Service Time How long are the packets?
• Service Discipline What is order of
  transmission?
• Buffer Discipline If buffer is full, which
  packet is dropped?
• Performance Measures Delay Distribution Packet
  Loss Probability Line Utilization

6
Chapter 7Packet-Switching Networks

• 7.3 Datagrams and Virtual Circuits

7
The Packet Switching Function

• Store and then forward packet by switching it to
  an appropriate output port according to a routing
  table. Notice that the routing table could be
  updated dynamically, depending on the traffic
  condition
• Dynamic interconnection of input ports to output
  ports
• Enables dynamic sharing of transmission resource
• Two fundamental approaches
• Connectionless
• Connection-Oriented Call setup control,
  Connection control, Connection release

8
Packet Switching Network

• Packet switching network
• Transfers packets between users
• Transmission lines packet switches (routers)
• Origin in message switching
• Two modes of operation
• Connectionless
• Virtual Circuit

9
Packet Switching - Datagram

• Messages are broken into smaller units (packets)
• Source destination addresses included in the
  packet header
• Datagram Connectionless, where packets are
  routed independently, no dedicated path for the
  data transfer phase
• Packets may arrive out of order
• Pipelining of packets across network can induce
  out of order, but increase system throughput

10
Routing Tables in Datagram Networks

• Route determined by table lookup
• Routing decision involves finding the next hop in
  the route to the given destination
• Routing table has an entry for each destination
  specifying output port that leads to the next hop
• Size of table becomes impractical for very large
  number of destinations

11
Example Internet Routing

• Internet protocol uses datagram packet switching
  across networks
• Networks are treated as data links
• Hosts have two-port IP address
• Network address Host address
• Routers do table lookup on network address
• This reduces size of routing table
• In addition, network addresses are assigned so
  that they can also be aggregated
• Discussed as 8.2.5 Classless Interdomain Routing
  (CIDR) in Chapter 8

12
Packet Switching Virtual Circuit

• Call set-up phase establishes a fixed path along
  network before the data transfer phase
• All packets for the connection follow the same
  path
• Abbreviated header identifies connection on each
  link
• Packets queue for transmission
• Variable bit rates possible, negotiated during
  call set-up
• Delays are still variable, but will not be less
  than circuit switching

13
Connection Setup

• Signaling messages propagate as route is selected
• Signaling messages identify connection and setup
  tables in switches
• Typically a connection is identified by a local
  tag, Virtual Circuit Identifier (VCI)
• Each switch only needs to know how to relate an
  incoming tag in one input to an outgoing tag in
  the corresponding output
• Once tables are setup, packets can flow along the
  path

14
Connection Setup Delay

• Connection setup delay is incurred before any
  packet can be transferred
• Delay is acceptable for sustained transfer of
  large number of packets
• This delay may be unacceptably high if only a few
  packets are being transferred

15
Virtual Circuit Forwarding Tables

• Each input port of packet switch has a forwarding
  table
• Lookup entry for VCI of incoming packet
• Determine output port (next hop) and insert VCI
  for next link
• Very high speeds are possible
• Table can also include priority or other
  information about how packet should be treated

16
Cut-Through switching

• Some networks perform error checking on header
  only, so packet can be forwarded as soon as the
  header is received processed
• Delays reduced further with cut-through switching

17
Chapter 7Packet-Switching Networks

• Datagrams and Virtual Circuits
• Structure of a Packet Switch

18
Packet Switch Intersection where Traffic Flows
Meet
1
1
2
2
? ? ?
? ? ?
N
N

• Input ports contain multiplexed flows from access
  muxs other packet switches
• Flows are demultiplexed at input ports, routed
  and/or forwarded to output ports
• Packets buffered, prioritized, and multiplexed on
  output ports

19
Generic Packet Switch

• Unfolded View of Switch
• Ingress Line Card (input port)
• Header processing
• Demultiplexing
• Routing in large switches
• Controller
• Routing in small switches
• Signalling resource allocation
• Interconnection Fabric
• Transfer packets between line cards
• Egress Line Card (output port)
• Scheduling priority
• Multiplexing

20
Line Cards

• Folded View
• 1 circuit board is ingress/egress line card
• Physical layer processing
• Data link layer processing
• Network header processing
• Physical layer across fabric framing

21
Shared Memory Packet Switch
Output Buffering
Ingress Processing
Connection Control
1
1
Queue Control
2
2
3
3
Shared Memory


N
N
Small switches can be built by reading/writing
into shared memory
22
Crossbar Switches
(b) Output buffering
(a) Input buffering
Inputs
Inputs
3
1
1
2
3
8
2
3
3


N
N


1
2
3
N
1
2
3
N
Outputs
Outputs

• Large switches built from crossbar multistage
  space switches
• Requires centralized controller/scheduler (who
  sends to whom when)
• Can buffer at input, output, or both (performance
  vs complexity)

23
Self-Routing Switches

• Self-routing switches do not require controller
• Output port number determines route
• 101 ? (1) lower port, (2) upper port, (3) lower
  port

24
Time-Division Multiplexing

• High-speed digital channel like E-carrier and
  SDH, where the channel is divided into fixed
  number of time slots and dedicated to some ports

• Framing required
• Telephone digital transmission
• Digital transmission in backbone network

• (a) Each signal transmits 1 unit every 3T seconds

(b) Combined signal transmits 1 unit every T
seconds
25
Circuit Switches

• Circuits consist of dedicated resources in
  sequence of links switches across network for
  data transfer phase
• Circuit switch connects input links to output
  links

• Network

• Switch

26
Crossbar Space Switch

• N x N array of crosspoints
• Connect an input to an output by closing a
  crosspoint
• Nonblocking (internal blocking) Any input can
  connect to idle output
• Complexity N2 crosspoints

27
Multistage Space Switch

• Large switch is built with multiple stages
• The n inputs to a first-stage switch share k
  paths through intermediate crossbar switches
• Larger k (more intermediate switches) means more
  paths to output

? ? ?
28
? ? ? ?
