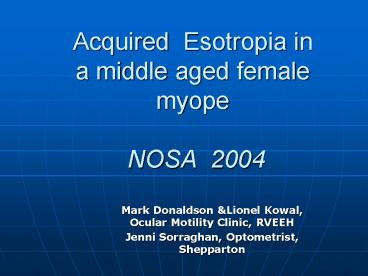

Acquired Esotropia in a middle aged female myope NOSA 2004

1
Acquired Esotropia in a middle aged female
myope NOSA 2004

• Mark Donaldson Lionel Kowal, Ocular Motility
  Clinic, RVEEH
• Jenni Sorraghan, Optometrist, Shepparton

2
Case Report
51 yo WCF 6 y progressive esotropia and
hypotropia POHx - Left anisomyopic
amblyopia - no known neurological / orbital
disease

3
Examination findings
VA. R 6/12 L HM Refr R
-0.50-1.00 x 175 L - 40 (ret) EOM 27 ? L
ET 12 ? L hypotropia Reduced Abduction
Elevation LE
4
Pre-op Photos
Poor elevation
L ET hypo
5
For neurologists only

• What now?

6
Axial length L 35 mm Normal LLR No intracranial
path
Inf displacement LLR Nasal displacement LSR SR/LR
angle 135 deg
7
For Ophthalmologists and neurologists

• What is this?

8
Large Angle Esotropia with High Myopia Heavy
Eye Syndrome
Progressive enlargement of myopic globe after
orbital growth has finished Globe appears to
prolapse / herniate between superior and lateral
recti ?orbital septum weakest here Abnormal
LR/SR position ? abnormal function Result
Large angle esotropia with hypotropia
9
From Yokoyama et al
10
From Yokoyama et al
Normal SR vector
New abnormal SR vector - elevates less well
adducts
normal
New abnormal LR vector ANTI- ELEVATOR
11
Large Angle ET High Myopia Heavy Eye
Syndromenot really heavy

• Inferior displacement of lateral rectus
• Reduced abducting force of the lateral rectus
• LR restricts elevation

12
Surgical management
Yokoyama procedure Join LR SR 15mm behind
limbus with permanent suture Elevates the
LR Abducts the SR Makes their function more
normal
13
Post operative photos

• BEFORE / AFTER PHOTOS STRAIGHT, BETTER ELEVATION

Pre operative
14
Post operative photos
15
Conclusions Large Angle Esotropia with High
Myopia (Heavy Eye Syndrome)
Unusual mechanism of acquired esotropia with
hypo in a uni- or bi- lateral myope acquired
change in orbital anatomy and muscle
mechanics Distinctive pathophysiology which
dictates a logical and usually effective
treatment
16
Conclusions Large Angle Esotropia with High
Myopia (Heavy Eye Syndrome)
Thank you
