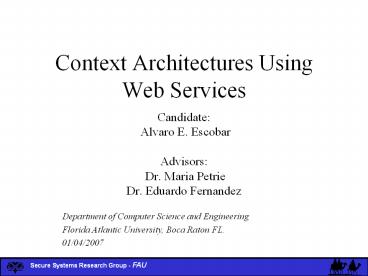

Context Architectures Using Web Services

1
Context Architectures Using Web Services

• Candidate
• Alvaro E. Escobar
• Advisors
• Dr. Maria Petrie
• Dr. Eduardo Fernandez

Department of Computer Science and
Engineering Florida Atlantic University, Boca
Raton FL. 01/04/2007
2
Agenda

• Review the following papers
• Cha04 T. Chaari, F.Laforest, A. Celentano.
  Design of Context-Aware Applications Based on
  Web Services. LIRIS. Dipartimento di
  Informatica. INSA Lyon, France
• Maa06 Z. Maamar, D.Benslimane, N. Narendra.
  What can Context do for Web Services?.
  Communications of the ACM, December 2006/Vol. 49,
  No. 12.
• Review our Context-aware Model
• Context Architecture Using Web Services

3
Design of Context-Aware Applications Based on Web
Services Cha04

• Context
• A way to adapt the behavior and the interface of
  an application, to the user situation and
  equipment.
• Adaptation vs Context-awareness
• Adaptation Capability to provide different
  versions/presentations of a service in order to
  suite the needs of the user.
• Context-awareness Capability of perceiving the
  user situation and of adapting the system
  behavior, as a consequence.

4
Design of Context-Aware Applications Based on Web
Services Cha04

• Steps to Context-awarenessDey01
• Capture low level contextual data from sensors.
• Build high level contextual information by
  interpreting data captured on step one.
• Carry interpreted information to the application
  and provide possible ways on how it can adapt to
  context changes.

5
Design of Context-Aware Applications Based on Web
Services Cha04

• Context representations
• Simple set of Attribute/Value pairs.
  Bel03,Cor04,Dey01,Fer07
• Use of RDF (Resource Description Framework).
  Bra01, Hel02
• As Ontologies. Che03,Gu04

6
Design of Context-Aware Applications Based on Web
Services Cha04

• How the application can adapt to context changes.
• Four approaches
• Conceptual Frameworks Focus on the architectural
  aspect of context-aware systems. Dey01
• Service Platforms Focus on providing pertinent
  services to a user, depending on context.
• Appliance Environments Focus on giving solutions
  to the heterogeneity problem by providing
  interoperability techniques and frameworks.
• Computing Environments Focus on designing the
  physical and logical infrastructure to hold
  ubiquitous systems.

7
Design of Context-Aware Applications Based on Web
Services Cha04

• Development of context-aware apps.
• Architecture supporting context-awareness at
  run-time.
• design the application to be context-aware.
• Web Services
• is widespread and loosely coupling approach to
  integration of applications.
• Adopt Web Services for context-aware application
  design.

8
Design of Context-Aware Applications Based on Web
Services
2
3

• Service Oriented Architecture (SOA) Cha04
• Context Capturing
• Context Interpreting
• Context Modeling
• Context Dissemination
• Context Adaptation
• Data flow (content)
• Visualization (UI)
• Application behavior (service)

1
4
4
5
9
Agenda

• Review the following papers
• Cha04 T. Chaari, F.Laforest, A. Celentano.
  Design of Context-Aware Applications Based on
  Web Services. LIRIS. Dipartimento di
  Informatica. INSA Lyon, France
• Maa06 Z. Maamar, D.Benslimane, N. Narendra.
  What can Context do for Web Services?.
  Communications of the ACM, December 2006/Vol. 49,
  No. 12.
• Review our Context-aware Model
• Context Architecture Using Web Services

10
What can Context do for Web Services?Maa06

• Web Services (WS)
• provide a language-neutral, loosely-coupled, and
  platform independent way for linking applications
  within organizations or enterprises across the
  Internet.
• facilitates composite services (CWS)
• describes list of component WS involved.
• describes execution order of WS involved.
• describes corrective strategy in case of an
  exception.

11
What can Context do for Web Services?Maa06

• WS limitations
• processes the requests it receives without
  considering its execution status, before
  committing to another request.
• lacks self-management to satisfy requirements of
• Scalability capacity of WS to interact with
  small or large community of WS without reducing
  its performance.
• Flexibility capacity of WS to adapt behavior
  according to the situation in which it operates.
• Autonomy capacity of WS to accept/reject/propose
  alternative demands of participation in CWS.

12
What can Context do for Web Services?Maa06

• A WS must assess its current capabilities, its
  ongoing commitments and its surrounding
  environment prior to binding to any CWS.
• Therefore WS must be context-aware
• Consider the following contextual aspects.
• Users Stationary or mobile
• Expertise Expert or novice
• Resources Fixed or handheld
• Time Morning or afternoon
• Location Cafeteria or meeting room

13
What can Context do for Web Services?Maa06

• Applying context awareness on deploying WS.
• Participation perspective is about overseeing
  the multiple composition scenarios in which a WS
  participates.
• Execution perspective is about looking for the
  computing resources on which a WS operates and
  monitoring them.
• Preference perspective is about ensuring that
  user preferences are integrated into the
  specification of the CWS.
• Context supports WS in their decision-making
  process to whether accept or reject participation
  in a CWS.

14
What can Context do for Web Services?Maa06

• Applying context awareness on CWS semantics.
• WS must agree on the meaning of the exchanged
  data.
• Semantic conflicts must be resolved automatically
  using context.
• Languages OWL-S (Ontology Web Language for WS)
  and WSDL-S (WS Description Language) can handle
  data conflicts of type structure but cannot
  handle data conflicts of type value.

15
What can Context do for Web Services?Maa06
16
What can Context do for Web Services?Maa06

• Applying context awareness on WS conciliation.
• W-Context for context of WS (fine-grain
  content).
• C-Context for context of CWS (course-grain
  content).

17
Agenda

• Review the following papers
• Cha04 T. Chaari, F.Laforest, A. Celentano.
  Design of Context-Aware Applications Based on
  Web Services. LIRIS. Dipartimento di
  Informatica. INSA Lyon, France
• Maa06 Z. Maamar, D.Benslimane, N. Narendra.
  What can Context do for Web Services?.
  Communications of the ACM, December 2006/Vol. 49,
  No. 12.
• Review our Context-aware Model
• Context Architecture Using Web Services

18
ContextAware Model
19
ContextAware Model
20
ContextAware Model using Web Services
21
Agenda

• Review the following papers
• Cha04 T. Chaari, F.Laforest, A. Celentano.
  Design of Context-Aware Applications Based on
  Web Services. LIRIS. Dipartimento di
  Informatica. INSA Lyon, France
• Maa06 Z. Maamar, D.Benslimane, N. Narendra.
  What can Context do for Web Services?.
  Communications of the ACM, December 2006/Vol. 49,
  No. 12.
• Review our Context-aware Model
• Context Architecture Using Web Services

22
Context Architecture Using Web Services
23
Conclusions

• Context is a fundamental concept in mobile
  systems.
• Different researchers use different variations of
  context.
• Web Services is the widespread approach to
  application integration.
• Integrated Web Services into our Context Model
  for easier application integration.
• Created a Context Architecture incorporating Web
  Services.

24
Future Work

• Simulate the many context and location-aware
  scenarios through our model.
• Build sequence diagrams for some Use Cases.
• The 4th International Conference on Ubiquitous
  Intelligence and Computing (UIC-07). Hong Kong,
  China, July 11-13, 2007. (01/15/2007)
• ICPS'07 IEEE International Conference on
  Pervasive Services, July 15 - 20, 2007, Istanbul,
  Turkey (02/04/2007)
• ICWN'07- The 2007 International Conference on
  Wireless Networks. Monte Carlo Resort, Las Vegas,
  June 25-28, 2007 (02/20/2007)
• The Second International Conference on Pervasive
  Computing and Applications (ICPCA07) July 26-27,
  2007, Birmingham, UK (02/28/2007)
• First International Conference on Autonomic
  Computing and Communication Systems, 28-30
  October 2007, Rome Italy (04/18/2007)

25
Context Architectures Using Web Services

• References
• Bel03 P. Bellavista, A. Corradi, R. Montanari,
  C. Stefanelli, Context-Aware Middleware for
  Resource Management in the Wireless Internet,
  IEEE Transactions on Software Engineering. Vol.
  29, No. 12, December 2003. Page 1086.
• Bra01 T. Bray. What is RDF? http//www.xml.com/p
  ub/a/2001/01/24/rdf.html,
• January 24, 2001
• Cha04 T. Chaari, F.Laforest, A. Celentano.
  Design of Context-Aware Applications. Based on
  Web Services. LIRIS. Dipartimento di
  Informatica. INSA Lyon, France
• Che03 H. Chen, T. Finin and A. Joshi. An
  Ontology for Context-Aware Pervasive Computing
  Environments. IJCAI Workshop on Ontologies and
  Distributed Systems, IJCAI 2003, Acapulco,
  Mexico, 2003.
• Cor04 A. Corradi, R. Montanari, D. Tibaldi,
  Context-Based Access Control Management in
  Ubiquitous Environments, Network Computing and
  Applications, Proceedings of the Third IEEE
  International Symposium on (NCA'04), August 30 -
  September 01, 2004, Boston, MA.
• Dey01 A. Dey, G. Abowd, D. Salber, A
  Conceptual Framework and a Toolkit for Supporting
  the Rapid Prototyping of Context-Aware
  Applications - Human-Computer Interaction, 2001
  - Lawrence Earlbaum
• Fer07 E. B. Fernandez, A. E. Escobar, M.
  Larrondo-Petrie. Contexts and Context-Based
  Access Control. The Third International
  Conference on Wireless and Mobile Communications,
  ICWCF07, March 2007. Guadeloupe, French
  Caribbean.
• Fer05 E.B. Fernandez, T. Sorgente, N. Delessy,
  and M.M.Larrondo-Petrie, "A survey of web
  services security", Technical report to DISA
  (Defense Information Systems Agency), grant
  ?????, 2005
• Fer04 E.B. Fernandez, "Web services security
  An overview of standards and industrial
  practice", 2004
• Gu04 T. Gu, X.H. Wang, H.K. Pung, D.Q. Zhang.
  An Ontology-based Context Model in Intelligent
  Environments, Proceedings of Communication
  Networks and Distributed Systems, 2004.
• Hel02 A. Held, S. Buchholz, A. Schill,
  "Modeling of Context Information for Pervasive
  Computing Applications", In Proceedings of the
  6th World Multiconference on Systemics,
  Cybernetics and Informatics (SCI), Orlando, FL,
  July 2002.
• Rae05M. Raento, A. Oulasvirta, R. Petit, H.
  Toivonen. ContextPhone A Prototyping Platform
  for Context-Aware Mobile Applications. IEEE
  Pervasive Computing, 2005.
• Sil05 J. Siljee, S. Vintges, J. Nijhuis. A
  Context Architecture for Service-Centric
  Systems. Context Modelling and Management in
  Ambient-Aware Pervasive Environments. LoCA 2005,
  Oberpfaffenhofen, Germany, May 12-13, 2005.
• W3C04 http//www.w3.org/TR/ws-arch/
