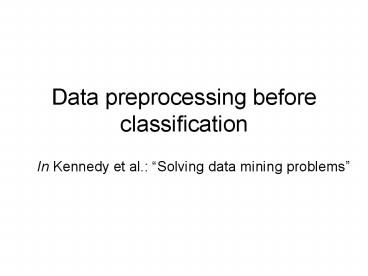

Data preprocessing before classification

1
Data preprocessing before classification

• In Kennedy et al. Solving data mining problems

2
Outline

• Ch.7 Collecting data
• Ch.8 Preparing data
• Ch.9 Data preprocessing

3
Ch.7 Collecting data
4
Collecting data

• Collecting example patterns
• Inputs (vectors of independent variables)
• Outputs (vectors dependent variables)
• More data is better
• Begin with an elementary set of data

5
Collecting data

• Choose an appropriate sampling rate for
  time-series data.
• Make sure the data measurements units are
  consistent.
• Keep non-essential variables not in the input
  vector
• Make sure no major structural (systemic) changes
  have occurred during collection.

6
Collecting data

• How much data is enough?
• Training and testing using a subset of data
• If the performance does not increase when full
  data is used, data is enough
• There are statistical validating methods (Ch.11)
• Using simulated data
• When it is difficult to collect (sufficient) data
• Realistic
• Representative

7
Ch.8 Preparing data
8
Preparing data

• Handling
• Missing data
• Categorical data
• Inconsistent data and outliers

9
Missing data

• Discard incomplete example patterns
• Manually enter a reasonable, probable, or
  expected values
• Use an statistic generated from the example
  patterns with that value
• Mean, mode
• Encode missing values explicitly by creating new
  indicator variables
• Generate a predictive model to predict each of
  the missing data value

10
Categorical data

• Ordinal
• Convert to a numerical representation in a
  straightforward manner
• Low, medium, high gt 0, 1, 2
• Nominal
• One of n representation
• Encode the input variables as n different binary
  inputs, when there are n distinct categories.

11
Further process of one of n

• When n is too large, reduce the number of inputs
  in the new encoding.
• Manually
• PCA-based reduction
• Reduce the one-of-n representation to a one-of-m
  representation where m is less than n.
• Eigenvalue-based reduction
• Output variable-based reduction

12
Inconsistent data and outliers

• Removing erroneous data
• Identifying inconsistent data
• Thresholding, filtering
• Outliers
• Data points that lie outside of the normal region
  of interest in the input space, which may be
• Unusual situations that are correct
• Misleading or incorrect measurements

13
Outliers

• Ways to spot outliers
• Plot box plot, histogram
• Number of S.D. from the mean
• Handling outliers
• Remove them
• Assumption the input space where the outliers
  reside are not concerned
• Winzorize them
• Convert the values of outliers into the values of
  upper or lower thresholds.
• Outliers can always be reintroduced into the
  satisfying model to study the changes in the
  performance of the model.

14
Ben Shabad
15
Ch.9 Data preprocessing
16
Reasons to preprocess data

• Reducing noise
• Enhancing the signal
• Reducing input space
• Feature extraction
• Normalizing data
• Modifying prior probabilities (specific for
  classification)

17
Reducing noise

• Averaging data values
• Thresholding data
• Convert numeric format data into categorical
• E.g. grey-scale gt monotone image

18
Reducing input space

• Principle component analysis (PCA)
• Identify m-dimensional subspace of the
  n-dimensional input space
• original n variables are reduced to m variables
  that are mutually orthogonal (independent)
• Eliminating correlated input variables
• Identify highly correlated input variables by
• Statistical correlation tests
• Visual inspection of graphed data variables
• Seeing if a data variable can be modeled using
  one or more others.

19
Reducing input space

• Combining non-correlated input variables
• Sensitivity analysis
• If variations of a particular input variable
  cause large changes in the estimation model
  output, the variable is very significant.
• Sensitivity analysis prunes input variables based
  on information provided by both input and output
  data.

20
Normalizing data

• Not transform to normal distribution
• For models that perform better
• Non-parametric algorithms implicitly assume
  distances in different directions carry the same
  weight (e.g. K-nearest neighbor, KNN)
• Backpropagation (BP) and multi-layered perception
  (MLP) models often perform better if all inputs
  and outputs are normalized
• Avoiding numerical problems

21
Types of normalization

• Min-max normalization
• It preserves all relationships of the data values
  exactly
• It would compress the normal range if extreme
  values or outliers exist
• Z-score normalization
• Sigmoidal normalization

22
Other considerations

• According to the characteristics of the specific
  classifiers being used for modeling
• E.g. CHAID uses categorical data directly
• Input variables produce the best modeling
  accuracy when exhibiting a uniform or Gaussian
  distribution
• Add expert knowledge when preprocessing data

23
Get prepared and then go!
