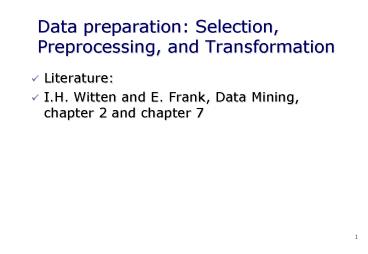

Data preparation: Selection, Preprocessing, and Transformation

1
Data preparation Selection, Preprocessing, and
Transformation

• Literature
• I.H. Witten and E. Frank, Data Mining, chapter 2
  and chapter 7

2
Fayyads KDD Methodology
data
3
Contents

• Data Selection
• Data Preprocessing
• Data Transformation

4
Data Selection

• Goal
• Understanding the data
• Explore the data
• possible attributes
• their values
• distribution, outliers

5
Getting to know the data

• Simple visualization tools are very useful for
  identifying problems
• Nominal attributes histograms (Distribution
  consistent with background knowledge?)
• Numeric attributes graphs (Any obvious
  outliers?)
• 2-D and 3-D visualizations show dependencies
• Domain experts need to be consulted
• Too much data to inspect? Take a sample!

6
Data preprocessing

• Problem different data sources (e.g. sales
  department, customer billing department, )
• Differences styles of record keeping,
  conventions, time periods, data aggregation,
  primary keys, errors
• Data must be assembled, integrated, cleaned up
• Data warehouse consistent point of access
• External data may be required (overlay data)
• Critical type and level of data aggregation

7
Data Preprocessing

• Choose data structure (table, tree or set of
  tables)
• Choose attributes with enough information
• Decide on a first representation of the
  attributes (numeric or nominal)
• Decide on missing values
• Decide on inaccurate data (cleansing)

8
Attribute types used in practice

• Most schemes accommodate just two levels of
  measurement nominal and ordinal
• Nominal attributes are also called categorical,
  enumerated, or discrete
• But enumerated and discrete imply order
• Special case dichotomy (boolean attribute)
• Ordinal attributes are called numeric, or
  continuous
• But continuous implies mathematical continuity

9
The ARFF format

• ARFF file for weather data with some numeric
  features
• _at_relation weather
• _at_attribute outlook sunny, overcast, rainy
• _at_attribute temperature numeric
• _at_attribute humidity numeric
• _at_attribute windy true, false
• _at_attribute play? yes, no
• _at_data
• sunny, 85, 85, false, no
• sunny, 80, 90, true, no
• overcast, 83, 86, false, yes
• ...

10
Attribute types

• ARFF supports numeric and nominal attributes
• Interpretation depends on learning scheme
• Numeric attributes are interpreted as
• ordinal scales if less-than and greater-than are
  used
• ratio scales if distance calculations are
  performed
• (normalization/standardization may be required)
• Instance-based schemes define distance between
  nominal values (0 if values are equal, 1
  otherwise)
• Integers nominal, ordinal, or ratio scale?

11
Nominal vs. ordinal

• Attribute age nominalIf age young and
  astigmatic no and tear production rate
  normal then recommendation softIf age
  pre-presbyopic and astigmatic no and
  tear production rate normal then
  recommendation soft
• Attribute age ordinal(e.g. young lt
  pre-presbyopic lt presbyopic)If age ?
  pre-presbyopic and astigmatic no and
  tear production rate normal then
  recommendation soft

12
Missing values

• Frequently indicated by out-of-range entries
• Types unknown, unrecorded, irrelevant
• Reasons malfunctioning equipment, changes in
  experimental design, collation of different
  datasets, measurement not possible
• Missing value may have significance in itself
  (e.g. missing test in a medical examination)
• Most schemes assume that is not the case ?
  missing may need to be coded as additional
  value

13
Inaccurate values

• Reason data has not been collected for mining it
• Result errors and omissions that dont affect
  original purpose of data (e.g. age of customer)
• Typographical errors in nominal attributes
  ?values need to be checked for consistency
• Typographical and measurement errors in numeric
  attributes ? outliers need to be identified
• Errors may be deliberate (e.g. wrong zip codes)
• Other problems duplicates, stale data

14
TransformationAttribute selection

• Adding a random (i.e. irrelevant) attribute can
  significantly degrade C4.5s performance
• Problem attribute selection based on smaller and
  smaller amounts of data
• IBL is also very susceptible to irrelevant
  attributes
• Number of training instances required increases
  exponentially with number of irrelevant
  attributes
• Naïve Bayes doesnt have this problem.
• Relevant attributes can also be harmful

15
Scheme-independent selection

• Filter approach assessment based on general
  characteristics of the data
• One method find subset of attributes that is
  enough to separate all the instances
• Another method use different learning scheme
  (e.g. C4.5, 1R) to select attributes
• IBL-based attribute weighting techniques can also
  be used (but cant find redundant attributes)
• CFS uses correlation-based evaluation of subsets

16
Attribute subsets for weather data
17
Searching the attribute space

• Number of possible attribute subsets is
  exponential in the number of attributes
• Common greedy approaches forward selection and
  backward elimination
• More sophisticated strategies
• Bidirectional search
• Best-first search can find the optimum solution
• Beam search approximation to best-first search
• Genetic algorithms

18
Scheme-specific selection

• Wrapper approach attribute selection implemented
  as wrapper around learning scheme
• Evaluation criterion cross-validation
  performance
• Time consuming adds factor k2 even for greedy
  approaches with k attributes
• Linearity in k requires prior ranking of
  attributes
• Scheme-specific attribute selection essential for
  learning decision tables
• Can be done efficiently for DTs and Naïve Bayes

19
Discretizing numeric attributes

• Can be used to avoid making normality assumption
  in Naïve Bayes and Clustering
• Simple discretization scheme is used in 1R
• C4.5 performs local discretization
• Global discretization can be advantageous because
  its based on more data
• Learner can be applied to discretized attribute
  or
• It can be applied to binary attributes coding the
  cut points in the discretized attribute

20
Unsupervised discretization

• Unsupervised discretization generates intervals
  without looking at class labels
• Only possible way when clustering
• Two main strategies
• Equal-interval binning
• Equal-frequency binning (also called histogram
  equalization)
• Inferior to supervised schemes in classification
  tasks

21
Entropy-based discretization

• Supervised method that builds a decision tree
  with pre-pruning on the attribute being
  discretized
• Entropy used as splitting criterion
• MDLP used as stopping criterion
• State-of-the-art discretization method
• Application of MDLP
• Theory is the splitting point (log2N-1 bits)
  plus class distribution in each subset
• DL before/after adding splitting point is compared

22
Example temperature attribute
23
Formula for MDLP

• N instances and
• k classes and entropy E in original set
• k1 classes and entropy E1 in first subset
• k2 classes and entropy E2 in first subset
• Doesnt result in any discretization intervals
  for the temperature attribute

24
Other discretization methods

• Top-down procedure can be replaced by bottomup
  method
• MDLP can be replaced by chi-squared test
• Dynamic programming can be used to find optimum
  k-way split for given additive criterion
• Requires time quadratic in number of instances if
  entropy is used as criterion
• Can be done in linear time if error rate is used
  as evaluation criterion

25
Transformation

• WEKA provides a lot of filters that can help you
  transforming and selecting your attributes!
• Use them to build a promising model for the
  caravan data!
