Multi-Standard Radio

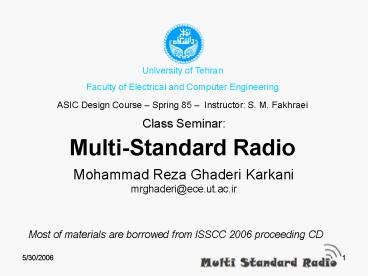

1
Multi-Standard Radio
University of Tehran Faculty of Electrical and
Computer Engineering
ASIC Design Course Spring 85 Instructor S.
M. Fakhraei
Class Seminar

• Mohammad Reza Ghaderi Karkani
• mrghaderi_at_ece.ut.ac.ir

Most of materials are borrowed from ISSCC 2006
proceeding CD
2
Outlines

• Introduction
• Radio Hardware Platform
• Recent works
• GSM/GPRS
• GPS for Cell-phones
• DVB-H
• MB-OFDM UWB
• GSM/802.11g WLAN
• Conclusion

3
Introduction

• Reconfigurable devices for combined signal paths
  are technology enablers for Multi band, Multi
  mode, Software Radio and Multi standard Radios.
• Features for future multiradio devices
• Cellular GSM/WCDMA/
• Wireless broadband WLAN 802.11a/b/g/n/
• Short range connectivity BT UWB
• Positioning GPS/Galileo
• Broadcast/TV DVB-H
• Design considerations
• Architecture and system partitioning
• Power management
• IP blocks and interfaces

4
From Factor of Multimedia
WCDMA/GSM
BT/WLAN
GPS/GALILEO
DVB-H
UWB
WCDMA diversity
WLAN diversity
5
Radio Hardware Platform

• How many ASICs?
• Single-chip radios or separate RF BB ASICs
• External RF components antennas, filters, PAs,
  switches,
• How many modules?
• Antennas distributed all over the product
• Increased ASIC integration level not any more the
  only driver in system architectural partitioning
• Options
• Separate single-chip ASICs or system modules
  close to antenna
• One centralized modem with distributed antennas
• Something in between (including different
  choices)

6
A Fully Integrated SoC for GSM/GPRS in 0.13µm
2
Infineon
7
A Fully Integrated SoC for GSM/GPRS in 0.13µm
2
8
A Fully Integrated SoC for GSM/GPRS in 0.13µm

• Crosstalk from the digital blocks into RF is one
  of the biggest concerns in single-chip
  transceivers.
• Substrate noise pickup, package crosstalk,
  magnetic coupling between the coils, and supply
  coupling degrade the RF performance.

2
9
A 20mW 3.24mm2 Fully Integrated GPS Radio for
Cell-Phones

• Cellular phones with embedded GPS engines will
  enable network-based positioning methods.
• Assisted GPS solutions allow a direct migration
  path into 3G handsets besides being more accurate
  than cell tower-based ones.

3
RFDomus
10
DVB-H

• DVB-H is a new standard that is expected to be
  widely deployed in future mobile devices.
• The first DVB-H field trials were held in Europe
  and used the UHF band.
• DVB-H has also been targeted for deployment in
  the United States using L-band spectrum between
  1670MHz and 1675MHz.
• There has also been discussion of reallocating
  European L-band DAB frequencies for DVB-H service.

11
Dual-band Single-Ended-Input Direct-Conversion
DVB-H Receiver
4
Microtune, Plano
12
A Multi-Band Multi-Mode CMOSDirect-Conversion
DVB-H Tuner
5
Samsung
13
Measured performance summary comparison
Dual-band Single-Ended-Input Direct-Conversion
DVB-H Receiver?
4
?A Multi-Band Multi-Mode CMOSDirect-Conversion
DVB-H Tuner (0.18µm 40GHz-fT CMOS technology)
5
14
A 1.1V 3.1-to-9.5GHz MB-OFDMUWB Transceiver in
90nm CMOS
6
NEC
15
A 1.1V 3.1-to-9.5GHz MB-OFDMUWB Transceiver in
90nm CMOS
6
16
Software-Defined Radio Receiver

• A software-defined radio (SDR) can tune to any
  frequency band, select any reasonable channel
  bandwidth, and detect any known modulation.
• While progress has been made on DSP and baseband
  functions for SDR, the low-power radio front-end
  has remained elusive.
• An ADC at the antenna which digitizes all bands
  simultaneously with equal fidelity will not be
  practical in the foreseeable future.
• Todays mobile SDR receiver needs a wideband,
  linear RF front-end that can be tuned to any one
  channel at a time in the band from 800MHz to5GHz.

17
An 800MHz to 5GHz Software-Defined Radio Receiver
in 90nm CMOS
7
UCLA
18
An 800MHz to 5GHz Software-Defined Radio Receiver
in 90nm CMOS

• The on-chip receiver selectivity at 900MHz is
  sufficient for GSM and at 2.4GHz for 802.11g WLAN

7
19
Conclusion

• Multi-Standard Radio Design is not only an ASIC
  level issue
• Hierarchical design and design abstraction are
  needed in system design
• Hybrid solutions cover numerous different options
  to realize Multi-Standard Radio

20
References

1. A. Parssinen, System Design For Multi-Standard
   Radios, ISSCC 2006, GIRAFE forum.
2. J. Kissing, R. Koch, A Fully Integrated SoC for
   GSM/GPRS in 130nm CMOS, ISSCC 2006.
3. V. Della Torre, et al., A 20mW 3.24mm2 Fully
   Integrated GPS Radio for Cell-Phones , ISSCC
   2006.
4. M. Womac, et al., Dual-Band Single-Ended-Input
   Direct-Conversion DVB-H Receiver , ISSCC 2006.
5. Y. J. Kim, et al., A Multi-Band Multi-Mode CMOS
   Direct-Conversion DVB-H Tuner, ISSCC 2006.
6. A. Tanaka, et al., A 1.1V 3.1 to 9.5 GHz MB-OFDM
   UWB Transceiver in 90nm CMOS, ISSCC 2006.
7. R. Bagheri, et al., An 800MHz-5GHz
   Software-Defined Radio Receiver in 90nm CMOS,
   ISSCC 2006.

21

• Questions?

22

• Thank you!
