Title: Enterprise Architecture


1

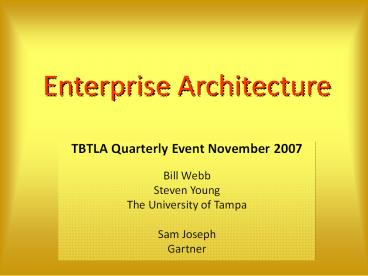

Enterprise Architecture
  • TBTLA Quarterly Event November 2007
  • Bill Webb
  • Steven Young
  • The University of Tampa
  • Sam Joseph
  • Gartner

2
What is Enterprise Architecture?
  • Enterprise architecture is the business of
    architecting the enterprise.
  • Noun and Verb
  • The goal of the process is to take the business
    strategy and translate it into effective change
    of the enterprise
  • The process itself involves creating key
    principals and models that describe the
    enterprises future and enable its evolution.

3
What is Enterprise Architecture?
  • The scope of enterprise architecture includes the
    enterprises people, processes, information, and
    technology and their relationships to each other
    and the external environment
  • Enterprise architects are the people who create
    the solutions to address the business challenges
    and support the enterprise in implementing those
    solutions.

4
Why is Enterprise Architecture Needed?
  • System Complexity
  • Information systems and business processes are
    complex and will become increasingly complex in
    the future.
  • As system complexity increases, the costs to
    build and maintain those systems increase and
    take more of an organizations resources in time,
    money, and personnel.

5
Why is Enterprise Architecture Needed?
  • Poor business alignment
  • While costs are increasing, it is becoming harder
    for organizations to make sure that IT systems
    and spending are aligned with business needs
  • IT costs are increasing while the value they
    bring to an organization is decreasing if the IT
    and business goals are not aligned.

6
History of Enterprise Architecture
  • The field now known as enterprise architecture
    first came about 20 years ago.
  • In 1987, J.A. Zachman wrote an article entitled
    A Framework for Information Systems
    Architecture in the IBM Systems Journal.
  • Zachman originally described as information
    systems architectural framework, but it was soon
    renamed enterprise-architecture framework.

7
Zachman Framework for Enterprise Architectures
  • John Zachman describes the framework as, Simply
    a logical structure for classifying and
    organizing the descriptive representations of an
    Enterprise that are significant to the management
    of the Enterprise, as well as the development of
    the Enterprises systems.

Source http//www.zachmaninternational.com/2/Home
.asp
8
Zachman Framework
Source http//www.zachmaninternational.com/2/Zach
manFramework.asp
9
How it works?
  • Rows- illustrate different descriptions of an
    enterprise from a certain perspective.

Source http//www.zachmaninternational.com/2/Zach
manFramework.asp
10
How it works?
  • Columns- One aspect of the enterprise from top to
    the bottom from different perspectives.

Source http//www.zachmaninternational.com/2/Zach
manFramework.asp
11
Strengths and Weaknesses
  • Strength- End result (table)
  • Weaknesses No process

12
The Open Group Architecture Framework (TOGAF)
  • Divides enterprise architecture into four
    categories
  • Business architectureDescribes the processes the
    business uses to meet its goals
  • Application architectureDescribes how specific
    applications are designed and how they interact
    with each other
  • Data architectureDescribes how the enterprise
    datastores are organized and accessed
  • Technical architectureDescribes the hardware and
    software infrastructure that supports
    applications and their interactions

13
Architecture Development Method
  • ADM or Architecture Development Method is the
    process for creating the enterprise architecture

14
How it works?
Sourcehttp//www.opengroup.org/architecture/togaf
8-doc/arch/Figures/prelim.gif
15
How it works?
Source http//www.developer.com/java/ent/article.
php/3374171
16
Strengths and Weaknesses
  • Strengths- provides a process for developing an
    architecture.
  • Flexible so can be tailored to a companys
    organization
  • Weakness- Open/generic, no specific end result

17
Federal Enterprise Architecture (FEA)
  • Technical Architecture Framework for Information
    Management (TAFIM) was one of the first attempts
    at enterprise architecture by the Department of
    Defense in the mid 90s
  • Influenced the Clinger-Cohen Act which stated
    that federal agencies should improve their IT
    investments
  • Over time Government efforts in enterprise
    architecture lead to the creation of FEA

18
How it works?
  • An enterprise is built of segments
  • There are two types of segments
  • Core mission area segments
  • Business-services segments
  • Also use enterprise services which span political
    boundaries

19
Segment Map of the Federal Government
Sourcehttp//msdn2.microsoft.com/en-us/architectu
re/bb466232.aspx
20
FEA Process
  • Step 1 Architectural AnalysisDefine a simple
    and concise vision for the segment, and relate it
    back to the organizational plan.
  • Step 2 Architectural DefinitionDefine the
    desired architectural state of the segment,
    document the performance goals, consider design
    alternatives, and develop an enterprise
    architecture for the segment, including business,
    data, services, and technology architectures.
  • Step 3 Investment and Funding StrategyConsider
    how the project will be funded.
  • Step 4 Program-Management Plan and Execute
    ProjectsCreate a plan for managing and executing
    the project, including milestones and performance
    measures that will assess project success.

21
Strengths and Weaknesses
  • Strengths- clearly defines output and provides a
    process for creating a framework
  • Weakness- Government architecture so it has not
    been applied to a business before
  • General Accounting Office (GAO) reported that,
    Only 20 of 96 agencies examined had established
    at least the foundation for effective
    architecture management. Further, while 22
    agencies increased in maturity since 2001, 24
    agencies decreased in maturity and 47 agencies
    remained the same.

22
Gartner
  • Enterprise architecture is the process of
    translating business vision and strategy into
    effective enterprise change by creating,
    communicating and improving the key principles
    and models that describe the enterprise's future
    state and enable its evolution.

23
GEAF
  • Three primary viewpoints
  • enterprise business architecture (EBA)
  • enterprise information architecture (EIA)
  • enterprise technology architecture (ETA).
  • Introduces the Enterprise Solution Architecture
    Framework (ESAF) - deals directly with
  • combining and reconciling the loosely coupled and
    often conflicting viewpoints
  • into a unified architecture for an enterprise
    solution.

24
Gartner process model
25
Strengths and Weaknesses
  • Strengths
  • Practice guidance
  • Maturity model
  • Business focus
  • Weakness
  • Information availability
  • Reference models

26
Q A
