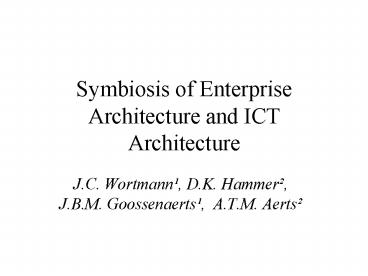

Title: Symbiosis of Enterprise Architecture and ICT Architecture


1
Symbiosis of Enterprise Architecture and ICT
Architecture
  • J.C. WortmannÂą, D.K. Hammer², J.B.M.
    Goossenaerts¹, A.T.M. Aerts²

2
Overview
  • Four architectural domains
  • Six phases in enterprise architectures
  • Six times the same point
  • It takes two to tango
  • Domain Architectures Overview
  • Conclusion it takes four to tango
  • All in 10 minutes !!

3
Four Architectural Domains
  • enterprise architecture,
  • model architecture,
  • software architecture and
  • ICT-platform architecture.

4
Enterprise Architecture
  • Enterprises (recursively),
  • their contracts,
  • their structure,
  • their processes
  • their positions
  • their controls
  • their exchange (G, S, H, I, M, E) with others

5
Model Architecture
  • Object models
  • Resource Models
  • Workflow Models
  • Products Models
  • Document Models
  • Interaction Models
  • Users and Applications,
  • etcetera

6
Software Architecture
  • Logical view (end-user functionality)
  • Components view (development)
  • Process view (run-time behavior)
  • Physical view (installation)
  • Usage cases and scenarios

7
ICT platform Architecture
  • Structure
  • Interaction
  • Distribution
  • Concerns
  • Performance
  • Stakeholders

8
Six Phases
  • the functional hierarchy
  • the functional hierarchy with function oriented
    automation
  • the functional hierarchy with shared data base on
    mainframes
  • the process oriented enterprise
  • the supply chain oriented enterprise
  • the web-enabled agile enterprise

9
1. Functional hierarchy - no automation
  • Enterprise Architecture
  • functional hierarchy -- machine bureaucracy
  • focus on resources within functional silos
  • Model Architecture -- hierarchy
  • business processes carried by document flows
  • object models implemented in files
  • Software Architecture
  • humans perform calculations and access files
  • ICT Platform Architecture
  • paper, pencil, abacus, telegraph, telephone,mail

10
Point 1
  • Model architecture (hierarchy, processes)
    enables
  • predictability,
  • correctness,
  • repeatability, and
  • accountability.

11
2. Functional hierarchy silo automation
  • Enterprise Architecture (same)
  • Vertical communication well organized
  • Horizontal communication slow and error-prone
  • Model Architecture (same)
  • object models passive but explicit in functional
    datastructures
  • Software Architecture
  • monolithic applications per functional area
  • ICT Platform Architecture
  • mainframe with terminals

12
Point 2
  • Silo-based automation enables
  • speed and
  • reliability
  • of all data-related activities
  • and calculations.
  • ..Automation enables improvement

13
3. F-hierarchy shared DB on mainframe
  • Enterprise Architecture logistics
  • matrix organization to co-ordinate flows
  • Model Architecture
  • single conceptual data model for whole enterprise
  • explicit integration by process diagrams
  • Software Architecture
  • separation between data layer and application
    layer
  • ICT Platform Architecture
  • mainframes with minicomputers as satelites

14
Point 3
  • Conceptual database and 3 schema architecture
    bridge gap between enterprise and ICT-domain
  • Automation problem of functional hierarchy is
    solved!
  • ICT-solution is cast in concrete while business
    requires change business process re-engineering

15
4. process-oriented enterprise
  • Enterprise Architecture
  • Business Units value-adding processes become
    leading principle rather than functional units
  • Model Architecture
  • Workflow plays the dominant role in modeling
  • Object-orientation emerges
  • Software Architecture
  • Best-of-breed standard integration rather than ad
    hoc
  • separation of UI, business logic and data access
  • ICT Platform Architecture
  • 2 tier client-server LAN open platforms

16
Point 4
  • Client-server enables internal integration
  • in a more flexible way than ad-hoc integration
  • ideal tool for BPR
  • But .. Enterprise needs are already moving
    towards external integration over the supply chain

17
5. SC process oriented enterprise
  • Enterprise Architecture
  • cross-enterprise business processes
  • re-definition of roles in the supply chain
  • Model Architecture
  • federated models of heterogeneous origin
  • semantic mapping and explicit SC modeling
  • Software Architecture
  • asynchronous message-based integration
  • mapping and transaction services rich UI
  • ICT Platform Architecture
  • WAN 3-tier CS Distributed data and processing

18
Point 5
  • Enterprise application integration technology
    enables supply chain integration
  • Enterprises leverage these technologies to move
    forward towards more responsiveness and agility

19
6. Agile process-oriented enterprisethe supply
chain is the enterprise
  • Enterprise Architecture
  • differentiation scope globalization
  • collaboration
  • Model Architecture
  • task-based UI self-descriptive data scope and
    roles
  • executable models distant users differentiated
  • Software Architecture
  • thin client mobile agents alert and launch
  • ICT Platform Architecture
  • ubiquituous asynchronous, heterogeneous computing

20
Point 6
  • ICT developments enable enterprises to make
    progress in directions where they would like to
    go collaborativeness
  • Enterprises leverage ICT developments as soon as
    they occur -- when there is a market opportunity
    e-business

21
Domain architecture - overview
22
Point 7
  • Modularity occurs within a domain
  • Performance is defined within a domain
  • Integration covers several domains
  • Breakthrough occurs in several domains
  • Architecting requires several domains

23
Conclusion
  • Enterprise architectures and ICT architectures
    move forward in symbiosis
  • It takes four to tango
