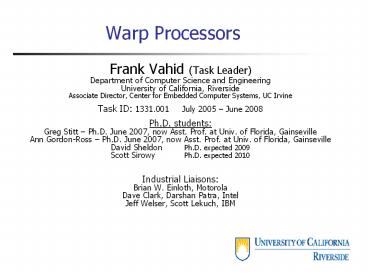

Warp Processors

• Frank Vahid (Task Leader)
• Department of Computer Science and Engineering
• University of California, Riverside
• Associate Director, Center for Embedded Computer
  Systems, UC Irvine
• Task ID 1331.001 July 2005 June 2008
• Ph.D. students
• Greg Stitt Ph.D. June 2007, now Asst. Prof. at
  Univ. of Florida, Gainseville
• Ann Gordon-Ross Ph.D. June 2007, now Asst.
  Prof. at Univ. of Florida, Gainseville
• David Sheldon Ph.D. expected 2009
• Scott Sirowy Ph.D. expected 2010
• Industrial Liaisons
• Brian W. Einloth, Motorola
• Dave Clark, Darshan Patra, Intel
• Jeff Welser, Scott Lekuch, IBM

2
Task Description

• Warp processing background
• Idea Invisibly move binary regions from
  microprocessor to FPGA ? 10x speedups or more,
  energy gains too
• Task Mature warp technology
• Years 1/2
• Automatic high-level construct recovery from
  binaries
• In-depth case studies (with Freescale)
• Warp-tailored FPGA prototype (with Intel)
• Years 2/3
• Reduce memory bottleneck by using smart buffer
• Investigate domain-specific-FPGA concepts (with
  Freescale)
• Consider desktop/server domains (with IBM)

3
Background

• Motivated by commercial dynamic binary
  translation of early 2000s

Performance
µP
VLIW
VLIW Binary
e.g., Transmeta Crusoe code morphing
x86 Binary
Binary Translation

• Warp processing (Lysecky/Stitt/Vahid 2003-2007)
  dynamically translate binary to circuits on FPGAs

4
Warp Processing Background
1
Initially, software binary loaded into
instruction memory
Profiler
I Mem
µP
D
FPGA
On-chip CAD
5
Warp Processing Background
2
Microprocessor executes instructions in software
binary
Profiler
I Mem
µP
D
FPGA
On-chip CAD
6
Warp Processing Background
3
Profiler monitors instructions and detects
critical regions in binary
Profiler
Profiler
I Mem
µP
µP
beq
beq
beq
beq
beq
beq
beq
beq
beq
beq
add
add
add
add
add
add
add
add
add
add
D
FPGA
On-chip CAD
7
Warp Processing Background
4
On-chip CAD reads in critical region
Profiler
Profiler
I Mem
µP
µP
D
FPGA
On-chip CAD
On-chip CAD
8
Warp Processing Background
5
On-chip CAD decompiles critical region into
control data flow graph (CDFG)
Profiler
Profiler
I Mem
µP
µP
D
Recover loops, arrays, subroutines, etc. needed
to synthesize good circuits
FPGA
Dynamic Part. Module (DPM)
On-chip CAD
Decompilation surprisingly effective at
recovering high-level program structures Stitt et
al ICCAD02, DAC03, CODES/ISSS05, ICCAD05,
FPGA05, TODAES06, TODAES07
9
Warp Processing Background
6
On-chip CAD synthesizes decompiled CDFG to a
custom (parallel) circuit
Profiler
Profiler
I Mem
µP
µP
D
FPGA
Dynamic Part. Module (DPM)
On-chip CAD
10
Warp Processing Background
7
On-chip CAD maps circuit onto FPGA
Profiler
Profiler
I Mem
µP
µP
D
FPGA
FPGA
Dynamic Part. Module (DPM)
On-chip CAD


Lean placeroute/FPGA ?10x faster CAD (Lysecky et
al DAC03, ISSS/CODES03, DATE04, DAC04,
DATE05, FCCM05, TODAES06) Multi-core chips
use 1 powerful core for CAD
11
Warp Processing Background
gt10x speedups for some apps
On-chip CAD replaces instructions in binary to
use hardware, causing performance and energy to
warp by an order of magnitude or more
8
Mov reg3, 0 Mov reg4, 0 loop // instructions
that interact with FPGA Ret reg4
Profiler
Profiler
I Mem
µP
µP
D
FPGA
FPGA
Dynamic Part. Module (DPM)
On-chip CAD


12
Warp Scenarios
Warping takes time when useful?

• Long-running applications
• Scientific computing, etc.

• Recurring applications (save FPGA configurations)
• Common in embedded systems
• Might view as (long) boot phase

Long Running Applications
Recurring Applications
µP (1st execution)
On-chip CAD
µP
Time
Time
Possible platforms Xilinx Virtex II Pro, Altera
Excalibur, Cray XD1, SGI Altix, Intel
QuickAssist, ...
13
Thread Warping - Overview
for (i 0 i lt 10 i) thread_create( f, i
)
Multi-core platforms ? multi-threaded apps
Performance
OS schedules threads onto accelerators (possibly
dozens), in addition to µPs
Compiler
Very large speedups possible parallelism at
bit, arithmetic, and now thread level too
µP
µP
FPGA
Binary
f()
OS schedules threads onto available µPs
µP
µP
µP
f()
OS
OS invokes on-chip CAD tools to create
accelerators for f()
Thread warping use one core to create
accelerator for waiting threads
Remaining threads added to queue
14
Thread Warping Tools

• Invoked by OS
• Uses pthread library (POSIX)
• Mutex/semaphore for synchronization
• Defined methods/algorithms of a thread warping
  framework

Thread Queue
Thread Functions
Thread Counts
Queue Analysis
Accelerator Library
false
false
Not In Library?
Accelerators Synthesized?
Done
true
true
Memory Access Synchronization
Accelerator Instantiation
Accelerator Synthesis
Accelerator Synthesis
Bitfile
Netlist
PlaceRoute
Schedulable Resource List
Thread Group Table
Updated Binary
15
Memory Access Synchronization (MAS)

• Must deal with widely known memory bottleneck
  problem
• FPGAs great, but often cant get data to them
  fast enough

for (i 0 i lt 10 i) thread_create(
thread_function, a, i )
RAM
DMA
Data for dozens of threads can create bottleneck
void f( int a, int val ) int result
for (i 0 i lt 10 i) result ai
val . . . .
FPGA
.
Same array

• Threaded programs exhibit unique feature
  Multiple threads often access same data
• Solution Fetch data once, broadcast to multiple
  threads (MAS)

16
Memory Access Synchronization (MAS)

• 1) Identify thread groups loops that create
  threads

• 2) Identify constant memory addresses in thread
  function
• Def-use analysis of parameters to thread function

• 3) Synthesis creates a combined memory access
• Execution synchronized by OS

Data fetched once, delivered to entire group
Thread Group
DMA
RAM
for (i 0 i lt 100 i) thread_create( f,
a, i )
A0-9
A0-9
A0-9
A0-9

Def-Use a is constant for all threads
void f( int a, int val ) int result
for (i 0 i lt 10 i) result ai
val . . . .
Before MAS 1000 memory accesses After MAS 100
memory accesses
Addresses of a0-9 are constant for thread group
17
Memory Access Synchronization (MAS)

• Also detects overlapping memory regions
  windows

• Synthesis creates extended smart buffer
  Guo/Najjar FPGA04
• Caches reused data, delivers windows to threads

a0
a1
a2
a3
a4
a5
for (i 0 i lt 100 i) thread_create(
thread_function, a, i )
Data streamed to smart buffer
DMA
RAM
void f( int a, int i ) int result
result aiai1ai2ai3 . . . .
A0-103
Smart Buffer
A0-3
A6-9
A1-4

Each thread accesses different addresses but
addresses may overlap
Buffer delivers window to each thread
W/O smart buffer 400 memory accesses With smart
buffer 104 memory accesses
18
Framework

• Also developed initial algorithms for
• Queue analysis
• Accelerator instantiation
• OS scheduling of threads to accelerators and cores

19
Thread Warping Example
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, i
) . . . . . . void filter( int a51,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
filter() threads execute on available cores
µP
µP
µP
On-chip CAD
filter()
OS
Thread Queue
Remaining threads added to queue
Queue Analysis
OS invokes CAD (due to queue size or periodically)
Thread functions filter()
CAD tools identify filter() for synthesis
20
Example
MAS detects thread group
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, i
) . . . . . . void filter( int a51,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
filter() binary
CAD reads filter() binary
Decompilation
MAS detects overlapping windows
CDFG
Memory Access Synchronization
21
Example
Accelerators loaded into FPGA
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . . void filter( int a51,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
filter() binary
Synthesis creates pipelined accelerator for
filter() group 8 accelerators
Decompilation
RAM
CDFG
Smart Buffer
Memory Access Synchronization
. . . . .
High-level Synthesis
Stored for future use
Accelerator Library
RAM
22
Example
OS schedules threads to accelerators
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . . void filter( int a53,
int b50, int i, ) biavg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
Smart buffer streams a data
RAM
a0-52
enable (from OS)
Smart Buffer
After buffer fills, delivers a window to all
eight accelerators
a9-12
a2-5
. . . . .
RAM
23
Example
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . . void filter( int a53,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
RAM
a0-53
Each cycle, smart buffer delivers eight more
windows pipeline remains full
Smart Buffer
a17-20
a10-13
. . . . .
RAM
24
Example
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . . void filter( int a53,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
RAM
a0-53
Smart Buffer
. . . . .
b2-9
Accelerators create 8 outputs after pipeline
latency passes
RAM
25
Example
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . . void filter( int a53,
int b50, int i, ) bi avg( ai, ai1,
ai2, ai3 )
µP
µP
FPGA
main()
filter()
µP
µP
µP
On-chip CAD
filter()
OS
RAM
a0-53
Thread warping 8 pixel outputs per cycle
Smart Buffer
Software 1 pixel output every 9 cycles
. . . . .
72x cycle count improvement
Additional 8 outputs each cycle
b10-17
RAM
26
Experiments to Determine Thread Warping
Performance Simulator Setup
Parallel Execution Graph (PEG) represents
thread level parallelism
int main( ) . . . . . . for (i0 i lt
50 i) thread_create( filter, a, b, I
) . . . . . .
main

filter
filter
filter
main
Simulation Summary

Generate PEG using pthread wrappers
1)
Nodes Sequential execution blocks (SEBs)
Edges pthread calls
Determine SEB performances Sw SimpleScalar Hw
Synthesis/simulation (Xilinx)
2)
Optimistic for Sw execution (no memory
contention) Pessimistic for warped execution
(accelerators/microprocessors execute exclusively)
Event-driven simulation use defined algoritms
to change architecture dynamically
3)
4)
Complete when all SEBs simulated Observe total
cycles
27
Experiments

• Benchmarks Image processing, DSP, scientific
  computing
• Highly parallel examples to illustrate thread
  warping potential
• We created multithreaded versions
• Base architecture 4 ARM cores
• Focus on recurring applications (embedded)
• TW FPGA running at whatever frequency determined
  by synthesis

Multi-core
Thread Warping
4 ARM11 400 MHz
4 ARM11 400 MHz FPGA (synth freq)
µP
µP
FPGA
µP
µP
Compared to
On-chip CAD
µP
µP
µP
µP
28
Speedup from Thread Warping

• Average 130x speedup

But, FPGA uses additional area
So we also compare to systems with 8 to 64 ARM11
uPs FPGA size 36 ARM11s

• 11x faster than 64-core system
• Simulation pessimistic, actual results likely
  better

29
Why Dynamic?

• Static good, but hiding FPGA opens technique to
  all sw platforms
• Standard languages/tools/binaries

Dynamic Compiling to FPGAs
Static Compiling to FPGAs
Specialized Language
Any Language
Specialized Compiler
Any Compiler
Binary
Netlist
Binary
FPGA
µP

• Can adapt to changing workloads
• Smaller more accelerators, fewer large
  accelerators,
• Can add FPGA without changing binaries like
  expanding memory, or adding processors to
  multiprocessor
• Custom interconnections, tuned processors,

30
Warp Processing Enables Expandable Logic Concept
RAM
Expandable Logic
Expandable RAM
uP
Planning MICRO submission
Performance
31
Expandable Logic

• Used our simulation framework
• Large speedups 14x to 400x (on scientific apps)
• Different apps require different amounts of FPGA
• Expandable logic allows customization of single
  platform
• User selects required amount of FPGA
• No need to recompile/synthesize

32
Dynamic enables Custom Communication
NoC Network on a Chip provides communication
between multiple cores
Problem Best topology is application dependent
App1
µP
µP
Bus
Mesh
App2
µP
µP
Bus
Mesh
33
Dynamic enables Custom Communication
NoC Network on a Chip provides communication
between multiple cores
Problem Best topology is application dependent
App1
FPGA
Bus
Mesh
App2
Bus
Mesh
Warp processing can dynamically choose topology
34
Industrial Interactions Year 2 / 3

• Freescale
• Research visit F. Vahid to Freescale, Chicago,
  Spring06. Talk and full-day research discussion
  with several engineers.
• Internships Scott Sirowy, summer 2006 in Austin
  (also 2005)
• Intel
• Chip prototype Participated in Intels Research
  Shuttle to build prototype warp FPGA fabric
  continued bi-weekly phone meetings with Intel
  engineers, visit to Intel by PI Vahid and R.
  Lysecky (now prof. at UofA), several day visit to
  Intel by Lysecky to simulate design, ready for
  tapout. June06Intel cancelled entire shuttle
  program as part of larger cutbacks.
• Research discussions via email with liaison
  Darshan Patra (Oregon).
• IBM
• Internship Ryan Mannion, summer and fall 2006 in
  Yorktown Heights. Caleb Leak, summer/fall 2007.
• Platform IBMs Scott Lekuch and Kai Schleupen
  2-day visit to UCR to set up Cell development
  platform having FPGAs.
• Technical discussion Numerous ongoing email and
  phone interactions with S. Lekuch regarding our
  research on Cell/FPGA platform.
• Several interactions with Xilinx also

35
Patents

• Warp Processor patent
• Filed with USPTO summer 2004
• Granted winter 2007
• SRC has non-exclusive royalty-free license

36
Year 1 / 2 publications

• New Decompilation Techniques for Binary-level
  Co-processor Generation. G. Stitt, F. Vahid.
  IEEE/ACM International Conference on
  Computer-Aided Design (ICCAD), 2005.
• Fast Configurable-Cache Tuning with a Unified
  Second-Level Cache. A. Gordon-Ross, F. Vahid, N.
  Dutt. Int. Symp. on Low-Power Electronics and
  Design (ISLPED), 2005.
• Hardware/Software Partitioning of Software
  Binaries A Case Study of H.264 Decode. G. Stitt,
  F. Vahid, G. McGregor, B. Einloth. International
  Conference on Hardware/Software Codesign and
  System Synthesis (CODES/ISSS), 2005. (Co-authored
  paper with Freescale)
• Frequent Loop Detection Using Efficient
  Non-Intrusive On-Chip Hardware. A. Gordon-Ross
  and F. Vahid. IEEE Trans. on Computers, Special
  Issue- Best of Embedded Systems,
  Microarchitecture, and Compilation Techniques in
  Memory of B. Ramakrishna (Bob) Rau, Oct. 2005.
• A Study of the Scalability of On-Chip Routing for
  Just-in-Time FPGA Compilation. R. Lysecky, F.
  Vahid and S. Tan. IEEE Symposium on
  Field-Programmable Custom Computing Machines
  (FCCM), 2005.
• A First Look at the Interplay of Code Reordering
  and Configurable Caches. A. Gordon-Ross, F.
  Vahid, N. Dutt. Great Lakes Symposium on VLSI
  (GLSVLSI), April 2005.
• A Study of the Speedups and Competitiveness of
  FPGA Soft Processor Cores using Dynamic
  Hardware/Software Partitioning. R. Lysecky and F.
  Vahid. Design Automation and Test in Europe
  (DATE), March 2005.
• A Decompilation Approach to Partitioning Software
  for Microprocessor/FPGA Platforms. G. Stitt and
  F. Vahid. Design Automation and Test in Europe
  (DATE), March 2005.

37
Year 2 / 3 publications

• Warp Processing Dynamic Translation of Binaries
  to FPGA Circuits. F. Vahid, G. Stitt, and R.
  Lysecky.. IEEE Computer, 2008 (to appear).
• C is for Circuits Capturing FPGA Circuits as
  Sequential Code for Portability. S. Sirowy, G.
  Stitt, and F. Vahid. Int. Symp. on FPGAs, 2008.
• Thread Warping A Framework for Dynamic Synthesis
  of Thread Accelerators. G. Stitt and F. Vahid..
  Int. Conf. on Hardware/Software Codesign and
  System Synthesis (CODES/ISSS), 2007, pp. 93-98.
• A Self-Tuning Configurable Cache. A. Gordon-Ross
  and F. Vahid. Design Automation Conference (DAC),
  2007.
• Binary Synthesis. G. Stitt and F. Vahid. ACM
  Transactions on Design Automation of Electronic
  Systems (TODAES), Aug 2007.
• Integrated Coupling and Clock Frequency
  Assignment. S. Sirowy and F. Vahid. International
  Embedded Systems Symposium (IESS), 2007.
• Soft-Core Processor Customization Using the
  Design of Experiments Paradigm. D. Sheldon, F.
  Vahid and S. Lonardi. Design Automation and Test
  in Europe, 2007.
• A One-Shot Configurable-Cache Tuner for Improved
  Energy and Performance. A Gordon-Ross, P. Viana,
  F. Vahid and W. Najjar. Design Automation and
  Test in Europe, 2007.
• Two Level Microprocessor-Accelerator
  Partitioning. S. Sirowy, Y. Wu, S. Lonardi and
  F. Vahid. Design Automation and Test in Europe,
  2007.
• Clock-Frequency Partitioning for Multiple Clock
  Domains Systems-on-a-Chip. S. Sirowy, Y. Wu, S.
  Lonardi and F. Vahid
• Conjoining Soft-Core FPGA Processors. D. Sheldon,
  R. Kumar, F. Vahid, D.M. Tullsen, R. Lysecky.
  IEEE/ACM International Conference on
  Computer-Aided Design (ICCAD), Nov. 2006.
• A Code Refinement Methodology for
  Performance-Improved Synthesis from C. G. Stitt,
  F. Vahid, W. Najjar. IEEE/ACM International
  Conference on Computer-Aided Design (ICCAD), Nov.
  2006.
• Application-Specific Customization of
  Parameterized FPGA Soft-Core Processors. D.
  Sheldon, R. Kumar, R. Lysecky, F. Vahid, D.M.
  Tullsen. IEEE/ACM International Conference on
  Computer-Aided Design (ICCAD), Nov. 2006.
• Warp Processors. R. Lysecky, G. Stitt, F. Vahid.
  ACM Transactions on Design Automation of
  Electronic Systems (TODAES), July 2006, pp.
  659-681.
• Configurable Cache Subsetting for Fast Cache
  Tuning. P. Viana, A. Gordon-Ross, E. Keogh, E.
  Barros, F. Vahid. IEEE/ACM Design Automation
  Conference (DAC), July 2006.
• Techniques for Synthesizing Binaries to an
  Advanced Register/Memory Structure. G. Stitt, Z.
  Guo, F. Vahid, and W. Najjar. ACM/SIGDA Symp. on
  Field Programmable Gate Arrays (FPGA), Feb. 2005,
  pp. 118-124.
