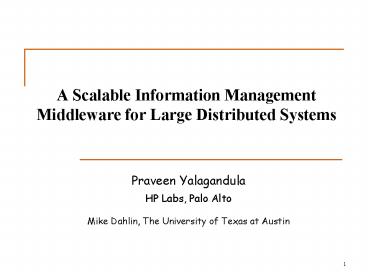

A Scalable Information Management Middleware for
Large Distributed Systems

• Praveen Yalagandula
• HP Labs, Palo Alto
• Mike Dahlin, The University of Texas at Austin

2
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

3
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

4
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

5
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

6
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

7
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

8
Trends

• Large wide-area networked systems
• Enterprise networks
• IBM
• 170 countries
• gt 330000 employees
• Computational Grids
• NCSA Teragrid
• 10 partners and growing
• 100-1000 nodes per site
• Sensor networks
• Navy Automated Maintenance Environment
• About 300 ships in US Navy
• 200,000 sensors in a destroyer 3eti.com

9
Research Vision
Wide-area Distributed Operating System

• Goals
• Ease building applications
• Utilize resources efficiently

Data Management
Security
Monitoring
......
Scheduling
10
Information Management

• Most large-scale distributed applications
• Monitor, query, and react to changes in the
  system
• Examples
• A general information management middleware
• Eases design and development
• Avoids repetition of same task by different
  applications
• Provides a framework to explore tradeoffs
• Optimizes system performance

Job Scheduling
System administration and management Service
location Sensor
monitoring and control
File location service Multicast service
Naming and request routing
11
Contributions SDIMS
Scalable Distributed Information Management System

• Meets key requirements
• Scalability
• Scale with both nodes and information to be
  managed
• Flexibility
• Enable applications to control the aggregation
• Autonomy
• Enable administrators to control flow of
  information
• Robustness
• Handle failures gracefully

12
SDIMS in Brief

• Scalability
• Hierarchical aggregation
• Multiple aggregation trees
• Flexibility
• Separate mechanism from policy
• API for applications to choose a policy
• A self-tuning aggregation mechanism
• Autonomy
• Preserve organizational structure in all
  aggregation trees
• Robustness
• Default lazy re-aggregation upon failures
• On demand fast reaggregation

13
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

14
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

15
Attributes

• Information at machines
• Machine status information
• File information
• Multicast subscription information

16
Aggregation Function

• Defined for an attribute
• Given values for a set of nodes
• Computes aggregate value
• Examples
• Total users logged in the system
• Attribute numUsers
• Aggregation function summation

17
Aggregation Trees
f(f(a,b), f(c,d))

• Aggregation tree
• Physical machines are leaves
• Each virtual node represents
• a logical group of machines
• Administrative domains
• Groups within domains
• Aggregation function, f, for attribute A
• Computes the aggregated value Ai for level-i
  subtree
• A0 locally stored value at the physical node or
  NULL
• Ai f(Ai-10, Ai-11, , Ai-1k) for virtual node
  with k children
• Each virtual node is simulated by some machines

A2
f(a,b)
f(c,d)
A1
A0
c
d
a
b
18
Example Queries

• Job scheduling system
• Find the least loaded machine
• Find a (nearby) machine with load lt 0.5
• File location system
• Locate a (nearby) machine with file foo

19
Example Machine Loads

• Attribute minLoad
• Value at a machine M with load L is
• ( M, L )
• Aggregation function
• MIN_LOAD (set of tuples)

(C, 0.1)
(A, 0.3)
(C, 0.1)
(D, 0.7)
(C, 0.1)
(A, 0.3)
(B, 0.6)
minLoad
20
Example Machine Loads
Query Tell me the least loaded machine.

• Attribute minLoad
• Value at a machine M with load L is
• ( M, L )
• Aggregation function
• MIN_LOAD (set of tuples)

(C, 0.1)
(A, 0.3)
(C, 0.1)
(D, 0.7)
(C, 0.1)
(A, 0.3)
(B, 0.6)
minLoad
21
Example Machine Loads
Query Tell me a (nearby) machine with
load lt 0.5.

• Attribute minLoad
• Value at a machine M with load L is
• ( M, L )
• Aggregation function
• MIN_LOAD (set of tuples)

(C, 0.1)
(A, 0.3)
(C, 0.1)
(D, 0.7)
(C, 0.1)
(A, 0.3)
(B, 0.6)
minLoad
22
Example File Location

• Attribute fileFoo
• Value at a machine with id machineId
• machineId if file Foo exists on the
  machine
• null otherwise
• Aggregation function
• SELECT_ONE(set of machine ids)

B
B
C
null
C
B
null
fileFoo
23
Example File Location
Query Tell me a (nearby) machine with file
Foo.

• Attribute fileFoo
• Value at a machine with id machineId
• machineId if file Foo exists on the
  machine
• null otherwise
• Aggregation function
• SELECT_ONE(set of machine ids)

B
B
C
null
C
B
null
fileFoo
24
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

25
Scalability

• To be a basic building block, SDIMS should
  support
• Large number of machines (gt 104)
• Enterprise and global-scale services
• Applications with a large number of attributes (gt
  106)
• File location system
• Each file is an attribute ? Large number of
  attributes

26
Scalability Challenge

• Single tree for aggregation
• Astrolabe, SOMO, Ganglia, etc.
• Limited scalability with attributes
• Example File Location

27
Scalability Challenge

• Single tree for aggregation
• Astrolabe, SOMO, Ganglia, etc.
• Limited scalability with attributes
• Example File Location

• Automatically build multiple trees for
  aggregation
• Aggregate different attributes along different
  trees

28
Building Aggregation Trees

• Leverage Distributed Hash Tables
• A DHT can be viewed as multiple aggregation trees
• Distributed Hash Tables (DHT)
• Supports hash table interfaces
• put (key, value) inserts value for key
• get (key) returns values associated with key
• Buckets for keys distributed among machines
• Several algorithms with different properties
• PRR, Pastry, Tapestry, CAN, CHORD, SkipNet, etc.
• Load-balancing, robustness, etc.

29
DHT - Overview

• Machine IDs and keys Long bit vectors
• Owner of a key Machine with ID closest to the
  key
• Bit correction for routing
• Each machine keeps O(log n) neighbors

Key 11111
10111
11101
11000
10010
get(11111)
00001
00110
01100
01001
30
DHT Trees as Aggregation Trees
111
Key 11111
11x
1xx
010
110
001
100
101
011
000
111
31
DHT Trees as Aggregation Trees
Mapping from virtual nodes to real machines
111
Key 11111
11x
1xx
010
110
001
100
101
011
000
111
32
DHT Trees as Aggregation Trees
Key 11111
Key 00010
33
DHT Trees as Aggregation Trees
Key 11111
Key 00010
Aggregate different attributes along different
trees hash(minLoad) 00010 ?
aggregate minLoad along tree for key
00010
34
Scalability

• Challenge
• Scale with both machines and attributes
• Our approach
• Build multiple aggregation trees
• Leverage well-studied DHT algorithms
• Load-balancing
• Self-organizing
• Locality
• Aggregate different attributes along different
  trees
• Aggregate attribute A along the tree for key
  hash(A)

35
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

36
Flexibility Challenge

• When to aggregate?
• On reads? or on writes?
• Attributes with different read-write ratios

reads gtgt writes
writes gtgt reads

read-write ratio
Total Mem
File Location
CPU Load
Best Policy
Aggregate on reads
Aggregate on writes
Partial Aggregation on writes
Astrolabe Ganglia
DHT based systems
Sophia MDS-2
37
Flexibility Challenge

• When to aggregate?
• On reads? or on writes?
• Attributes with different read-write ratios

reads gtgt writes
writes gtgt reads

read-write ratio
Total Mem
File Location
CPU Load
Best Policy
Aggregate on reads
Aggregate on writes
Partial Aggregation on writes
Single framework separate mechanism from
policy ? Allow applications to choose any
policy ? Provide self-tuning mechanism
Astrolabe Ganglia
DHT based systems
Sophia MDS
38
API Exposed to Applications

• Install an aggregation function for an attribute
• Function is propagated to all nodes
• Arguments up and down specify an aggregation
  policy
• Update the value of a particular attribute
• Aggregation performed according to the chosen
  policy
• Probe for an aggregated value at some level
• If required, aggregation is done
• Two modes one-shot and continuous

• Install
• Update
• Probe

39
Flexibility
Update-Up Upall Down0
Policy Setting
Update-All Upall Downall
Update-Local Up0 Down0
40
Flexibility
Update-Up Upall Down0
Policy Setting
Update-All Upall Downall
Update-Local Up0 Down0
41
Flexibility
Update-Up Upall Down0
Policy Setting
Update-All Upall Downall
Update-Local Up0 Down0
42
Flexibility
Update-Up Upall Down0
Policy Setting
Update-All Upall Downall
Update-Local Up0 Down0
43
Self-tuning Aggregation

• Some apps can forecast their read-write rates
• What about others?
• Can not or do not want to specify
• Spatial heterogeneity
• Temporal heterogeneity
• Shruti Dynamically tunes aggregation
• Keeps track of read and write patterns

44
Shruti Dynamic Adaptation
R
A
Update-Up Upall Down0
45
Shruti Dynamic Adaptation
R
A
Update-Up Upall Down0
Any updates are forwarded until lease is
relinquished
46
Shruti In Brief

• On each node
• Tracks updates and probes
• Both local and from neighbors
• Sets and removes leases
• Grants leases to a neighbor A
• When gets k probes from A while no updates happen
• Relinquishes leases from a neighbor A
• When gets m updates from A while no probes happen

47
Flexibility

• Challenge
• Support applications with different read-write
  behavior
• Our approach
• Separate mechanism from policy
• Let applications specify an aggregation policy
• Up and Down knobs in Install interface
• Provide a lease based self-tuning aggregation
  strategy

48
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

49
Administrative Autonomy

• Systems spanning multiple administrative domains
• Allow a domain administrator control information
  flow
• Prevent external observer from observing the
  information
• Prevent external failures from affecting the
  operations
• Challenge
• DHT trees might not conform

50
Administrative Autonomy

• Our approach Autonomous DHTs
• Two properties
• Path locality
• Path convergence

51
Autonomy Example

• Path Locality
• Path Convergence

L3
L2
L1
L0
111
011
010
110
000
001
100
101
cs.utexas.edu
ece.utexas.edu
phy.utexas.edu
52
Autonomy Challenge

• DHT trees might not conform
• Example DHT tree for key 111
• Autonomous DHT with two properties
• Path Locality
• Path Convergence

L3
L2
L1
L0
111
011
010
110
000
001
100
101
domain1
domain1
domain1
53
Robustness

• Large scale system ? failures are common
• Handle failures gracefully
• Enable applications to tradeoff
• Cost of adaptation,
• Response latency, and
• Consistency
• Techniques
• Tree repair
• Leverage DHT self-organizing properties
• Aggregated information repair
• Default lazy re-aggregation on failures
• On-demand fast re-aggregation

54
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

55
Evaluation

• SDIMS prototype
• Built using FreePastry DHT framework Rice Univ.
• Three layers
• Methodology
• Simulation
• Scalability and Flexibility
• Micro-benchmarks on real networks
• PlanetLab and CS Department

Aggregation Mgmt.
Tree Topology Mgmt.
Autonomous DHT
56
Simulation Results - Scalability

• Small multicast sessions with size 8
• Node Stress Amt. of incoming and outgoing info

machines
AS 65536
AS 4096
AS 256
SDIMS 256
SDIMS 4096
SDIMS 65536
Max
57
Simulation Results - Scalability

• Small multicast sessions with size 8
• Node Stress Amt. of incoming and outgoing info

AS 65536
AS 4096
AS 256
SDIMS 256
SDIMS 4096
SDIMS 65536
Max
Orders of magnitude difference in maximum node
stress ? better load balance
58
Simulation Results - Scalability

• Small multicast sessions with size 8
• Node Stress Amt. of incoming and outgoing info

AS 65536
AS 4096
AS 256
SDIMS 256
SDIMS 4096
SDIMS 65536
Max
59
Simulation Results - Scalability

• Small multicast sessions with size 8
• Node Stress Amt. of incoming and outgoing info

AS 65536
AS 4096
AS 256
SDIMS 256
SDIMS 4096
SDIMS 65536
Max
60
Simulation Results - Flexibility

• Simulation with 4096 nodes
• Attributes with different up and down strategies

Update-Local
Update-All
Up5, Down0
Upall, Down5
Update-Up
61
Simulation Results - Flexibility

• Simulation with 4096 nodes
• Attributes with different up and down strategies

Update-Local
Update-All
Up5, Down0
Upall, Down5
Update-Up
62
Simulation Results - Flexibility

• Simulation with 4096 nodes
• Attributes with different up and down strategies

Update-Local
Update-All
Reads dominate writes Update-All best
Up5, down0
Writes dominate reads Update-local best
Upall, Down5
Update-Up
63
Dynamic Adaptation
Simulation with 512 nodes
Update-None
Update-All
Upall, Down3
Up3, Down0
Avg Message Count
Update-Up
Shruti
Read-to-write ratio
64
Prototype Results

• CS department 180 machines
• PlanetLab 70 machines

Department Network
Planet Lab
800
3500
700
3000
600
2500
500
Latency (ms)
2000
400
1500
300
1000
200
500
100
0
0
Update - All
Update - Up
Update - Local
Update - All
Update - Up
Update - Local
65
Outline

• SDIMS a general information management
  middleware
• Aggregation abstraction
• SDIMS Design
• Scalability with machines and attributes
• Flexibility to accommodate various applications
• Autonomy to respect administrative structure
• Robustness to failures
• Experimental results
• SDIMS in other projects
• Conclusions and future research directions

66
SDIMS in Other Projects

• PRACTI a replication toolkit (Dahlin et al)
• Grid Services (TACC)
• Resource Scheduling
• Data management
• INSIGHT Network Monitoring (Jain and Zhang)
• File location Service (IBM)
• Scalable Sensing Service (HP Labs)

67
PRACTI A Replication Toolkit
68
PRACTI A Replication Toolkit
69
PRACTI Design
read() write() delete()
Inform
Invals Updates from/to other nodes
Controller
Core
Mgmt.

• Core Mechanism
• Controller Policy
• Notified of key events
• Read Miss, update arrival, invalidation arrival,

• Directs communication across cores

70
SDIMS Controller in PRACTI

• Read Miss For locating a replica
• Similar to File Location System example
• But handles flash crowds
• Dissemination tree among requesting clients
• For Writes Spanning trees among replicas
• Multicast tree for spreading invalidations
• Different trees for different objects

71
PRACTI Grid Benchmark
Home

• Three phases
• Read input and programs
• Compute (some pairwise reads)
• Results back to server
• Performance
  improvement
• 21 reduction in
  total time

Grid at school
72
PRACTI Experience

• Aggregation abstraction and API generality
• Construct multicast trees for pushing
  invalidations
• Locate a replica on a local read miss
• Construct a tree in the case of flash crowds
• Performance benefits
• Grid micro-benchmark 21 improvement over manual
  tree construction
• Ease of implementation
• Less than two weeks

73
Conclusions

• Research Vision
• Ease design and development of distributed
  services
• SDIMS an information management middleware
• Scalability with both machines and attributes
• An order of magnitude lower maximum node stress
• Flexibility in aggregation strategies
• Support for a wide range of applications
• Autonomy
• Robustness to failures

74
Future Directions

• Core SDIMS research
• Composite queries
• Resilience to temporary reconfigurations
• Probe functions
• Other components of wide-area distributed OS
• Scheduling
• Data management
• Monitoring

75
For more information

• http//www.cs.utexas.edu/users/ypraveen/sdims

76
SkipNet and Autonomy

• Constrained load balancing in Skipnet
• Also single level administrative domains
• One solution Maintain separate rings in
  different domains

phy.utexas.edu
ece.utexas.edu
cs.utexas.edu
Does not form trees because of revisits
77
Load Balance

• Let
• f fraction of attributes a node is interested
  in
• N number of nodes in the system
• In DHT -- node will have O(log (N)) indegree whp

78
Related Work

• Other aggregation systems
• Astrolabe, SOMO, Dasis, IrisNet
• Single tree
• Cone
• Aggregation tree changes with new updates
• Ganglia, TAG, Sophia, and IBM Tivoli Monitoring
  System
• Database abstraction on DHTs
• PIER and Gribble et al 2001
• Support for join operation
• Can be leveraged for answering composite queries

79
Load Balance

• How many attributes?
• O(log N) levels
• Few children at each level
• Each node interested in few attributes
• Level 0 d
• Level 1 2 x d / 2 d
• Level 2 2 (d) / 2 c2 d/4
• Total d 1 c/2c2/4 O(d log N)

80
PRACTI Approach

• Bayou type log-exchange
• But allow partial replication
• Two key ideas
• Separate invalidations from updates
• ? partial replication of data
• Imprecise invalidations summary of a set of
  invals
• ? partial replication of metadata

81
PRACTI

• For reads Locate a replica on a read miss
• For writes Construct spanning tree among
  replicas
• To propagate invalidations
• To propagate updates

82
SDIMS not yet another DHT system

• Typical DHT applications
• Use put and get interfaces in hashtable
• Aggregation as a general abstraction

83
Autonomy

• Increase in path length
• Path Convergence violations
• None in autonomous DHT

Pastry
ADHT
bf4
bf4
bf16
bf64
bf16
Pastry
bf64
bf branching factor or nodes per domain
84
Autonomy

• Increase in path length
• Path Convergence violations
• None in autonomous DHT

bf ? ? tree height ? bf ? ? violations ?
Pastry
ADHT
bf4
bf4
bf16
bf64
bf16
Pastry
bf64
bf branching factor or nodes per domain
85
Robustness

• Planet-Lab with 67 nodes
• Aggregation function summation Strategy
  Update-Up
• Each node updates the attribute with value 10

86
Sparse attributes

• Attributes of interest to only few nodes
• Example A file foo in file location
  application
• Key for scalability
• Challenge
• Aggregation abstraction one function per
  attribute
• Dilemma
• Separate aggregation function with each attribute
• Unnecessary storage and communication overheads
• A vector of values with one aggregation function
• Defeats DHT advantage

87
Sparse attributes

• Attributes of interest to only few nodes
• Example A file foo in file location
  application
• Key for scalability
• Challenge
• Aggregation abstraction one function per
  attribute
• Dilemma
• Separate aggregation function with each attribute
• Unnecessary storage and communication overheads
• A vector of values with one aggregation function
• Defeats DHT advantage

88
Sparse attributes

• Attributes of interest to only few nodes
• Example A file foo in file location
  application
• Key for scalability
• Challenge
• Aggregation abstraction one function per
  attribute
• Dilemma
• Separate aggregation function with each attribute
• Unnecessary storage and communication overheads
• A vector of values with one aggregation function
• Defeats DHT advantage

89
Novel Aggregation Abstraction

• Separate attribute type from attribute name
• Attribute (attribute type, attribute name)
• Example typefileLocation, namefileFoo
• Define aggregation function for a type

Name macA
IP addr 1.1.1.1
90
Example File Location
Query Tell me two machines with file Foo.

• Attribute fileFoo
• Value at a machine with id machineId
• machineId if file Foo exists on the
  machine
• null otherwise
• Aggregation function
• SELECT_TWO (set of machine ids)

B, C
B
C
null
C
B
null
fileFoo
91
A Key Component

• Most large-scale distributed applications
• Monitor, query and react to changes in the system
• Examples
• Fundamental building block
• Information collection and management

System administration and management Service
placement and location Sensor
monitoring and control Distributed
Denial-of-Service attack detection
File location service Multicast tree
construction Naming and request routing

92
CS Department Micro-benchmark Experiment
93
API Exposed to Applications
Applications
Install (attrType, function, up, down)
Update (attrType, attrName, Value)
Probe (attrType, attrName, level, mode)
API
SDIMS at leaf node (level 0)
