Files systems centralized DBS distributed DBS

1

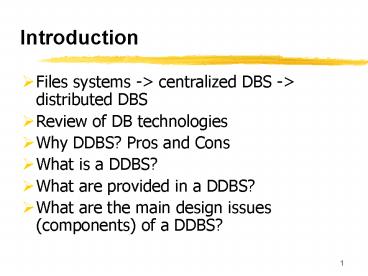

Introduction

• Files systems -gt centralized DBS -gt distributed
  DBS
• Review of DB technologies
• Why DDBS? Pros and Cons
• What is a DDBS?
• What are provided in a DDBS?
• What are the main design issues (components) of a
  DDBS?

2
From File Systems to DBS

• File Systems -
• What is a file system?
• A file contains data for a program
• When do I need a file?
• I want to store some data for later use by a
  program
• Main()
• Const int DATA_SIZE 100
• Int data_arrayDATA_SIZE
• Ifstream data_file (numbers.dat)
• Int i

3
Database Applications

• Why do you use a database for your application?
• Database system provides facilities for better
  management and control of data
• It is easier to access the data comparing to a
  file system
• In the development of a database application, you
  start with data modeling first (define the
  databases)
• NOTE In file systems, you may start with the
  program first

4
From File Systems to DBS

• Each application (program) has its own data
  descriptions (file)
• Why you design a new file? You need to write a
  program
• New applications mean new files may have to be
  created
• Files for different applications may have
  different formats and the programs may be written
  in different languages
• Disadvantages
• Low degree of data sharing
• High degree of data redundancy - same (similar)
  data (information) may be stored in different
  files
• Data isolation (replicated) data is scattered
  in various files in different formats. Difficult
  to write program to retrieve the data (update
  (data consistency) problem)
• Security problem (lack of a centralized
  controller)

5
File Systems
6
Database Applications

• Database applications
• contains a collection of interrelated data and a
  set of programs that allow users to access and
  modify data
• provide an abstract view of the data (data
  abstraction) - hide the details on how the data
  are stored and maintained
• sharing of data and modeling of the real world
  information (entity and entity relationships)
• Why you need to design a database? You want to
  model the information about the application
• The system provides
• the definitions of the structures of the data
• mechanisms for manipulation of data (information)
• safety information for recovery and security

7
Database Management
8
Database application example

• Begin
• input(flight_no, date, customer_name)
• EXEC SQL SELECT STSOLD, CAP
• INTO temp1, temp2
• FROM FLIGHT
• WHERE FNO flight_no AND
  DATE date
• END

9
Data Abstraction

• Separate application from data (information)
• Three levels to hide how the information is
  stored and manipulated from applications
• Physical level (lower level)
• describe how the data are actually stored in the
  disk (physical format)
• Conceptual level
• describe what data are actually stored and the
  relationships that exist among data (relations)
• View level
• describe only part of the entire database which
  the user is interested. Different users may have
  different views (created by applications)

10
ANSI/SPARC Architecture
11
File Systems? Databases Systems?

• Which one you prefer to use for your applications?

Currently, database systems are widely used for
various computer applications. The reasons are
Better organization of real-world information
(data modeling on real world entities), better
definition, control and manipulation of data, and
share of data, etc.. A tradeoff between
processing cost and efficiency in information
management
12
Relational Database

• Data modeling techniques relational database,
  object-oriented database, hierarchical DB, etc.
• Relational DB
• databases are tables (regular shape, fixed no. of
  attributes)
• relation R defined over n sets D1, D2, , Dn is
  a set of n-tuples ltd1, d2, , dngt such that
  d1?D1, d2?D2, , dn?Dn
• a table consists of rows and columns
• a row is a record (tuple) and a column is an
  attribute (field)
• a table may be defined with a key (keys)
• a key uniquely identifies a tuple in a relation
• the records in a table are unordered (why??)

13
Example
14
Relational DBS

• Normalization
• break a large bad table into several smaller
  good tables
• what is a good table (relation)? (from
  transaction management viewpoints)
• No repetition, update, insertion and deletion
  anomaly
• a step-by-step reversible process of replacing a
  given collection of relations by successive
  collections in which relations have a
  progressively simpler and more regular structure
• Integrity rules
• are constraints that define consistent states on
  database, i.e., referential integrity
  (relationships between records)

15
Referential Integrity
Customer Table
Sale Table
16
Relational Data Language

• Manipulation on data
• Relational Algebra and relational calculus
• Relational Algebra
• consist of a set of operators that operate on
  relations
• each operator takes one or two relations as
  operands to produce a result relation
• operators select, project, Cartesian product,
  union and set difference (join, semi-join,
  natural join, ...)
• Relational Calculus
• specify the formal description of the result
  without specifying how to obtain them, i.e.,
  using SQL
• specify a condition or an action on a domain
  (data set)

17
SAMPLE SQL

• SELECT EMP.ENAME
• FROM EMP, ASG, PROJ
• WHERE EMP.ENO ASG.ENO
• AND ASG.PNO PROJ.PRO
• AND PROJ.PNAME CAD/CAM
• UPDATE PAY
• SET SAL 25000
• WHERE PAY.TITLE Programmer

18
Distributed Computing

• Non-centralized computing (not parallel
  computing)
• A number of (autonomous) processing elements (not
  necessarily homogeneous) that are interconnected
  by a computer network (may be a mobile network)
• The processes cooperate with each other to
  perform their assigned tasks
• Require the support of network (delay in
  communication)

Example Begin Read A site 1 Read B site
2 C A B write C site 3 End
site 1
A
C
B
site 2
site 3
19
What are the main differences between DS and
DDBS?

• Distributed database system is one of the topics
  under Distributed Systems
• Distributed Systems normally deal with the lower
  level communications between processes
• Distributed database systems provides procedure
  and facilities to support higher level database
  applications
• Processes -gt transactions
• Concentrate on the upper middleware layer and the
  interactions with applications (not on
  communication)

20
DS Vs DDBS

• A distributed system consists of four levels
  operating systems, network, middleware and
  applications

Applications Middleware Operating
System Network (physical)
Distributed Database Systems
Distributed Systems
21
Motivation of Distributed Database Systems
22
Motivation of Distributed Database Systems

• Centralization
• put the components of a system at a centralized
  site
• Integration
• How different system components (or processing
  elements) are joint together. They need not to be
  resided at the same site, I.e., in a DDBS, the
  system components are distributed at several
  sites
• They need to work together (and depend on each
  other) to support the applications
• Degree of integration
• Coupling how closely the components (of a DDBS)
  are related
• weak and strong coupling
• Synchronization how the actions of the
  components are related
• synchronous (mostly strong coupling) Vs
  asynchronous

23
Motivation of Distributed Database Systems
Site 1 Site 2 Site 3 Site 4
Application
Middleware (Oracle, Sybase, DB2, etc..)
Network and Operating systems
24
Motivation of Distributed Database Systems
Site 1 Site 2 Site 3 Site 4
Application
Middleware
Network and Operating systems
25
From Centralized DBS to DDBS

• What are distributed in a DDBS
• Processing Logic and functions
• Data
• Control
• Distribution of data partition a database into
  fragments and distribute the fragments at several
  sites (nodes)
• Distribution of processing a transaction may
  access data items located at several sites (a
  transaction may have several processes at several
  sites)
• Distribution of control several sites work
  together to management a transaction and control
  the data

26
Why Distributed Database Systems

• Organization reasons
• many applications are distributed in nature,
  i.e., banking systems, air-flight booking
  systems, and Internet applications
• Interconnection of existing databases (degree of
  sharing)
• integration of databases of different
  applications by a network
• Incremental growth (expansibility)
• the growth of an applications may require to
  create sub-systems at other sites
• Autonomy
• each site may have its own database for its own
  applications (transactions)

27
Benefits of Distributed Database Systems

• Performance considerations (in addition to data
  correctness)
• distribution of workload to several sites (load
  balancing)
• reduce response time (the time duration between
  completion time and submission time of a
  request)
• processing delay communication delays
• attempt to reduce the access delay and access
  cost for data items at remote sites
• Process the transaction (request) at local site
• Reliability and availability
• duplication of information at several sites
• higher reliability even with site failures

28
Data Locality
Local Site
Remote Site
B
A
Application 01
90 (A) 10 (B)
29
Cost of Distributed Database Systems

• Greater complexity
• Management of distributed data and higher cost to
  maintain data integrity (data correctness)
• database partition, consistency and mutual
  consistency (the replicated data items have the
  same value)
• Management of distributed transactions
• processing of transactions in a distributed
  environment
• atomicity of distributed transactions
  (all-or-none)
• Impact of network
• message loss and errors, disconnection and
  partition
• Security
• security measures become more complicated and
  have to be added at each site

30
What is a Distributed Database System?

• An informal definition
• A distributed database (DDB) is a collection of
  data items which belong logically to the same
  system but are distributed at several sites over
  a computer network
• A distributed database system (DDBS) is
• A software ( or system) that manages the DDB.
• It provides access mechanism that makes this
  distribution transparent to users. (Different
  degrees of transparency)

31
Implicit Assumptions

• Data
• stored at multiple sites
• Distributed database
• is a database, not a collection of files
• data items are logically related as exhibited in
  the users access patterns
• Processors
• at different sites are interconnected by a
  computer network, not multiprocessors (what are
  the differences? Communication delays)
• DDBS
• Each site is a full-fledged DBS (each site shares
  the responsibility in data management and
  processing applications
• not a remote file system

32
What are NOT DDBSs?

• Not just a timesharing computer system
• Not a loosely or tightly coupled multiprocessor
  system
• Not a database system resides at one of the nodes
  of a network of computers this is a centralized
  database on a network node

33
Centralized DBS on a Network
34
Distributed DBS Environment
35
Applications (conventional)

• Manufacturing especially multi-plant
  manufacturing
• Banking systems
• Corporate management information system (MIS)
• Airline reservation systems
• Hotel chains
• Any organization which has a decentralized
  organization structure

36
New database applications

• CAD/CAM design (object based database)
• Project management - workflow (long transactions)
• Knowledge discovery (data mining)
• Real-time applications (flight navigation and
  Military command and control)
• telephone management systems (location
  management)
• System monitoring (stock trading systems)
• E-commerce and Internet applications
• Sensor systems

37
Distributed DBS Promises

• Transparent management of distributed,
  fragmented, and replicated data (fragmentation
  divides a large table into several smaller
  tables)
• Transparency
• The separation of the higher level semantics of a
  system from the lower level implementation issues
• Data transparency
• The applications do not know how the data are
  represented physically
• Location transparency
• The applications do not know what are locations
  of the required data
• Replication transparency
• The applications do not know whether the required
  data are replicated or not

38
Distributed DBS Promises

• Fragmentation transparency
• The applications do not know whether the required
  data are fragmented or not
• Horizontal fragmentation selection
• Vertical fragmentation projection
• Hybrid (both horizontal and vertical)
• Improved reliability/availability through
  distributed transactions and data replication
• Improved performance (locality) (get the data at
  its local site)
• Easier and more economical system expansion
  (distribution)

39
Transparent Access
40
Distributed Database User View
What are the advantages of defining a DDBS in
this way?
41
Distributed DBS - Reality
42
Distributed DBS Issues

• Distributed Database Design
• How to distribute the database (fragments)
• Replicated non-replicated database distribution
• A related problem in directory management
  (central vs. distributed)
• Query Processing
• Convert transactions to data manipulation
  instructions
• Optimization problem (query optimization)
• Mincost data transmission local processing

43
Distributed DBS Issues

• Concurrency Control and Deadlock Resolution
• Synchronization of concurrent accesses
• Consistency and isolation of transactions
  effects
• Deadlock management (I.e., in Two Phase Locking)
• Reliability Recovery (commitment, logging and
  checkpointing)
• How to make the system resilient to failures
• Atomicity and durability

44
Relationship Between Issues
Transaction Processing
45
Related Issues

• Operating System Support
• Operating system with proper support for database
  operations
• Open Systems and Interoperability
• Distributed Multi-database Systems
• More portable scenario

46
Database Technology Timeline
Simple Data Management
Global Enterprise Management
Early 80s
Late 80s
Early - Mid 90s
Late 90s - 21st C
EarlyRelational
Client-server Relational
Enterprise -capable Relational
Internet Computing
Pre- relational
Packaged Vertical Applications
Data Warehouse Hi-end OLTP
Simple OLTP
Active Database
Middleware (messaging, queues, events) Java,
CORBA, Web interfaces
Scaleable OLTP, parallel query, partitioning,
cluster support, row-level locking, high
availability
Simple transactions, on-line backup recovery
Support for all types of data, extensibility,
objects
Stored procedures, triggers
47
Current State of DDBSs

• These applications require
• Large users/transactions
• High performance
• High availability (7x24 operations)
• Scalability
• High levels of security
• Administrative support
• Good utilities

48
References

• Ozsu Ch1, Ch2 (overview)
• Ceri Ch1
