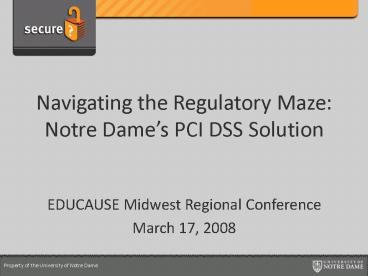

Navigating the Regulatory Maze: Notre Dame

1
Navigating the Regulatory MazeNotre Dames PCI
DSS Solution

• EDUCAUSE Midwest Regional Conference
• March 17, 2008

2
Agenda

• PCI DSS Background
• Notre Dames Environment
• Payment Card Environment Design
• Networking Infrastructure
• Deployment Departments and Decentralized IT

3
PCI DSS History
Payment Card Industry Data Security Standard (PCI
DSS)
4
Introducing the Digital Dozen
Build and Maintain a Secure Network Install and maintain a firewall configuration to protect cardholder data
Build and Maintain a Secure Network Do not use vendor-supplied defaults for system passwords and other security parameters
Protect Cardholder Data Protect stored cardholder data
Protect Cardholder Data Encrypt transmission of cardholder data across open, public networks
Maintain a Vulnerability Management Program Use and regularly update anti-virus software
Maintain a Vulnerability Management Program Develop and maintain secure systems and applications
Implement Strong Access Control Measures Restrict access to cardholder data by business need-to-know
Implement Strong Access Control Measures Assign a unique ID to each person with computer access
Implement Strong Access Control Measures Restrict physical access to cardholder data
Regularly Monitor and Test Networks Track and monitor all access to network resources and cardholder data
Regularly Monitor and Test Networks Regularly test security systems and processes
Maintain an Information Security Policy Maintain a policy that addresses information security
5
Who Must Comply?

• Payment Card Industry (PCI) Data Security
  requirements apply to all Members, merchants, and
  service providers that store, process or transmit
  cardholder data.
• Additionally, these security requirements apply
  to all system components which is defined as any
  network component, server, or application
  included in, or connected to, the cardholder data
  environment.

That Probably Means You
6
Merchant Levels
Merchant Level Description
1 Any merchant who processes over 6,000,000 transactions annually. Any merchant designated Level 1 by Visa
2 Any merchant who processes between 1,000,000 and 6,000,000 transactions annually.
3 Any merchant who processes between 20,000 and 150,000 e-commerce transactions annually.
4 Anyone else
7
Merchant Levels

• All merchants, regardless of level, must comply
  with all elements of the PCI DSS standard!
• Merchants at different levels have different
  validation requirements

8
Consequences

• Reputational Risk
• What will the impact be on your institutions
  brand?
• Mandatory involvement of federal law enforcement
  in investigation
• Financial Risk
• Merchant banks may pass on substantial fines
• Up to 500,000 per incident from Visa alone
• Civil liability and cost of providing ID theft
  protection

9
Consequences

• Compliance Risk
• Exposure to Level 1 validation requirements
• Operational Risk
• Visa-imposed operational restrictions
• Potential loss of card processing privileges

10
Agenda

• PCI DSS Background
• Notre Dames Environment
• Payment Card Environment Design
• Networking Infrastructure
• Deployment Departments and decentralized IT

11
Notre Dames Environment, Circa 2006

• Over 70 merchant accounts, 15 applications
• No central oversight
• One day all of that changed

12
12
13
Notre Dames Approach

• Conducted a risk assessment in conjunction with a
  PCI consulting firm
• From that, launched a credit card security
  program
• First Goal Minimize on-campus card processing
• Second Goal Migrate existing systems to a
  dedicated, isolated network
• First, reduce our footprint and then secure that
  footprint to the greatest degree possible

14
Agenda

• PCI DSS Background
• Notre Dames Environment
• Payment Card Environment Design
• Networking Infrastructure
• Deployment Departments and decentralized IT

15
Design NDs PCI Architecture
15
16
System and Security Components

• Firewall and VPN
• Two factor authentication to infrastructure
• Tripwire server integrity assurance
• Juniper IDS
• POS clients and servers
• Infrastructure NTP, DC, ePO, monitoring, KVM,
  central logging, etc.
• Device configuration standards

17
Firewall and IDS design

• Firewall isolates all PCI traffic
• Single External Physical interface
• Single Internal interface with multiple VLANs
• Zones organized by function
• Some special zones for campus systems
• Remote Sites connected through VPN concentrator
• Passive IDS (tried IPS) monitors all internal
  traffic

18
Sidewinder Firewall

• Application Proxy firewall
• Default deny inbound and outbound
• Group based VPN, access restricted by job
  function
• Least privilege rule base
• All access explicitly controlled

19
Key Internal Zones

20
Key Internal Zones
21
Key Internal Zones
22
Isolating Systems
23
Isolating Systems
24
Agenda

• PCI DSS Background
• Notre Dames Environment
• Payment Card Environment Design
• Networking Infrastructure
• Deployment Departments and decentralized IT

25
Network Design

• From the PCI Standards Document
• Encryption of data over open, public networks
• Follow change control procedures
• Review logs for all system components daily

26
Challenges

• Encryption of data over open, public networks.
• Required over secure vlans?

27
Challenges

• Follow change control procedures.
• Initial design thoughts incorporated secure
  vlans that we present at each endpoint on campus.
• This would have involved implementing change
  control on more than 150 network devices,
  including access layer switches.
• Review logs for all system components daily.
• On gt 150 devices?

28
Devices requiring change control with secure
vlan
29
Our solution Remote site VPNs

• Utilizes Cisco 3015 VPN concentrator with Cisco
  851 VPN routers for endpoints.
• Extends the PCI network where we need it.
• We provide user subnet space based on customer
  need
• Stand-alone credit card terminals
• POS devices
• Single use computers

30
Additional Benefits of VPN

• The VPN tunnel provides a secure method of
  managing network devices.
• Provides a means of remote access for system
  administrators
• Fewer devices to manage.
• Provides for easier additions to the PCI network.

31
Agenda

• PCI DSS Background
• Notre Dames Environment
• Payment Card Environment Design
• Networking Infrastructure
• Deployment Departments and decentralized IT

32
Deployment Departments and Decentralized IT
33
Two Types of Support

• Central IT
• Fewer technical users.
• Existing payment solutions are often inherited.
• Responsibility for payment system is often not
  clearly defined.

• Departmental IT
• Internal processes and procedures.
• Often very small staff, broad responsibilities.
• Payment solutions are often provided by external
  vendors.
• Responsibility for payment system is often
  inherited.

34
Existing systems

• Food Services
• Many terminals
• Other services blended in vending machines, food
  service displays, and campus Domer Dollars
• Many locations
• Blend of commercial and custom software
• Departmental IT

• Theater Ticketing and Events
• Single location
• Mobile and static workstations
• Web driven
• Single commercial software package
• Only standard transactions
• Central IT

35
Deployment Steps

• Review existing architecture
• Design solution
• Build required resources
• Test
• Migrate into production
• Often in phases
• Often unexpected hurdles due to legacy systems
  and applications

36
Challenges

• Process creating a controlled system for adding
  new systems and handling changes.
• Lack of vendor documentation of protocols many
  large high port groupings, reliance local
  broadcast for discovery, etc.
• Split system administration
• DR for systems designed without DR capabilities.

37
Lessons Learned

• Review vendor documentation and current
  implementation.
• Historic designs are often still in use.
• Dataflow diagrams are crucial.
• Provide a fast troubleshooting process and a
  defined support team.
• Provide a single point of responsibility with
  backup for migrations.

38
