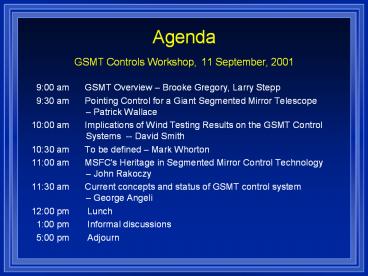

Agenda GSMT Controls Workshop, 11 September, 2001

1
AgendaGSMT Controls Workshop, 11 September, 2001

• 900 am      GSMT Overview Brooke Gregory,
  Larry Stepp
• 930 am      Pointing Control for a Giant
  Segmented Mirror Telescope
  Patrick Wallace
• 1000 am      Implications of Wind Testing
  Results on the GSMT Control
  Systems -- David Smith
• 1030 am      To be defined Mark Whorton
• 1100 am     MSFC's Heritage in Segmented Mirror
  Control Technology                 John
  Rakoczy
• 1130 am      Current concepts and status of GSMT
  control system                 George Angeli
• 1200 pm       Lunch
• 100 pm       Informal discussions
• 500 pm Adjourn

2
GSMT Overview

• B. Gregory, L. Stepp 11 September 2001

3
AURA NIO Mission

• In response to the AASC call for a Giant
  Segmented Mirror Telescope (GSMT) AURA formed a
  New Initiatives Office (NIO)
• collaborative effort between NOAO and Gemini to
  explore design concepts for a GSMT
• NIO mission
• to ensure broad astronomy community access
  to a 30m telescope contemporary in time with ALMA
  and NGST, by playing a key role in scientific and
  technical studies leading to the creation of a
  GSMT.

4
AURA New Initiatives Office

Contracted Studies
Adaptive Optics Ellerbroek/Rigaut (Gemini)
Controls George Angeli
Opto-mechanics Myung Cho
5
Objectives Next 2 years

• Develop point design for GSMT instruments
• Develop key technical solutions
• Adaptive optics
• Active compensation of wind buffeting
• Mirror segment fabrication
• Investigate design-to-cost considerations
• Carry out conceptual design activities that
  support and complement other ELT efforts
• Develop a partnership to build GSMT

6
AURA New Initiatives OfficeApproach to GSMT
Design

• Parallel efforts
• Understand the scientific context for GSMT
• Develop the key science requirements
• Address challenges common to all ELTs
• Wind-loading
• Adaptive optics
• Site
• Develop a Point Design
• Based on initial science goals
• Key part is conceptual design of instruments

7
What is a Point Design?

• A point design is a learning exercise that
• Explores a single, plausible design
• Helps identify key technical issues
• Helps define factors important to the science
  requirements
• Provides an opportunity to develop necessary
  analytical methods
• A point design is not
• A trade study that evaluates all possible options
• A design that anyone is proposing to build

8
Point Design Scientific Motivations

• Enable high-Strehl performance over several
  arc-minute fields
• Stellar populations galactic kinematics
  chemistry
• Provide a practical basis for wide-field, native
  seeing-limited instruments
• Origin of large-scale structure
• Enable high sensitivity mid-IR spectroscopy
• Detection of forming planetary systems
• Telescope design should be driven by needs of
  instruments

9
Point Design Basic Design Concepts

• Explore a radio telescope approach
• Possible structural advantages
• Possible advantages in accommodating large
  instruments
• Use aspheric optics good image after two
  reflections
• Incorporate an adaptive M2
• Compensate for wind-buffeting
• Reduce thermal background
• Deliver enhanced-seeing images
• Explore prime focus option
• Attractive enabler for wide-field science
• Cost-saving in instrument design

10
Radio Telescope Structural Design

• Fast primary focal ratio
• Lightweight steel truss structure
• Small secondary mirror
• Secondary supported on tripod structure
• Elevation axis behind primary mirror
• Span between elevation bearings is less than
  diameter of primary mirror allows direct load
  path

11
Optical Design
Optical design Classical Cassegrain

• Primary diameter 30 meters

Primary focal ratio f/1
Secondary diameter 2 meters
Secondary focal ratio f/18.75
12
Point Design Structure

• Concept developed by Joe Antebi of Simpson
  Gumpertz Heger
• Based on radio telescope
• Space frame truss
• Single counterweight
• Cross bracing of M2 support

13
Point Design Structure
Plan View of Structure Pattern of segments

Gemini
14
Lower Elevation Structure
15
Primary Mirror Segments

• Factors favoring large segment size
• Reduces number of position sensors actuators
• Simplifies alignment procedures
• Reduces overall complexity
• Reduces number of unique segment types
• Factors favoring a small segment size
• Reduces complexity of segment support (i.e.
  whiffletree)
• Reduces shipping costs (big jump at 2.4 meters)
• Reduces size cost of equipment for polishing,
  ion figuring, coating handling
• Reduces asphericity of individual segments
• Asphericity goes as square of segment diameter
• Reduces sensitivity to segment position rotation

16
Primary Mirror Segments

• Size chosen for point design
• 1.15-m across flats -- 1.33-m corner to corner
• 50 mm thickness
• Number of segments 618
• Maximum asphericity 110 microns (equal to Keck)

17
Segment Support

• Point design axial support is 18-point
  whiffletree
• FEA Gravity deflection 15 nm RMS

18
Wind Loading

• Primary challenge may be wind buffeting
• More critical than for existing telescopes
• Structural resonances closer to peak wind power
• Wind may limit performance more than local seeing
• Solutions include
• Site selection for low wind speed
• Optimizing enclosure design
• Dynamic compensation
• Adaptive Optics
• Active structural damping

19
Initital Structural Analysis
Horizon Pointing - Mode 1 2.16 Hz

20
Structural Analysis

• Total weight of elevation structure 700 tonnes
• Total moving weight 1400 tonnes
• Gravity deflections 5-25 mm
• Wind buffeting response 10-100 microns
• Deflections are primarily rigid-body motions
• Lowest resonant frequencies 2 Hz

21
Instruments

• NIO team developing design concepts
• Multi-Object, Multi-Fiber, Optical Spectrograph
  MOMFOS
• Near IR Deployable Integral Field Spectrograph
  NIRDIF
• MCAO-fed near-IR imager
• Mid-IR, High Dispersion, AO Spectrograph MIHDAS
• Build on extant concepts where possible
• Define major design challenges
• Identify needed technologies

22
Multi-Object Multi-Fiber Optical Spectrograph
(MOMFOS)

• 20 arc-minute field
• 60-meter fiber cable
• 700 0.7 fibers
• 3 spectrographs, 230 fibers each
• VPH gratings
• Articulated collimator for different resolution
  regimes
• Resolution Example ranges with single
  grating
• R 1,000 350nm 650nm
• R 5,000 470nm 530nm
• R 20,000 491nm 508nm
• Detects 13 - 23 of photons hitting the 30m
  primary

23
Mid-Infrared High Dispersion AO Spectrograph
(MIHDAS)

• Adaptive Secondary AO feed
• On-Axis, Narrow Field/Point Source
• R120,000
• 3 spectrographs
• 2-5 mm (small beamed, x-dispersed), 0.2
  arc-second slit length
• 10-14 mm (x-dispersed), 1 arc-second slit
• 16-20 mm (x-dispersed), 1 arc-second slit
• 10-14 mm spectrograph likely to utilize same
  collimator as 16-20 mm instrument. Different
  Gratings and Camera.
• 2-5 mm spectrograph may require additional AO
  mirrors.

24
Near Infra-Red Deployable Integral Field
Spectrograph (NIRDIF)

• MCAO fed
• 1.5 to 2.0 arc-minute FOV
• 1 2.5 mm wavelength coverage
• Deployable IFU units
• 1.5 arc-second FOV per IFU probe
• 31 slices per IFU probe (0.048 per slice)
• 26 deployable units

25
MCAO Near-IR Imager

• f/38 input with 11 reimaging optics
• 1.5 to 2 arc-minute field of view
• Monolithic imager -
• 5.5 mm/arc-second plate scale!
• 685 mm sized detector array for 2 arc-min field!
• 28K by 28K detector!
• 7 by 7 mosaic of 4K arrays
• 0.004 arc-second per pixel sampling
• Alternative approach is to have deployable
  capability
• for imaging over a subset of the total field.

26
Instrument Locations on Telescope

• Fixed Gravity Cass
• Direct-fed Nasmyth
• Fiber-fed Nasmyth
• Prime Focus
• Co-moving Cass

View showing Fixed Gravity Cass instrument
27
MOMFOS with Prime Focus Corrector

Conceptual design fits in a 3m dia by 5m long
cylinder
28
Instrument Locations on Telescope
View showing Co-moving Cass instrument
29
MCAO/AO foci and instruments
Oschmann et al (2001)
MCAO opticsmoves with telescope
elevation axis
4m
MCAO Imager at vertical Nasmyth
Narrow field AO or narrow field seeing limited
port
30
MCAO System Current Layout

31
Instrument Locations on Telescope
Fiber-fed MOMFOS
MCAO-fed NIRDIF or MCAO Imager
Cass-fed MIHDAS
32
Mayall, Gemini and GSMT Enclosuresat same scale

Mayall
Gemini
GSMT
33
McKale Center Univ of Arizona
34
GSMT at same scale
35
Key Point-Design Features

• Radio telescope structure
• Advantages
• Direct load path to elevation bearings
• Cass focus can be just behind M1
• Allows small secondary mirror can be adaptive
• Allows MCAO system ahead of Nasmyth focus
• Allows many gravity-invariant instrument
  locations
• Disadvantage
• Requires counterweight
• Sweeps out larger volume in enclosure

36
Key Point-Design Features

• F/1 primary mirror
• Advantages
• Reduces size of enclosure
• Reduces flexure of optical support structure
• Reduces counterweights required
• Disadvantages
• Increased sensitivity to misalignment
• Increased asphericity of segments

37
Key Point-Design Features

• Paraboloidal primary
• Advantages
• Good image quality over 10-15 arcmin field with
  only two reflections
• Lower emissivity for mid-IR
• Compatible with laser guide stars
• Disadvantages
• Higher segment fabrication cost
• Increased sensitivity to segment alignment

38
Key Point-Design Features

• 2m diameter adaptive secondary mirror
• Advantages
• Correction of low-order M1 modes
• Enhanced native seeing
• Good performance in mid-IR
• First stage in high-order AO system
• Disadvantages
• Increased difficulty (i.e. cost)

Goal 8000 actuators 30cm spacing on M1
39
Key Point-Design Features

• Prime focus location for MOMFOS
• Advantages
• Fast focal ratio leads to instrument of
  reasonable size
• Adaptive prime focus corrector allows enhanced
  seeing performance
• Disadvantages
• Issues of interchange with M2

40
Key Enabling Techniques Active and Adaptive
Optics

• Active Systems
• M1 segment rigid body position
• 1 Hz
• Piston, tip tilt
• M1 segment figure control
• Based on look-up table 0.1 Hz
• Low order -- Astigmatism, focus, trefoil, coma
• M2 rigid body motion
• 5-10 Hz
• Five axes active focus alignment, image
  stabilization
• Active structural elements (?)
• Active alignment
• Active damping

41
Key Enabling Techniques Active and Adaptive
Optics

• Adaptive Systems
• Adaptive secondary mirror
• 20-50 Hz
• 1000-10,000 actuators
• Adaptive mirror in prime focus corrector
• Multi-conjugate wide-field AO
• 3 DMs
• Laser Guide Stars
• High-order narrow-field conventional AO
• 10,000 50,000 actuators
• Active and Adaptive Optics will be integrated
  into GSMT Telescope and Instrument concepts from
  the start
