32bit PowerPC Assembly Basics

1

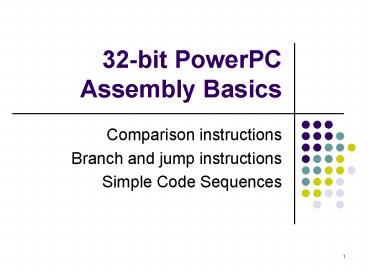

32-bit PowerPC Assembly Basics

• Comparison instructions
• Branch and jump instructions
• Simple Code Sequences

2
Where Are Branches Used?

• In C control statements
• If statement
• if (n gt 0)
• else
• While loop
• while (s ! NULL)

• For loop
• for (i 0 i lt N i)
• Do loop
• do
• while (s ! NULL)
• Others
• e.g. max (x gt y) ? x y

3
Comparison Instructions

• To set up conditions in CR or XER bits
• Set by arithmetic/logic/shift instructions with
  . suffix
• Set by comparison instructions
• Compare signed word and unsigned word
• cmpw r3, r4 set CR0 as for signed r3-r4
• cmplw r3, r4 set CR0 as for unsigned r3-r4
• Cmplw compare logical
• Compare using immediate values
• cmpwi r3, 200 set CR0 as for signed r3-200
• cmplwi r3, 200 set CR0 as for unsigned r3-200

4
Comparison Instructions

• Compare and set specific condition registers
• Comparison may specify which CR field to use
• cmpw cr3, r3, r4 set CR3 instead of CR0
• cmplwi cr2, r3, r4 logical and using immediate
  and set CR2
• cmpw cr0, r3, r4 equivalent to cmpw r3, r4

5
Branch Basic Terms

• branch condition, branch-target
• Unconditional branches
• Always jump to the target address
• Conditional branches
• Take the branch only if some condition holds
• Target address
• Determining the address of the next instruction

6
Unconditional Branches

• Unconditional branches
• C Assembly
• while (1) loop addi r9, r9, 1
• XX1 b loop

(-4) The target loop is
specified as an offset from the current
instruction (PC-relative).
7
Conditional Branches

• Commonly used branches
• Use condition register CR0 LT, GT, EQ, SO
• Common forms ble target_address
• ble branch if less then or equal ? GT0
• blt branch if less then ? LT1
• beq branch if equal ? EQ1
• bne branch if not equal ? EQ0
• bge branch if greater than or equal to ? LT0
• bgt branch if greater than ?GT1
• All encoded in the same instruction format (see
  next)

8
Conditional Branches

• Using CR fields
• bne cr2, target branch if EQ of CR2 is zero
• Example using branch with comparison
  instructions
• loop
• addi r3, r3, 1 increase r3
• cmpw r3, r4 compare r4
• bne target branch if r3 ! r4
• Example using different CR field
• loop
• addi r3, r3, 1 increase r3
• cmpw cr3, r3, r4 compare using cr3
• bne cr3, target branch if r3 ! r4

9
Determining Target Address

• PC-relative next PC PC EXTS(PC-Offset
  0b00)
• Absolute next PC EXTS(PC-Offset 0b00)
• Register next PC value of register
• Can use two special registers LR or CTR
• Why sign-extension of an address (for absolute)?
• Are addresses ever negative?
• Upper address space usually reserved for I/O
  addresses (say oxff000000 onwards).
• 0xff00 gets sign-extended to 0xffffff00.

10
Determining Target Address

• Use PC-relative or absolute addressing a
  suffix
• Use PC-relative address
• Use absolute address ba loop
• Update LR option l suffix
• If updating, save PC4 into LR
• Do not update LR b target_addr
• Update LR bl func_addr
• Update LR and use absolute address bla func_addr
• When do we want to save PC4?

11
Underlying Details
Instruction format
0-5
6-10
11-15
16-29
30
31
bx
18
PC-Offset
AA
LK
16
BO
AA
LK
BI
BD
bcx
19
BO
LK
BI
00000
16
bclrx
19
BO
LK
BI
00000
528
bcctrx

• bx encodes 24-bit address (26-bit effective)
• bcx encodes 14-bit address (16-bit effective)
• bclrx uses LR register as target address
• bcctrx uses CR register as target address
• x representing AA and LK bits, e.g. l,
  a, la

12
Underlying Details
Instruction Fields
16
BO
AA
LK
BI
BD
bcx

• BO Branch options
• Encodes branching on TRUE or FALSE or on CTR
  values
• BI Index of the CR bit to use
• five bits index to 32 CR bits, 3-bit for CR
  index, 2-bit to select LT, GT, EQ, or SO
• BD Branch displacement
• 14-bit (16-bit effective), signed-extended
• AA absolute address bit
• 1 use absolute addressing 0 use PC-relative
  addressing
• LK link bit
• 1 update LR with PC4 0 do not update

13
Underlying Details
BO and BI Fields

• Frequently used BO encoding in bc, bclr, and
  bcctr
• BO00100 (4) branch if the condition is false
• BO01100 (12) branch if the condition is true
• BO10100 (20) branch always
• BO10000 (16) decreases CTR then branch if
  CTR!0
• Examples
• blt target_addr ? bc 12, 0, target_addr
• blt cr3, target_addr ? bc 12, 12, target_addr
• blr ? bclr 20, 0 unconditional branch to addr in
  LR
• bnelr target_addr ? bclr 4, 2 branch to LR if
  not equal
• Explanation bc 4, 14, target_addr branch if bit
  14 in CR (CR3EQ) is false (because BO4) ? bne
  cr3, target_addr

14
Underlying Details
AA and LK fields
0-5
6-10
10-15
16-29
30
31
bx
18
Offset
AA
LK
16
BO
AA
LK
BI
BD
bcx
19
BO
LK
BI
00000
16
bclrx
19
BO
LK
BI
00000
528
bcctrx

• Branch examples using AA and LK bits (zeros by
  default)
• bl target_addr branch and save PC4 in LR
• ba target_addr branch using absolute addressing
• bla target_addr branch using absolute
  addressing
• and save PC4 in LR

15
Support Procedure Call/Return

• Link Register
• Supporting function calls
• A parent function calls a child function bl
  child_func
• LR lt PC 4
• PC lt child function address
• The child function executes
• The child function returns blr
• PC lt LR
• The parent function continues
• blr branch to link register address
• All bx forms b, ba, bl, bla
• LK 1 if link register is to be updated
• Q What to do if the child function calls another
  function?

16
Simple Code Sequences

• How to translate
• C arithmetic expressions
• C if statement
• C for loops
• Function calls (next week)

17
C Arithmetic Expressions

• Basic operations
• static int sum
• static int x1, x2
• static int y1, y2
• sum (x1x2)-(y1y2)100

• Assembly
• lwz r3, 4(r13) load x1
• lwz r0, 8(r13) load x2
• add r4, r3, r0 x1x2
• lwz r3, 12(r13) load y1
• lwz r0, 16(r13) load y2
• add r0, r3, r0 y1y2
• subf r3, r0, r4 minus
• addi r0, r3, 100 add 100
• stw r0, 0(r13) store sum

Q What would happen if signed is changed to
unsigned?
18
C Arithmetic Expressions

• Sign extension
• static short sum
• static short x1, x2
• static short y1, y2
• sum (x1x2)-(y1y2) 100

• Assembly
• lha r3, 2(r13) load x1
• lha r0, 4(r13) load x2
• add r4, r3, r0 x1x2
• lha r3, 6(r13) load y1
• lha r0, 8(r13) load y2
• add r0, r3, r0 y1y2
• subf r3, r0, r4 minus
• addi r0, r3, 100 add 100
• sth r0, 0(r13) store sum

19
If-then-else

• C Program
• if (x gt y)
• z 1
• else
• z 0

• Assembly
• cmpw r3, r4
• ble skip1
• li r31, 1
• b skip2
• skip1 li r31, 0
• skip2

• Notes
• Code generated by CodeWarrior and then revised
• x ? r3 y ? r4 z ? r31
• li r31, 1 gt addi r31, 0, 1 li called simplified
  mnemonic

20
If-then-else

• C Program
• static int x, y
• static int max
• if (x y gt 0)
• max x
• else
• max y

• Assembly
• lwz r4, 0(r13) load y
• lwz r0, 4(r13) load x
• subf r0, r4, r0 x-y
• cmpwi r0, 0x0000 x-ygt0?
• ble skip1 no, skip maxx

• lwz r0, 0(r13) load x
• stw r0, 8(r13) maxx
• b skip2 skip maxy
• skip1 lwz r0, 4(r13) load y
• stw r0, 8(r13) maxy
• skip2

• Notes
• Generated by CodeWarrior and then revised
• Can you optimize the code? i.e. reduce number of
  instruction but produce the same output

21
If-then-else
Binary code

• Disassembled code
• Address Binary Assembly
• 00000048 7C001800 cmpw r0,r3
• 0000004C 4081000C ble 12
• 00000050 3BE00001 li r31,1
• 00000054 48000008 b 8
• 00000058 3BE00000 li r31,0
• 0000005C

• Assembly Source
• cmpw r0, r3
• ble skip1
• li r31, 1
• b skip2
• skip1 li r31, 0
• skip2

22
For loop

• C code
• static int sum
• static int X100
• int i
• sum 0
• for (i 0 i lt 100 i )
• sum Xi

• Assembly
• li r0, 0 sum 0 sum?r31
• stw r0, 0(r13) sum 0
• li r31, 0 i?r31
• b cmp_
• loop slwi r4, r31, 2 r4i4
• lis r3, X_at_ha load X address
• ori r3, r3, X_at_lo load X address
• add r3, r3, r4 Xi address
• lwz r4, 0(r3) load Xi
• lwz r0, 0(r13) load sum
• add r0, r0, r4 sumXi
• stw r0, 0(r13) store sum
• addi r31, r31, 1 increase i
• cmp_ cmpwi r31, 0x0064 0x64 100
• blt loop
• (generated by CodeWarrior and then revised)

Exercise (1) How many instructions will be
executed? (2) Optimize the code to reduce the
loop body to 4 instructions (3) further reduce
the loop body to 3 instructions. Loop body
includes the branch instruction.
