Business as usual in the past:

1

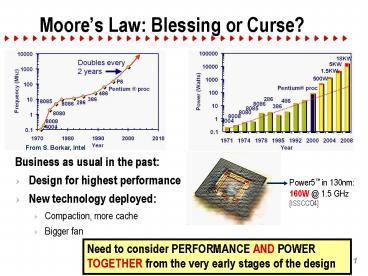

Moores Law Blessing or Curse?
From S. Borkar, Intel

• Business as usual in the past
• Design for highest performance
• New technology deployed
• Compaction, more cache
• Bigger fan

Need to consider PERFORMANCE AND POWER TOGETHER
from the very early stages of the design
2
Power Performance Optimization
Power
Initial design
Design within power budget
Cycle time
OPTIMAL POWER PERFORMANCE TRADEOFF CURVE

• Only circuits on the optimal power performance
  tradeoff curve make sense

3
Circuit Optimization Framework
Models
Netlist
Plug-ins
Variables
Optimization Core
Optimal Design
Results
4
The Core Mathematical Optimization

• Very difficult in the general case
• Optimality not guaranteed
• CONVEX OPTIMIZATION
• f, gi convex, hj linear
• Key property every local minimum is a global
  minimum
• Optimality guaranteed

5
Choice of Models

• ANALYTICAL
• Various degrees of complexity
• Fast parameter extraction
• Provide insight in the operation of the circuit
• Can exploit their mathematical properties to help
  optimization
• Target convex optimization
• Limited accuracy

• TABULATED
• Very accurate
• Slow to generate
• No insight in the operation of the circuit
• Optimization is blind
• If convex models are any good, the optimization
  problem is not very non-convex

6
Optimizing Combinational Circuits

• Minimize DELAY
• subject to
• Maximum ENERGY
• Constraints
• Maximum ouput slew
• Maximum internal slew
• Maximum input capacitance
• Minimum sizes

Basic Result Energy - Delay tradeoff curve
Fastest circuit
Energy
Lowest power circuit
Delay
7
Optimizing Combinational Circuits
Example Optimal 64-Bit CLA Adders in the Energy
Delay Space
R. Zlatanovici, B. Nikolic Power Performance
Optimal 64-Bit Carry-Lookahead Adders, ESSCIRC
2003
8
64-Bit Adders Impact of Stack Height

• Technology
• 130nm 1P 6M
• VDD 1.2V
• Setup summary
• Cout 450 fF
• Cin ? 150 fF
• 1 bitslice 18 M1 pitches
• Fixed datapath height

3-stack
4-stack
5-stack
9
Fastest 64-Bit Adder

• Proof of concept implementation
• Radix-4 sparse-2 tree in domino logic
• Technology
• 90 nm 1P 7M
• VDD 1 V
• Performance
• Delay 210 ps (post layout simulation)
• Energy 9.1 pJ / cycle (optimization tool)
• Core dimensions 417.3 ?m x 75.3 ?m
• Chip almost ready for tapeout
• with Sean Kao

10
Optimizing Pipelined Circuits
Models Posy- nomials
Block Level Netlist
Minimize TCYCLE Subject to Maximum ENERGY
Gate Sizes Latch Positions
Static timer
Optimizer

• Fix pipeline depth
• Find shortest cycle time for fixed cutset
• Search for optimum cutset

Optimal Pipeline Configuration
11
Optimizing Pipelined Circuits Example

• Models posynomials
• Variables gate sizes, latch positions
• Minimize cycle time subject to maximum energy
• Result optimal configuration

12
Summary
Power and performance are the two sides of the
same coin. The connection the power
performance tradeoff curve.

• Developed a modular optimization framework to
  design power performance optimal circuits
• Optimizer for combinational circuits
• Experimented on 64-bit CLA adders
• Optimizer for pipelined circuits
• In test on an IEEE- compliant Floating Point Unit
  (FPU)
